NTB143/H143 Replacements

NTB143 Brush Cutter Parts

Craftop NTB143 spare part replacements feature durable and high-quality components for H143 serie gas brush cutter.
The engine and crankshaft body of the weed whacker is crafted by CNC machining process and guarantees accurate results.
Made from top-grade nylon reinforcement, the grass cutter's plastic parts provide excellent thermal resistance and strength.
With our Easy-Start ignition system, you can save time and effort as the brush cutter starts within minutes.
The U-shaped handlebar, designed for ergonomic comfort, can be easily rotated 90° for convenient retraction.
The gearbox, manufactured with high precision and strict tolerance control, ensures a service life of over 200 hours.

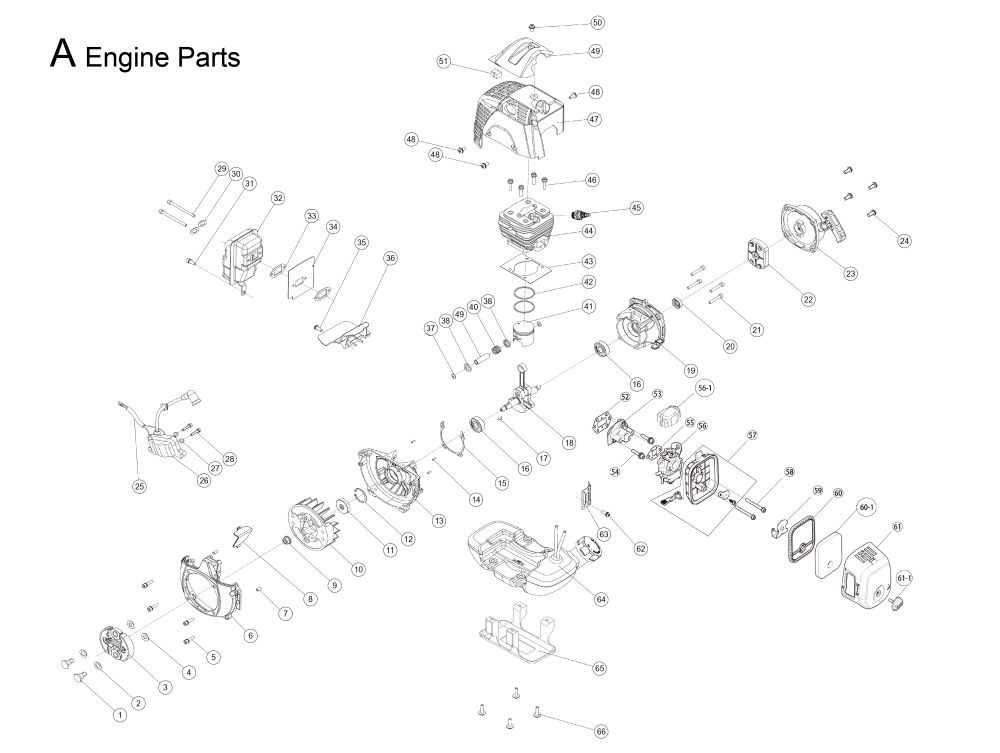

Exploded View of the Whole Machine

Important Spare Parts

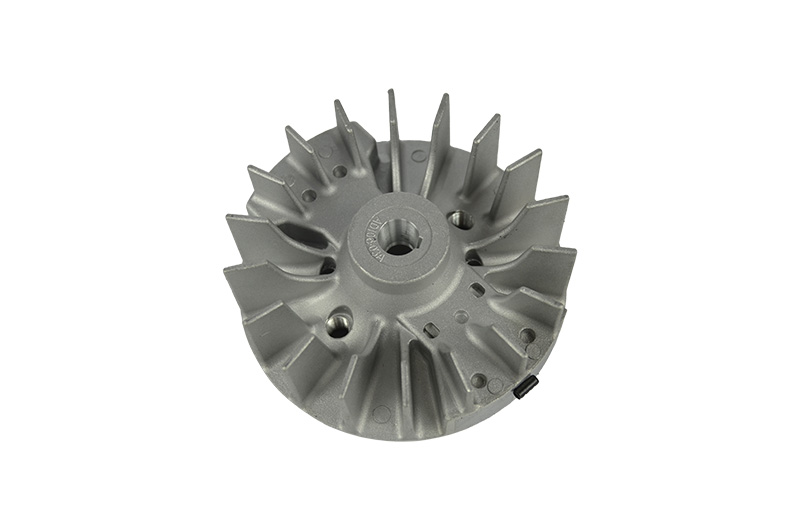

A10 Flywheel

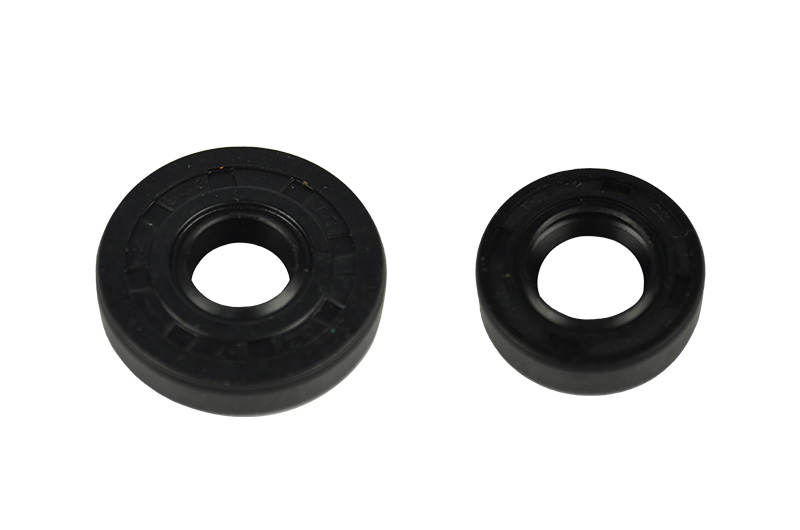

A11+20 Oil Seal

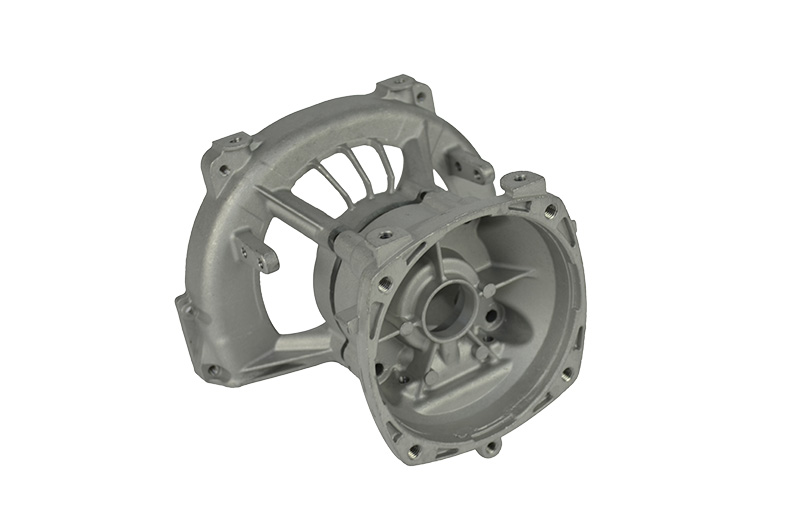

A13+19 Crankcase

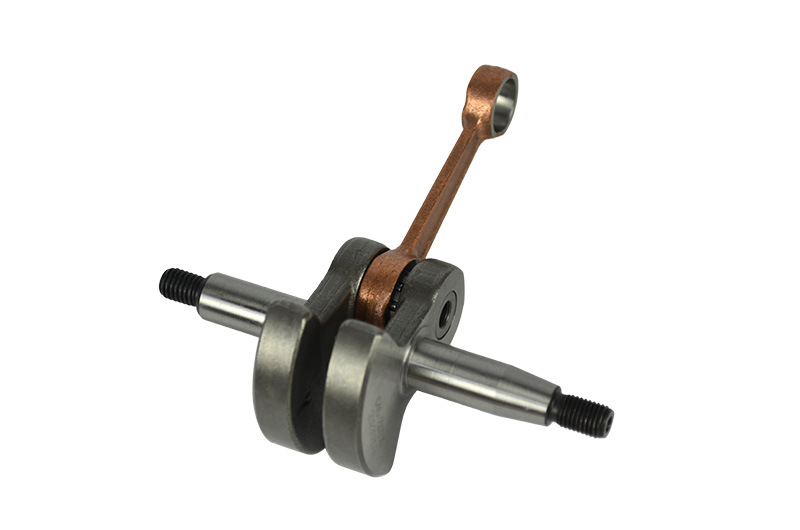

A18 Crankshaft

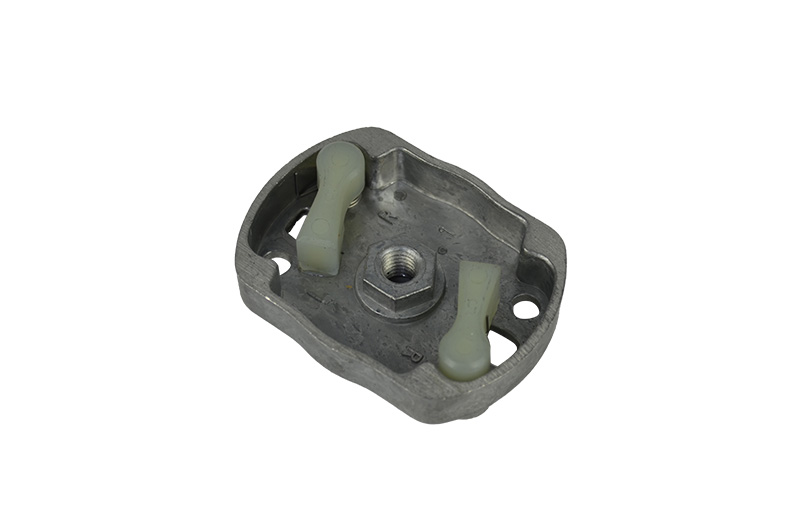

A22 Pulley Assy

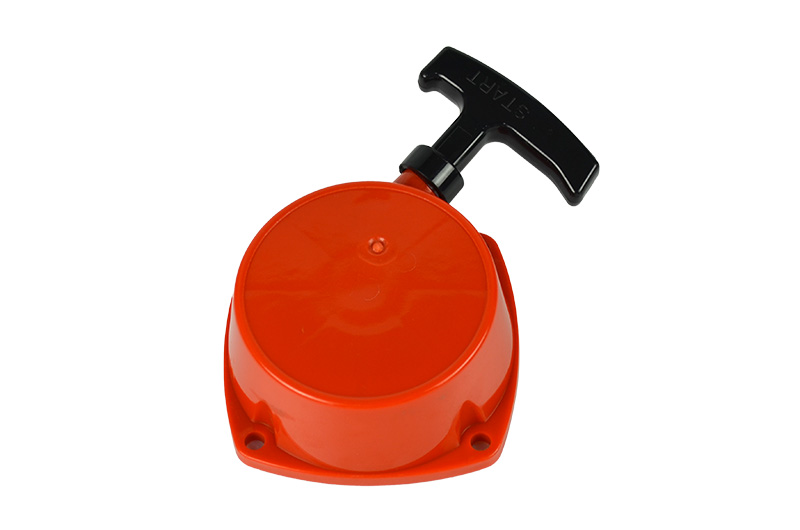

A23 Starter Assy

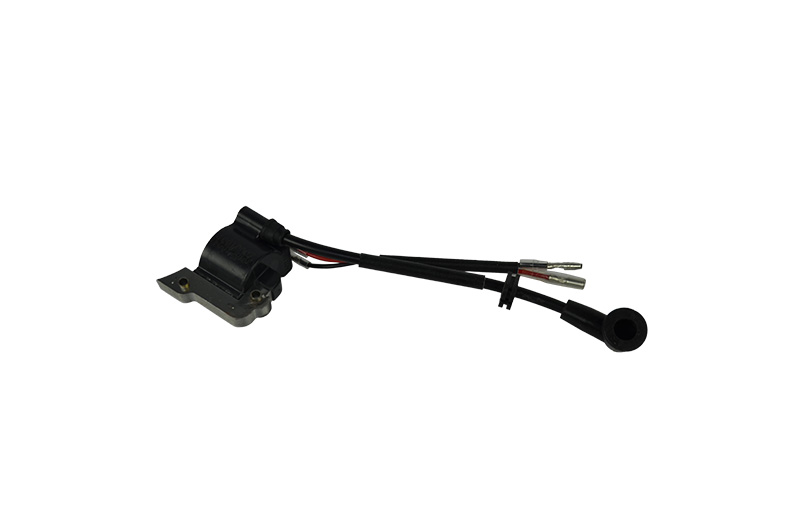

A26 Ignition Coil

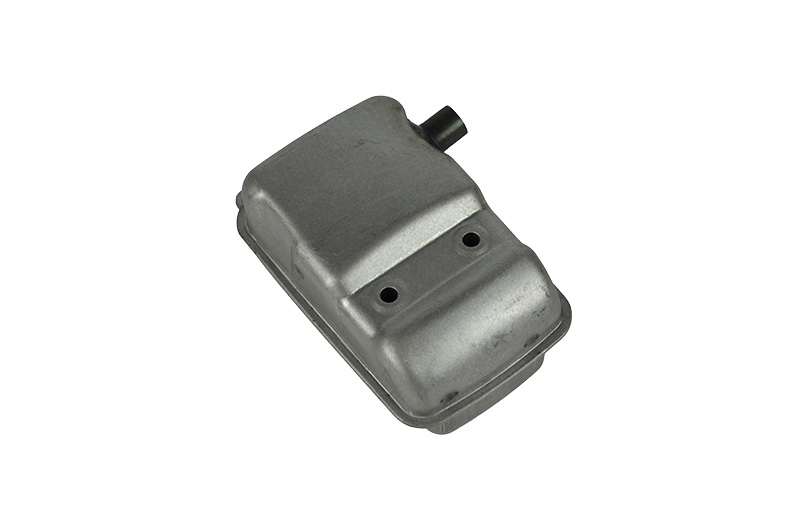

A32 Muffler

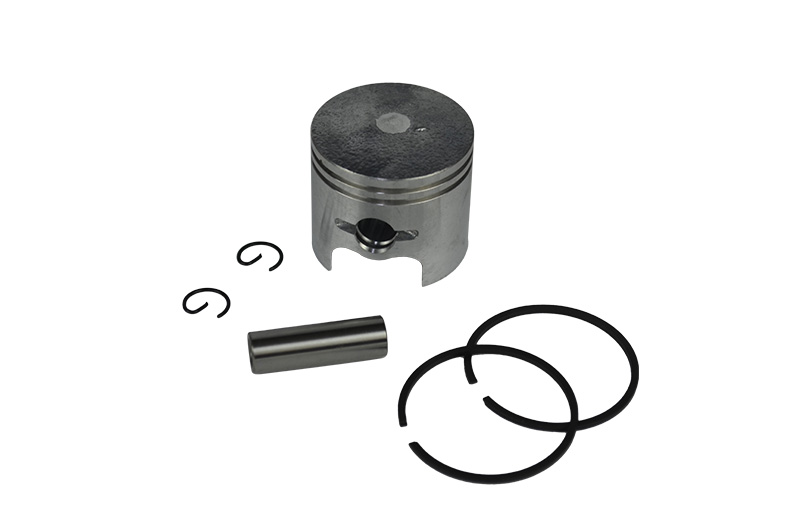

A37+39+41+42 Pitson Assy

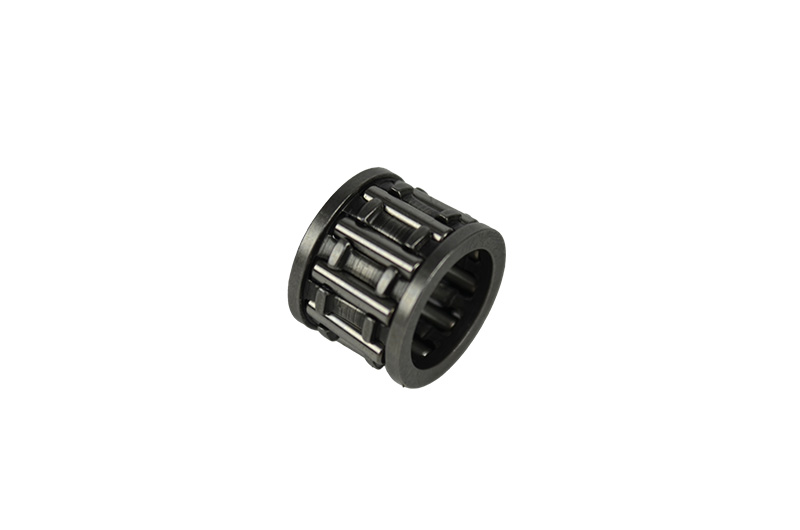

A40 Needle Bearing

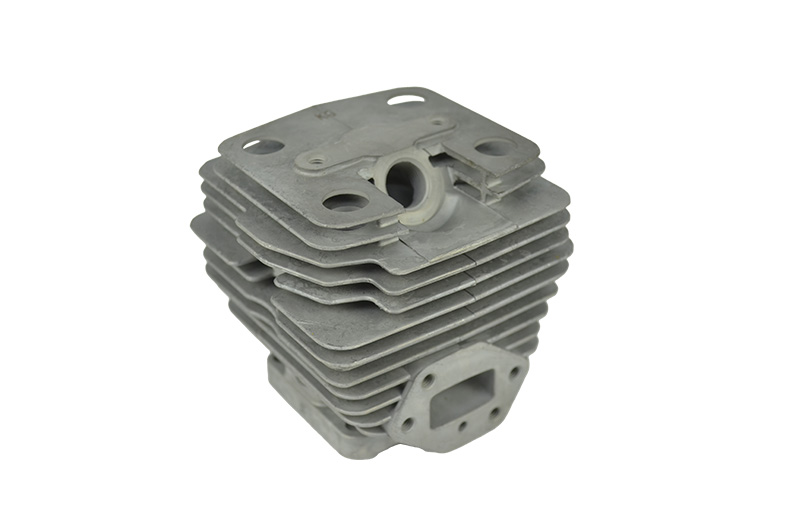

A44 Cylinder

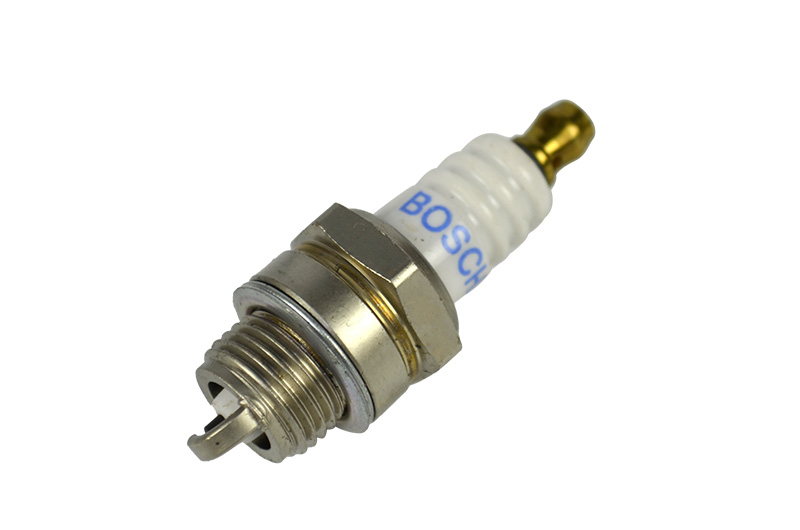

A45 Spark Plug

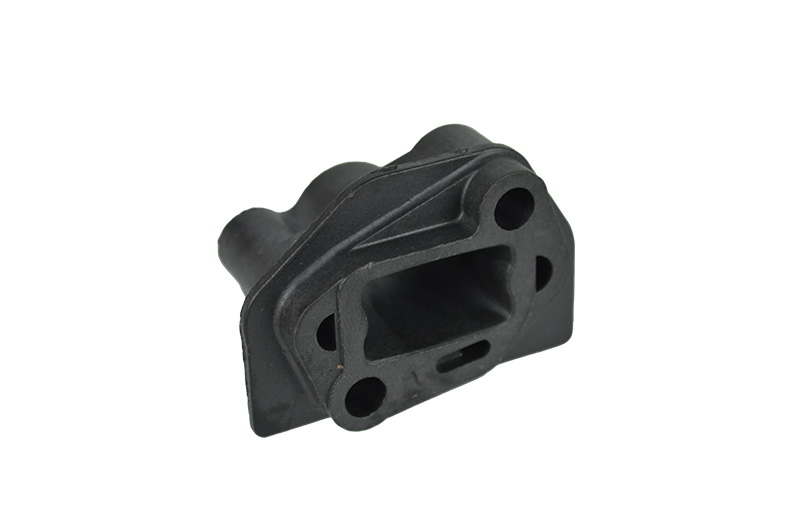

A53 Intake Boot

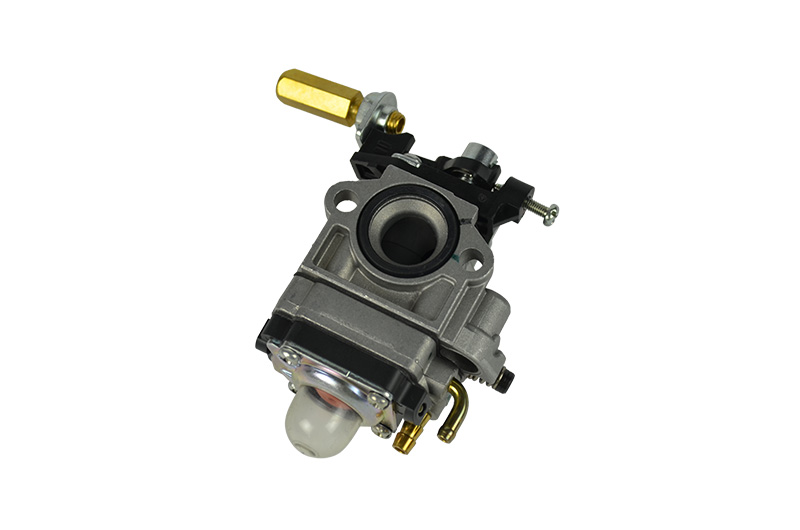

A56 Carburetor

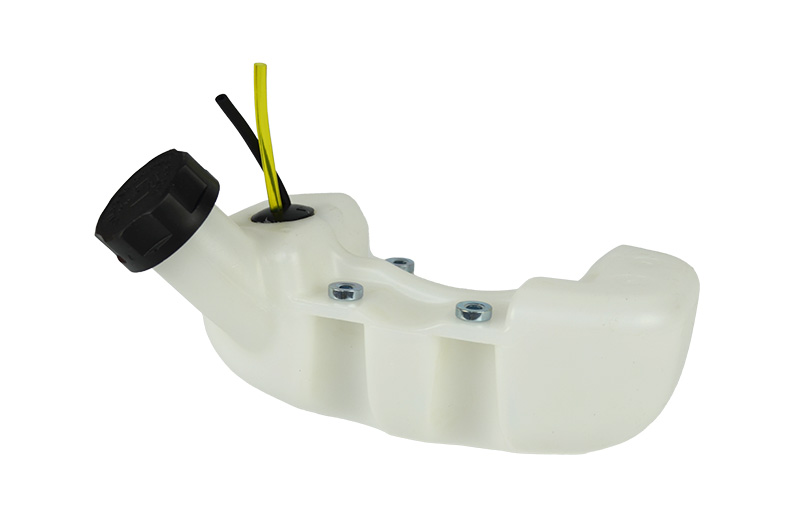

A64 Fuel Tank FULE TANK

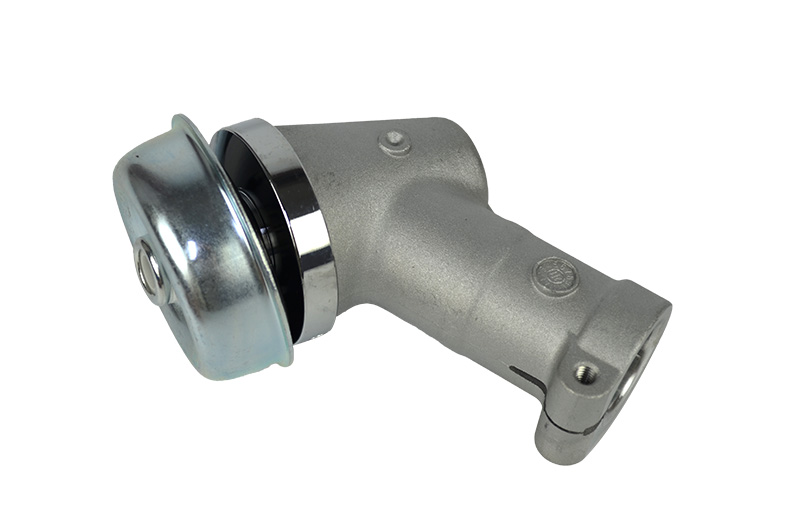

B1 Gear Housing

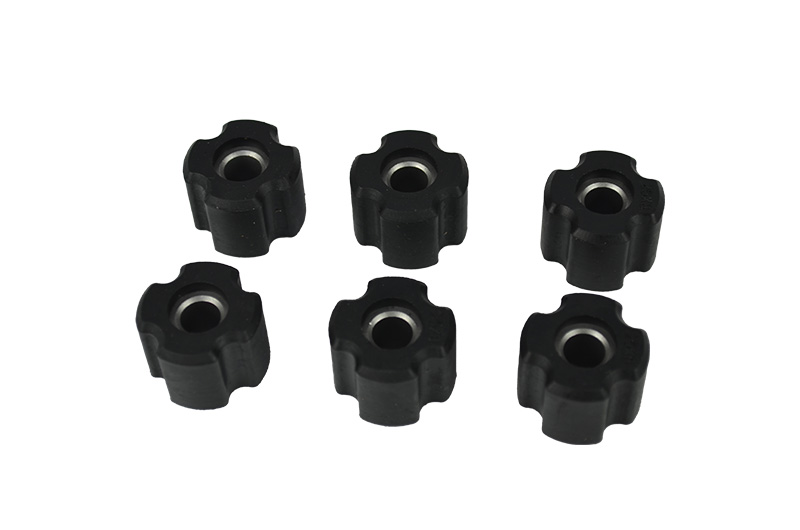

B5 Oil Bearing

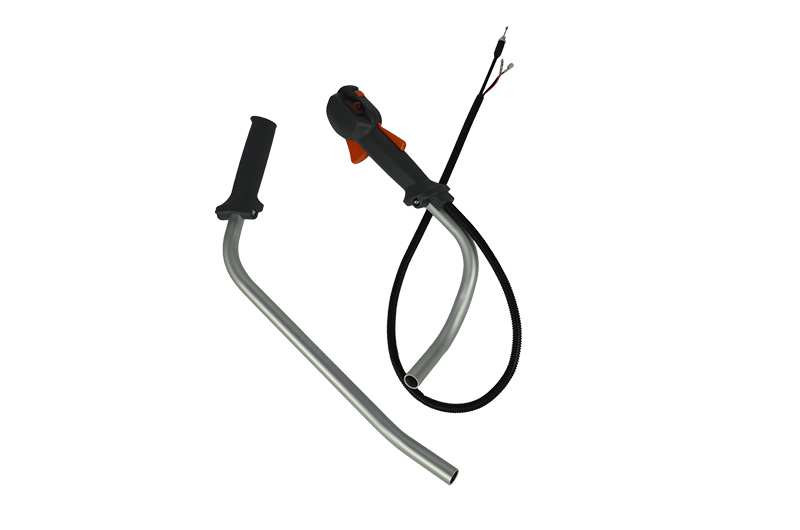

B10+11 Handle Assy

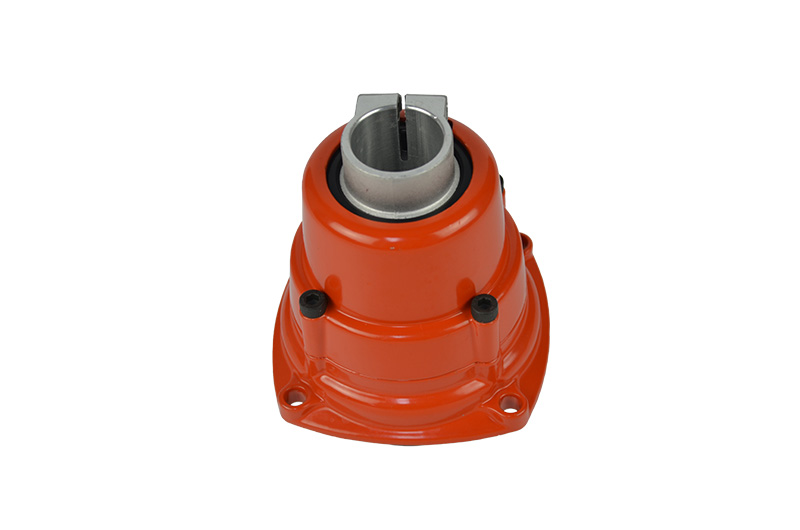

B12 Connection Assy

Other Spare Parts

CODE	PART NAME	CODE	PART NAME
A	ENGINE PART	A-46	Flange Face Hexagon Socket Screws
A-1	Shoe Block Bolt	A-47	Cylinder Cover
A-2	Wave Gasket	A-48	Cross Spherical Screws Come With Flat Pads
A-3	Hoof Block Assembly	A-49	Cylinder Top Cover
A-4	Flat Gasket	A-50	Cross Spherical Screws Come With Flat Pads
A-5	Socket Head Cap Screws	A-51	Cylinder Cover Block
A-6	Side Cover	A-52	Carburetor Seat Gasket
A-7	Split Positioning Pin	A-53	Carburetor Seat
A-8	Baffle	A-54	Hexagon Socket Combination Screws
A-9	Flange Surface Self-Locking Nut	A-55	Gasket,Carburetor
A-10	Magnetic Flywheel	A-56	Carburetor
A-11	Oil Seal	A-56-1	Dust Cover
A-12	Elastic Retaining Ring For Hole	A-57	Air Filter Seat Assembly
A-13	Large Crankcase	A-58	Socket Head Cap Screws
A-14	Split Positioning Pin	A-59	Anti-Spray Plate
A-15	Gasket,Crankcase	A-60	Air Filter Cotton
A-16	Ball Bearing	A-60-1	Sponge Filter
A-17	Woodruff Key	A-61	Air Filter Cover
A-18	Crankshaft Assembly	A-61-1	Locking Knob
A-19	Small Crankcase	A-62	Socket Head Cap Screws
A-20	Oil Seal	A-63	Baffle
A-21	Socket Head Cap Screws	A-64	Fuel Tank Assy
A-22	Dial	A-65	Fuel Tank Protective Seat
A-23	Launcher	A-66	Socket Head Cap Screws

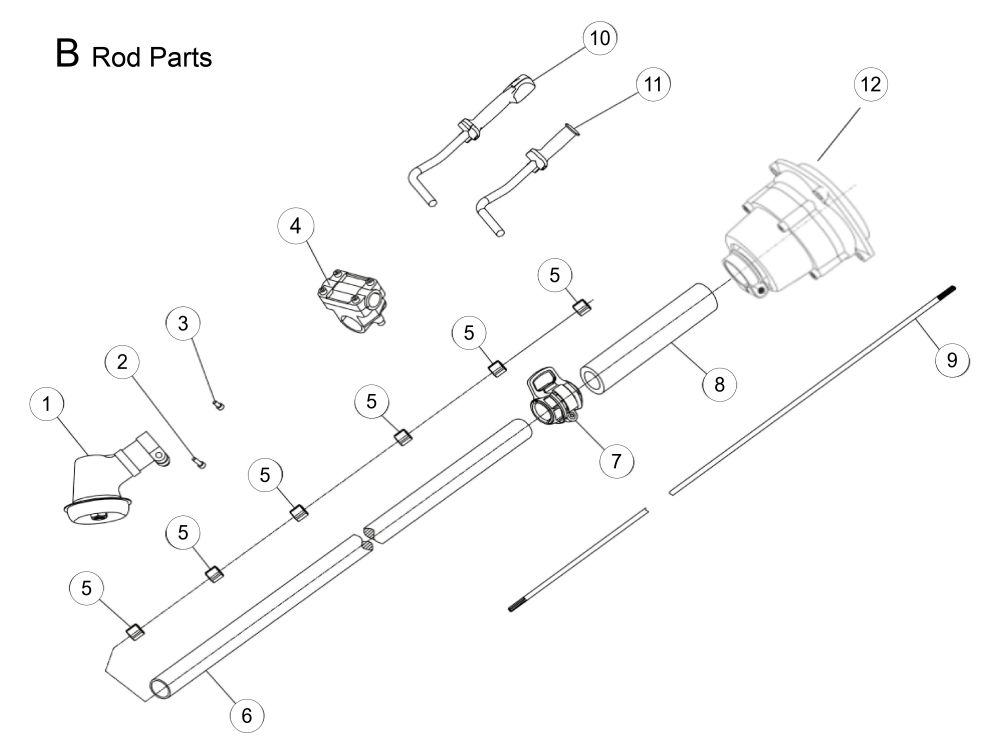

A-24	Cross Spherical Screws Come With Flat Pads	B	ROD PART
A-25	Flameout Line Components	B-1	Gearbox/Working Head Assembly
A-26	Ignition Coil	B-2	Socket Head Cap Screws
A-27	Copper Flat Pad	B-3	Socket Head Cap Screws
A-28	Socket Head Cap Screws	B-4	Fixing Seat Assembly
A-29	Socket Head Cap Screws	B-5	Oil Bearings
A-30	Copper Flat Pad	B-6	Aluminum Tube
A-31	Socket Head Cap Screws	B-7	Buckle
A-32	Muffler	B-8	Leather Sheath
A-33	Muffler Graphite Gasket	B-9	Transmission Shaft
A-34	Muffler Aluminum Gasket	B-10	Right Hand Handle Assembly
A-35	Socket Head Cap Screws	B-11	Left Hand Handle Assembly
A-36	Muffler Baffle	B-12	Clutch Disc Assembly/Output Seat
A-37	G Type Circlip	-	Other Replacement Parts
A-38	Anti-Wear Pads	-	Grass Cover
A-39	Piston Pin	-	Grass Cover Pressure Plate
A-40	Needle Roller Bearings	-	Straight Blade
A-41	Piston	-	Strap
A-42	Piston Rings	-	Proportioning Kettle
A-43	Gasket,Cylinder	-	Funnel
A-44	Cylinder	-	Big Tie
A-45	Spark Plug	-	-
