NTB330D Accessories

NTB330D Brush Cutter Parts

Craftop NTB330D spare parts are durable and of high quality:

Engine and crankshaft body is made of aluminum alloy material with optimal light weight Machining at CNC center has good accuracy.
Plastic spare parts are made of excellent grade nylon reinforcement, offering good thermal resistance and strength.
The Easy-Start ignition system saves time and labor, it can starts within minutes.
U-shaped handlebar conforms to ergonomics and can be rotated 90° for easy retraction.
Being equipped with a thickened shock absorber sleeve, the cutting rod is of smallest vibration transmission.
Gearbox is manufactured with high precision and strict tolerance control, the service life can reach more than 200 hours.

Send An Inquiry

Exploded View of the Whole Machine

Important Spare Parts

1.Connection Plate Assembly (bright silver) 26 or 28

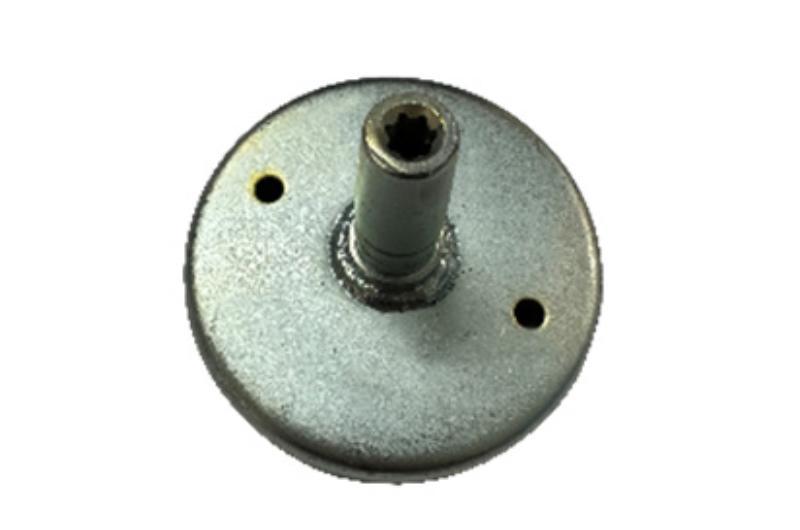

2.Passive Disc Welding (nine teeth or seven teeth)

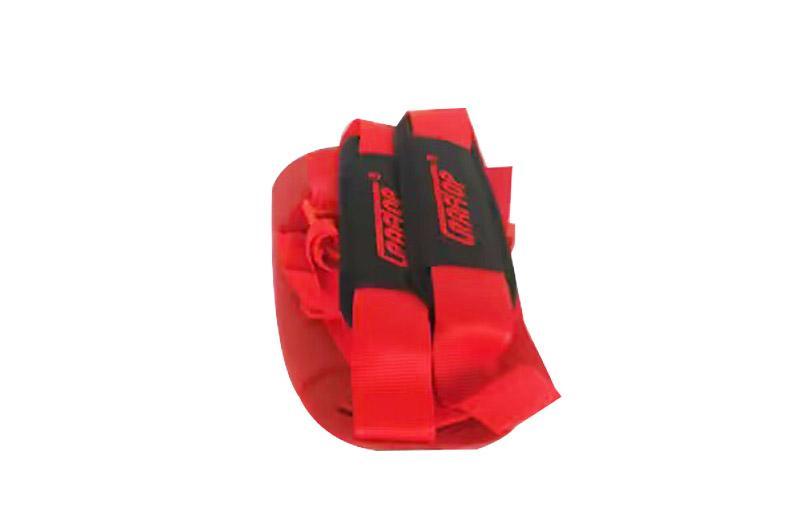

3.Strap Combination (shoulder hard shell)
4.Two-Section Handle Assembly
5.Stihl Handlebar Assembly

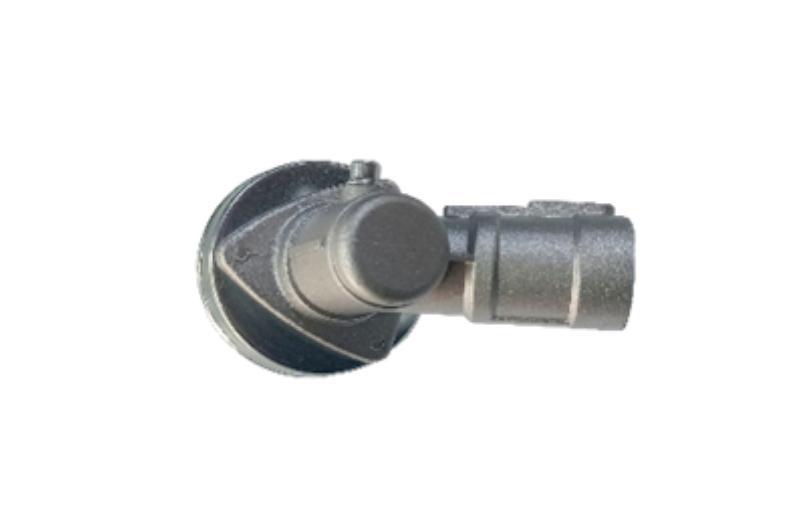

6.Gearbox Assembly (bright silver) (26 or 28) (9 teeth)

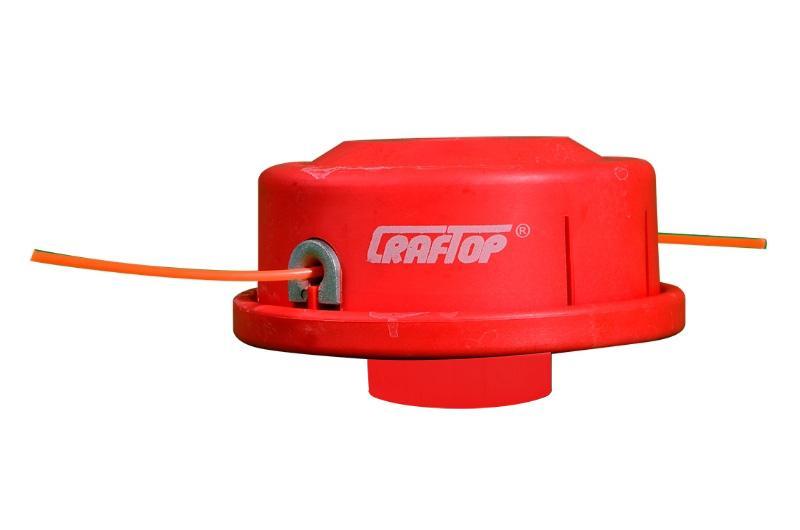

7.Turfing Head Assembly (rope type)
8.Three-Tooth Blade
8.Two-Tooth Blade

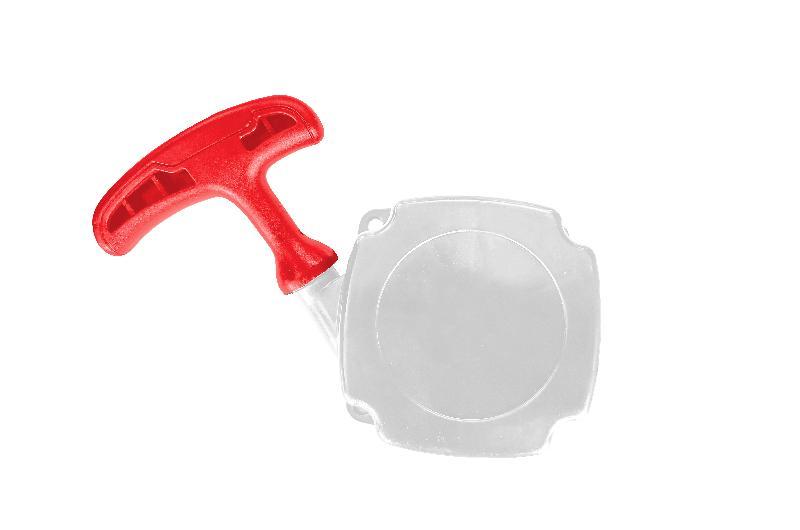

1.Starter Assembly (easy start+normal startup)

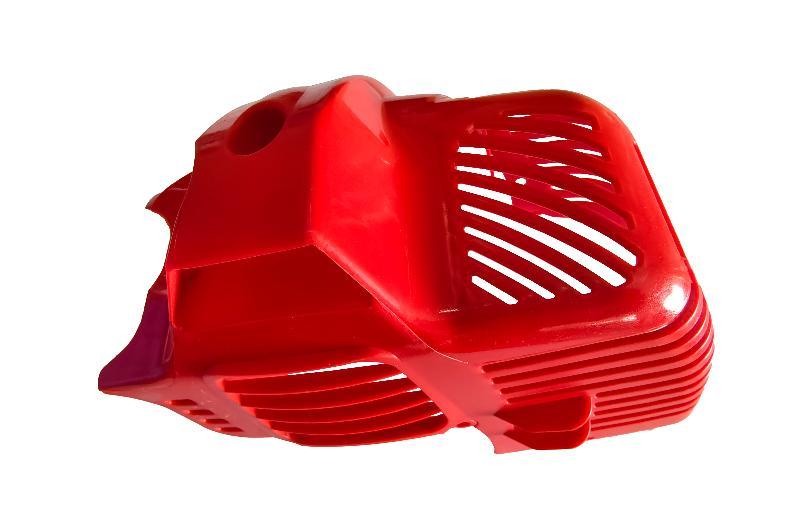

2.Cylinder Cover

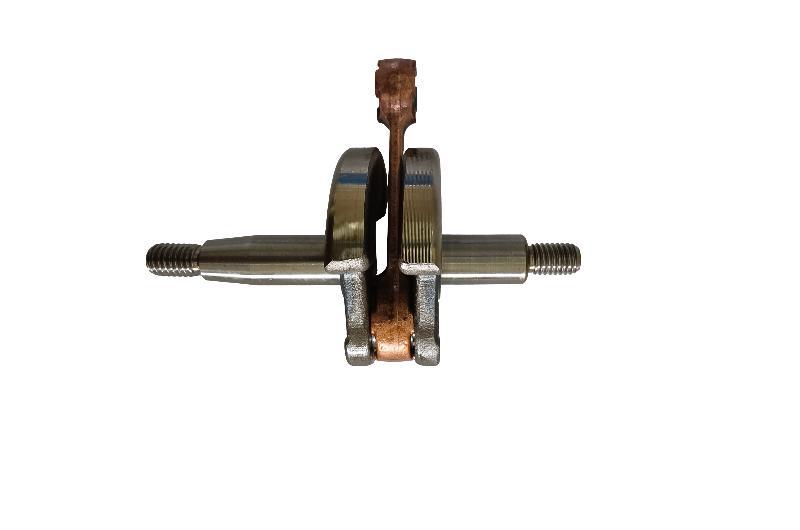

3. Crankshaft Connecting Rod Assembly

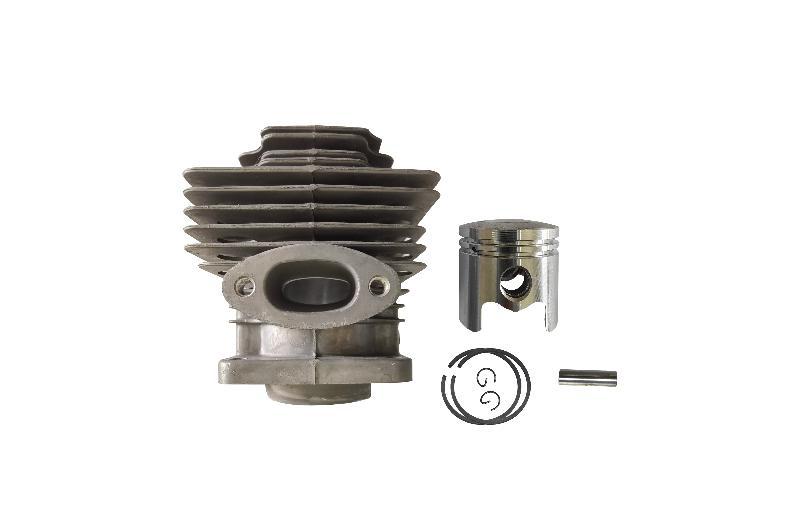

4.Cylinder and Piston Group

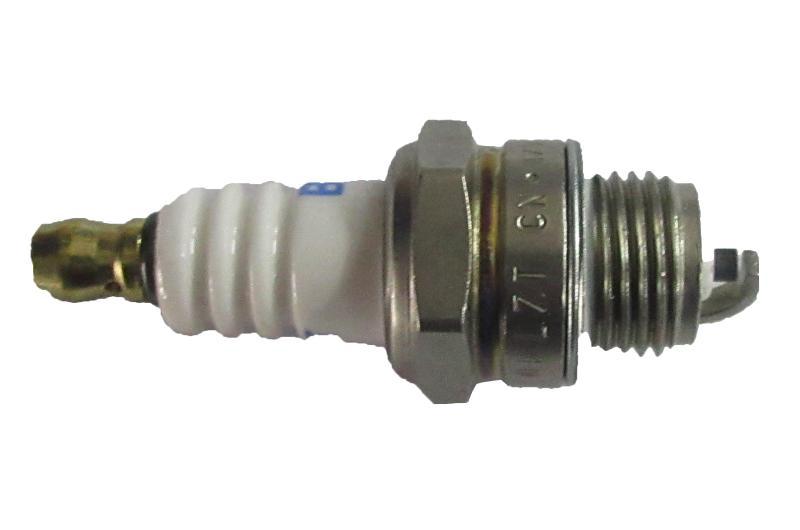

5.Spark Plug

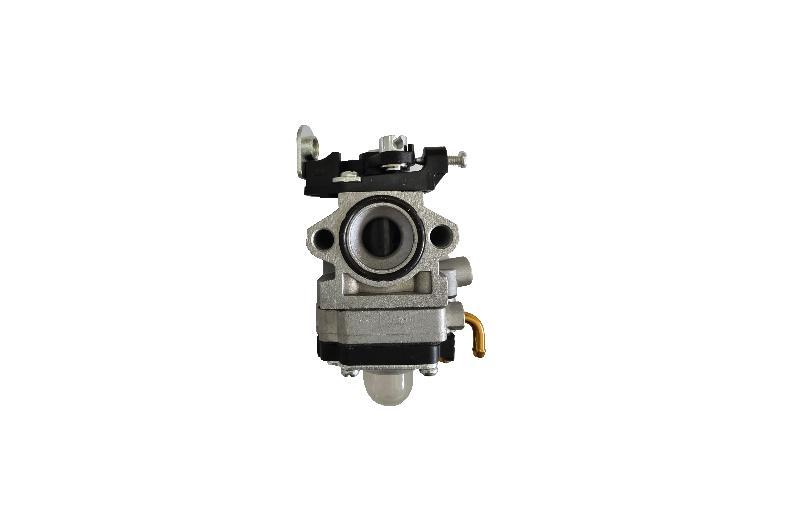

6. Carburetor

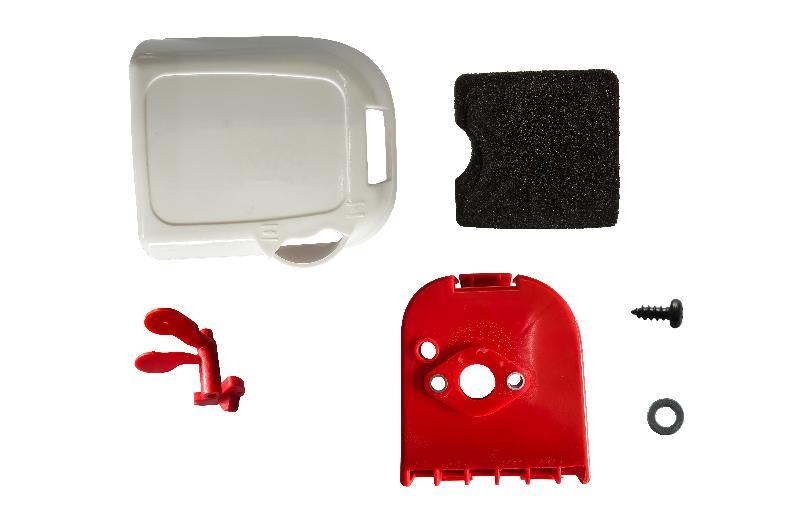

7.Air Filter Assembly
8.Needle Bearing_Piston

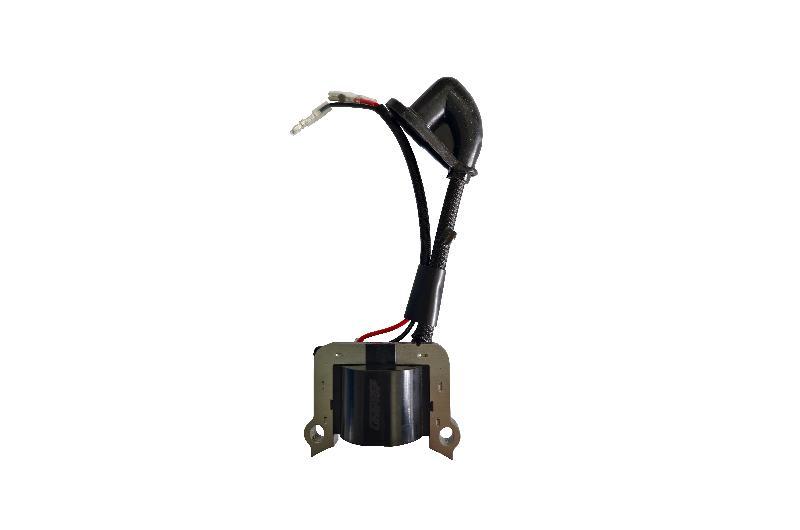

9.Ignition Assembly

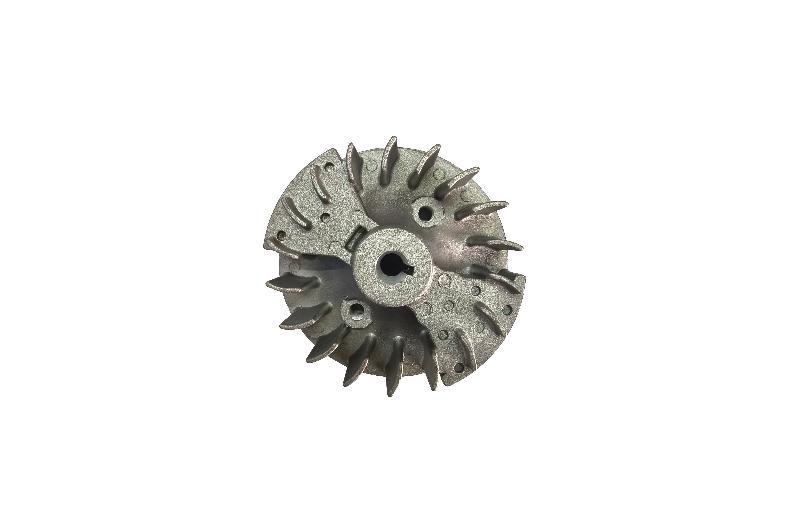

10.Flywheel

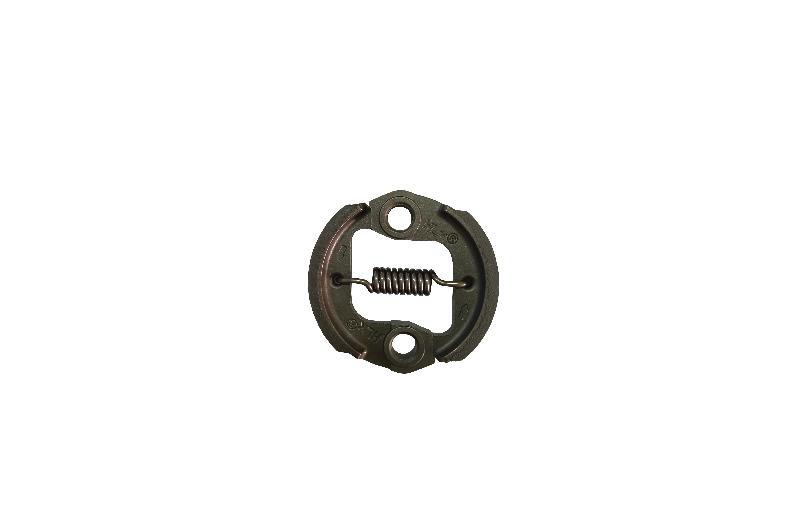

11.Clutch Assembly
12.Oil Can Assembly

Other Spare Parts

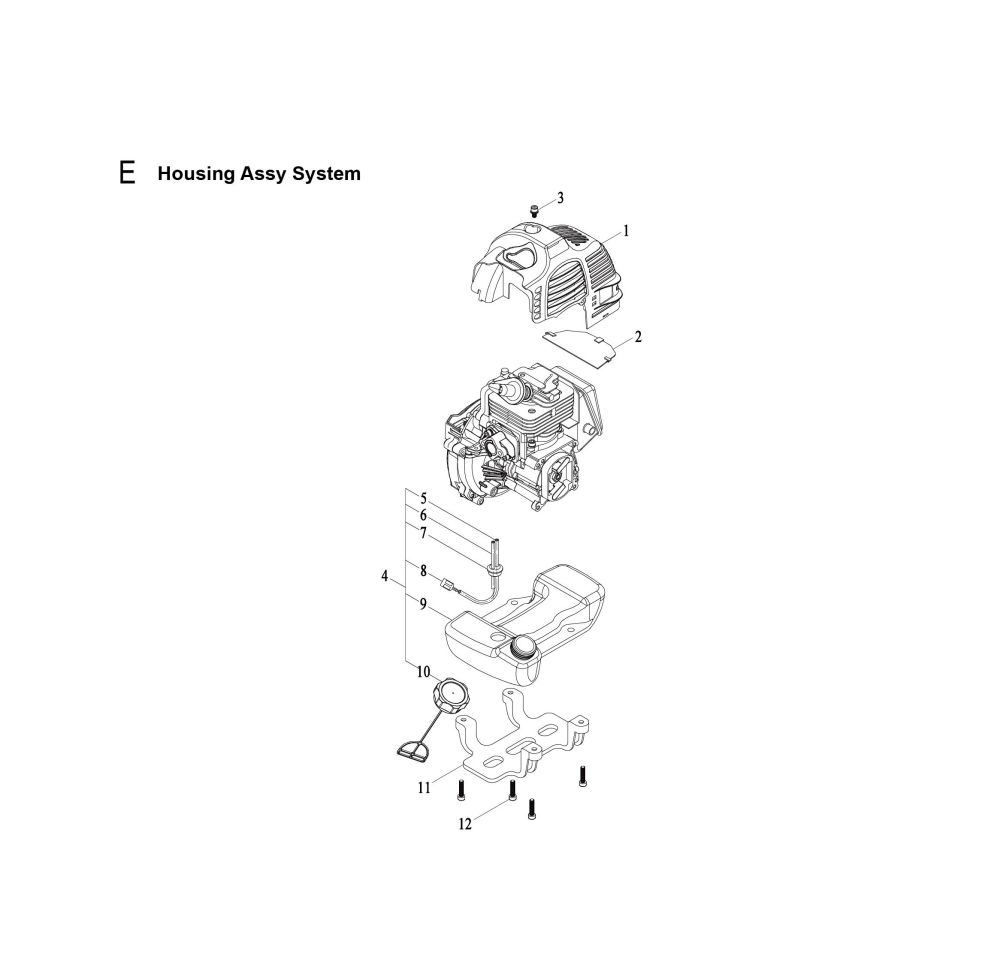

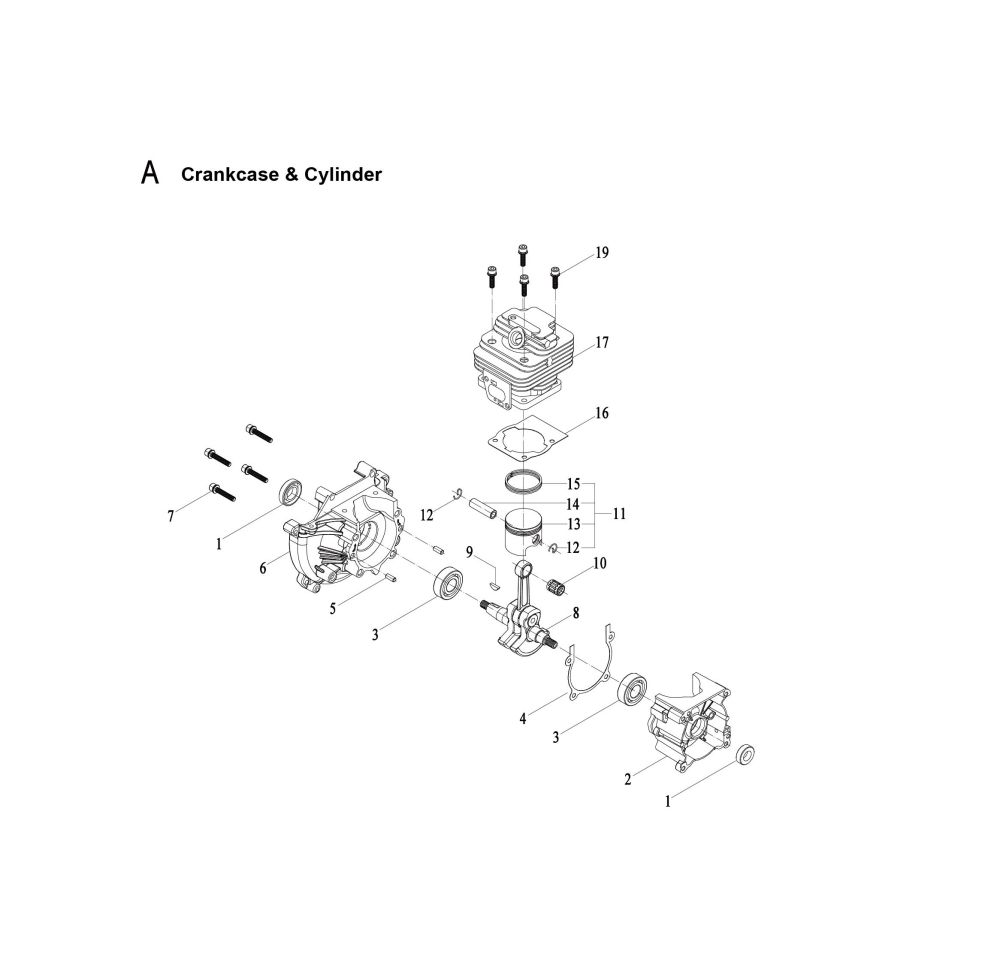

A Crankcase & Cylinder		E Housing Assy System
Code	Part Name	Code	Part Name
A1	Oil Seal	E1	Cylinder Cover
A2	Rear Crankcase	E2	Insulator
A3	Ball Bearing	E3	Screw, Cover
A4	Gasket, Crankcase	E4	Fuel Tank Assy
A5	Pin	E5	Inlet Fuel Pipe
A6	Front Crankcase	E6	Return Fuel Pipe
A7	Screw	E7	Grommet, Fuel Pipe
A8	Crankshaft	E8	Fuel Filter

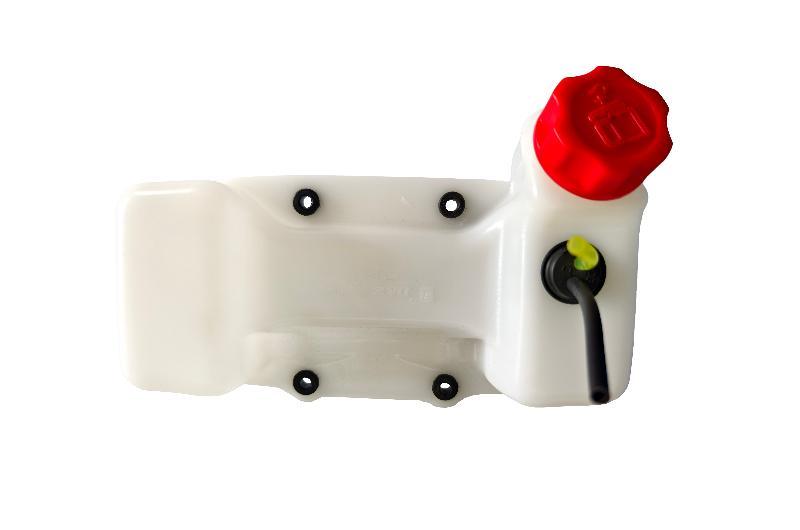

A9	Woodruff Key	E9	Fuel Tank
A10	Needle Bearing, Piston	E10	Filler Cap Assy
A11	Piston Assy	E11	Guard, Fuel Tank
A12	Circlip	E12	Screw, Fuel Tank

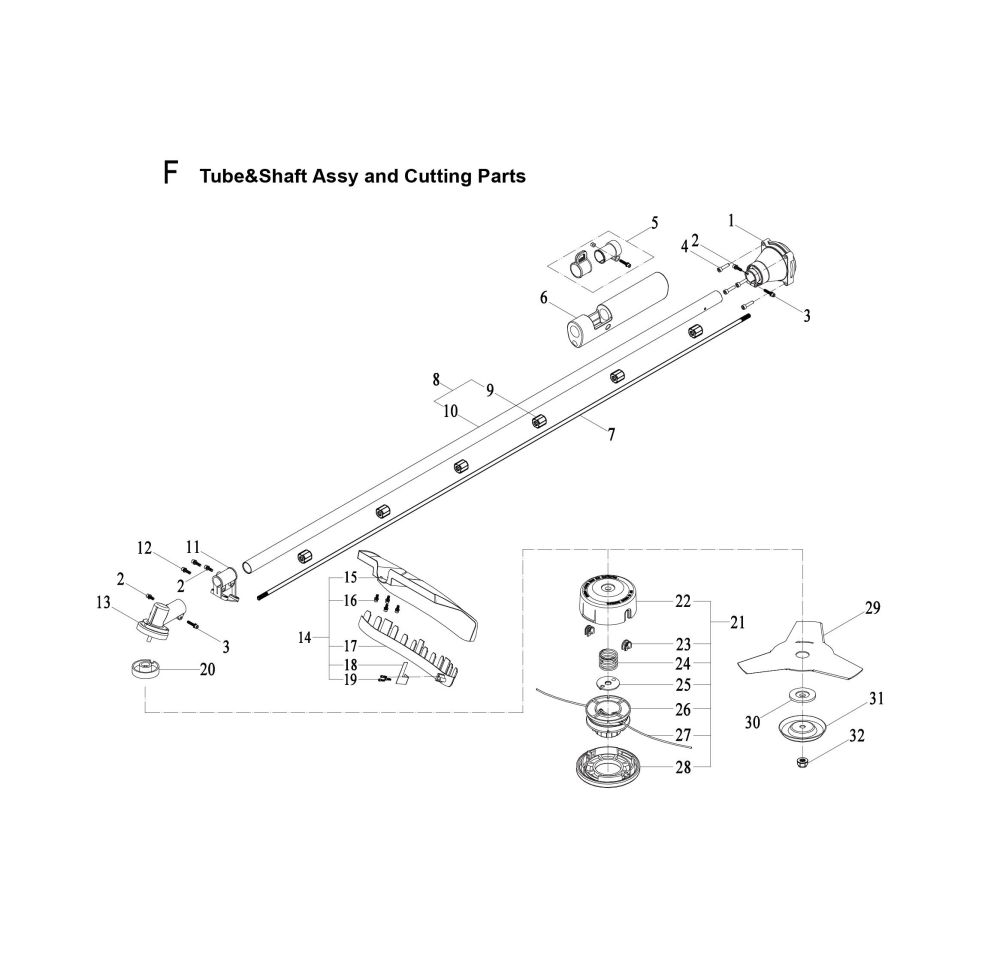

A13	Piston	F Tube&Shaft Assy
A14	Piston Pin	Code	Part Name
A15	Piston Rings	F1	Clutch Housing Assembly
A16	Gasket, Cylinder	F2	Screw A
A17	Cylinder	F3	Screw B
A18	Screw, Cylinder	F4	Screw C

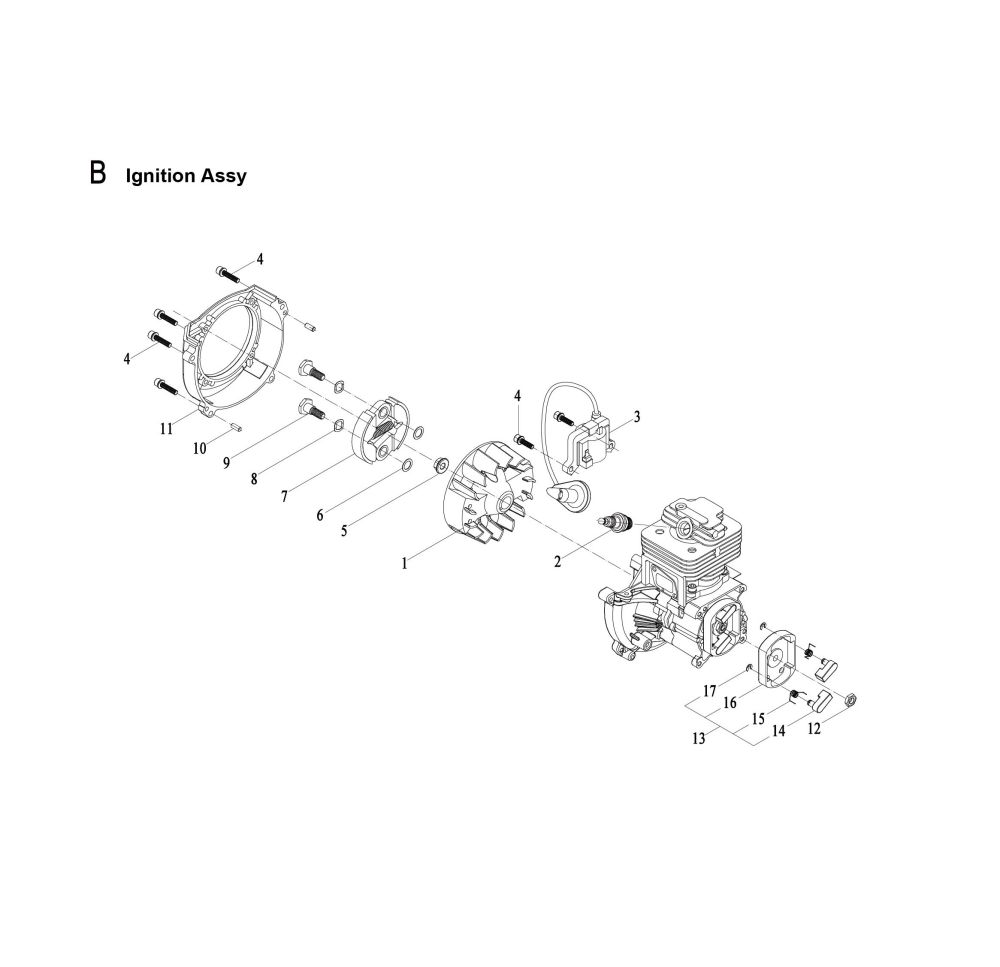

B Ignition Assy		F5	Hook Clamp
Code	Part Name	F6	Buffer Sleeve(Luxury)
B1	Flywheel	F7	Drive Shaft
B2	Spark Plug	F8	Tube Set
B3	Ignition Coil	F9	Oil Bearings
B4	Screw, Ignition Coil	F10	Tube
B5	Nut, Flywheel	F11	Deflector Seat
B6	Washer, Clutch	F12	Screw, Deflector Seat

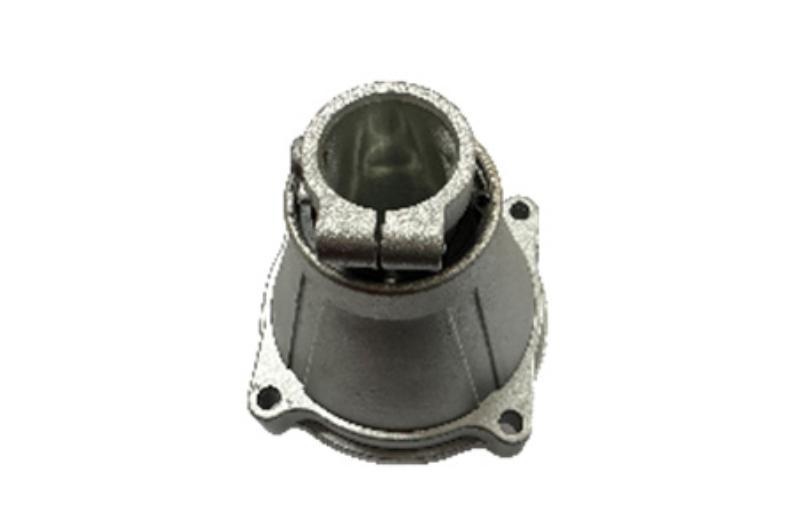

B7	Clutch	F13	Gearbox Assy
B8	Wave Washer	F14	Deflector Assy
B9	Bolt, Clutch	F15	Deflector
B10	Dowel Pin	F16	Screw, Deflector
B11	Fan Cover	F17	Deflector Skirt
B12	Nut	F18	Blade
B13	Starter Cup Assy	F19	Screw, Skirt
B14	Pawl	F20	Trust Plate
B15	Torsion Spring	F21	Trimmer Head Assy
B16	Cup Body	F22	Housing, Trimmer Head
B17	E-clip	F23	Cutting Line Guide

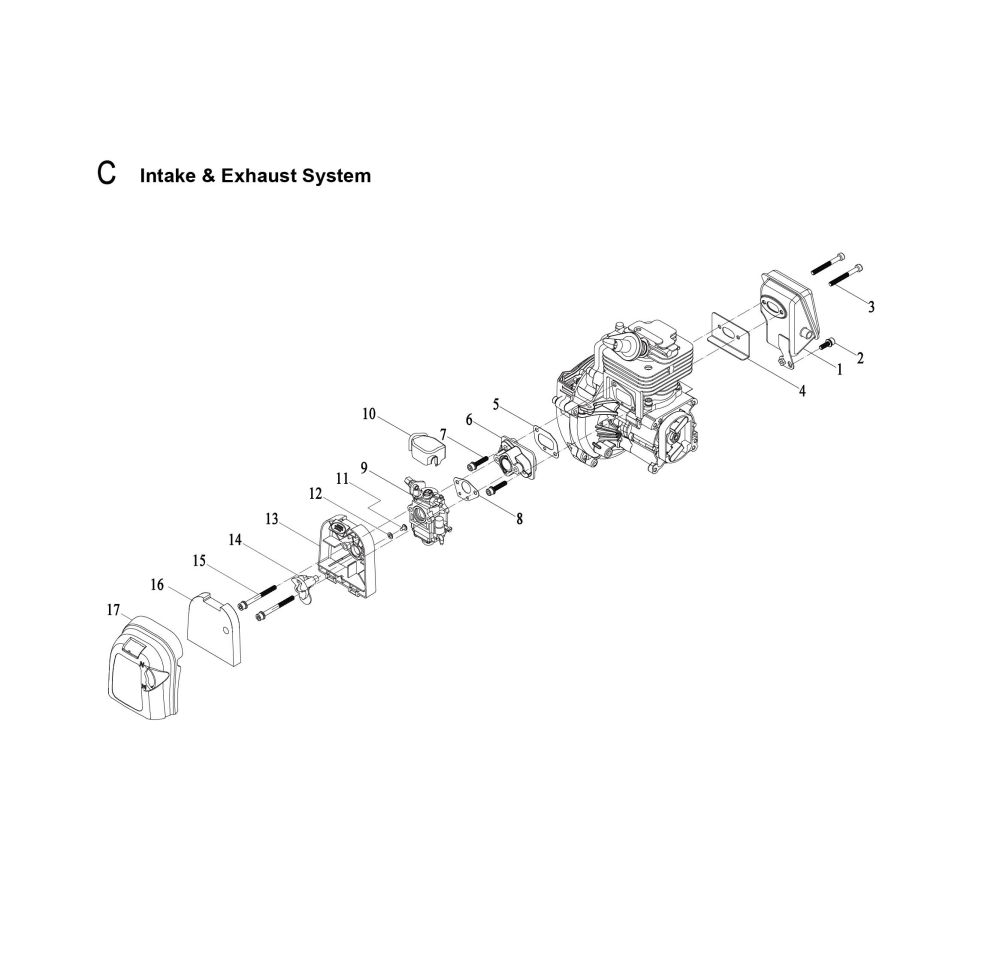

C Intake & Exhaust System		F24	Spring, Trimmer Head
Code	Part Name	F25	Upper Over
C1	Muffler	F26	Cutting Line Reel
C2	Screw，Muffler	F27	Nylon Cutting Line
C3	Screw(L)，Muffler	F28	Bottom Cover
C4	Gasket, Muffler	F29	3-T Blade
C5	Gasket, Monifold	F30	Trust Washer
C6	Monifold	F31	Guard, Gearbox
C7	Screw, Monifold	F32	Nut, Gearbox

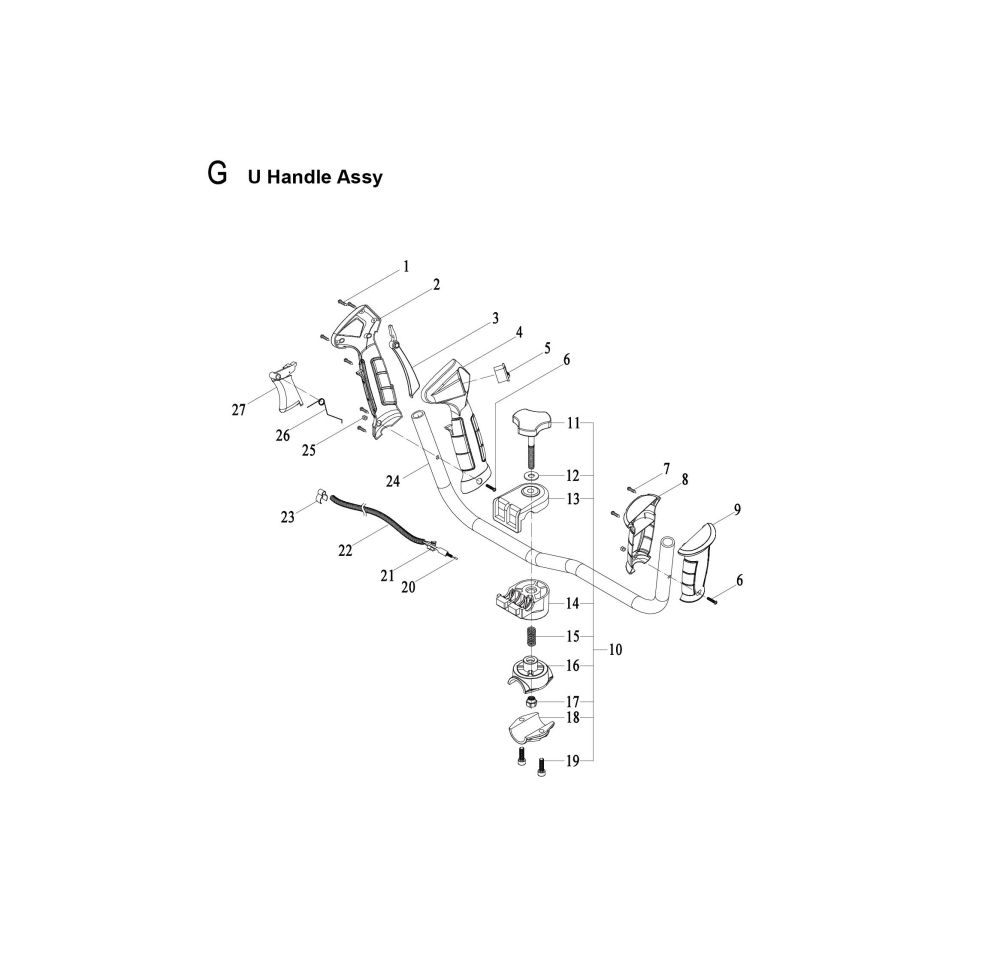

C8	Gasket, Carburetor	G U-Handle Assy
C9	Carburetor	Code	Part Name
C10	Carburetor Cover	G1	Screw, Control Handle
C11	Screw	G2	Control Handle, R
C12	Washer	G3	Interlock Trigger
C13	Filter Housing	G4	Control Handle, L
C14	Lever	G5	ON/OFF Switch
C15	Screw, Filter	G6	Screw(L)，Control Handle
C16	Air Filter	G7	Self-Tapping Screw, Left Handle
C17	Filter Cover	G8	Left Handle, R

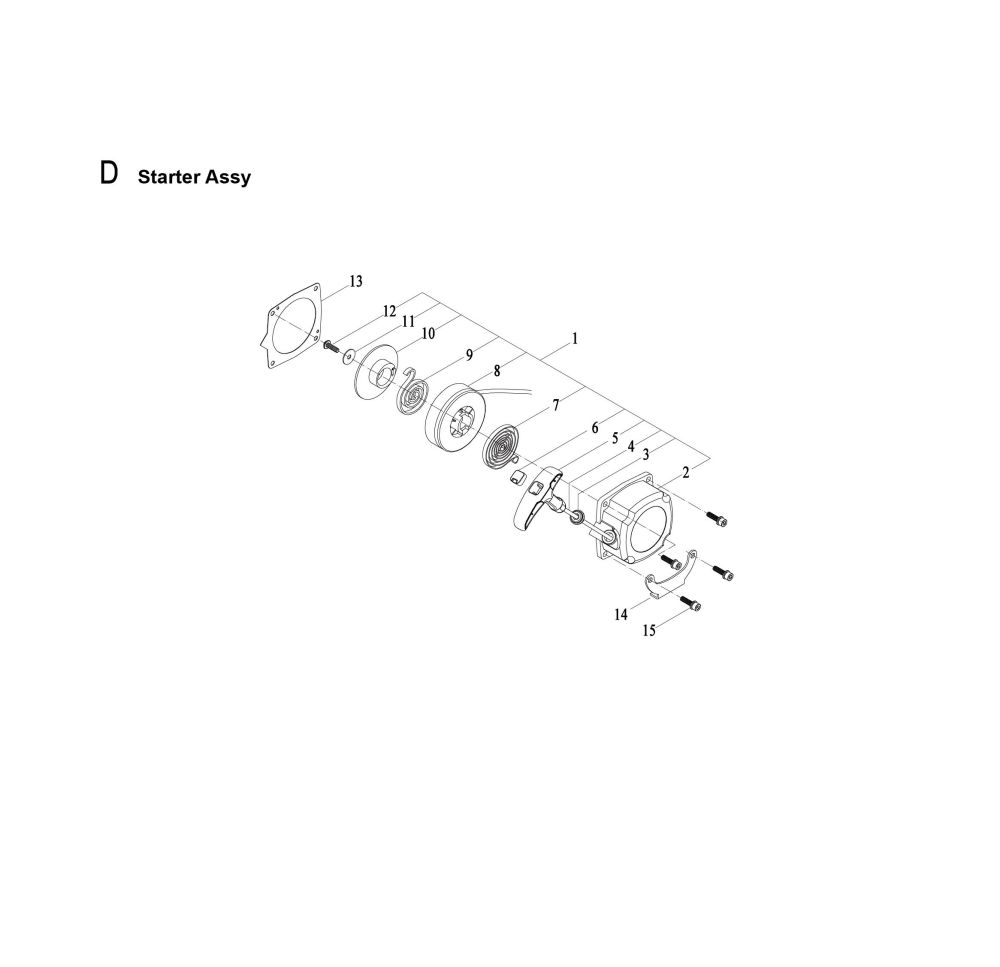

D Starter Assy		G9	Left Handle, L
Code	Part Name	G10	U-Handle Seat(Luxury)
D1	Starter Assy	G11	Knob
D2	Starter Cover	G12	Washer, Knob
D3	Bushing	G13	Upper Clamp
D4	Rope	G14	Bottom Clamp
D5	Grip, Starter	G15	Clamp Spring
D6	Grip Cover, Starter	G16	Clamp Support
D7	Return Spring	G17	Nut
D8	Pulley, Starter	G18	Bottom Holder
D9	Buffer Spring	G19	Screw
D10	Starter Reel	G20	Throttle Cable
D11	Washer	G21	STOP Wire
D12	Screw, Starter	G22	Cable Wave Hose
D13	Gasket, Starter	G23	C-Clip
D14	Support, Fuel Tank	G24	Tube, U-Handle
D15	Screw, Starter	G25	Self-Tightening Locknut
		G26	Torsion Spring，Throttle Trigger
		G27	Throttle Trigger
