Hus272 Replacements

Hus272 Chainsaw Parts

CRAFTOP 272 series chainsaw spare parts, sourced from top-tier suppliers, offer exceptional quality comparable to world-class brands.

Crankcase: Strict blank selection, precise CNC finishing, and 1:1 original restoration ensure guaranteed quality.
Cylinder: Advanced production technology and strict quality control allow for options of ceramic-plating and chrome-plating, meeting diverse customer requirements.
Piston: Made with top-quality materials and featuring the same piston ring selection as famous brands, ensuring stability and market competitiveness.
Carburetor: Shares production technology and working procedures with Walbro, guaranteeing quality and competitive pricing.
Crankshaft: 20CrMoTi alloy steel crankshaft, treated with advanced heat treatment techniques, surpasses market standards in strength and toughness.
Exceptionally sharp and durable saw chain: Made from advanced German materials with over 20 years of production experience, compatible with various professional chainsaws.
High-quality chainsaw bar: Manufactured to stringent standards similar to the original original Husq bar, offering unparalleled hardness and resistance to head-breakage. CRAFTOP's bar nose is highly popular in East African countries.

Send An Inquiry

Packaging Style

268

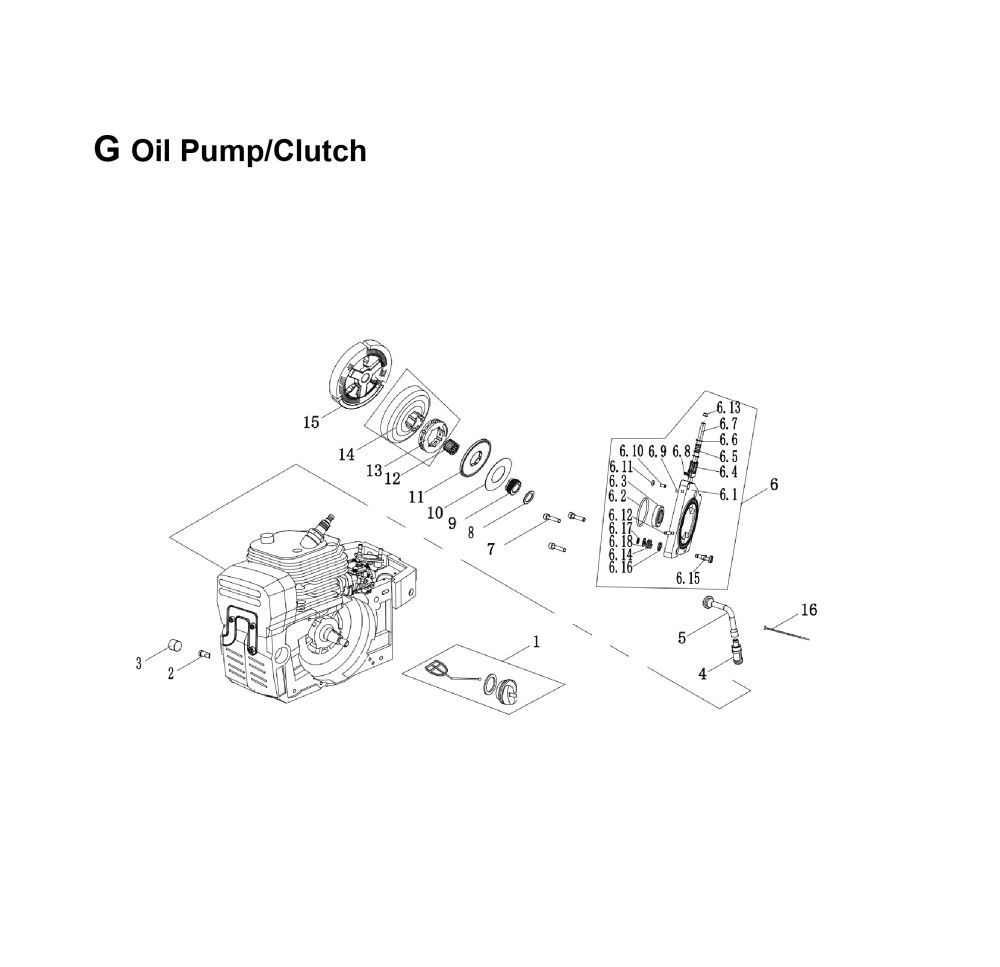

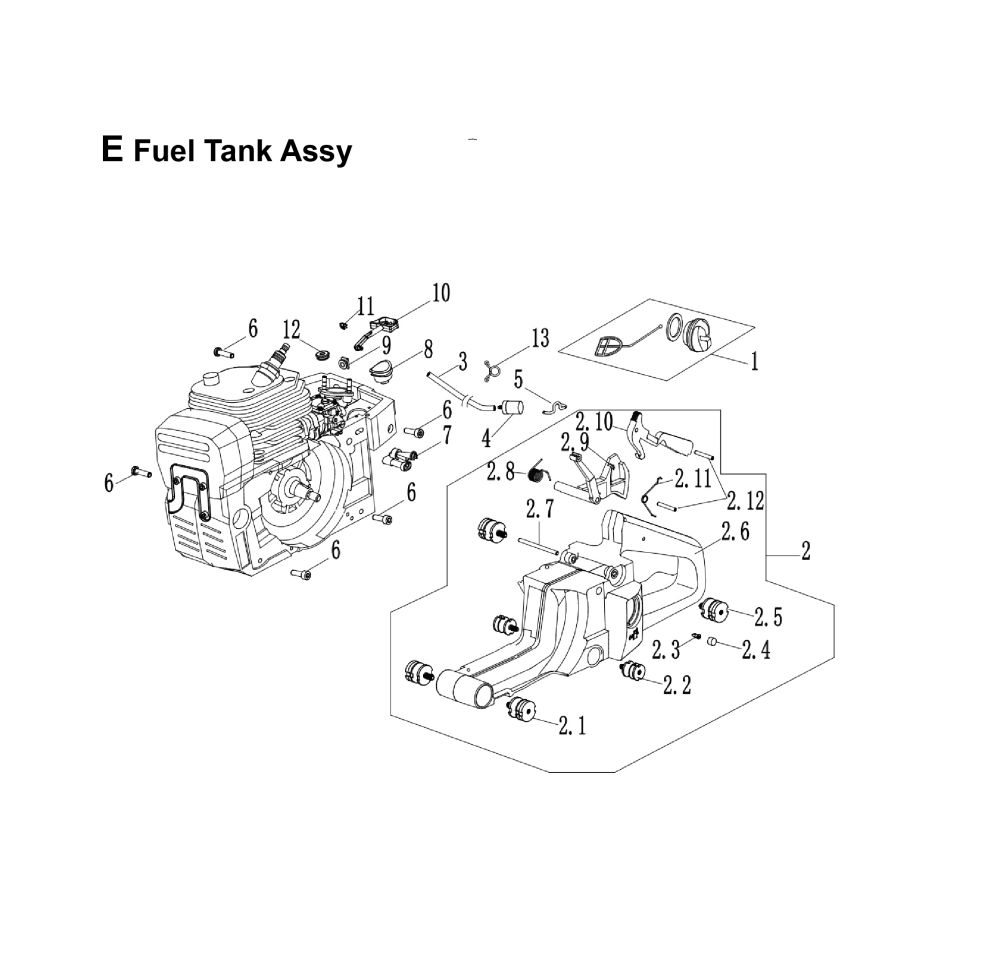

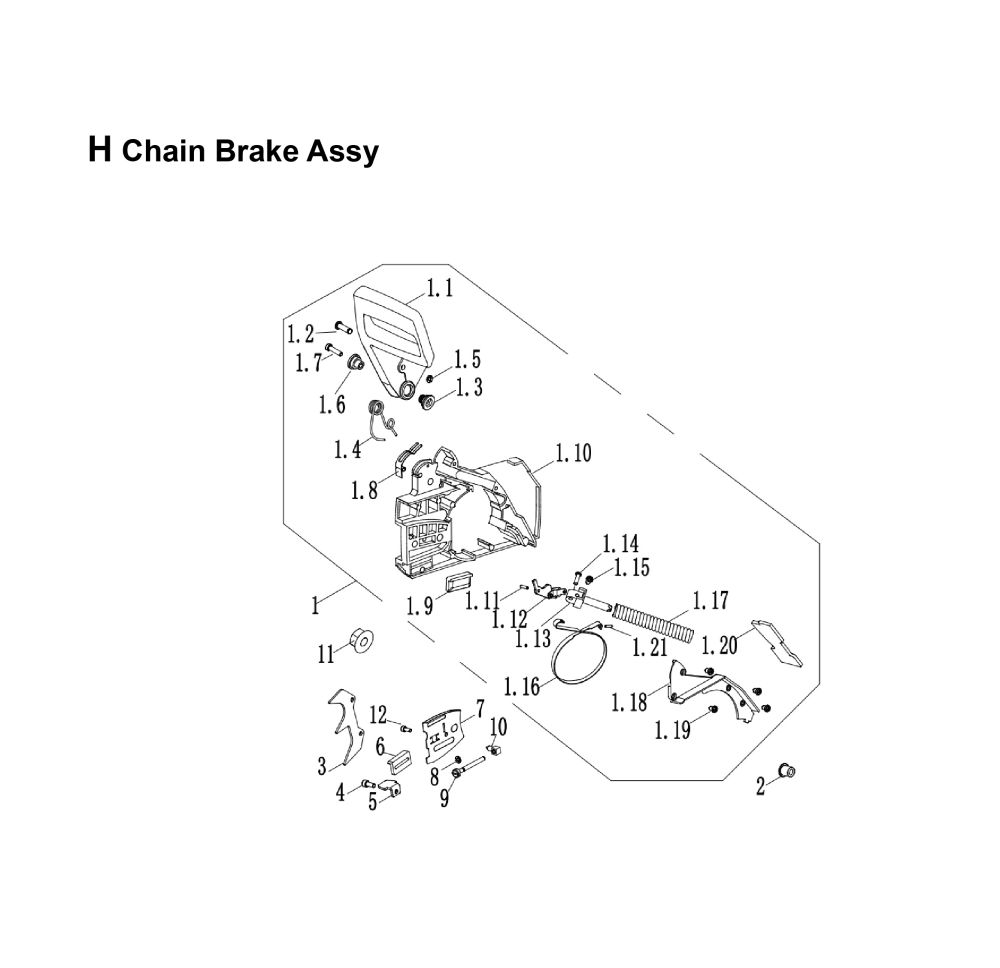

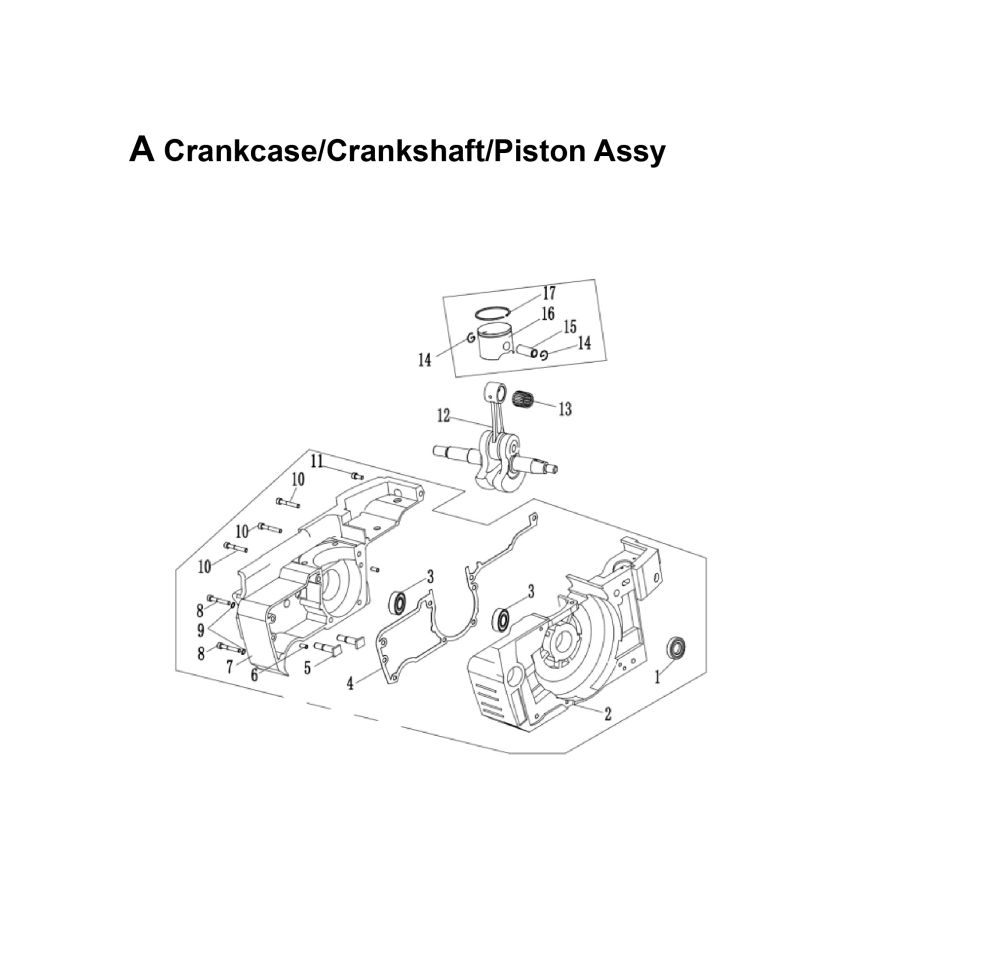

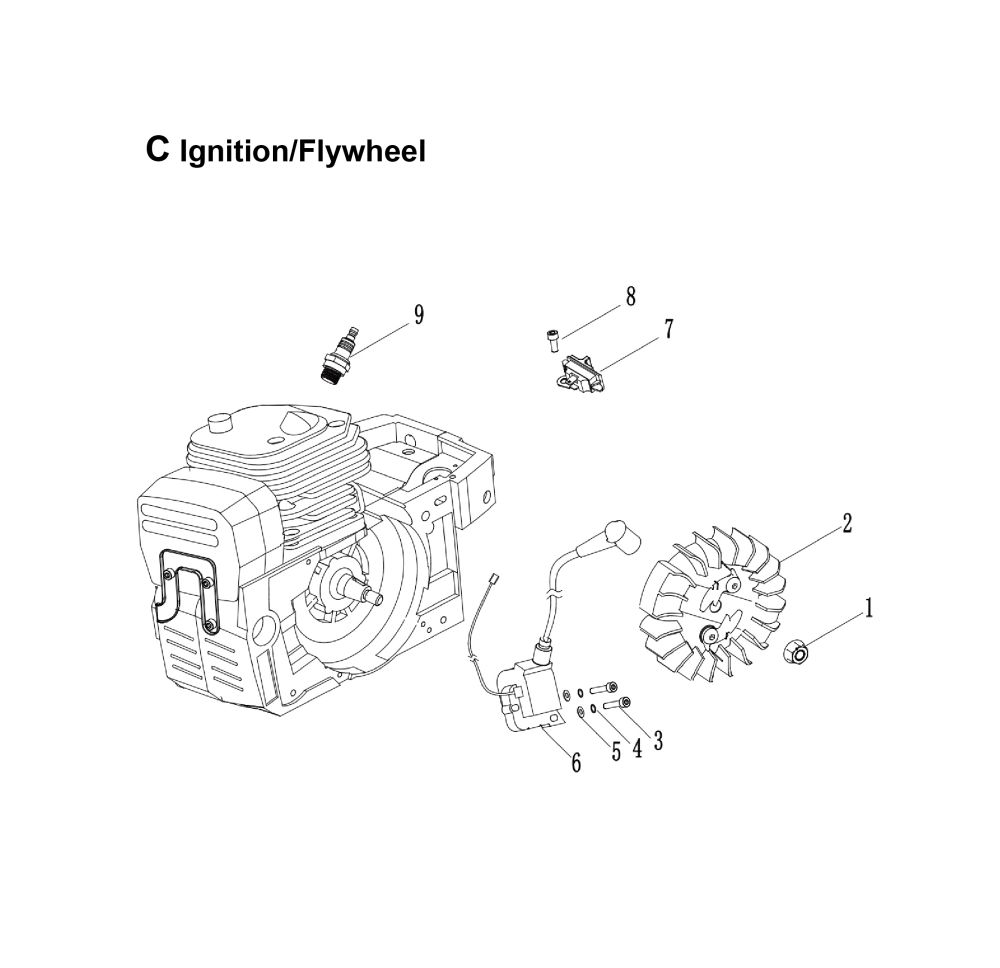

Exploded View of the Whole Machine

Important Spare Parts

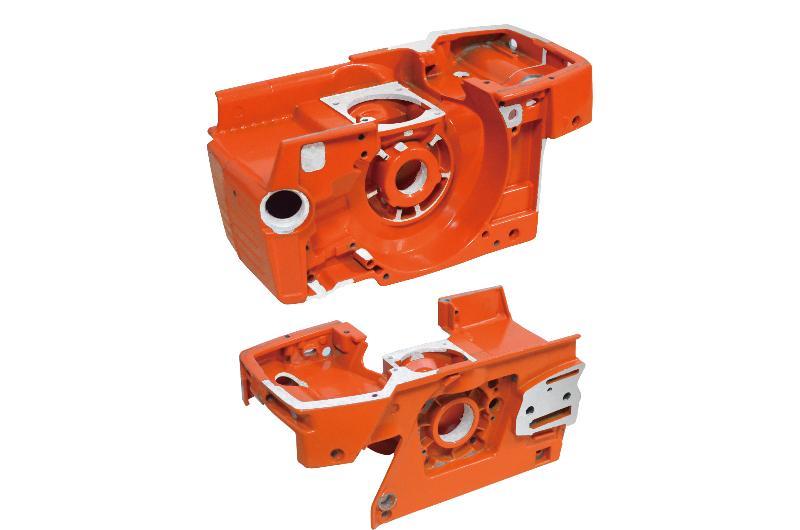

A1 Crankcase Assy

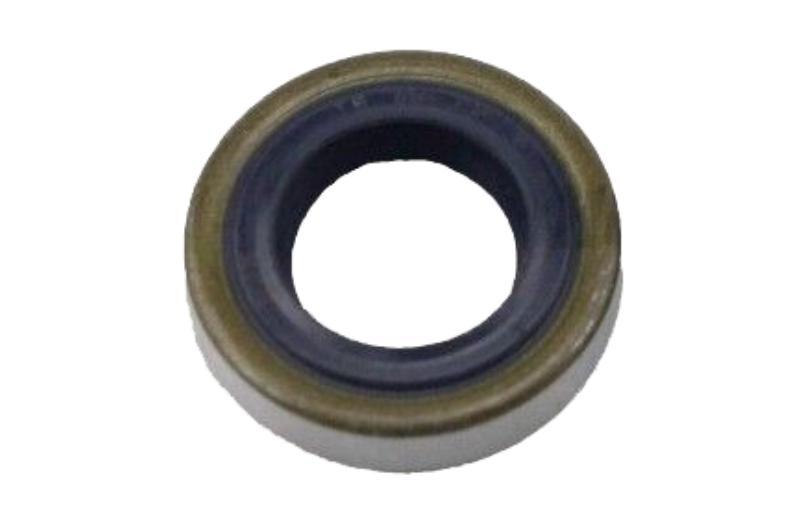

A2 Oil Seal

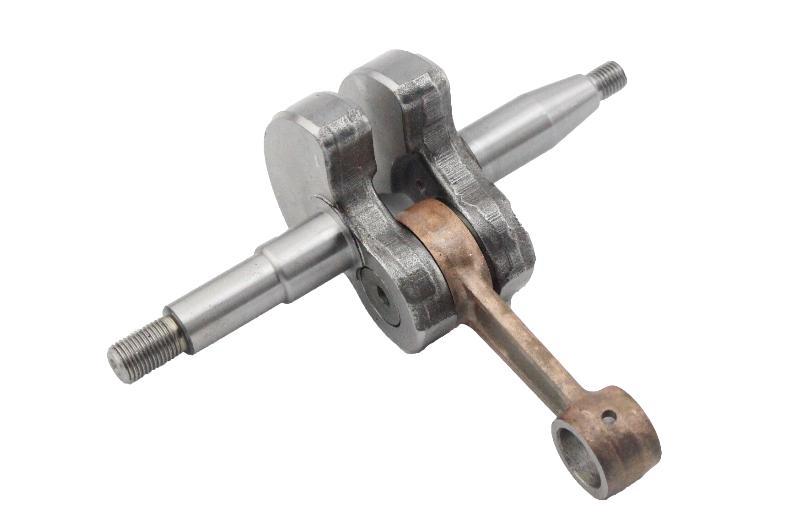

A13 Crankshaft Assy

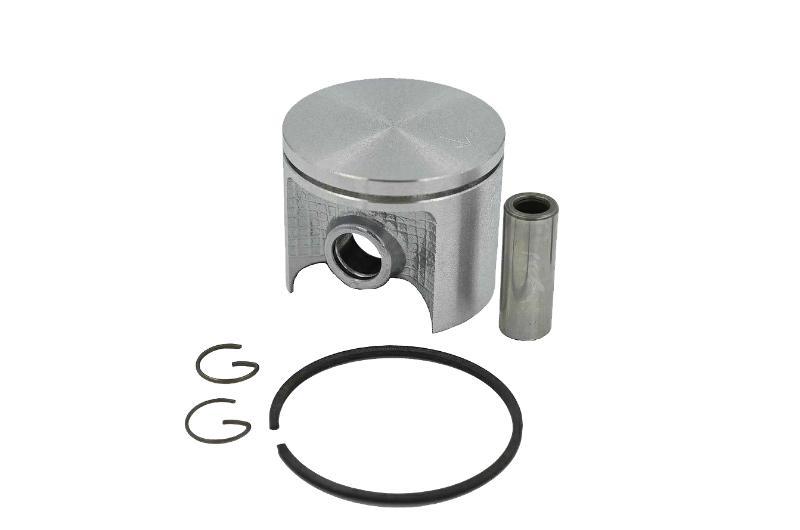

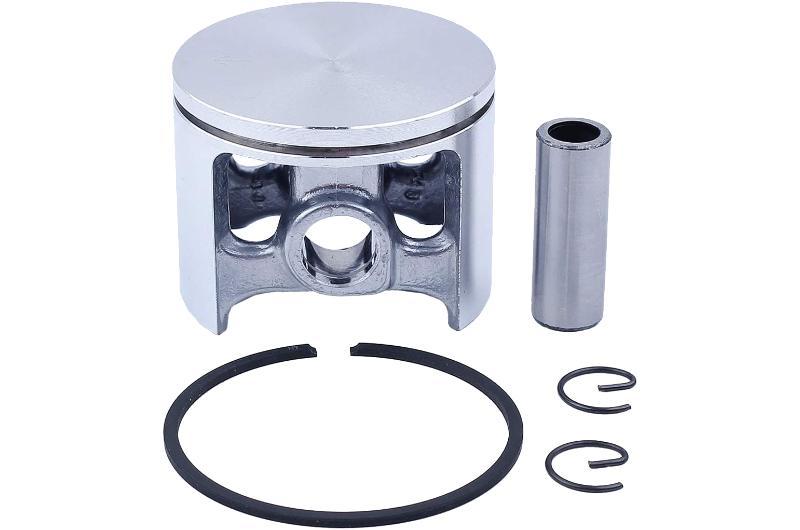

A15 Piston Assy 268
A15 Piston Assy 272

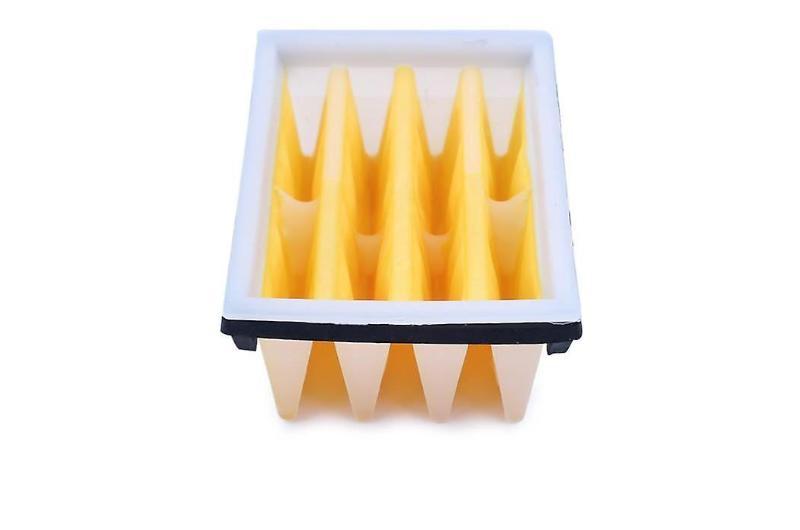

Air Filter

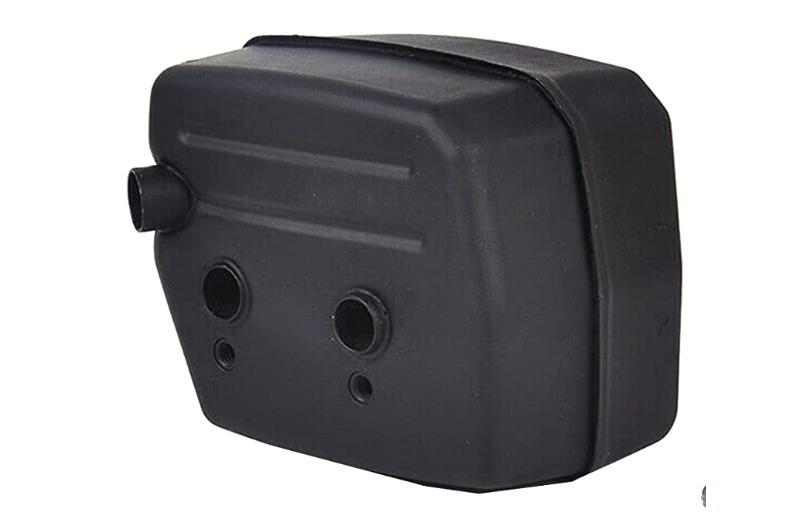

B7 Muffler

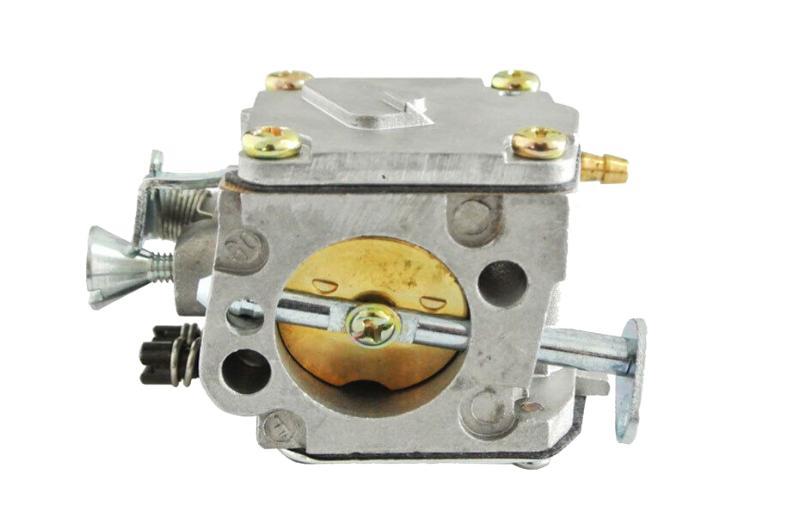

B17 Carburetor

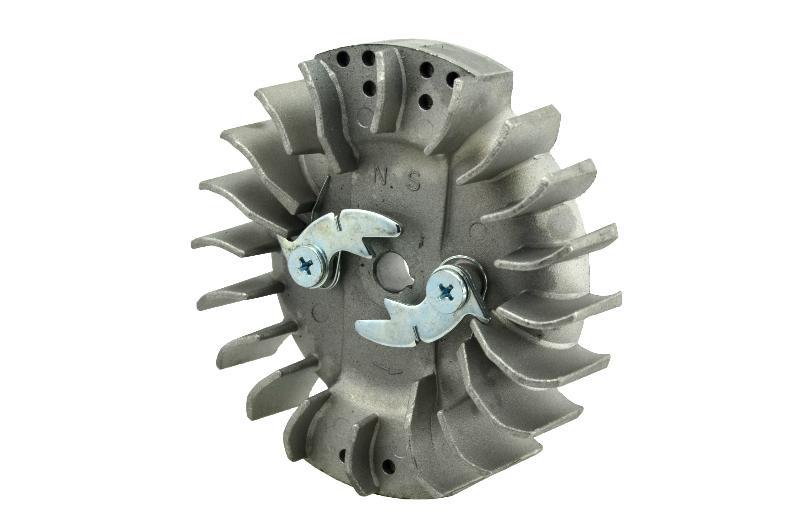

C2 Flywheel

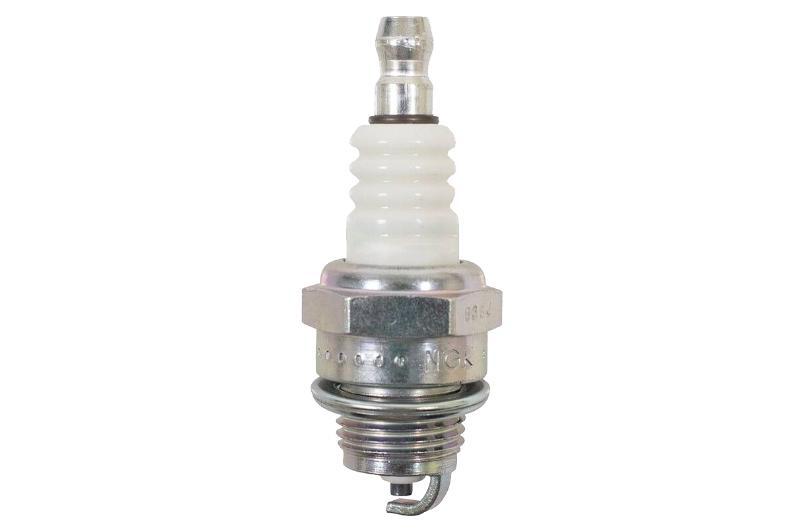

C10 Spark Plug

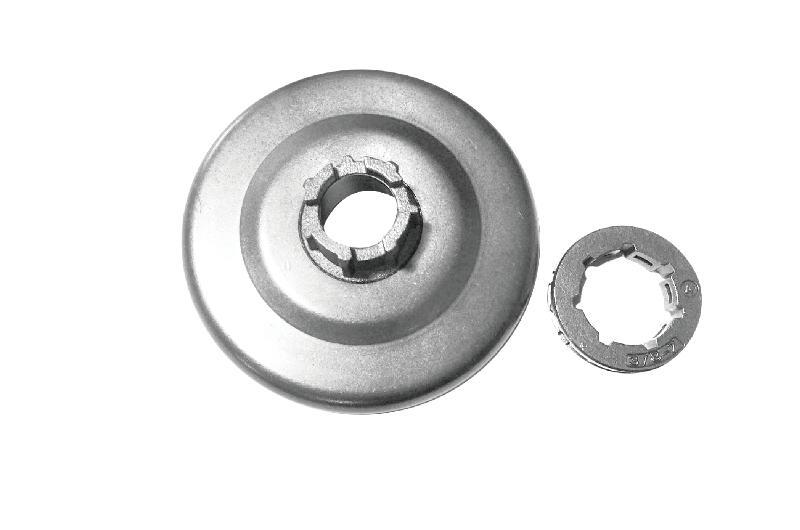

Clutch Drum Assy

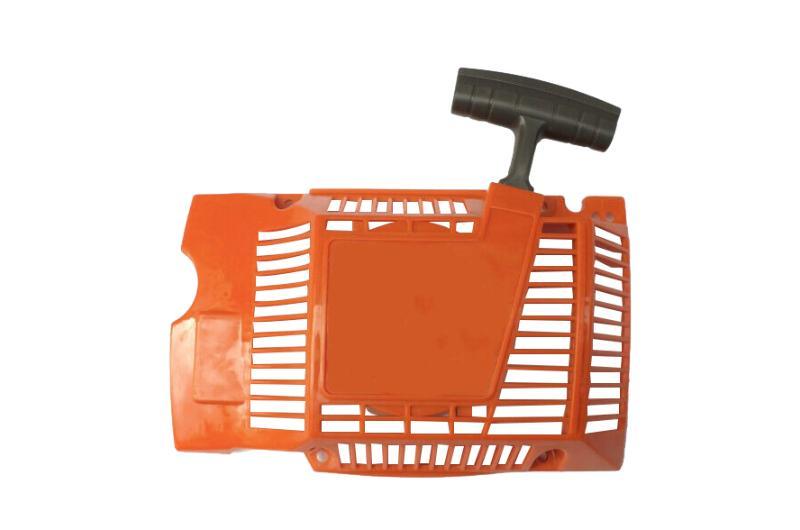

D1 Starter Case Assy 268

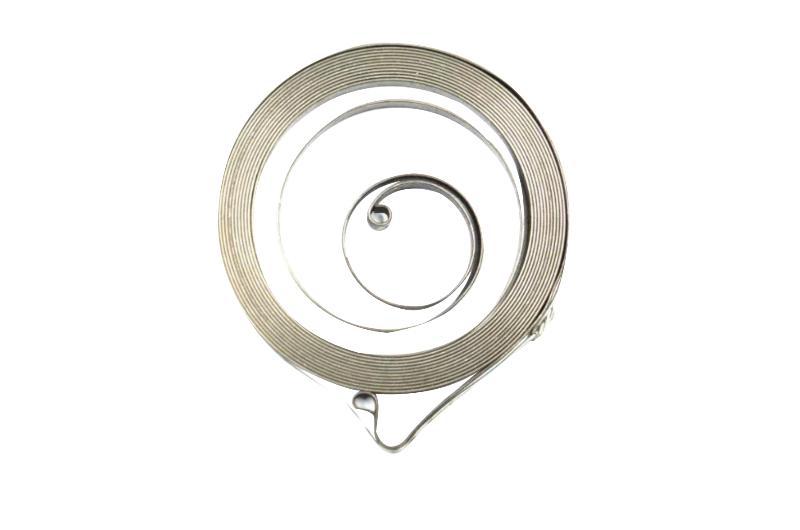

D1-5 Recoil Spring

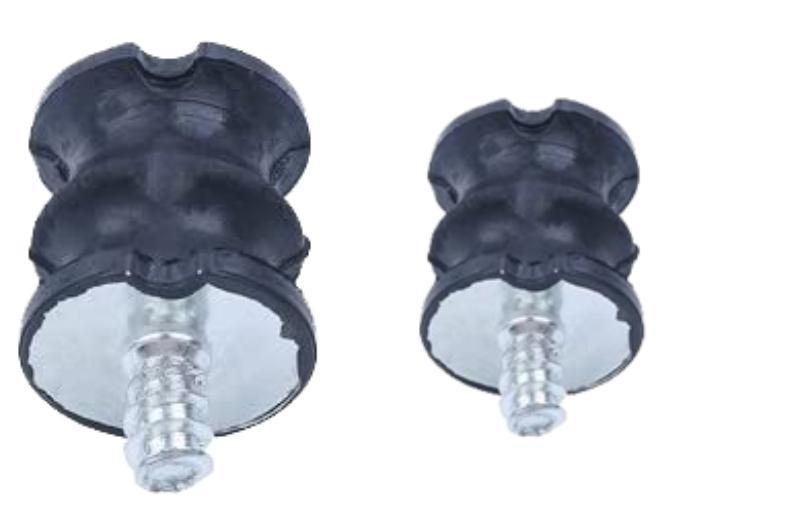

E2-2 Mounting Big and Small Size

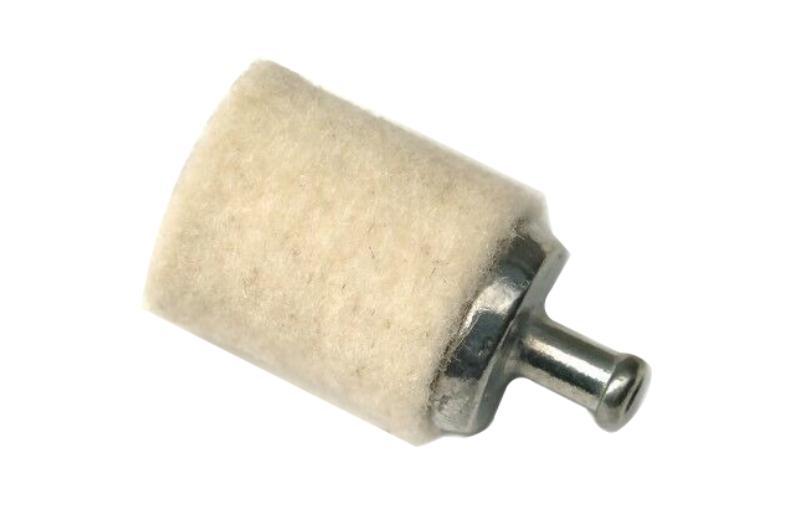

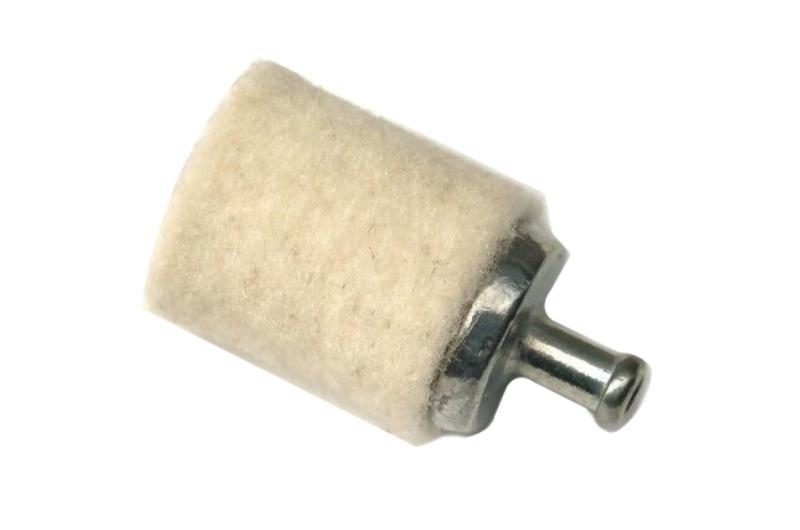

E4 Fuel Filter Assy
E4 Fuel Filter Assy
E4 Fuel Filter Assy

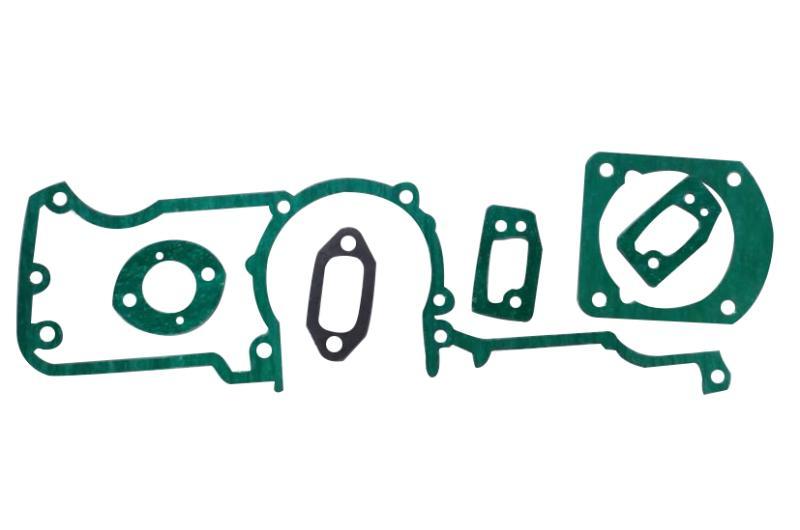

Gasket Combo

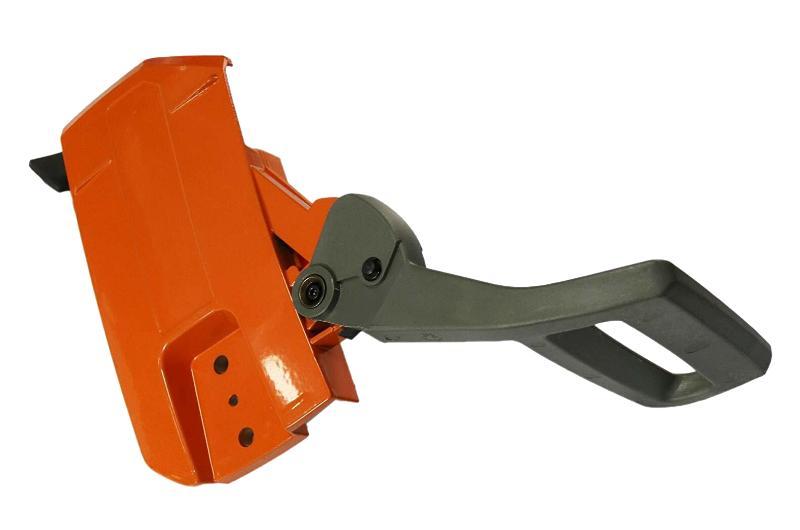

H1 Brake Assembly
K2 Nose Bearing
K2 Nose Bearing

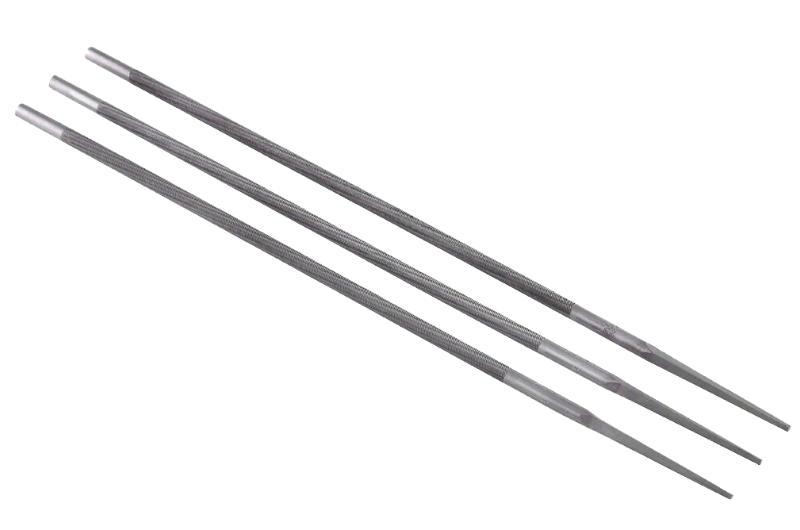

K5 Saw File

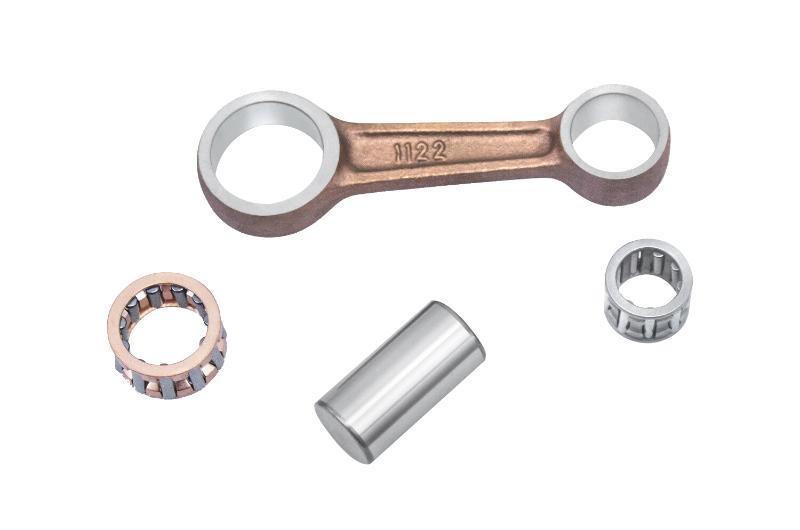

K8 Conrod

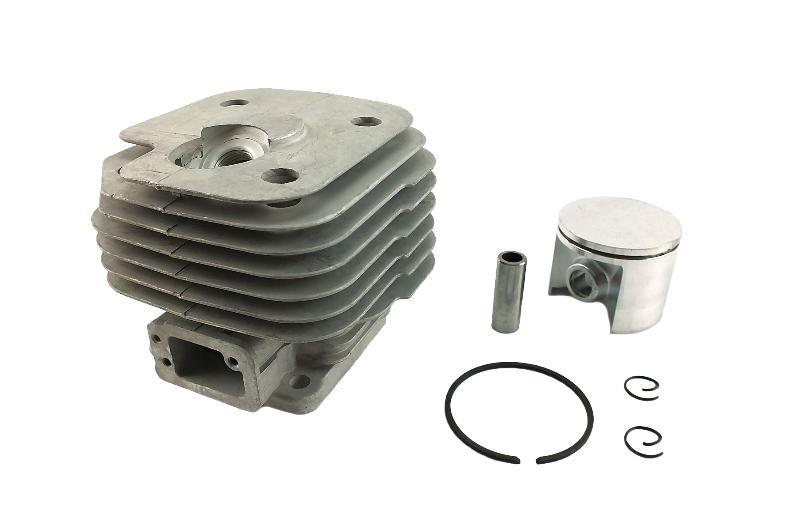

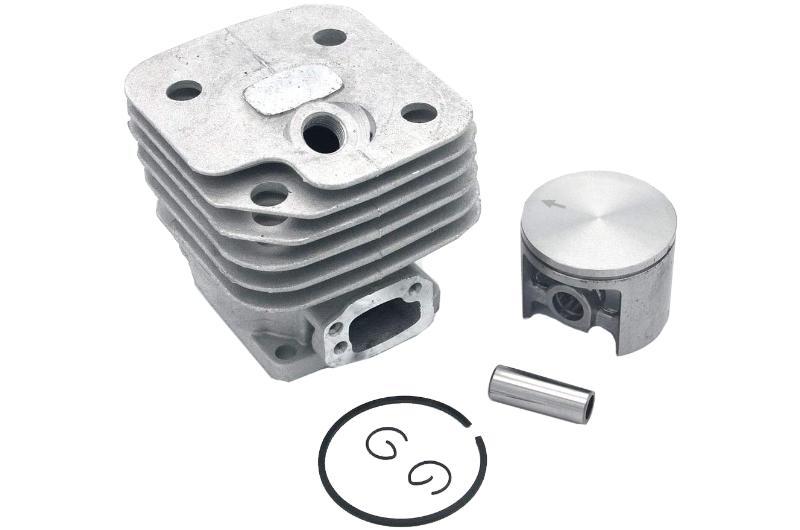

K12 Cylinder Kit 268
K12 Cylinder Kit 272

Other Spare Parts

CODE	PART NAME	CODE	PART NAME
A-1	Oil Seal, Exposed Frame	E-8	Dirt-Proof Cover
A-2	Crankcase L	E-9	Choke Rod Sleeve
A-3	Bearing	E-10	Chroke Rod
A-4	Crankcase Gasket	E-11	Chroke rod Spring
A-5	Bar Bolt	E-12	Fuel Hose Dirt-Proof Cover
A-6	Cylindrical Pin	E-13	Fuel Pipe Circlip

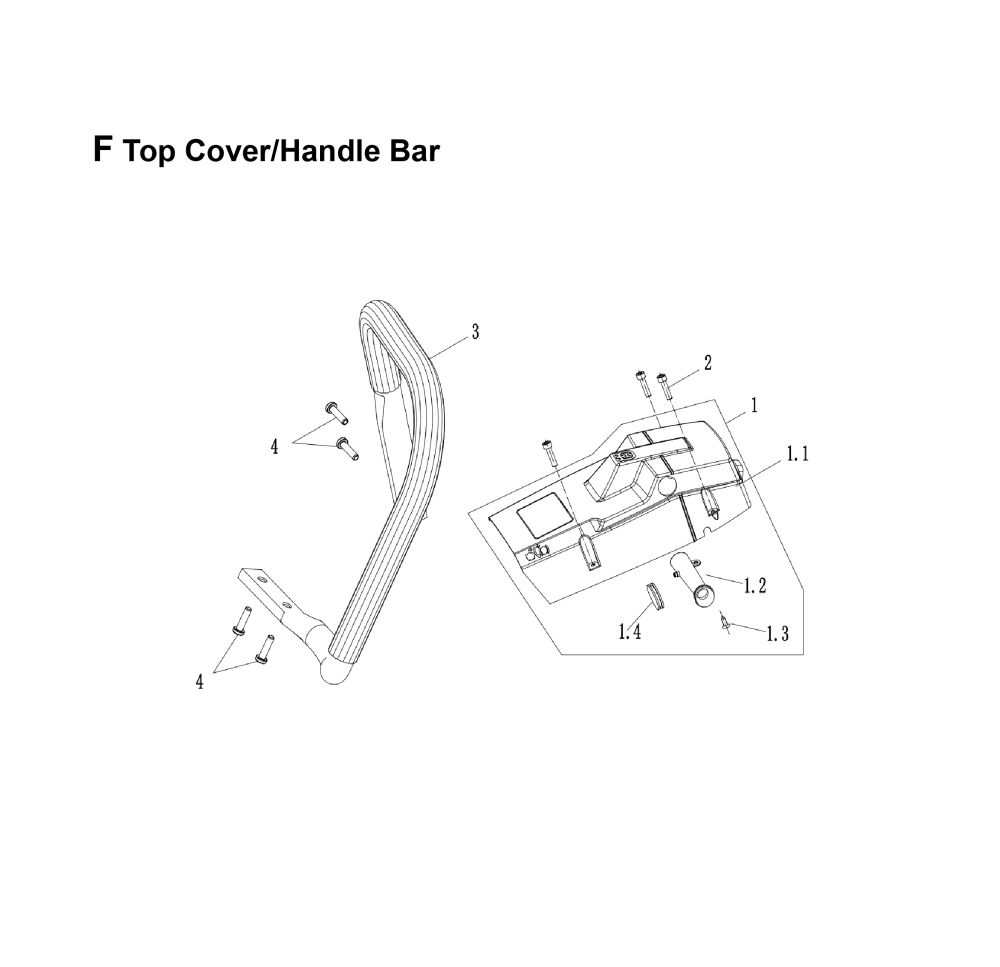

A-7	Crankcase R	F-1	Cylinder Cover Assy
A-8	Screw	F-1.1	Cylinder Cover (with hole)
A-9	Spring Pad	F-1.2	Breather Tube, Cylinder Cover
A-10	Screw	F-1.3	Screw
A-11	Screw	F-1.4	Rubber Plug, Cylinder Cover
A-12	Crankshaft	F-2	Screw
A-13	Needle Bearing, Piston	F-3	Handle
A-14	Circlip,Piston Pin	F-4	Screw
A-15	Piston Pin	G-1	Oil Tank Cap Assy
A-16	Piston	G-2	Ventilation Valve for oil tank
A-17	Piston Rings	G-3	Breathable Filter Element
B-1	Screw	G-4	Oil Filter Assy
B-2	Muffler Support	G-5	Oil Inlet Pipe
B-3	Screw	G-6	Oil Pump Assy
B-4	Muffler	G-6.1	Oil Pump Body
B-5	Gasket, Muffler	G-6.2	O-ring
B-6	Cylinder Gasket	G-6.3	Oil Seal, Oil Pump
B-7	Cylinder	G-6.4	Worm Gear
B-8	Decompression valve	G-6.5	Worm Gear Spring
B-9	Buffer, Upper Cover	G-6.6	Anti-wear Washer
B-10	Screw	G-6.7	Plunger
B-11	Inlet Pipe Gasket	G-6.8	Screw
B-12	Inlet Pipe Rubber Sleeve	G-6.9	Sealing Steel Balls
B-13	Inlet Pipe	G-6.1	Elastic Pin
B-14	Carburetor Gasket	G-6.11	O-ring
B-15	Carburetor	G-6.12	Pin
B-16	Intake Elbow Pipe	G-6.13	Screw
B-17	Screw, Carburetor	G-6.14	Positioning Spring
B-18	Washer	G-6.15	Gear adjustment shaft
B-19	Screw,Ignition Coil	G-6.16	Positioning plate
B-20	Housing, Air Filter	G-6.17	circlip 3
B-21	Screw	G-6.18	Flat Washer
B-22	Air Filter Assy	G-7	Screw
B-22.1	Air Filter Seat	G-8	Worm Gasket
B-22.2	Sealing Strip, Air Filter	G-9	Worm (plastic)
B-22.3	Spring Clasp	G-10	Worm
B-22.4	Air Filter	G-11	Cover,Oil Pump
B-22.5	Cover, Air Filter	G-12	Clutch Needle Bearing
B-23	Screw	G-13	Sprocket
C-1	Nut	G-14	Clutch Drum (Rim Type)
C-2	Flywheel	G-15	Clutch Assy
C-3	Screw	G-16	Cable tie
C-4	Spring washer	H-1	Brake Assembly
C-5	Flat Washer	H-1.1	Braje lever
C-6	Ignition Coil	H-1.2	Pin
C-7	ON/OFF Switch	H-1.3	Right Pin Sleeve, Brake handle
C-8	Screw	H-1.4	Torsion Spring, Brake
C-9	Spark Plug	H-1.5	Circlip 4

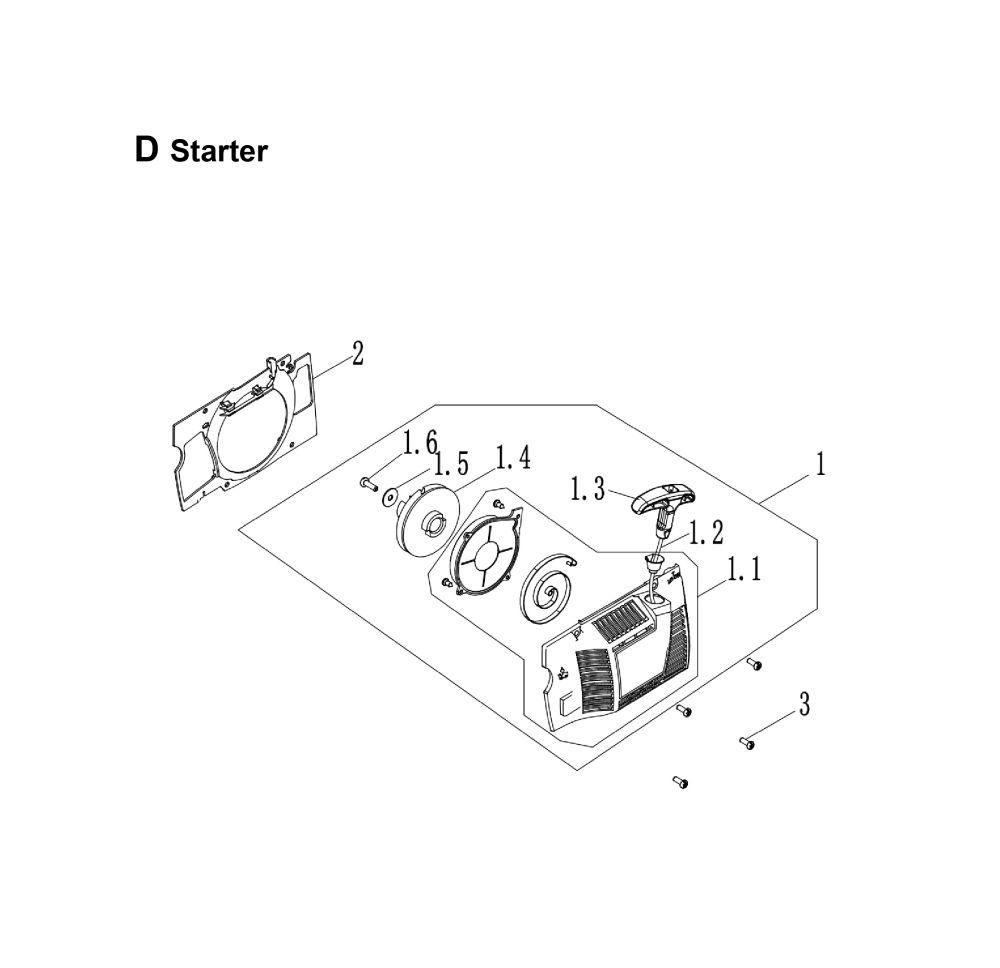

D-1	Starter Assembly	H-1.6	Left Pin Sleeve, Brake handle
D-1.1	Cover,Starter	H-1.7	Screw
D-1.2	Starter Rope	H-1.8	Brake Pad
D-1.3	Grip,Starter	H-1.9	Chain Guide Block
D-1.4	Pulley	H-1.10	Brake Cover
D-1.5	Flat washer	H-1.11	Pin
D-1.6	Screw	H-1.12	Main And Auxiliary Lever Assy
D-2	Fan Cover	H-1.13	Stoper, Brake
D-3	Screw	H-1.14	Rivet
E-1	Fuel Tank Cap Assy	H-1.15	Screw
E-2	Fuel Tank Assy	H-1.16	Brake Band
E-2.1	Big Buffer	H-1.17	Brake Spring
E-2.2	Main Buffer	H-1.18	Brake Spring cover
E-2.3	Ventilation Valve for fuel tank	H-1.19	Screw
E-2.4	Valve Block	H-1.20	Chip Guide Rubber Block
E-2.5	Main Buffer 2	H-1.21	Pin
E-2.6	Fuel Tank	H-2	Brake Positioning Sleeve
E-2.7	trigger Shaft	H-3	Spiked Bumper
E-2.8	Throttle Spring	H-4	Screw
E-2.9	Throttle trigger	H-5	Chain Block
E-2.1	Throttle Interlock Arm	H-6	Chain Guide
E-2.11	Control Arm Torsion Spring	H-7	Oil outlet plate
E-2.12	Throttle trigger Pin	H-8	Circlip 4
E-3	Fuel Hose	H-9	Adjustment Screw
E-4	Fuel Filter	H-10	Adjustment Nut
E-5	Throttle Rod Spring	H-11	Nut
E-6	Screw	H-12	Screw
E-7	Adjusting Guide Sleeve
