MS180 Replacements

MS180 Chainsaw Parts

CRAFTOP offers top-quality spare parts for MS180 series gasoline chainsaws, including:

Exceptionally sharp and durable cutting chainsaw: Made from advanced German materials with over 20 years of production experience, compatible with various professional chainsaws.
High-quality chainsaw bar: Meets standards like original factory bar, with exceptional durability and popularity in East African countries.
Cylinder: Advanced production technology, strict quality control, with ceramic-plating and chrome-plating options for diverse customer requirements.
Piston: Made with top-quality materials, featuring piston rings from famous brands for stability and market competitiveness.
Crankcase: Carefully selected blanks, precise CNC finishing, and guaranteed quality.
Crankshaft: 20CrMoTi alloy steel, advanced heat treatment, surpasses market standards in strength and toughness.
Carburetor: Produced using technology and procedures shared with Walbro, ensuring quality and competitive pricing.

Send An Inquiry

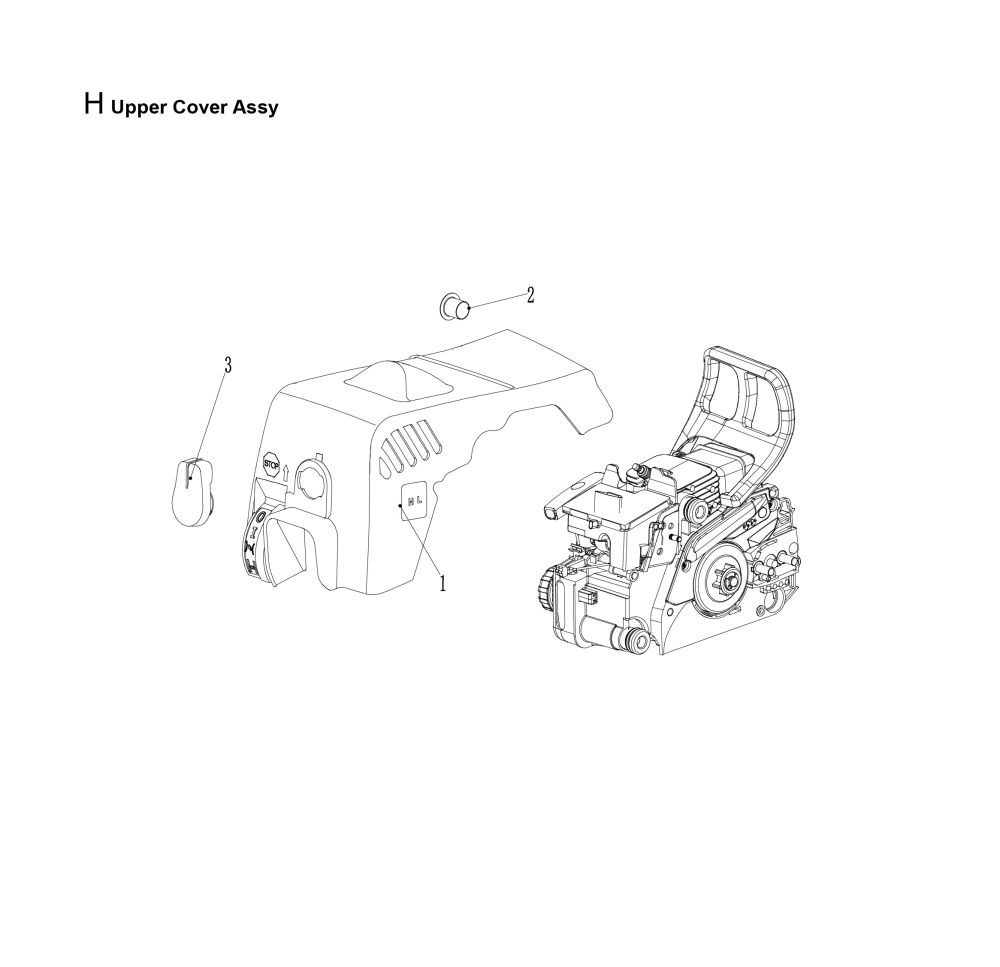

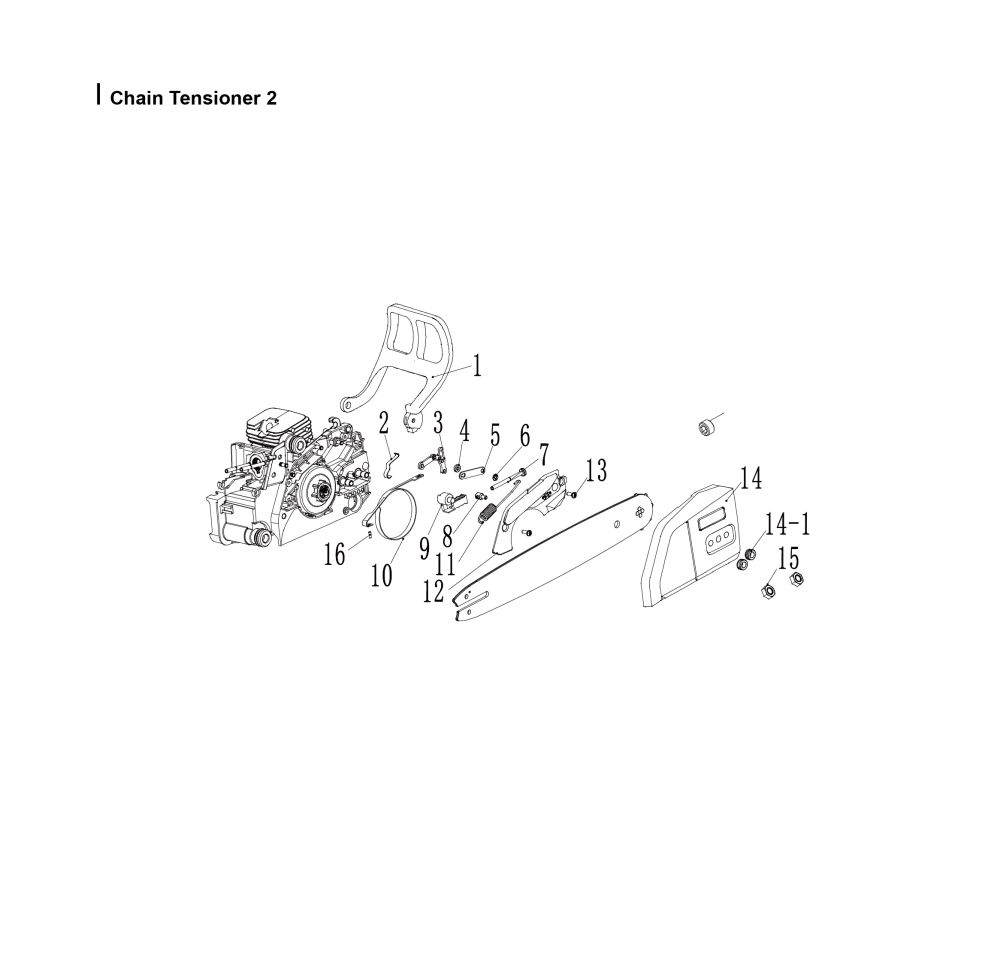

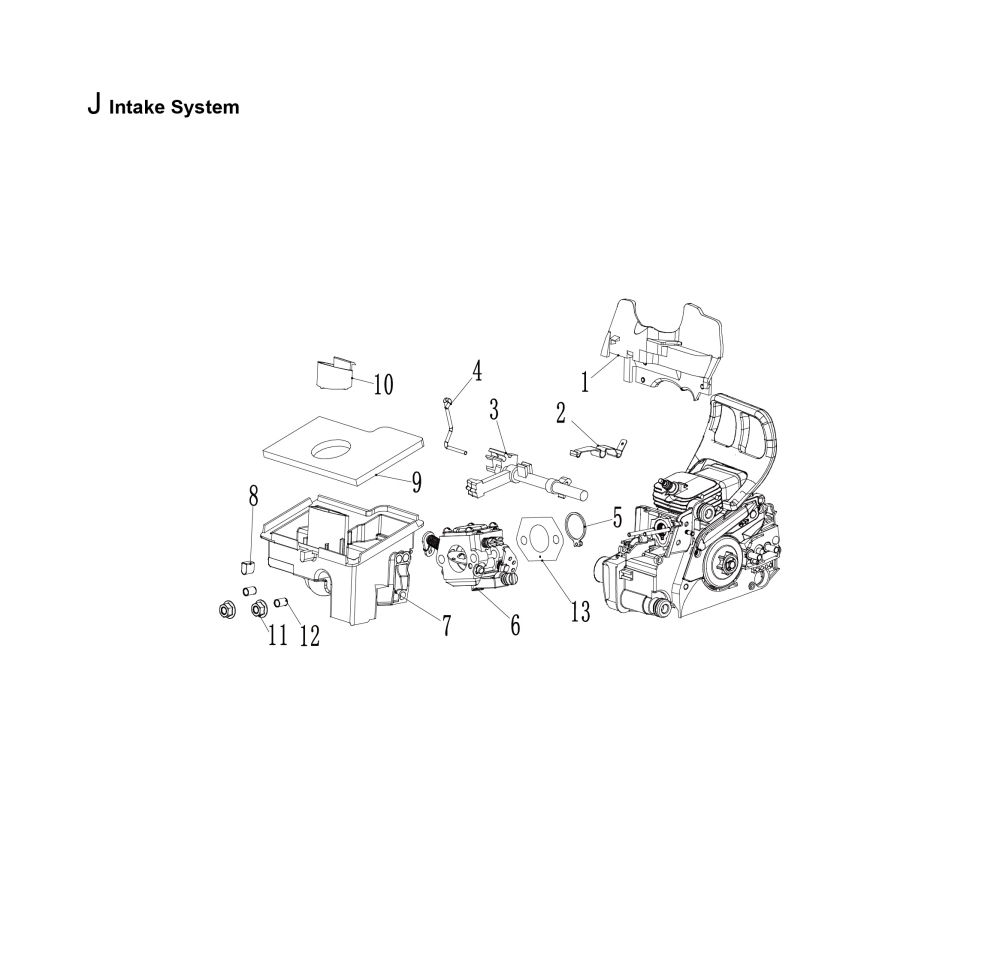

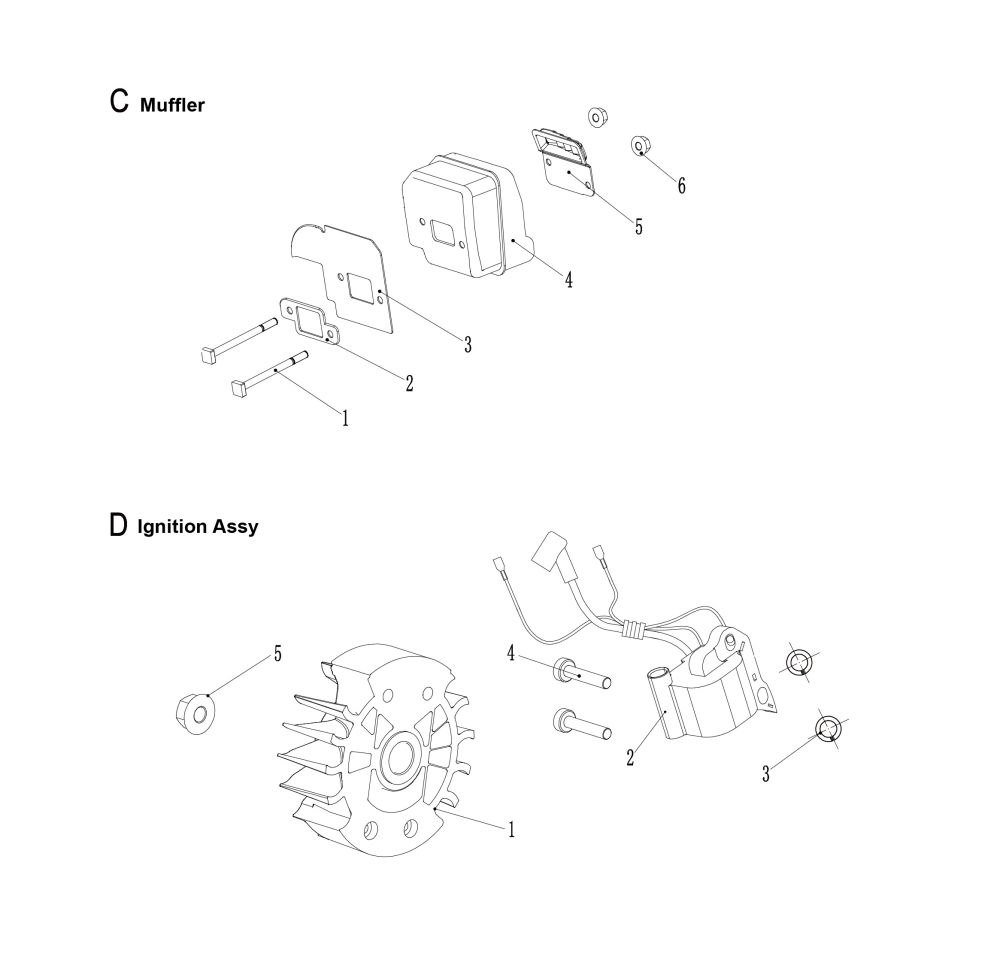

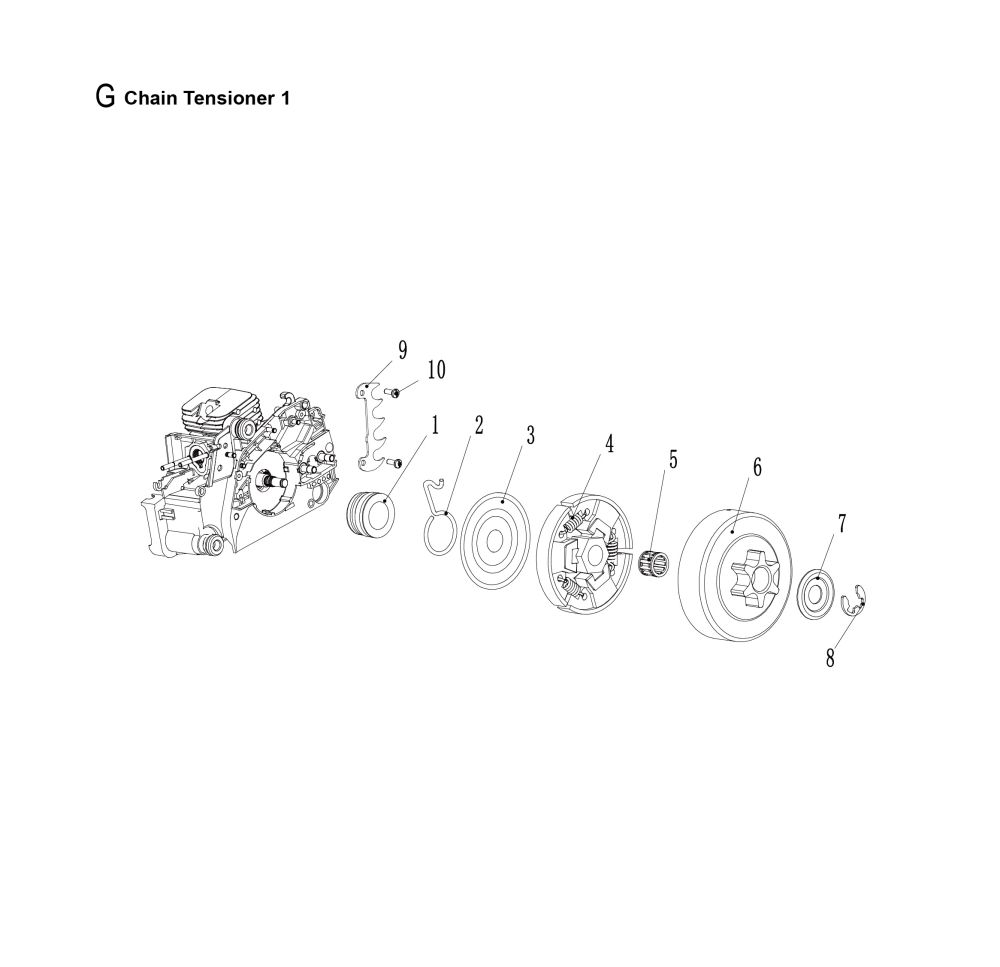

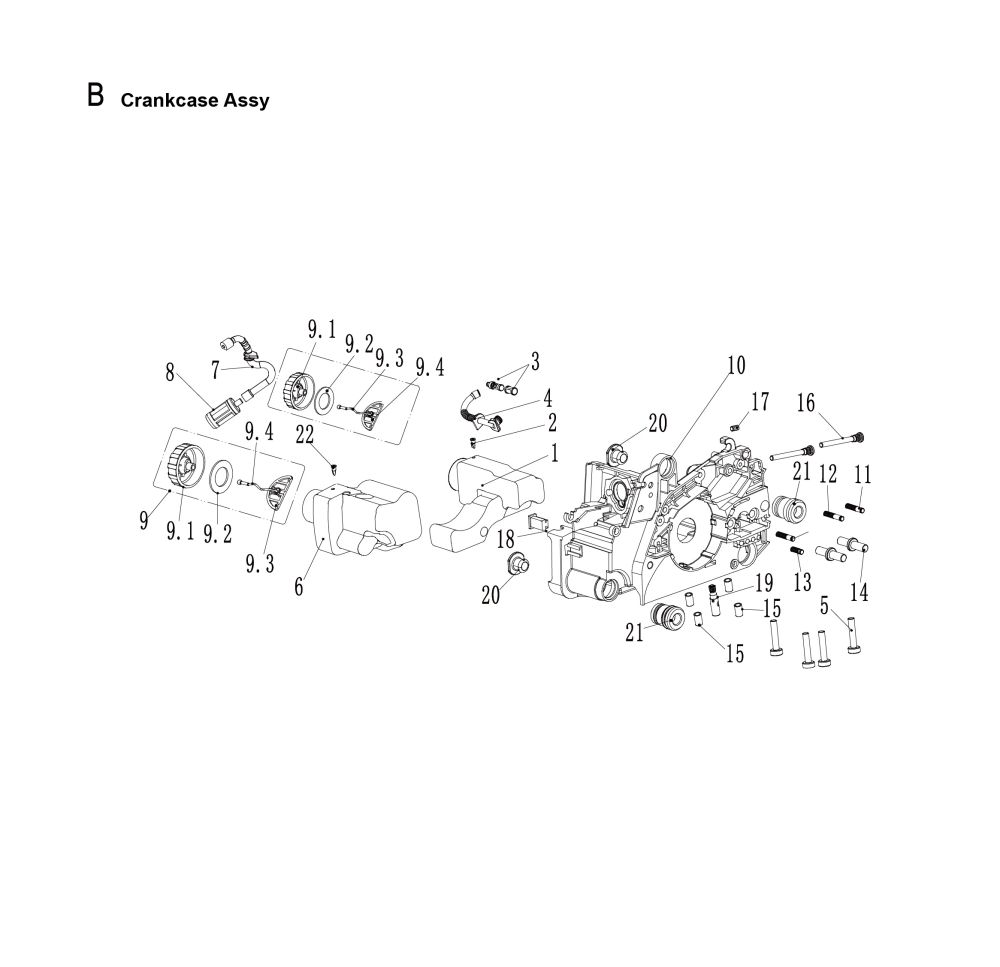

Exploded View of the Whole Machine

Important Spare Parts

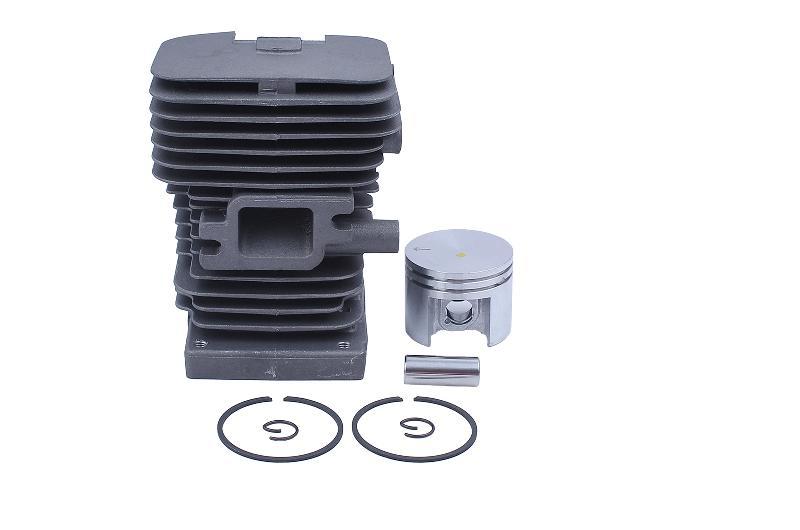

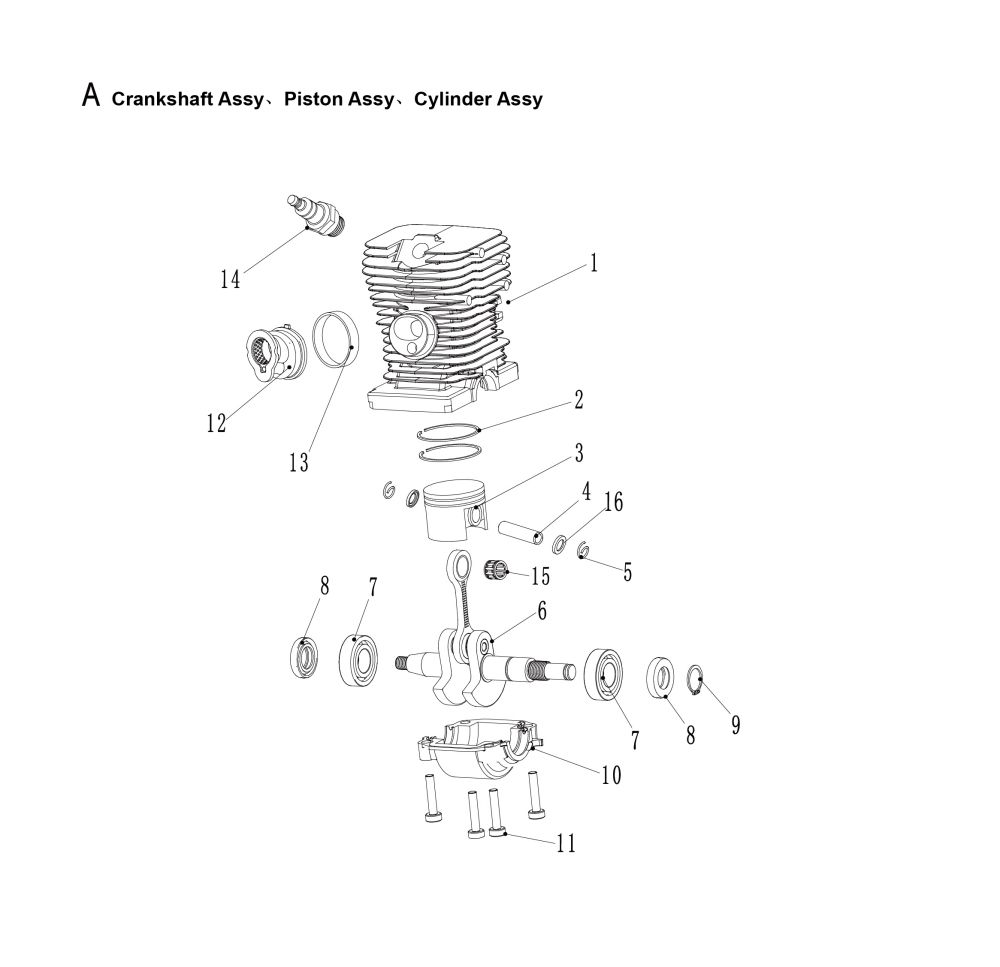

A1-A5 Cylinder Assy

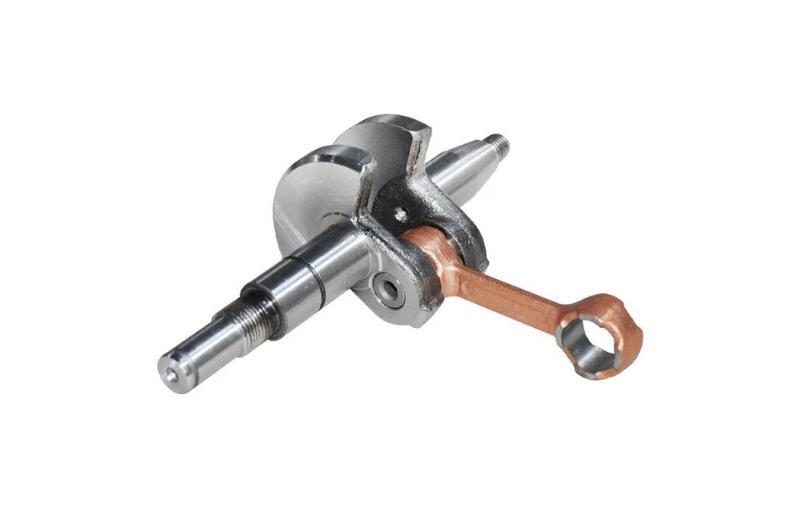

A6 Crankshaft

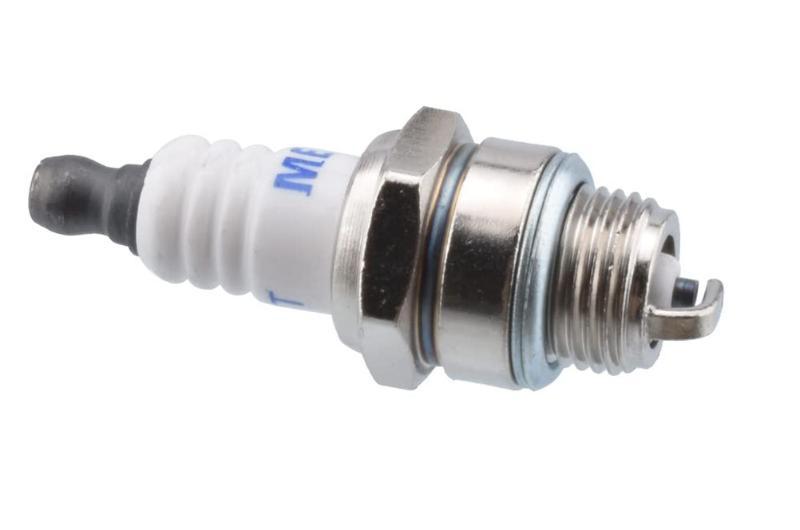

A14 Spark Plug

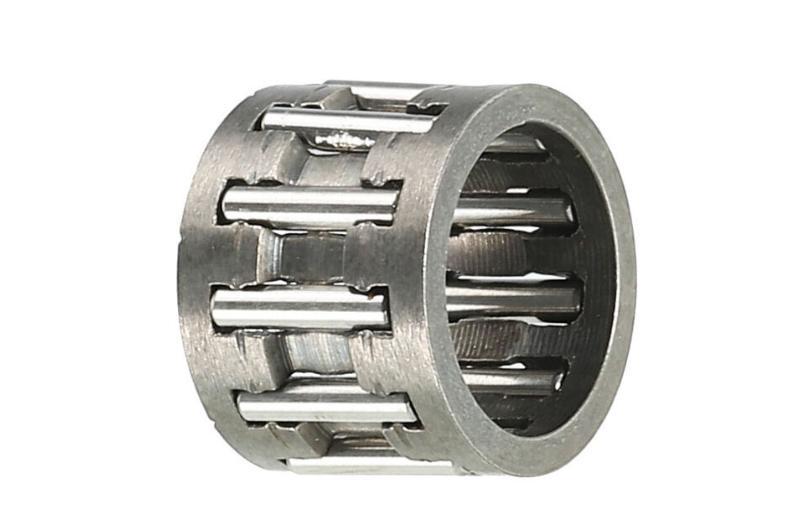

A15 Needle Bearing
Air Filter

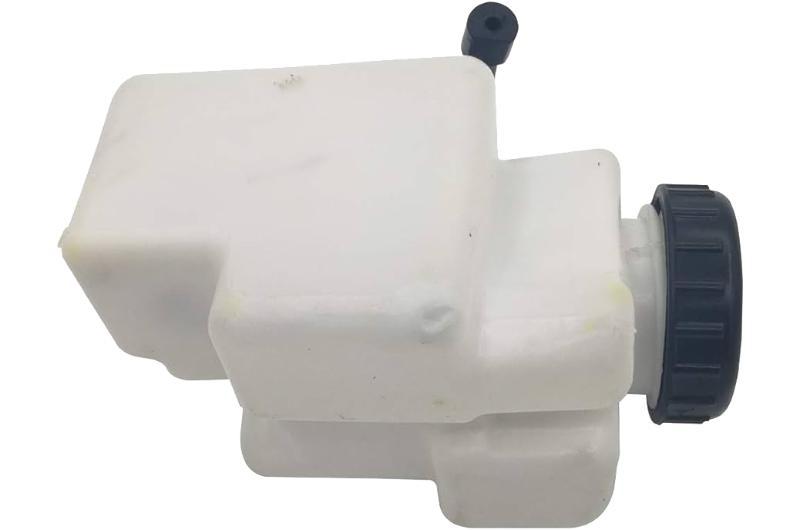

B6 Fuel Tank
B8 Fuel Filter Assy

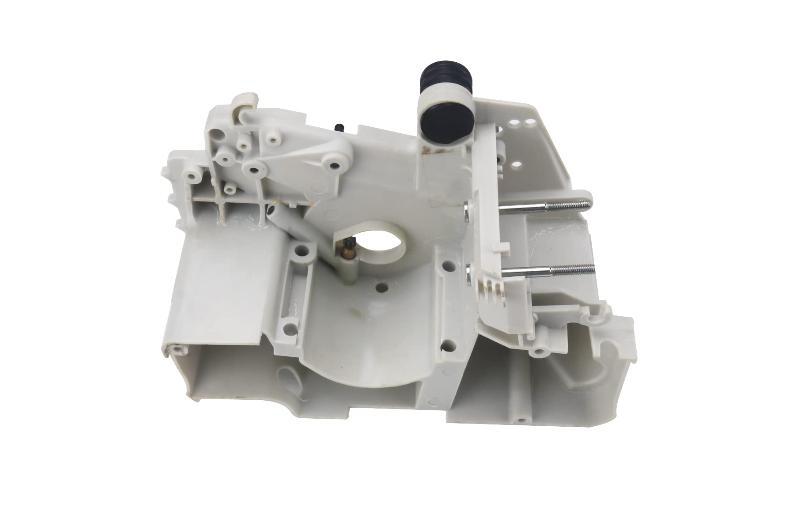

B10 Engine Housing

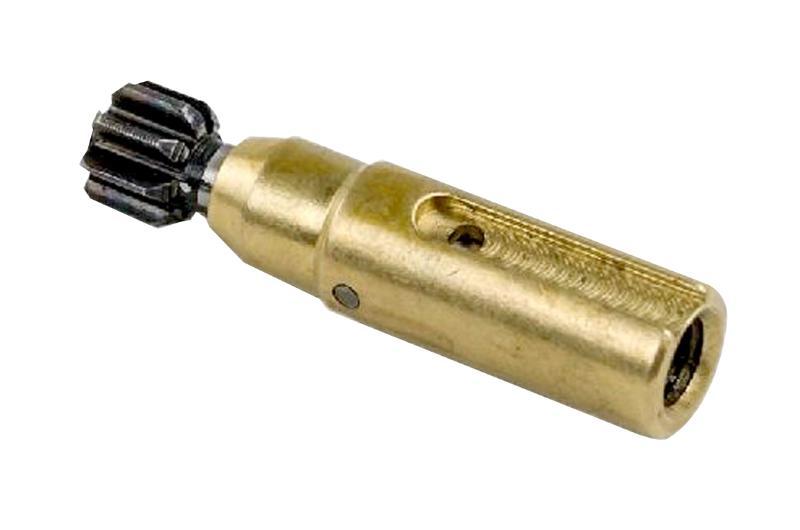

B19 Oil Pump

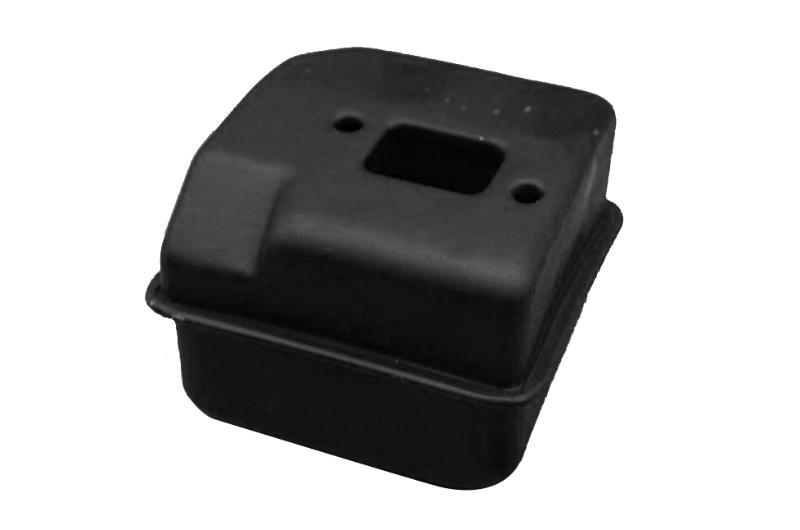

C4 Muffler

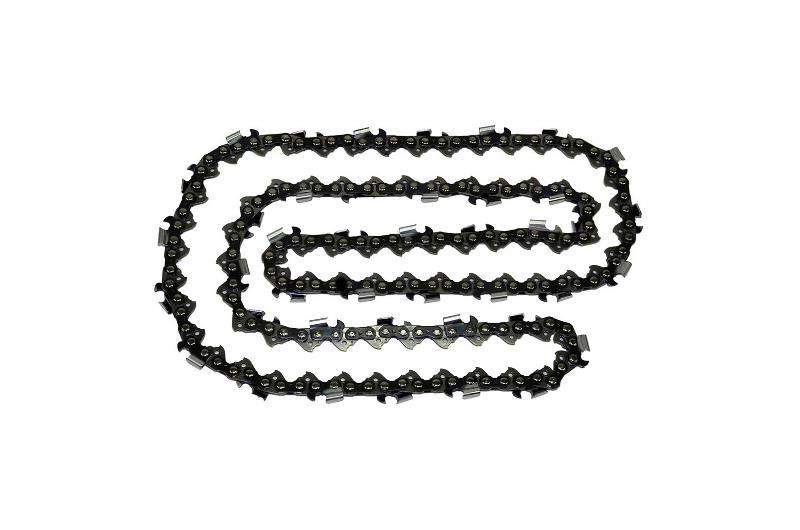

Chain

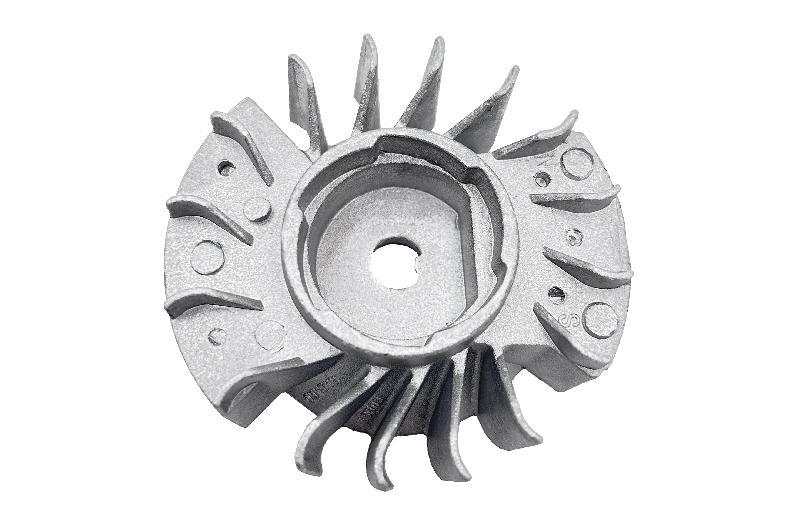

D1 Flywheel

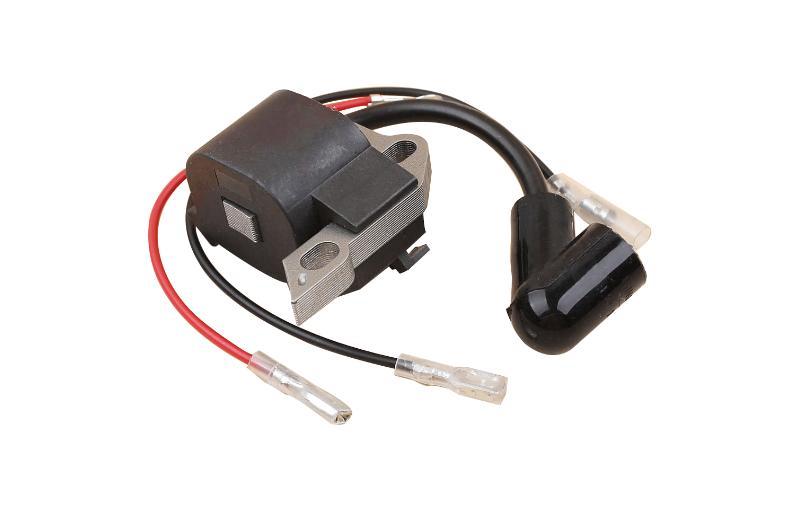

D2 Ignition Module

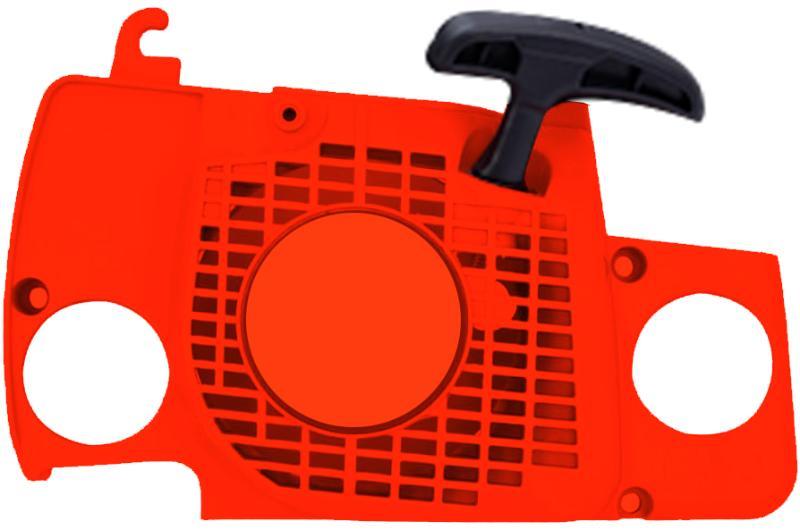

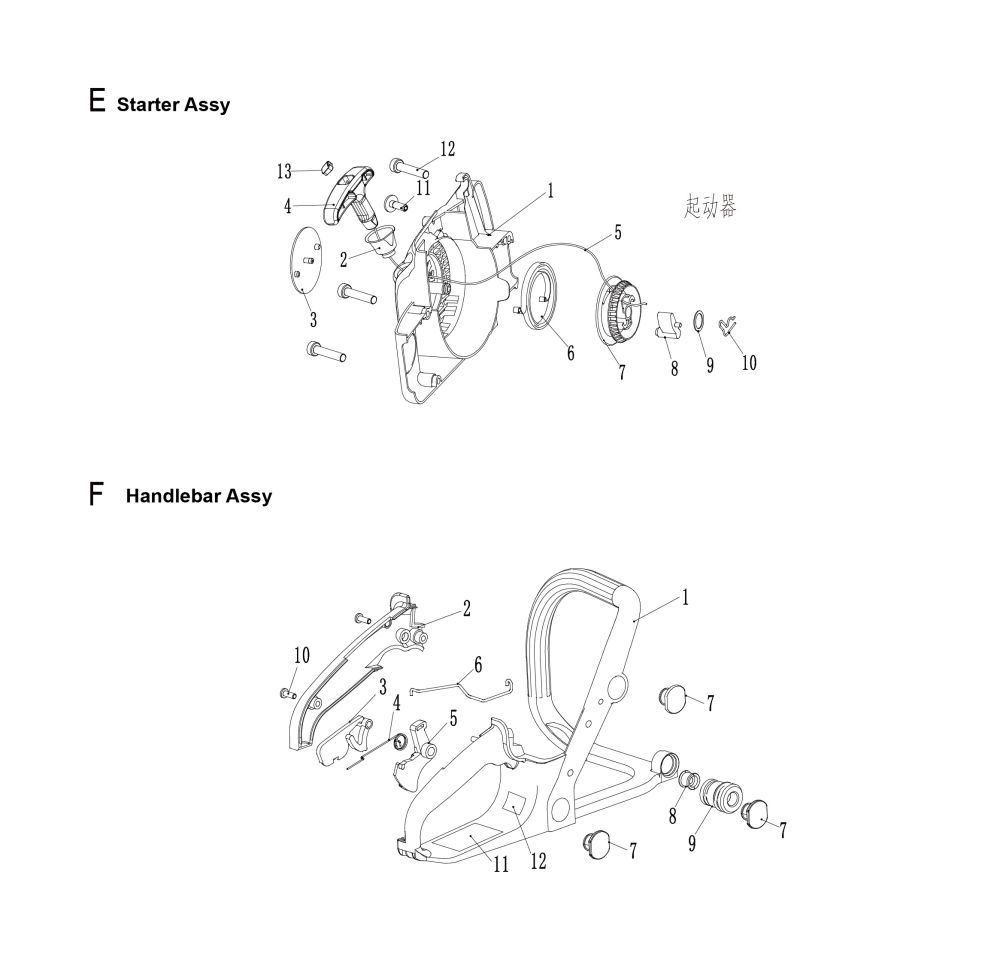

E Starter Assy

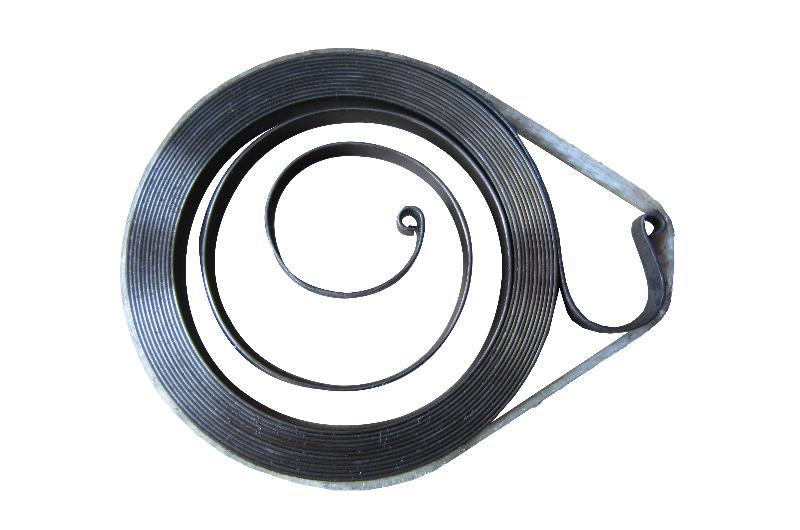

E6 Rewind Spring

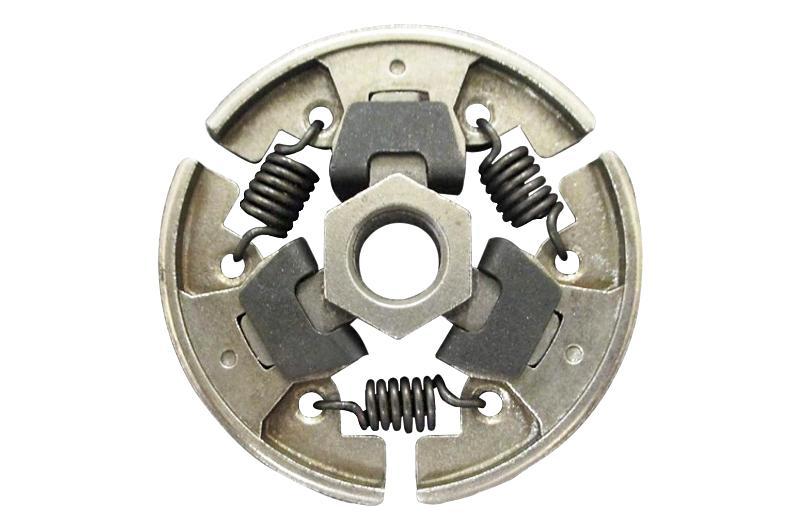

G4 Clutch

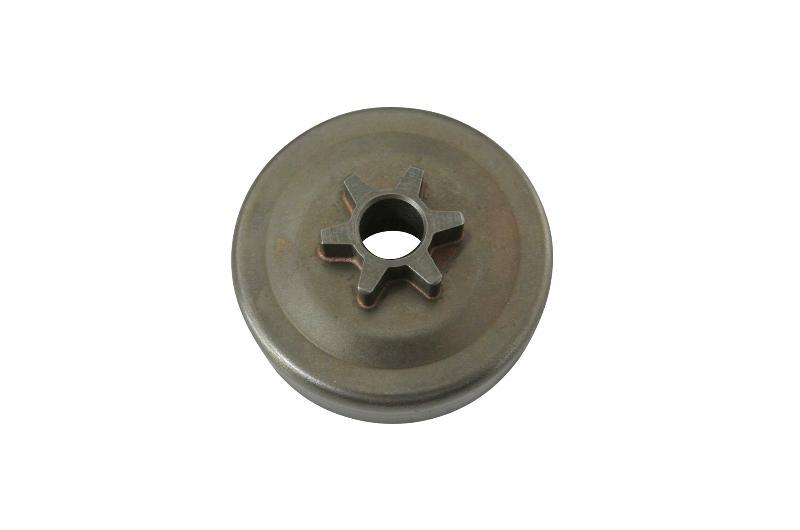

G6 Chain Sprocket
Guide Bar
I14 Chain Sprocket Cover

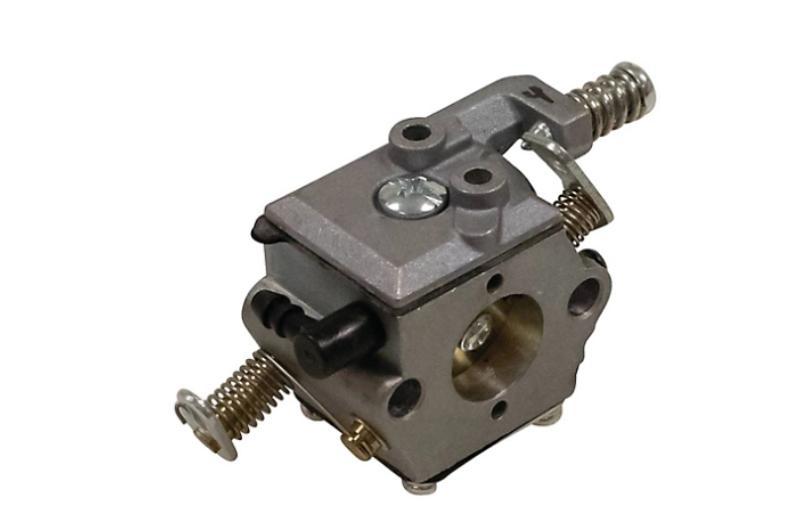

J6 Carburetor

Other Spare Parts

CODE	Part Name	CODE	Part Name
A01	Cylinder	E8	Pawl
A02	Piston Ring	E9	Washer
A03	Piston	E10	Spring
A04	Piston Pin	E11	Screw
A05	Snap Ring	E12	Screw
A06	Crankshaft	F01	Handle Frame
A07	Bearing	F02	Handle Molding
A08	Oil Sealing	F03	Throttle Interlock
A09	Circlip	F04	Torsion Spring
A10	Engine Pan	F05	Throttle trigger
A11	Pan Head Screw	F06	Throttle Rod
A12	Manifold	F07	Plug
A13	Ring	F08	Plug
A14	Spark Plug	F09	Buffer
A15	Needle Bearing	F10	Screw
B01	Oil Tank	G1	Worm
B02	Valve	G2	Spring
B03	Oil Filter Assy	G3	Cover Washer
B04	Hose	G4	Clutch
B05	Pan Head Screw	G5	Bearing
B06	Fuel Tank	G6	Chain Sprocket
B07	Hose	G7	Washer
B08	Fuel Filter Assy	G8	E-Clip
B09.1	Filler Cap	G9	Bumper Spikes
B09.2	Sealing Ring	G10	Screw
B09.3	Hook	H1	Shroud
B09.4	Rope	H2	Sleeve
B10	Engine Housing	H3	Twist Lock
B11	Pin	I1	Hand Guard
B12	Pin	I2	Flat Spring
B13	Pin	I3	Lever
B14	Colar Screw	I4	Washer
B15	Sleeve	I5	Strap
B16	Pan Head Screw	I6	E-Clip
B17	Screw	I7	Adjusting Screw
B18	Stop Buffer	I8	Tension Nut
B19	Oil Pump	I9	Cover
B20	Plug 1	I10	Brake Band
B21	Buffer	I11	Tension Spring
C01	Screw	I12	Cover
C02	Gasket	I13	Screw
C03	Cooling Plate	I14	Chain Sproket Cover
C04	Muffler	I15	Nut
C05	Cover	I16	Pin
C06	Nut	J1	Baffle Plate
D1	Flywheel	J2	Contact Spring
D2	Ignition Module	J3	Switch Shaft
D3	Insulator	J4	Choke Rod
D4	Screw	J5	Sleeve
D5	Nut	J6	Carburetor
E1	Fan Housing	J7	Filter Housing
E2	Bushing	J8	Sleeve
E3	Model Plate	J9	Filter Plate
E4	Starter Grip	J10	Insert
E5	Starter Rope	J11	Nut
E6	Rewing Spring	J12	Air Filter Seat
E7	Rope Pulley	J13	Gasket

Wholesale only. No retail and individual buyers. No job recruitment, please.

Plesae provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.
