MS660 Replacements

MS660 (NT9200) Chainsaw Parts

Below are the best-to-have chainsaw spare part replacements for MS 660 Serie (CRAFTOP NT9200):

Superior Saw Chain: German raw materials, 20 years of production expertise, compatible with professional chainsaws.
Precision Chainsaw Bar: Strict production standards, best-selling bar nose in East African countries.
Reliable Crankcase: Carefully selected blanks, precise CNC finishing, guaranteed quality.
High-Performance Crankshaft: 20CrMoTi alloy steel, advanced heat treatment, surpasses market standards.
Advanced Cylinder: Advanced production technology, strict quality control, ceramic-plating and chrome-plating options.
Stable Piston: Top-quality materials, piston rings from famous brands, ensures stability and market competitiveness.
Quality Carburetor: Same production technology as Walbro, reliable and competitively priced.

Send An Inquiry

Exploded View of the Whole Machine

Important Spare Parts

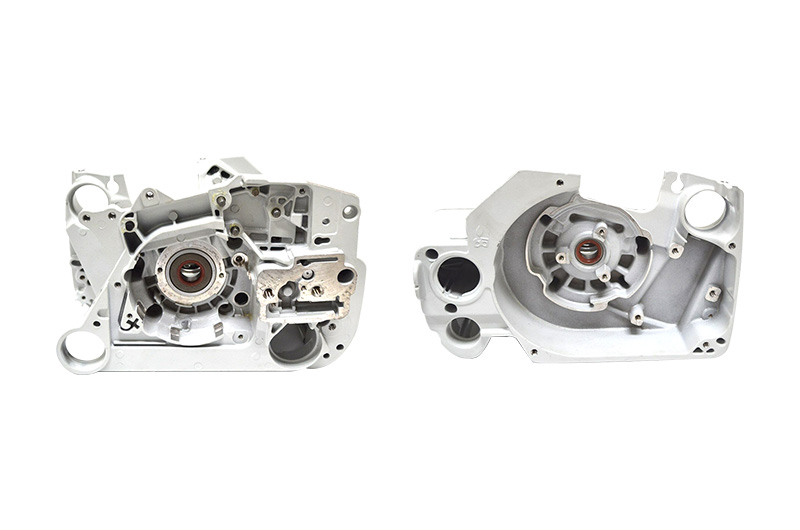

A1-A2 Crankcase Assy

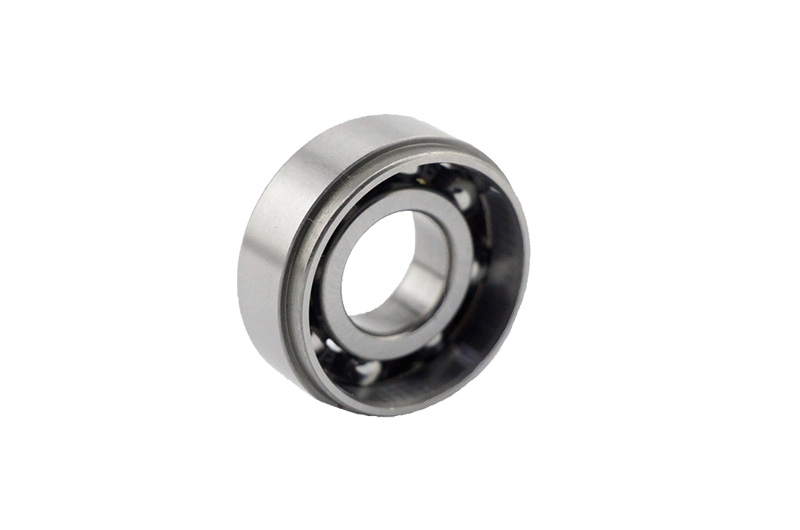

A10 Grooved Ball Bearing

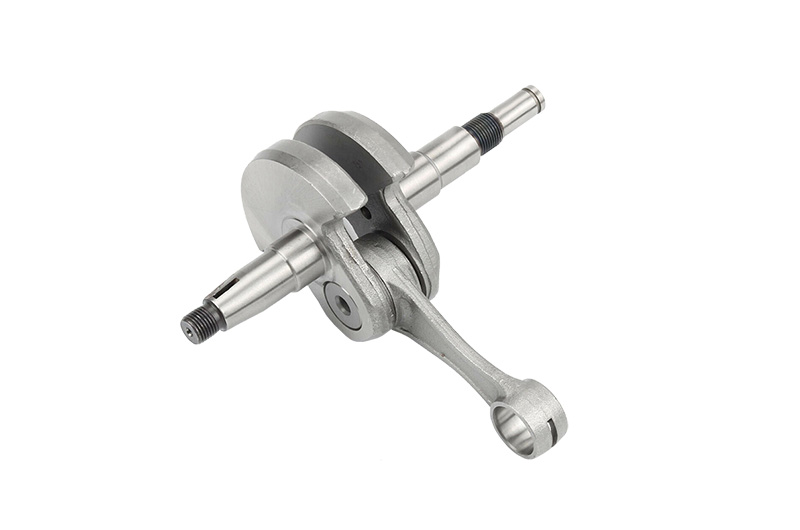

A17 Crankshaft Assy

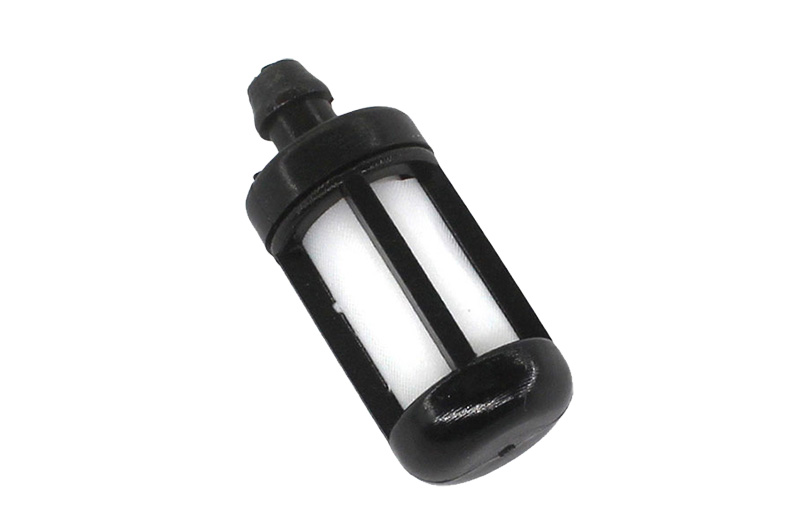

A20 Pickup Body

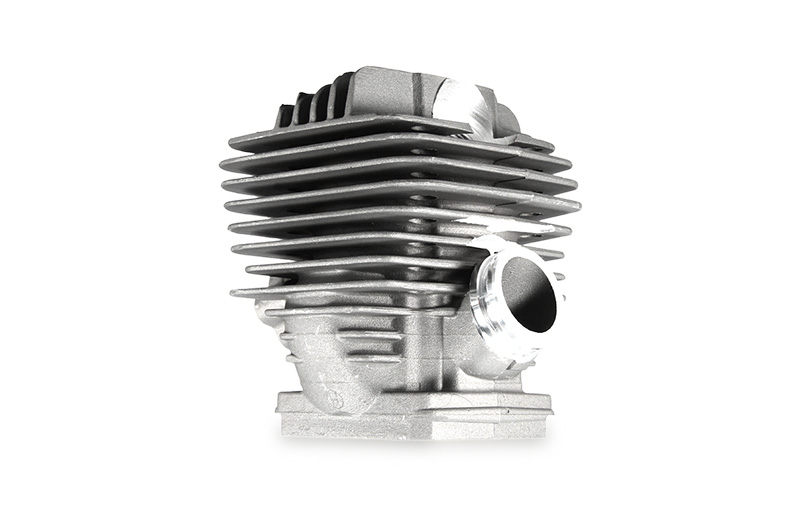

B1 Cylinder

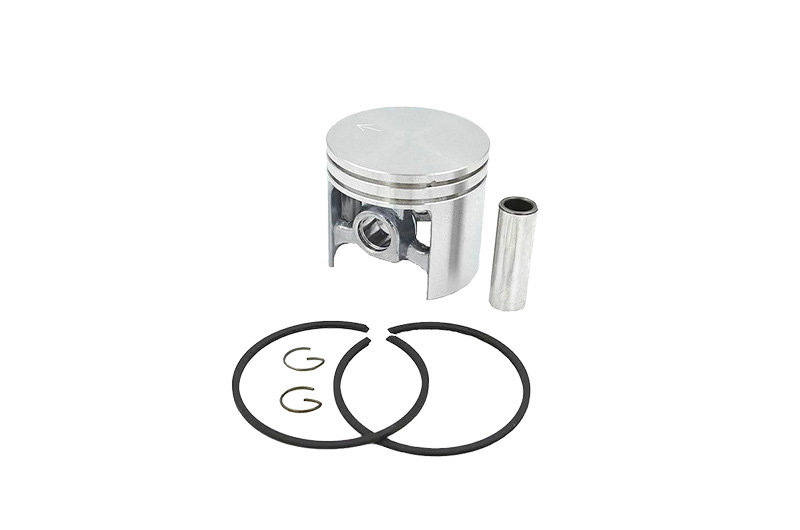

B2-B5 Piston Assy

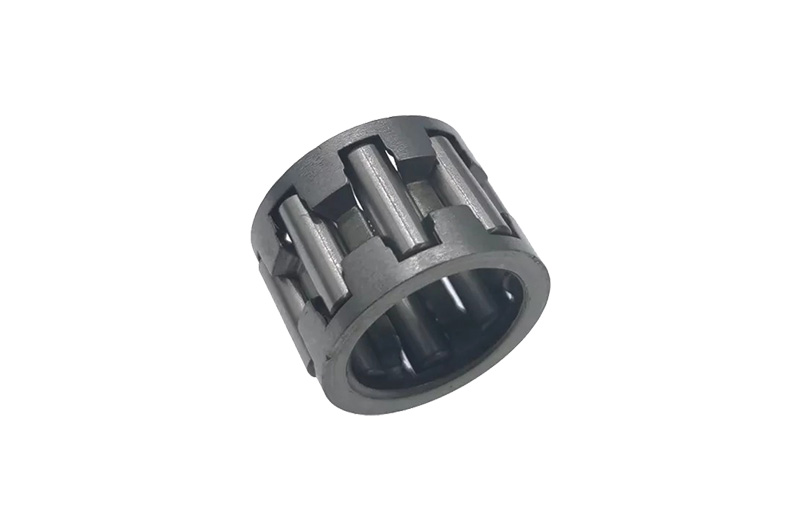

B14 Needle Cage

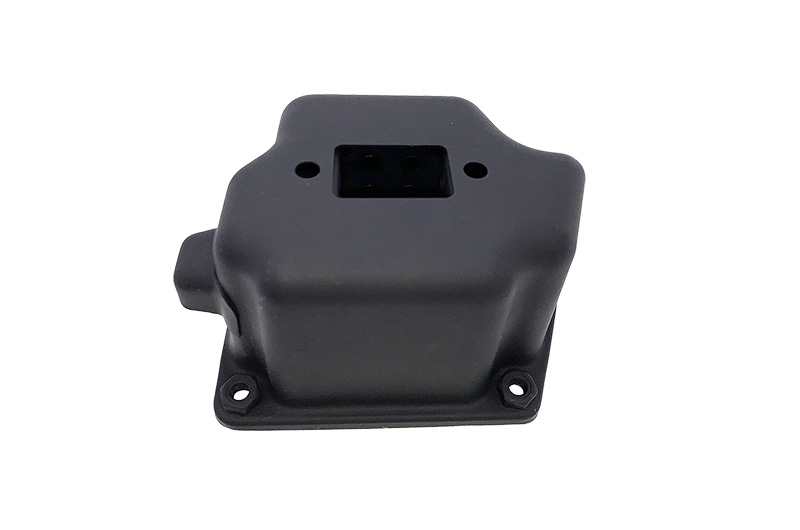

C1 Muffler

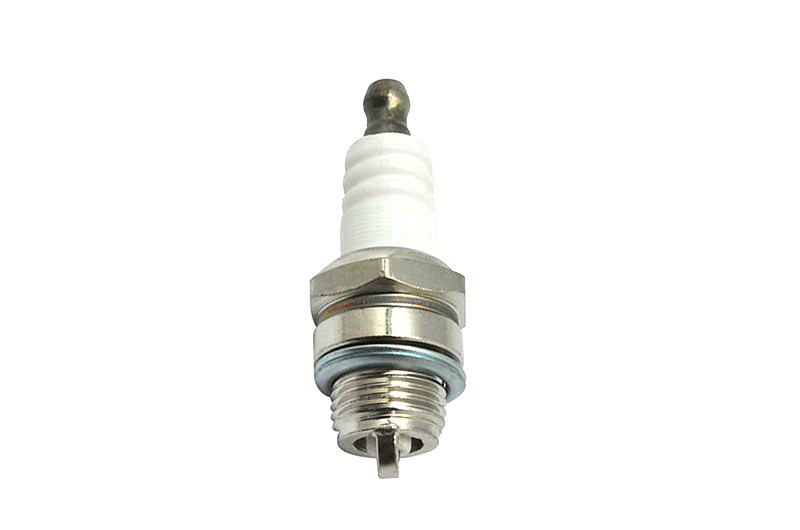

C7 Spark Plug

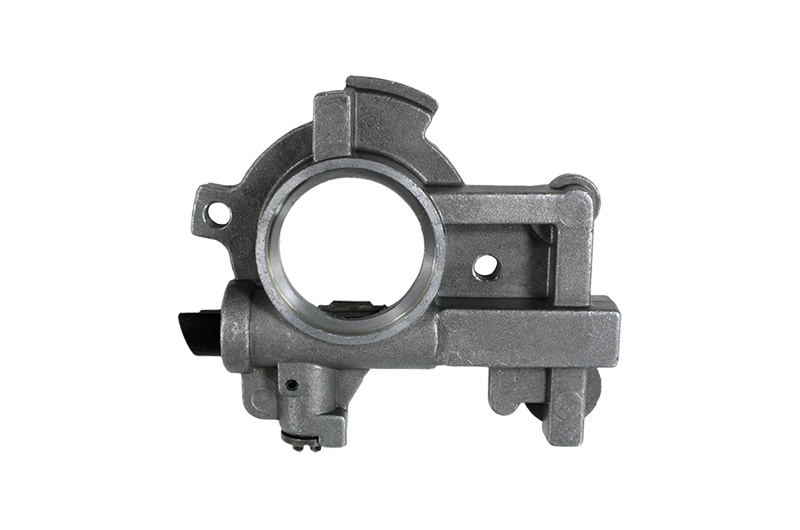

D2 Oil Pump

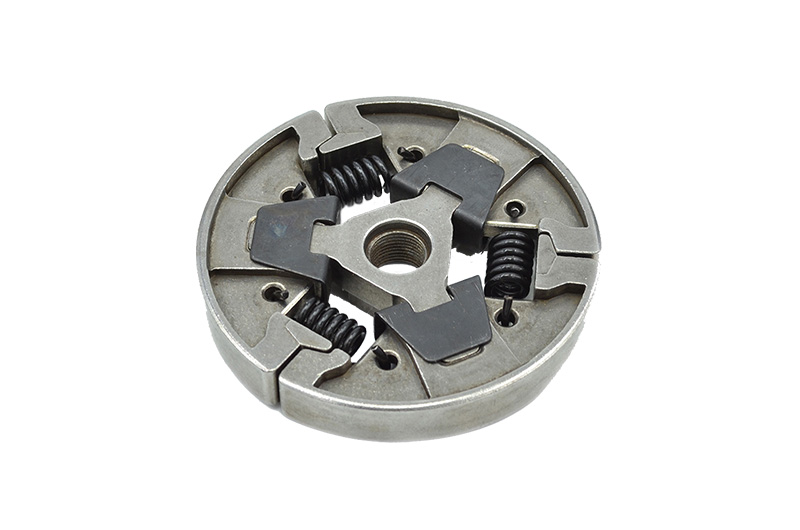

E2 Clutch Assy

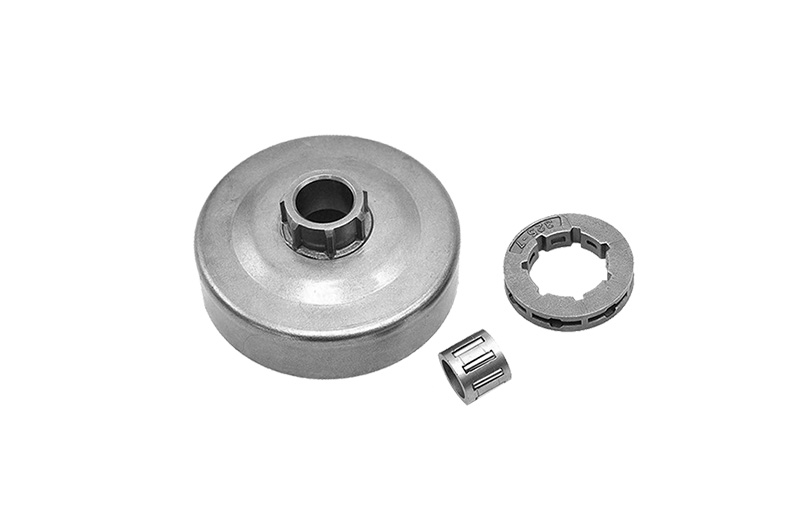

E3-E5 Sprocket With Rim

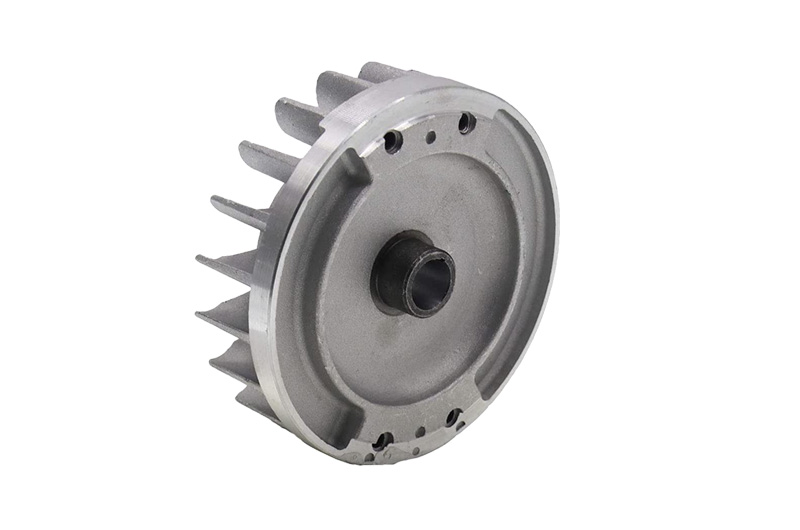

H1 Flywheel

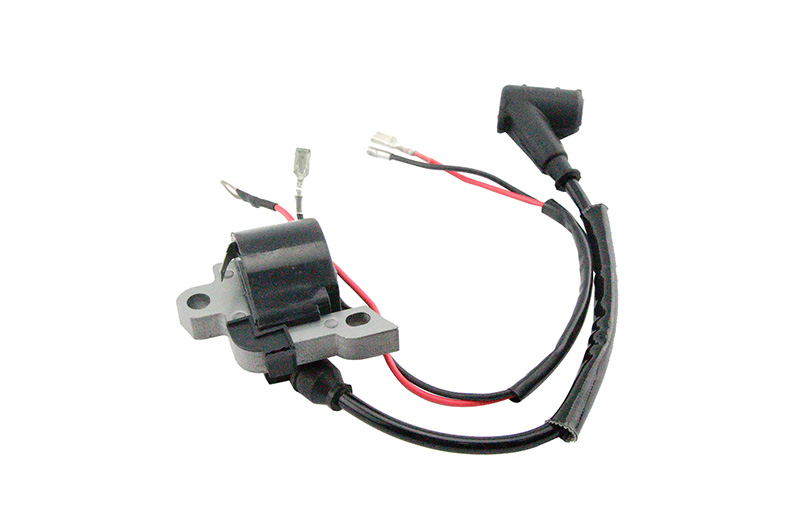

H5 Ignition Module

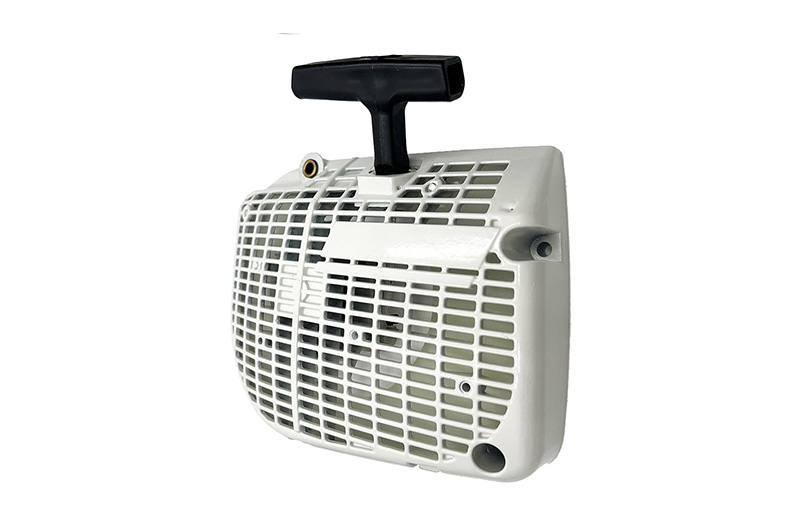

K1-15 Starter Assy

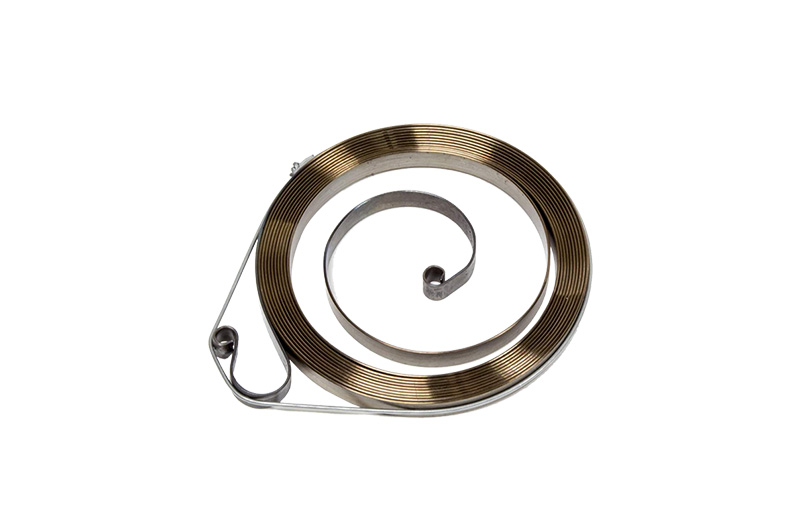

K8 Recoil Spring
L16 Pickup Body

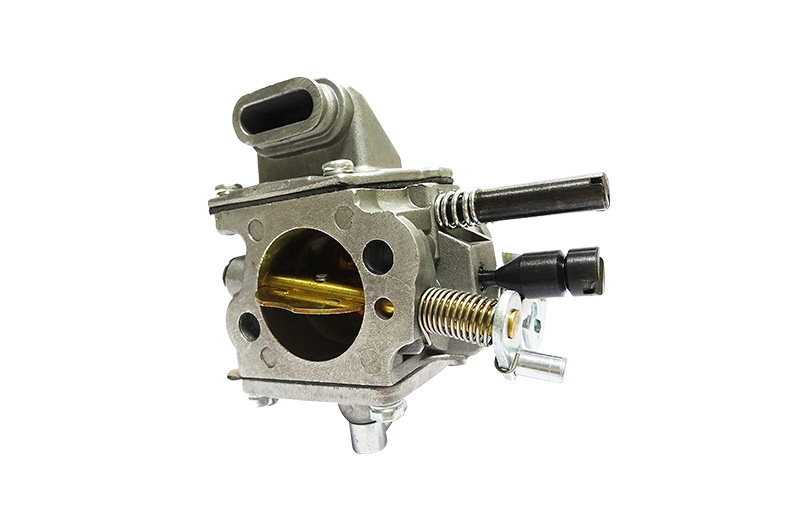

N4 Carburetor

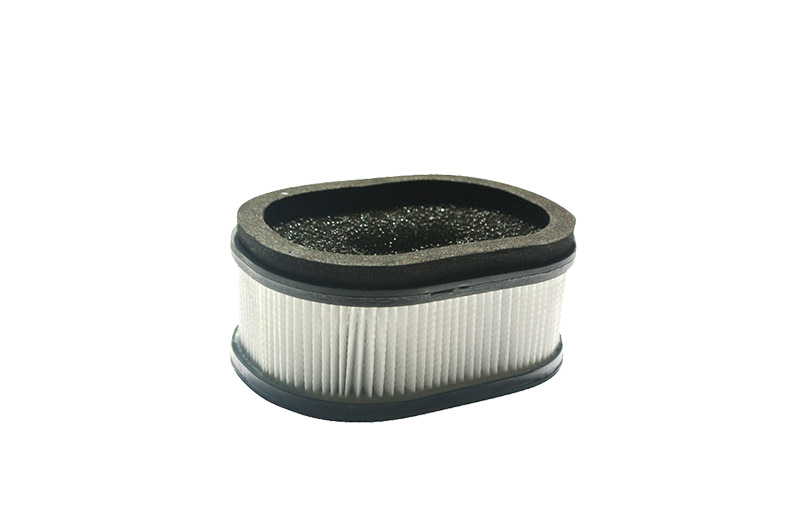

P10 Air Filter Assy
Chain & Bar

Other Spare Parts

CODE	PART NAME	CODE	PART NAME	CODE	PART NAME

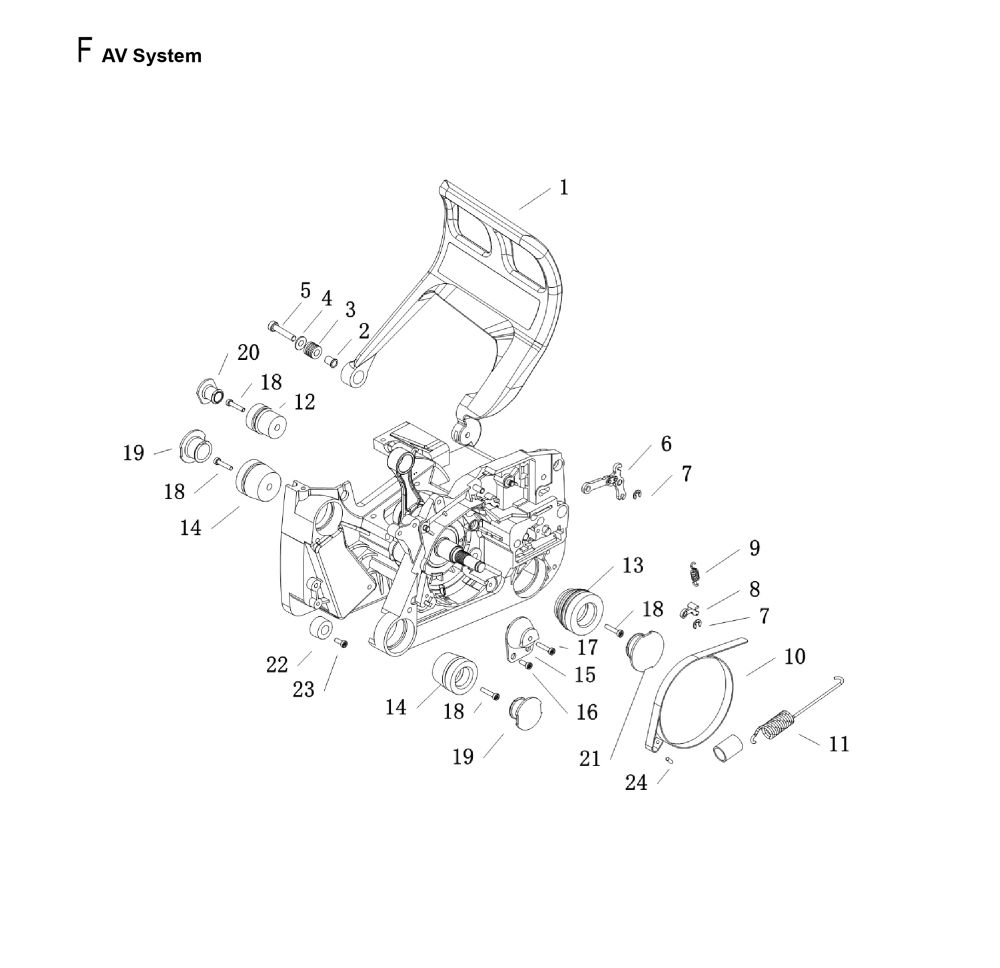

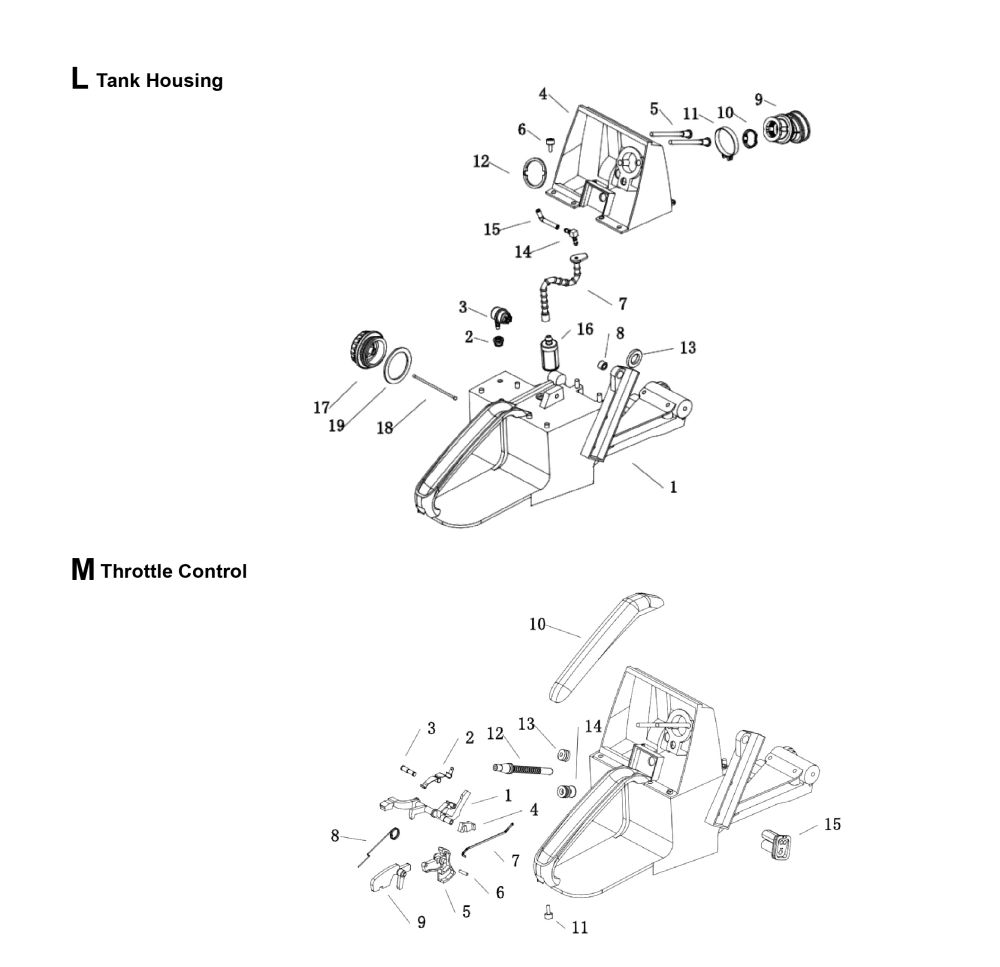

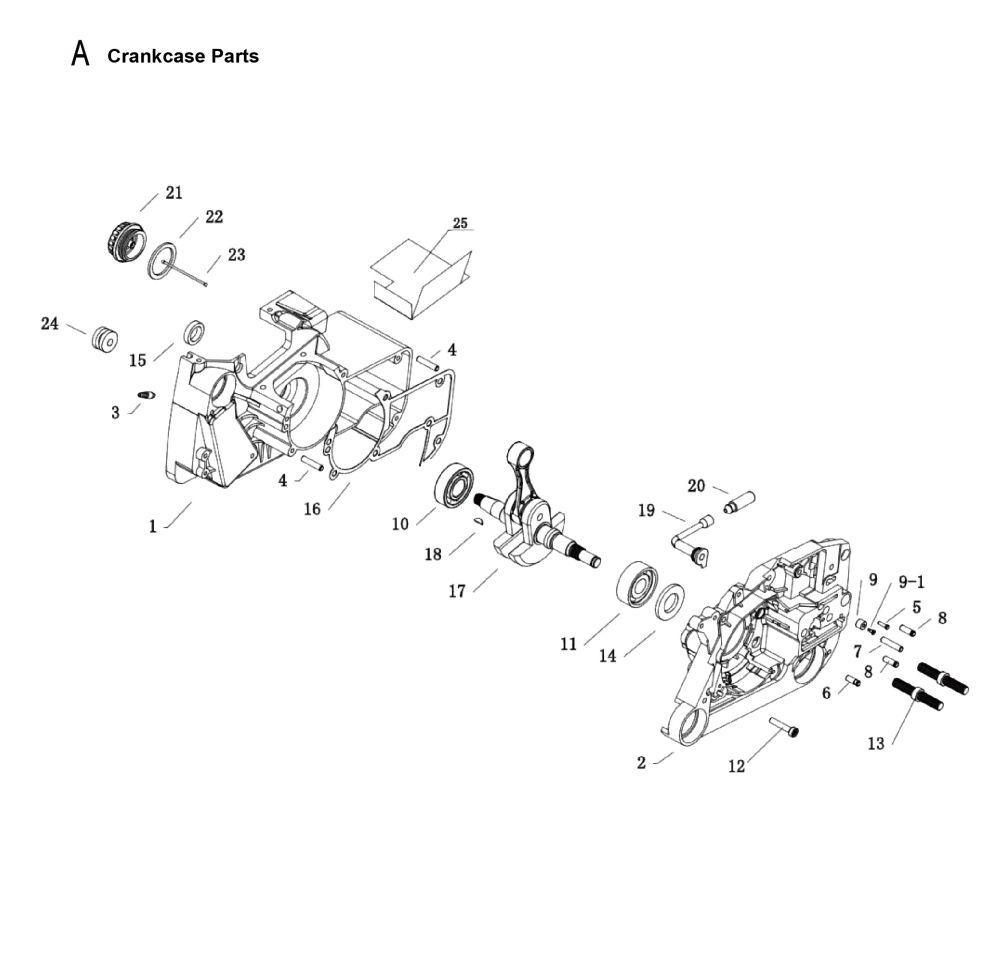

A. Crankcase Parts		F. Av System		L. Tank Housing
A1	Crankcase L	F1	Hand Guard	L1	Tank Housing
A2	Crankcase R	F2	Bushing	L2	Grommet
A3	Connector	F3	Bushing	L3	Tank Vent
A4	Cylindrical Pin	F4	Spline Screw	L4	Carburetor Housing
A5	Pin	F5	Lever	L5	Collar Screw
A6	Pin	F6	Sleeve	L6	Self-Tapping Screw
A7	Pin	F7	Lever	L7	Hose
A8	Pin	F8	Spring	L8	Bushing
A9	Valve	F9	Brake Band	L9	Inlet Pipe
A9-1	Valve	F10	Tension Spring	L10	Sleeve
A10	Grooved Ball Bearing	F11	Hose	L11	Hose Clip
A11	Grooved Ball Bearing	F12	Annular Buffer	L12	Washer
A12	Spline Screw	F13	Annular Buffer	L13	Ring
A13	Collar Screw	F14	Annular Buffer	L14	Elbow Connector
A14	Oil Seal	F15	Twin Connector Tag	L15	Hose
A15	Oil Seal	F16	Spline Screw	L16	Pickup Body
A16	Gasket	F17	Spline Screw	L17	Filler Cap
A17	Crankshaft	F18	Pan Head Self-Tapping Screw	L18	Rope
A18	Woodruff Key	F19	Plug	L19	Sealing Ring
A19	Hose	F20	Plug	M. Throttle Control
A20	Pickup Body	F21	Plug	M1	Switch Shaft
A21	Filler Cap	F22	Rubber Buffer	M2	Contact Spring
A22	Sealing Ring	F23	Spline Screw	M3	Axle
A23	Rope	F24	Pin	M4	Support

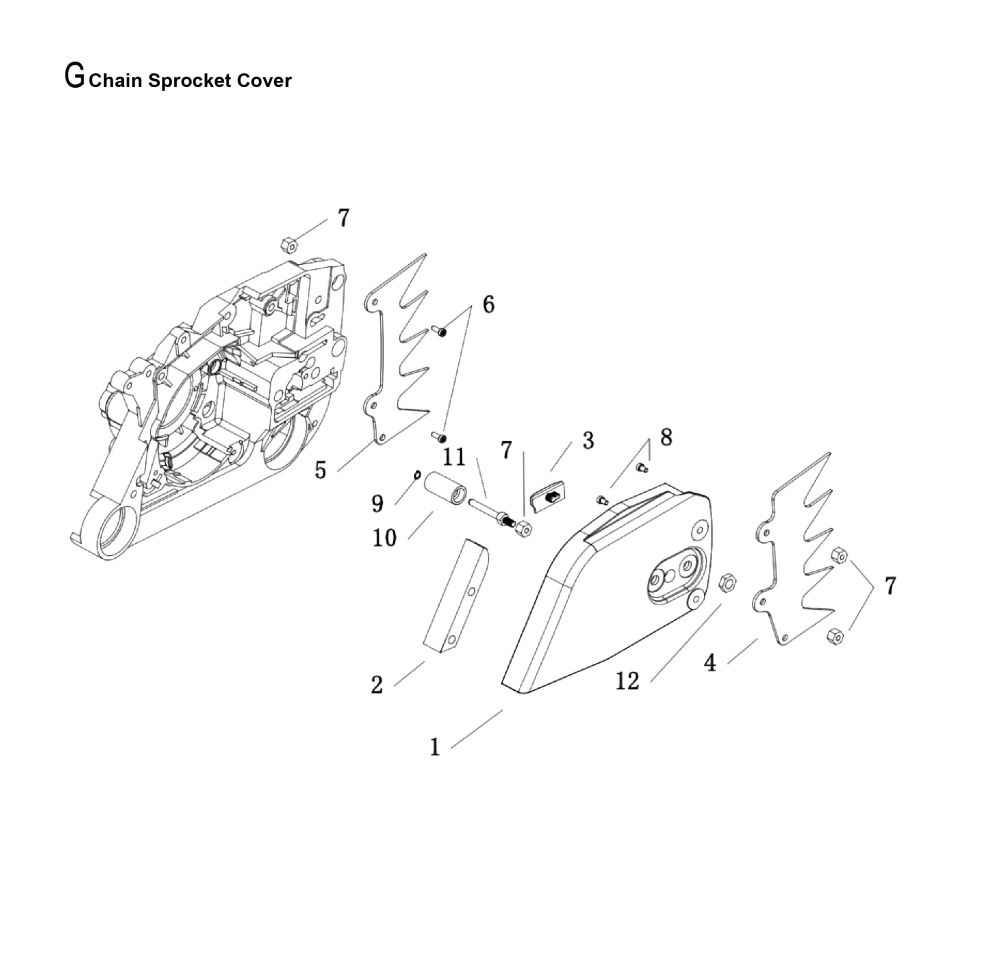

A24	Grommet	G. Chain Sprocket Cover		M5	Throttle trigger
A25	Insulation Foil	G1	Chain Sprocket Cover	M6	Cylindrical Pin

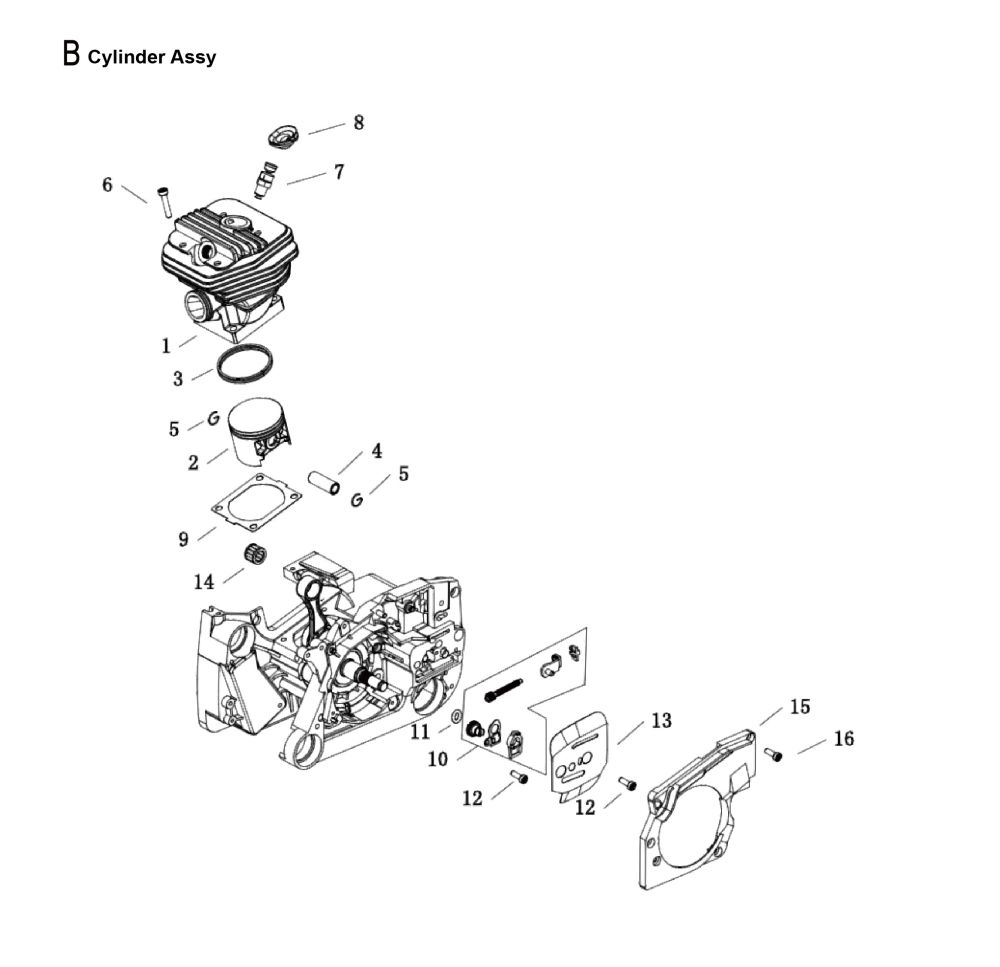

B. Cylinder		G2	Guard	M7	Throttle Rod
B1	Cylinder With Piston	G3	Bumper Strip	M8	Torsion Spring
B2	Piston	G4	Bumper Spike	M9	trigger Interlock
B3	Piston Ring	G5	Bumper Spike	M10	Handle Molding
B4	Piston Pin	G6	Spline Screw	M11	Pan Head Self-Tapping Screw
B5	Snap Ring	G7	Lock Nut	M12	Impulse Hose
B6	Spline Screw	G8	Hexagon Head Screw	M13	Grommet
B7	Decompression Valve	G9	Sleeve	M14	Grommet
B8	Cover	G10	Sleeve (3) Aus, Nz	M15	Grommet

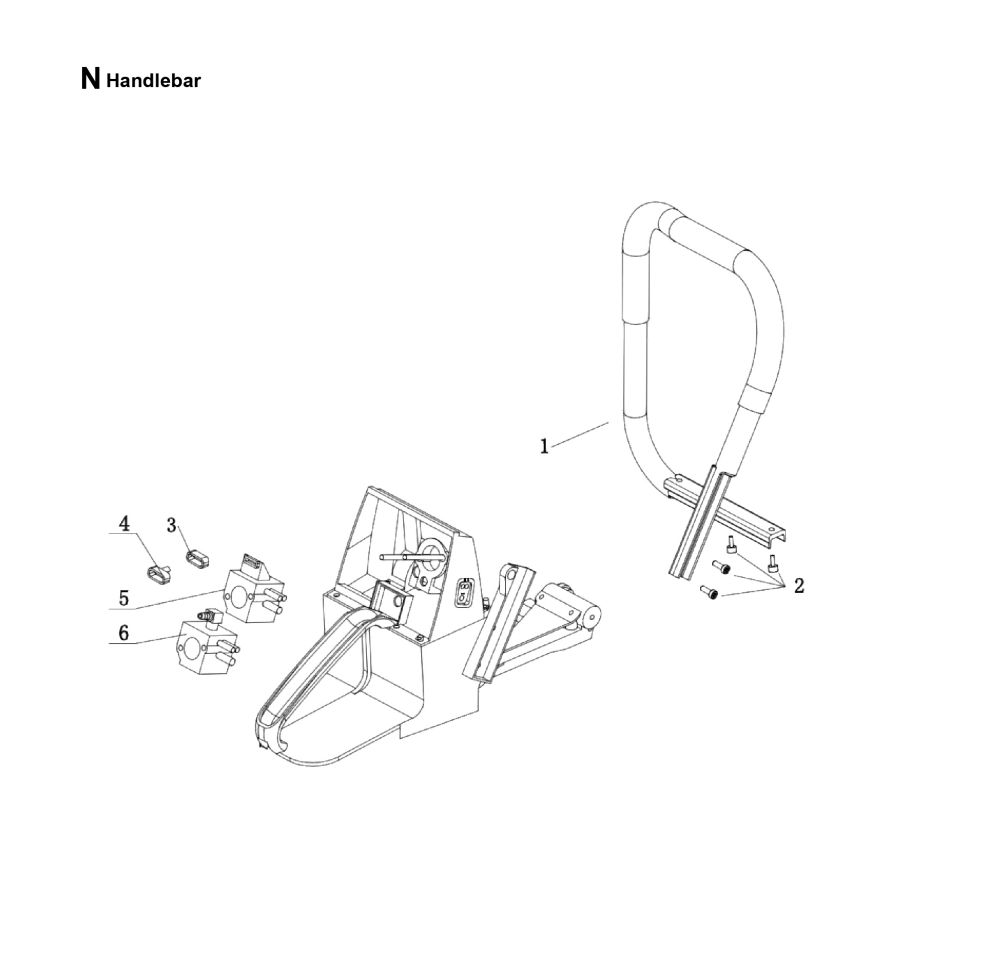

B9	Cylinder Gasket	G11	Chain Catcher	N. Handlebar
B10	Tensioner Slide	G12	Hexagon Nut	N1	Handle Hose

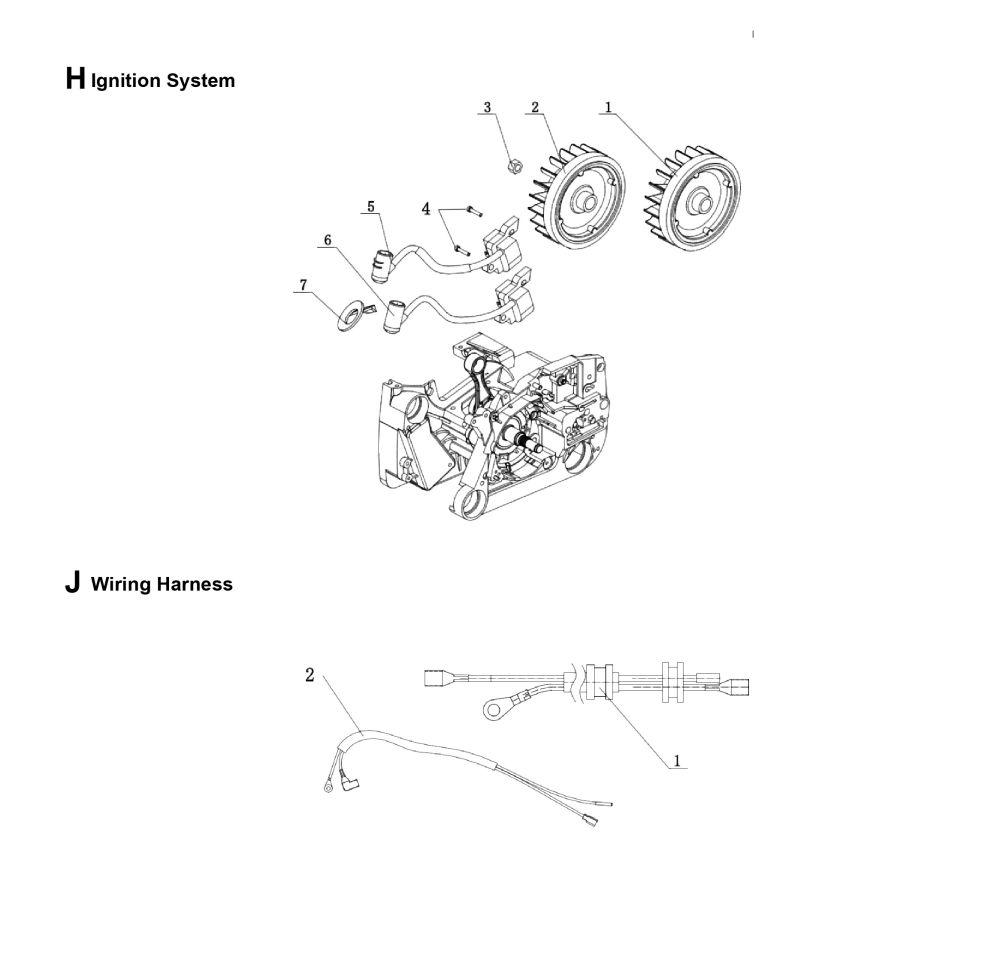

B11	O-Ring	H. Ignition System		N2	Pan Head Self-Tapping Screw
B12	Pan Head Screw	H1	Flywheel	N3	Bushing
B13	Inner Side Plate	H2	Flywheel	N4	Bushing
B14	Needle Cage	H3	Hexagon Nut	N5	Carburetor
B15	Cover	H4	Spline Screw	N6	Carburetor

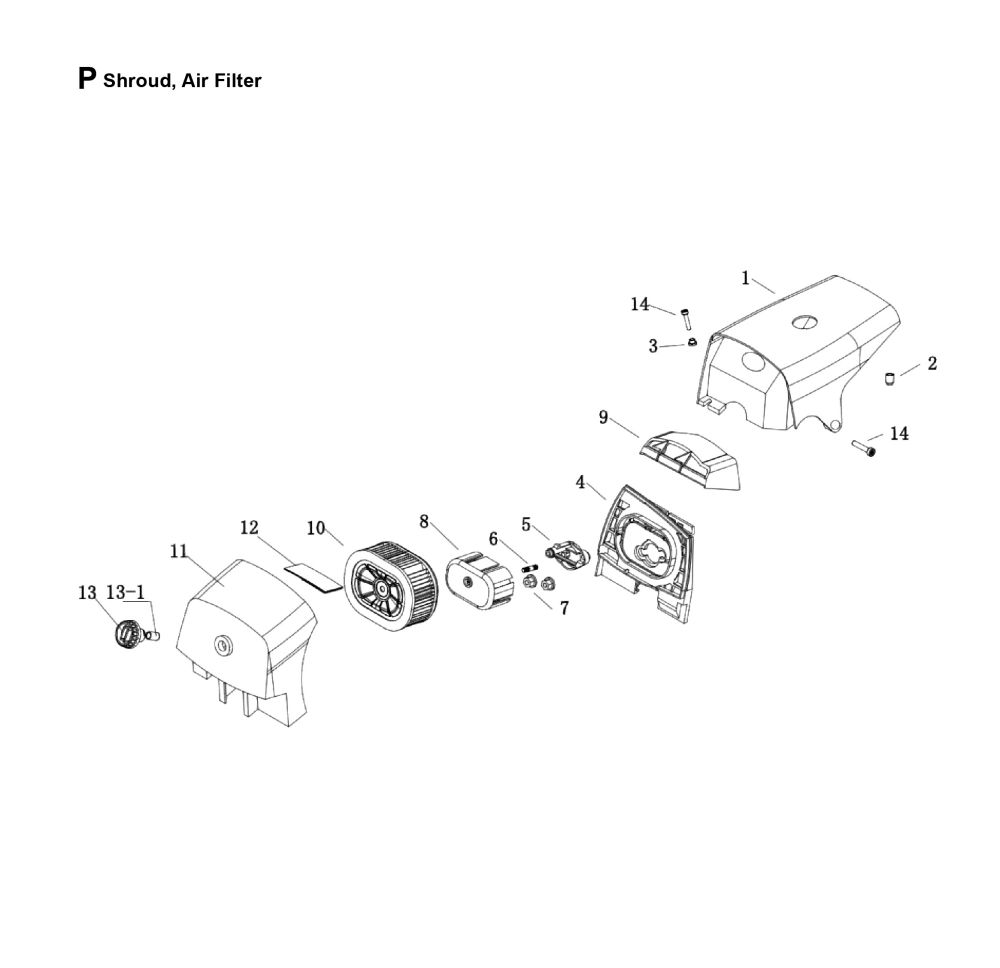

B16	Spline Screw	H5	Ignition Module	P. Shroud, Air Filter

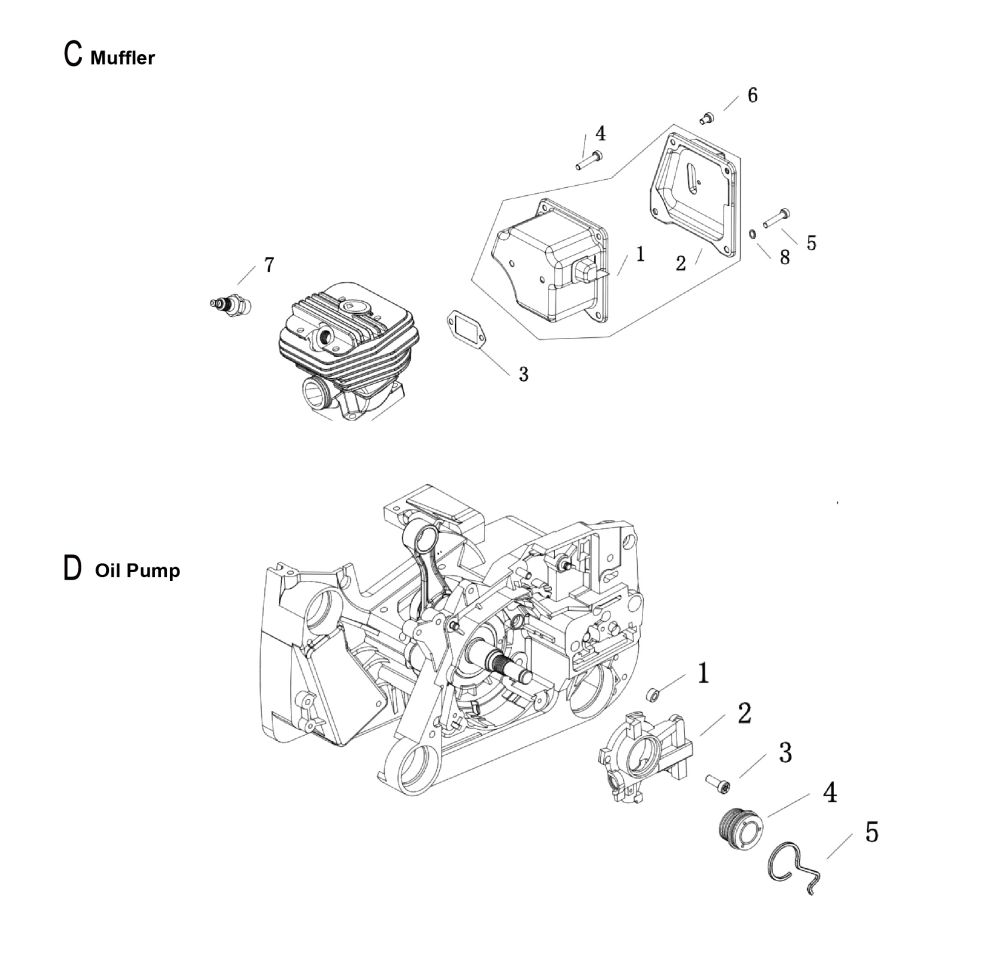

C. Muffler		H6	Ignition Module	P1	Shroud
C1	Muffler	H7	Cover	P2	Cap
C2	Exhaust Casing	J. Wiring Harness		P3	Bushing
C3	Muffler Gasket	J1	Wiring Harness	P4	Filter Base
C4	Spline Screw	J2	Wiring Harness	P5	Flange

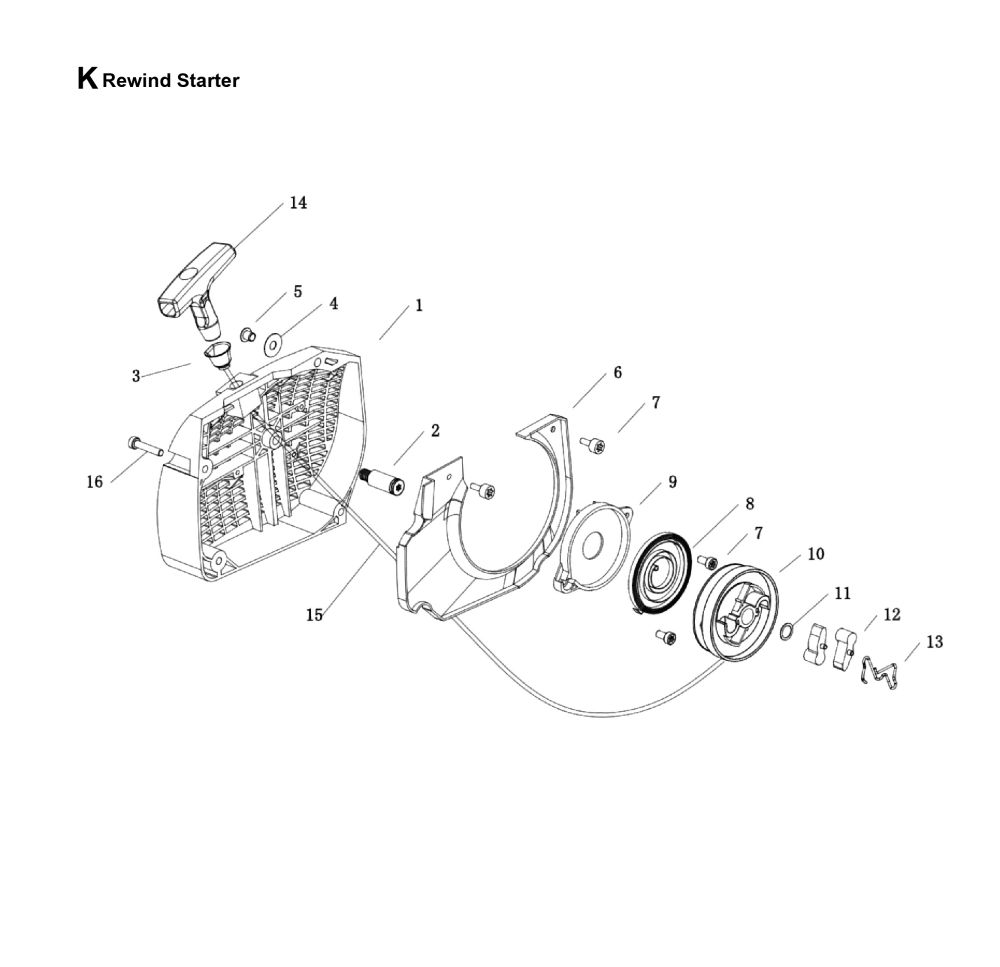

C5	Spline Screw	K. Rewind Starter		P6	Stud
C6	Spline Screw	K1	Fan Housing	P7	Hexagon Nut M5
C7	Spark Plug	K2	Axle	P8	Baffle
D. Oil Pump		K3	Bushing	P9	Air Baffle
D1	Sealing Ring	K4	Washer	P10	Air Filter
D2	Oil Pump	K5	Hollow Rivet	P11	Filter Cover
D3	Spline Screw	K6	Segment	P12	Slide
D4	Worm	K7	Spline Screw	P13	Twist Lock
D5	Spring	K8	Recoil Spring	P14	Spline Screw

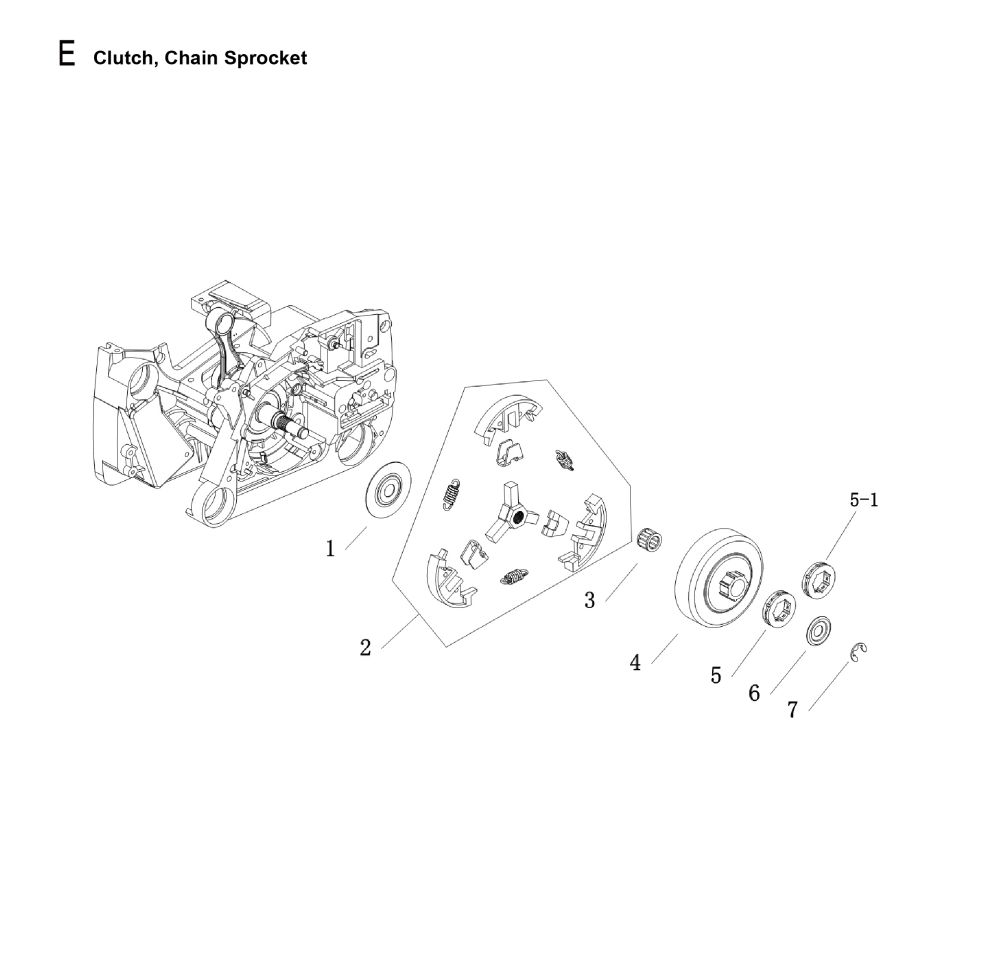

E. Clutch, Chain Sprocket		K9	Recoil Spring Cover	—
E1	Cover Washer	K10	Rope Rotor
E2	Clutch	K11	Washer
E3	Needle Cage	K12	Pawl
E4	Clutch Drum	K13	Spring
E5	Rim Sprocket	K14	Starter Grip
E5-1	Sprocket	K15	Starter Rope
E6	Washer	K16	Spline Screw
E7	E-Clip	—

Wholesale only. No retail and individual buyers. No job recruitment, please.

Plesae provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.
