NT3760 Accessories

NT3760 Chainsaw Parts

Sourced from first-class suppliers, all the core spare parts of gasoline chainsaw NT3760 are of same quality but more cost-effective than that of tier-1 chainsaw machine brands.
Cutting-edge CrNiMo technology empowers the razor-sharp CRAFTOP saw chain blades, offering remarkable flexibility and wear-resistance to prevent skip and breakage. Crafted at 0.325'' pitch and 0.058'' gauge, CRAFTOP saw teeth are of variety of blade types for diverse applications like timber logging in forest, lumber cutting and milling.
The guide bar length of chainsaw NT3760 is 20 inch (50.8 cm), boasts a head reinforced with special alloy-steel and undergoes a complex welding process to achieve exceptional hardness, effectively guarding against head-breakage.
Compliant with European CE standard, the brack system of CRAFTOP's chainsaw is responsive and dependable.
Innovative shock absorption dampers for minimized vibrations and maximized comfort when cutting wood.
Transparent fuel indicator for easy monitoring of fuel levels, with a convenient and secure half-flap fuel tank cap.

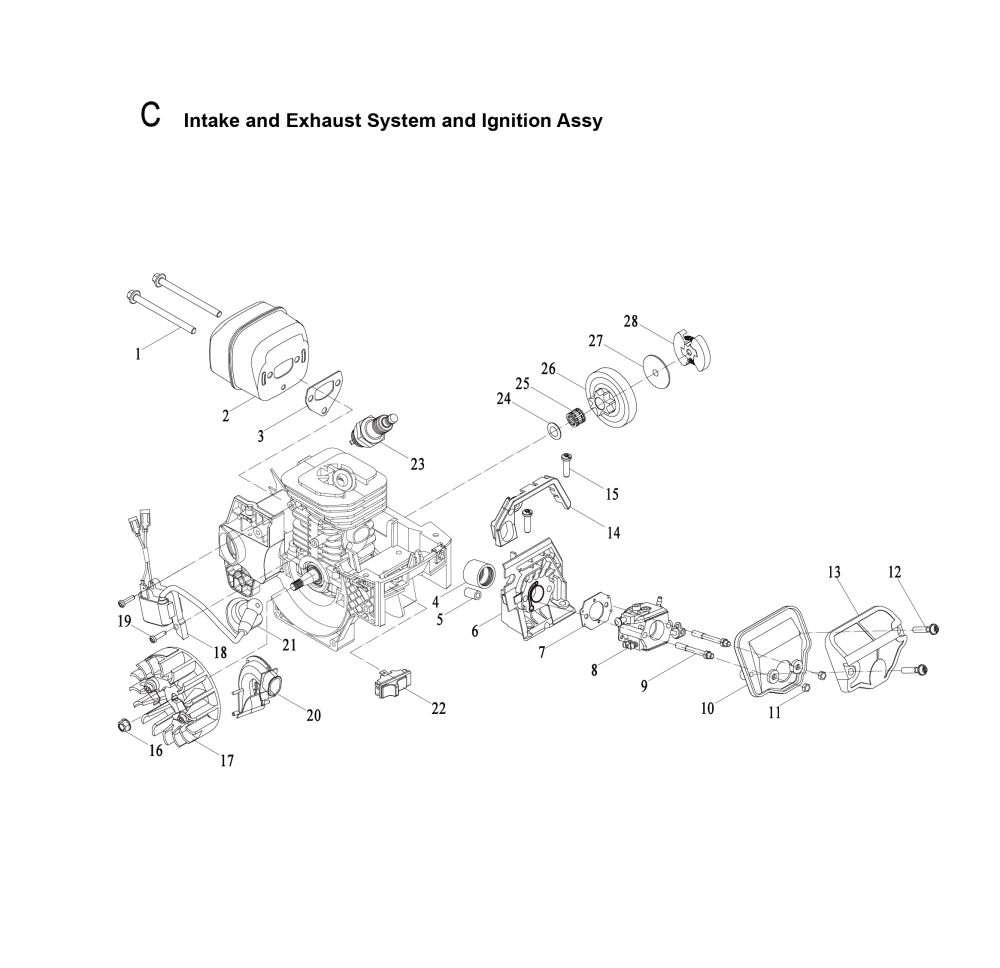

Exploded View of the Whole Machine

Important Spare Parts

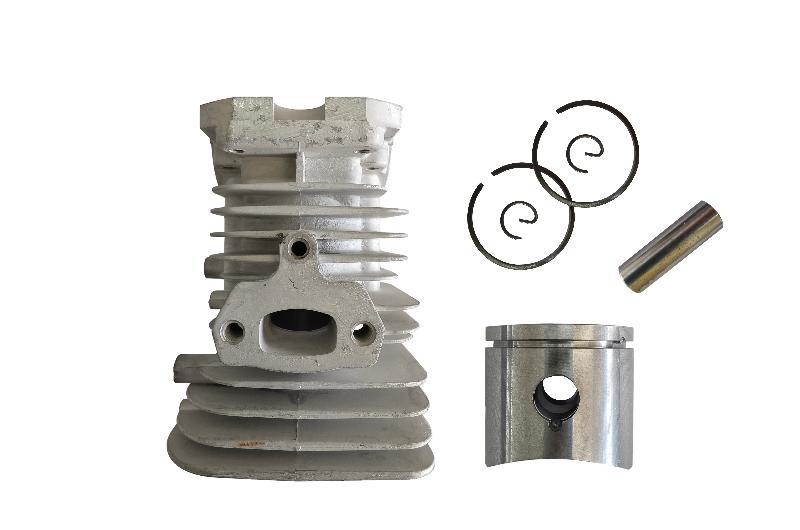

A1 A2 Cylinder

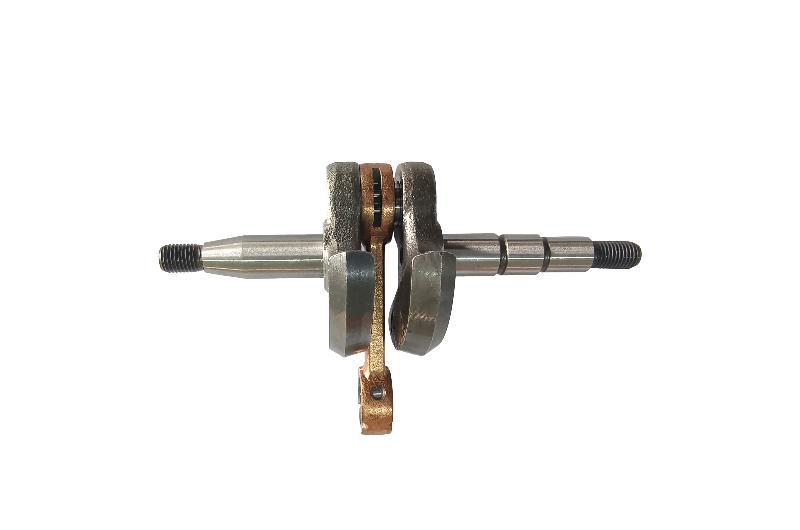

A13 Crankshaft

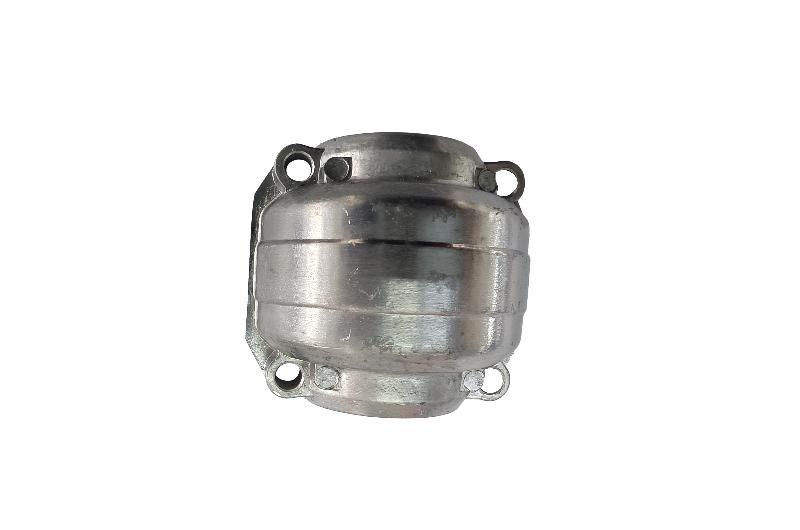

A16 Engine Pan

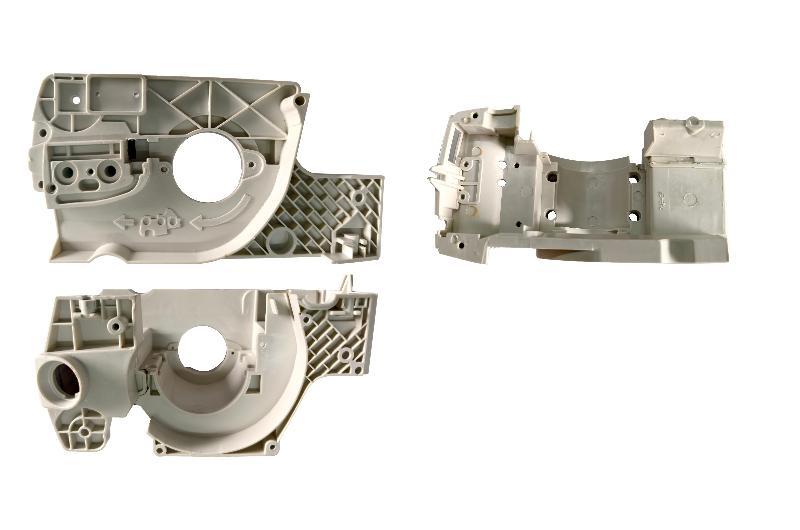

B1 Crankcase
B4 Oil Pump
C2 Muffler

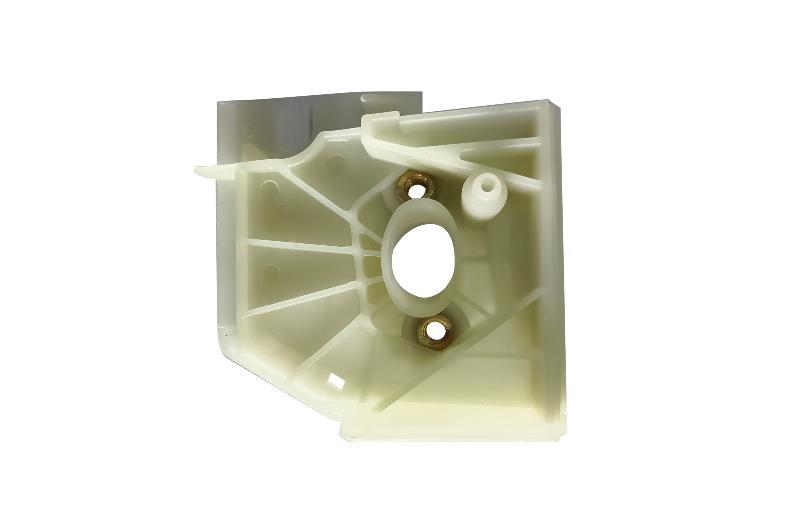

C6 Seat Carburator

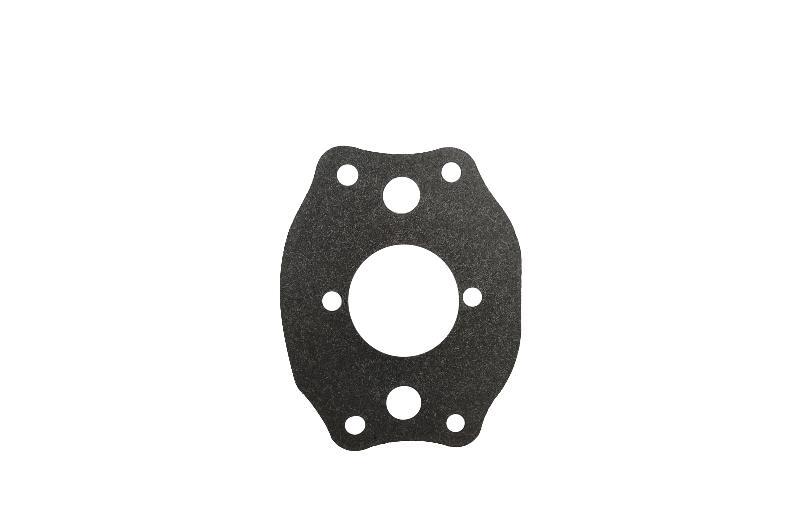

C7 Gasket Carburetor

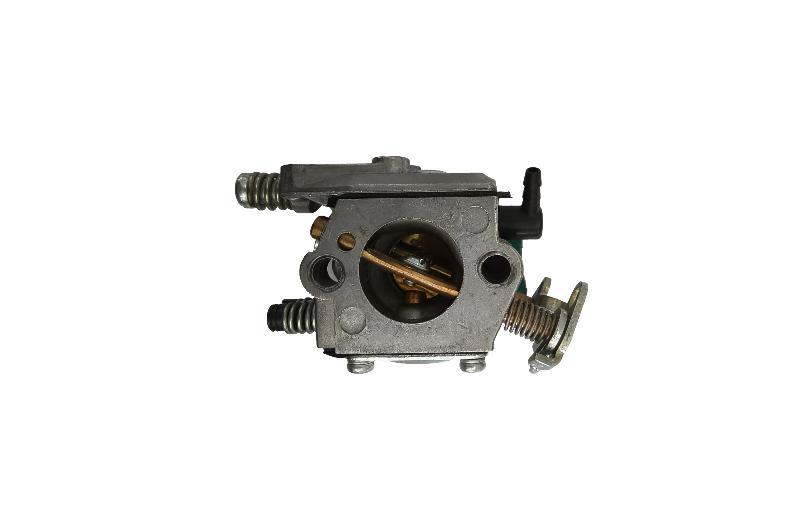

C8 Carburetor

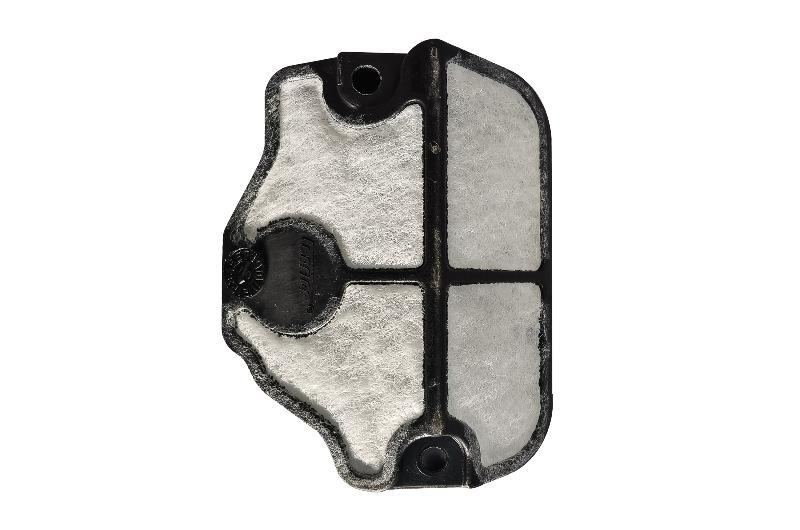

C13 Air Filter

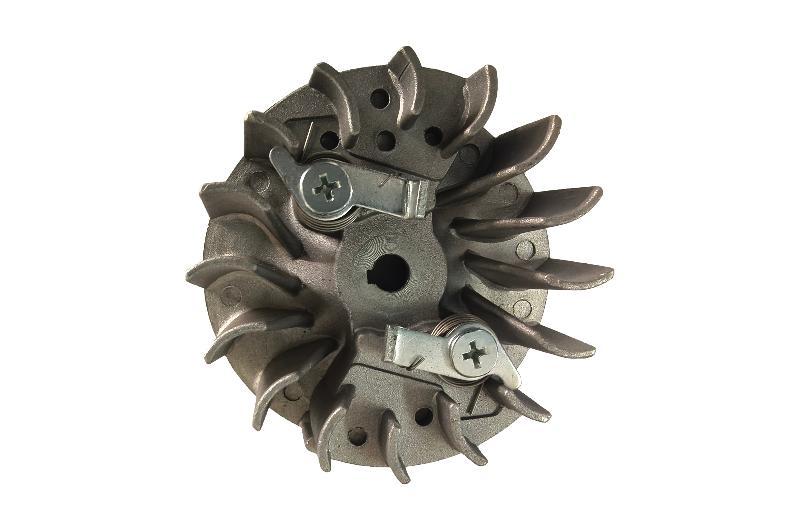

C17 Flywheel

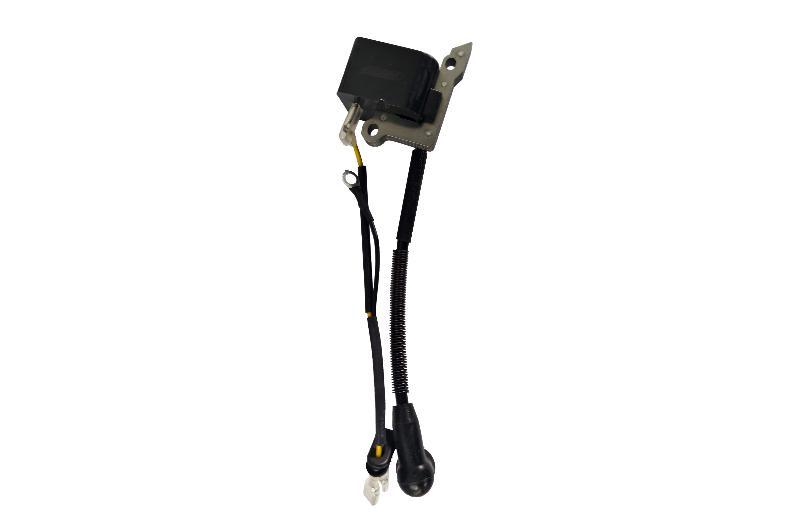

C18 Ignition Coil

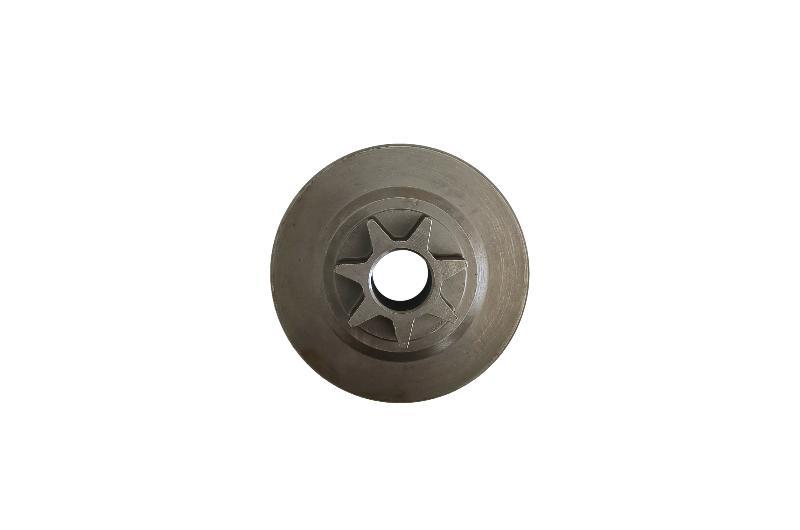

C26 Clutch Drum

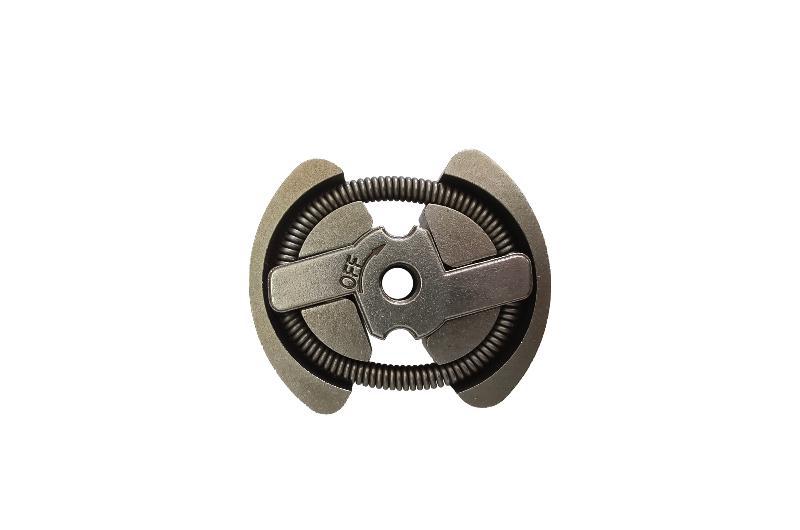

C28 Clutch

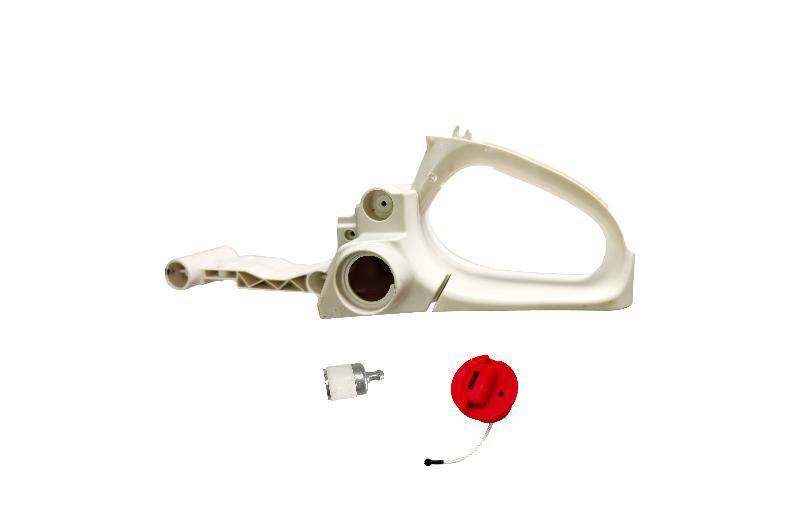

D1 Fuel Tank
D4 Throttle Trigger
E5 Cylinder Cover
F E-Starter Assy

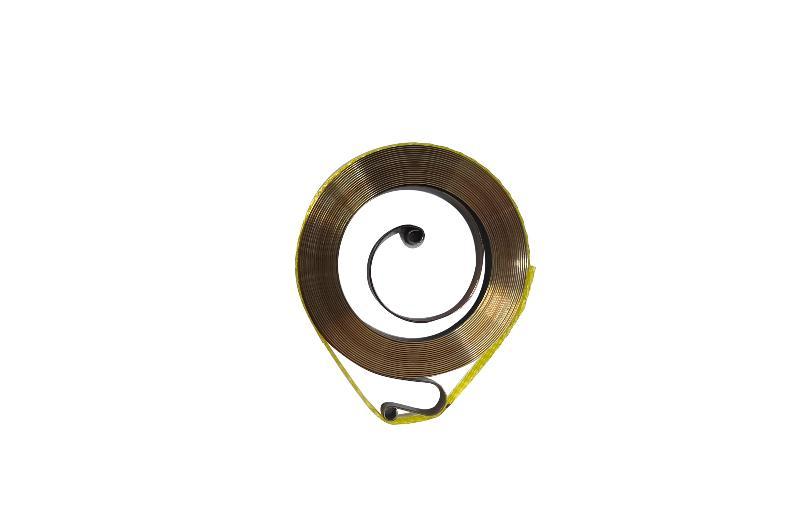

F9 Rewind Spring

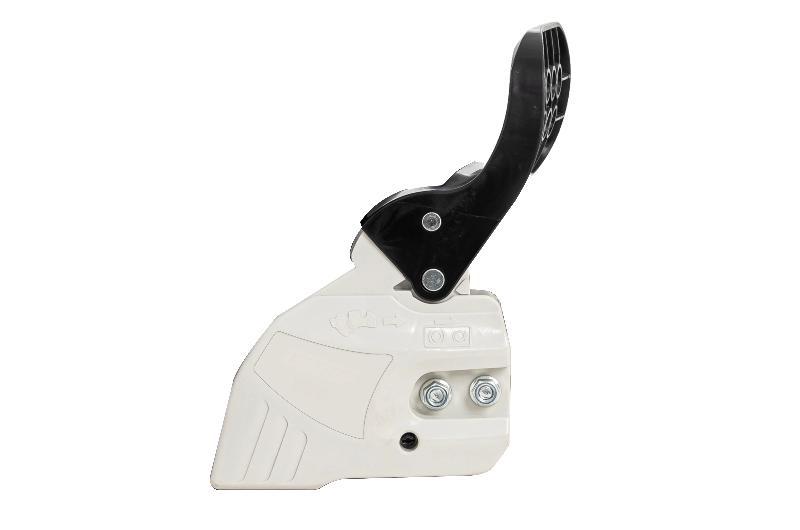

G Brake Assy

Other Spare Parts

CODE	Part Name	CODE	Part Name

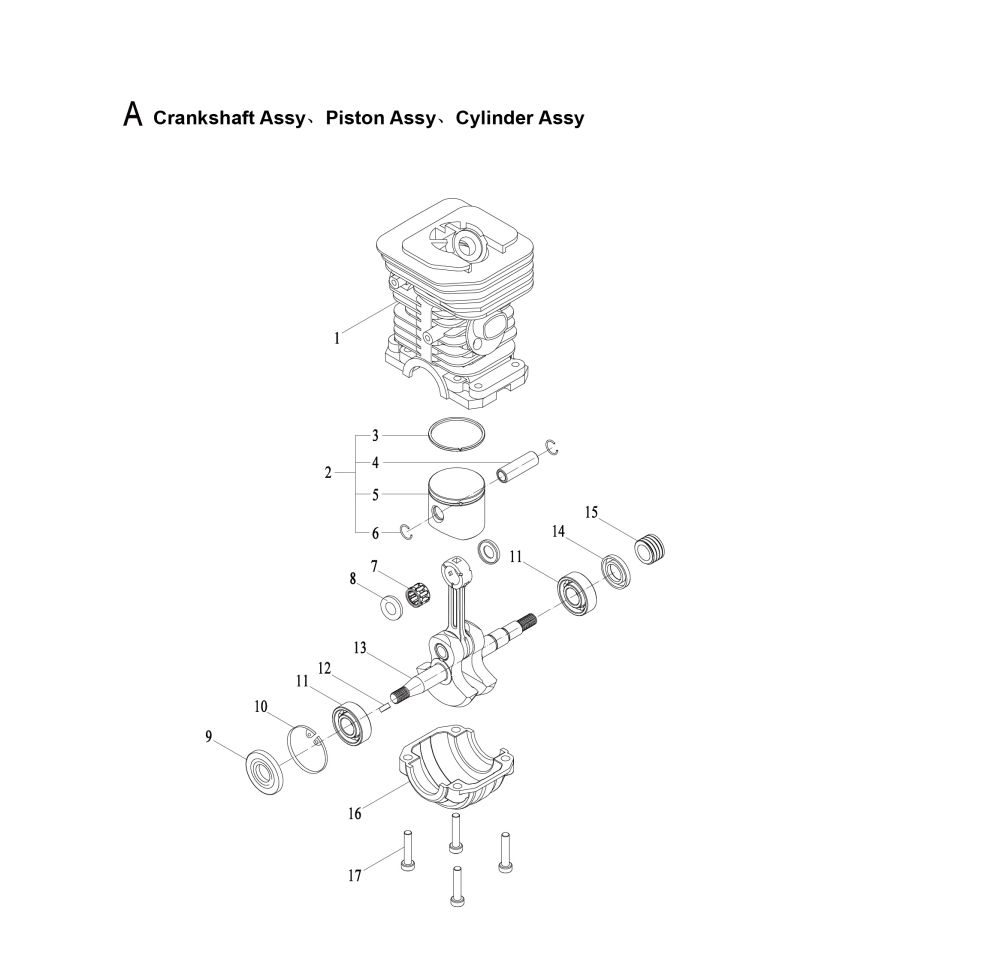

A-1	Cylinder	D-7	Cap, Damping Spring
A-2	Piston Assy	D-8	Screw
A-3	Piston Rings	D-9	Damping Spring
A-4	Piston Pin	D-10	Breather
A-5	Piston	D-11	Cap, Breather
A-6	Circlip, Piston Pin	D-12	Fuel Filter
A-7	Needle Bearing, Piston	D-13	Fuel Filler Cap Assy
A-8	Thrust Washer, Piston	D-14	Gasket, Fuel Tank Cap
A-9	Oil Seal, S	D-15	Fuel Tank Cap Lanyard
A-10	Circlip	D-16	Hook

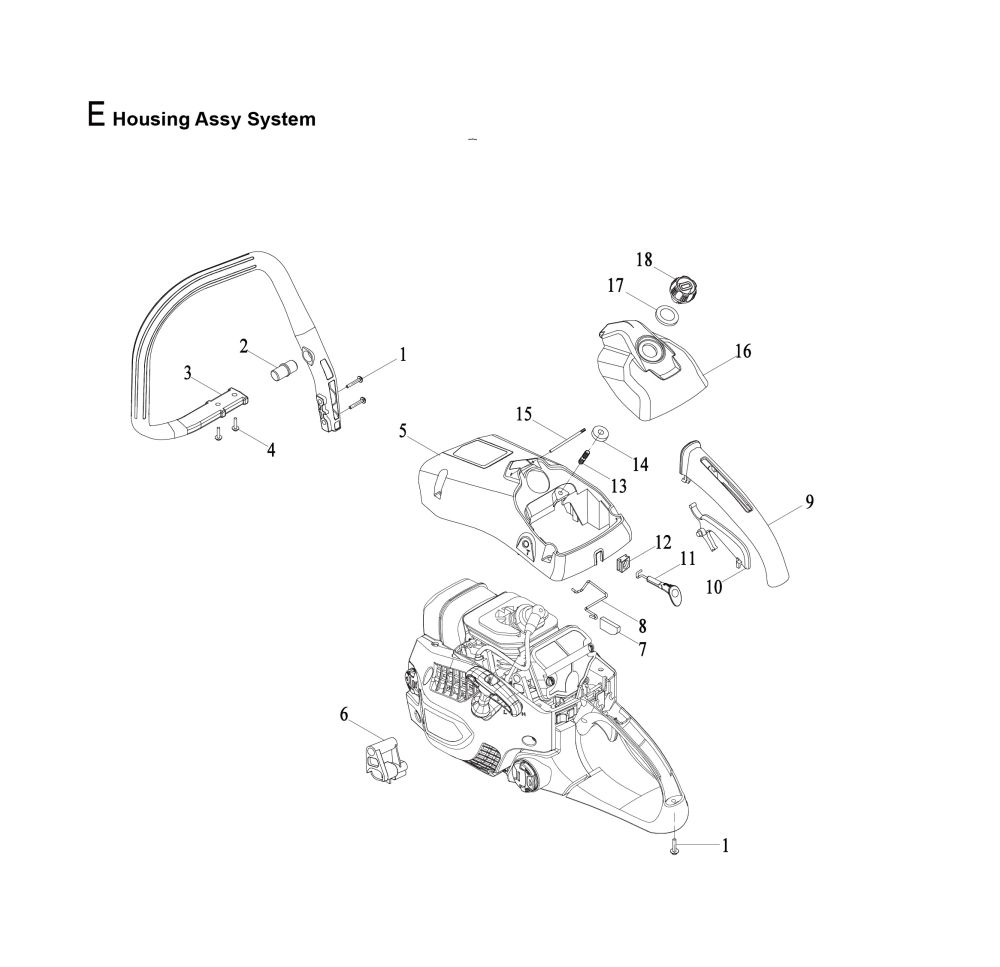

A-11	Ball Bearing	E-1	Screw
A-12	Woodruff Key	E-2	Buffer, Handle
A-13	Crankshaft	E-3	Handle
A-14	Oil Seal,L	E-4	Screw
A-15	Worm	E-5	Cylinder Cover
A-16	Engine Pan	E-6	Adjusting Block
A-17	Bolt, Cylinder	E-7	Grommet, Throttle rod

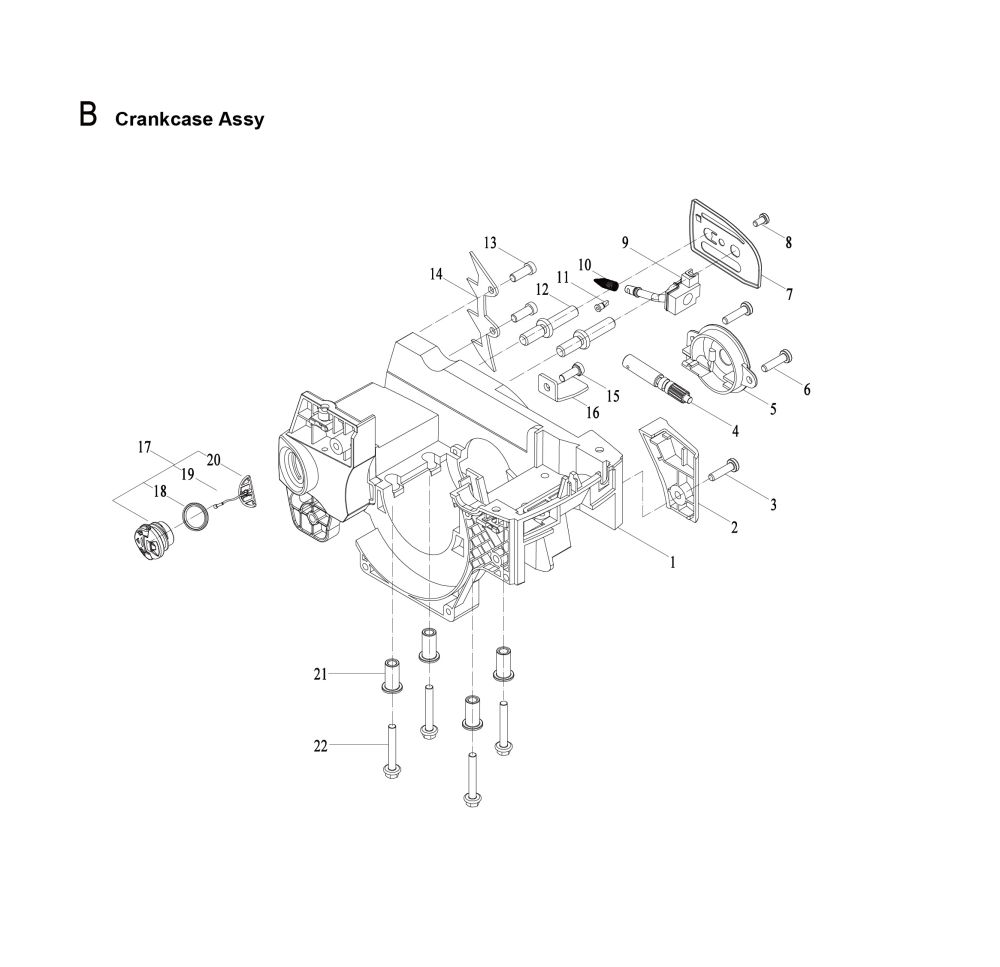

B-1	Crankcase	E-8	Throttle Rod
B-2	Side Cover, Crankcase	E-9	Handle Cover
B-3	Bolt, Side Cover	E-10	Control Arm, trigger
B-4	Oil Pump	E-11	Rod, Choke
B-5	Cover, Oil Pump	E-12	Grommet, Choke rod
B-6	Screw, Oil Pump	E-13	Stud Bolt
B-7	Plate, Guide	E-14	Washer
B-8	Screw	E-15	Pin
B-9	Oil Guide Block	E-16	Engine Cover
B-10	Oil Filter	E-17	Washer
B-11	Breather Valve	E-18	Knob

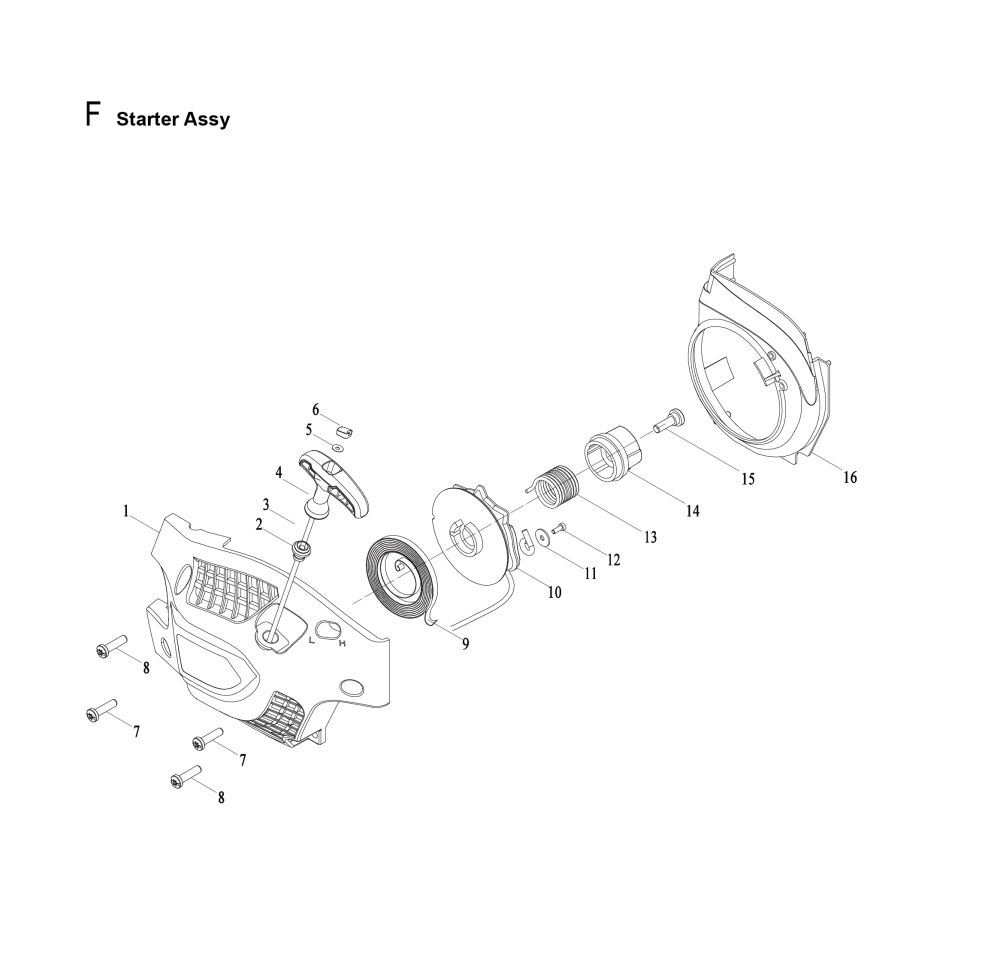

B-12	Collar Bolt	F1	E-Starter Assy
B-13	Screw	F1-1	Cover, Starter
B-14	Bumper Spikes	F1-2	Guide, Rope
B-15	Screw	F1-3	Rope
B-16	Chain Bumper strip	F1-4	Grip, Starter
B-17	Oil Tank Cap Assy	F1-5	Plate Washer
B-18	Gasket, Oil Tank Cap	F1-6	Grip Plug
B-19	Oil Tank Cap Lanyard	F1-7	Screw
B-20	Hook	F1-8	Screw
B-21	Bushing	F1-9	Rewind Spring
B-22	Bolt	F1-10	Pulley
C-1	Bolt, Muffler	F1-11	Plate Washer
C-2	Muffler	F1-12	Screw
C-3	Gasket, Muffler	F1-13	Torsion Spring, Starter
C-4	Manifold	F1-14	Ratchet
C-5	Pipe	F1-15	Screw, Ratchet
C-6	Seat, Carburator	F1-16	Fan Cover
C-7	Gasket, Carburetor	F2	Starter Assy
C-8	Carburetor	F2-1	Cover,Starter

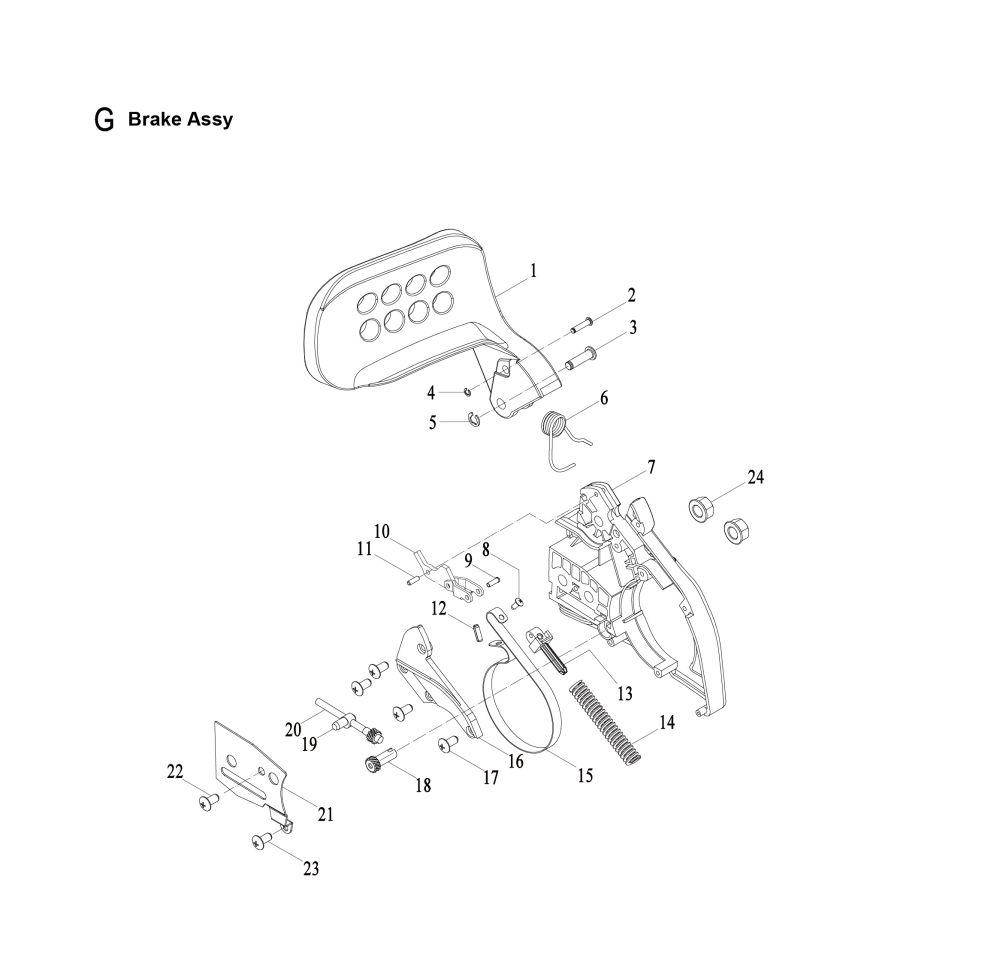

C-9	Stud Bolt	G	Brake Assy
C-10	Housing, Air Filter	G-1	Lever,Brake
C-11	Nut	G-2	Pin
C-12	Screw, Air Filter	G-3	Pin, Brake Cover
C-13	Air Filter	G-4	Circlip 4
C-14	Seal, Carburator Seat	G-5	Circlip 4
C-15	Screw	G-6	Torsion Spring, Brake
C-16	Nut, Flywheel	G-7	Brake Cover
C-17	Flywheel	G-8	Screw
C-18	Ignition Coil	G-9	Rivet
C-19	Screw, Ignition Coil	G-10	Lever Assy
C-20	Boost Air Hose	G-11	Pin
C-21	Seal, Plug Cap	G-12	Pin
C-22	ON/OFF Switch	G-13	Stoper, Brake
C-23	Spark Plug	G-14	Brake Spring
C-24	Washer	G-15	Brake Band
C-25	Needle Bearings, Clutch	G-16	Brake Cover
C-26	Clutch Drum	G-17	Screw
C-27	Thust Washer, Clutch	G-18	Spur Gear
C-28	Clutch	G-19	Tensioner Slide

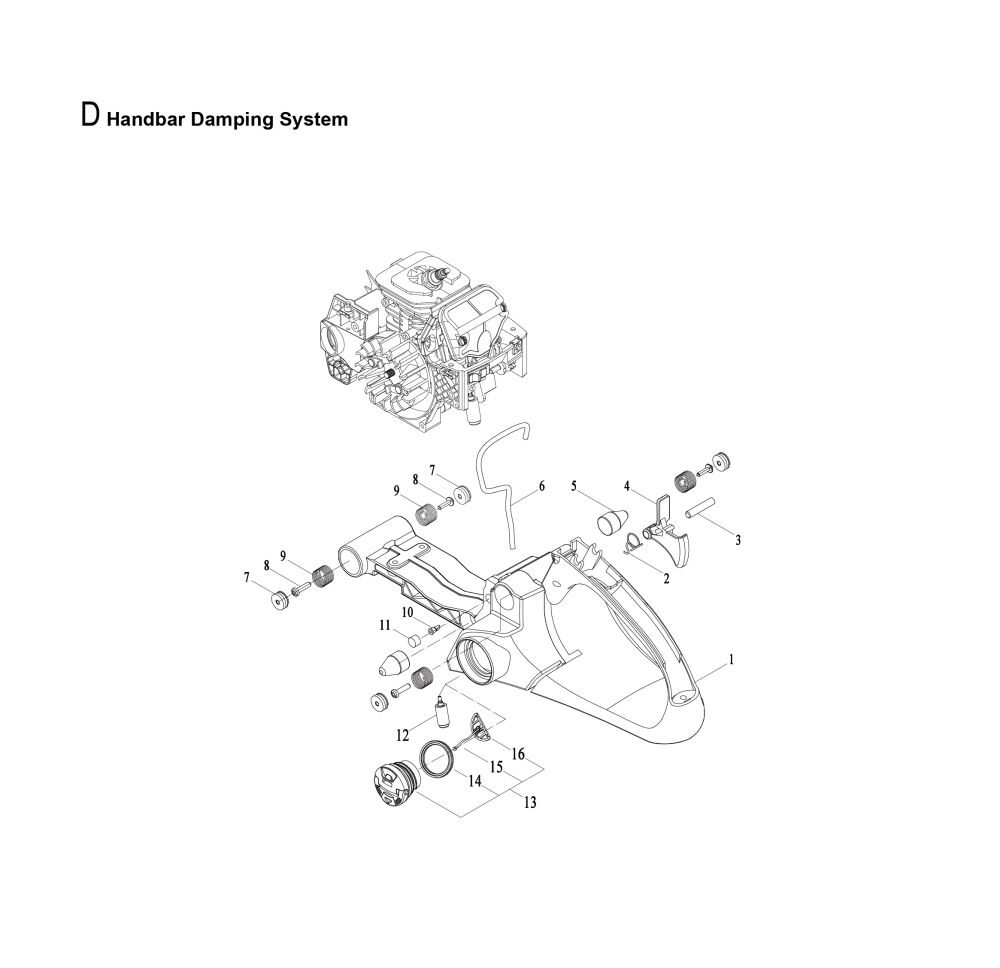

D-1	Fuel Tank	G-20	Chain Adjusting Screw
D-2	Torsion Spring	G-21	Guide Plate
D-3	Pin, trigger	G-22	Screw
D-4	Throttle trigger	G-23	Screw
D-5	Buffer	G-24	Nut
D-6	Fuel Pipe

Wholesale only. No retail and individual buyers. No job recruitment, please.

Plesae provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.
