NT5860 Accessories

NT5860 Chainsaw Parts

The spare parts of semi-professional gasoline chainsaw NT5860 are sourced from world-class supplier;
Engine and crankshaft body meticulously crafted with precision from lightweight aluminum-alloy material;
Plastic spare parts reinforced with superior-grade nylon for exceptional thermal resistance and physical robustness;
22" / 55.9 CM chainsaw guide bar skillfully manufactured using durable and wear-resistant alloy steel;
Germany standard saw chain (0.325'' pitch and 0.058'' gauge) renowned for its remarkable flexibility and sharpness;
Chain saw brake system that is highly responsive, reliable, and compliant with the stringent European CE standard;
Convenient transparent fuel indicator enabling effortless monitoring of fuel levels;
Easy-to-use flip-up fuel cap that opens smoothly and securely fastens in place;
Ergonomically designed grip holster grasp promoting increased friction and a secure hold;
Incorporated shock absorption dampers for effectively minimizing vibrations and ensuring a comfortable wood cutting experience.

Exploded View of the Whole Machine

Important Spare Parts

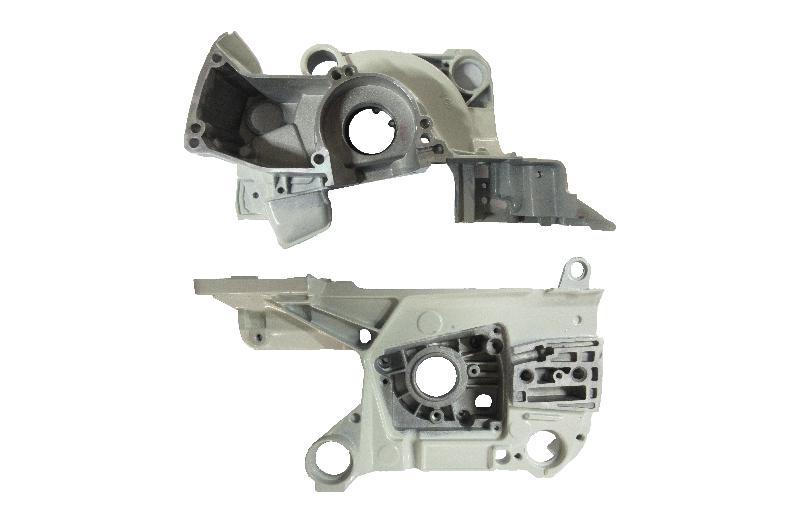

A1 A17 Left Box/Right Box

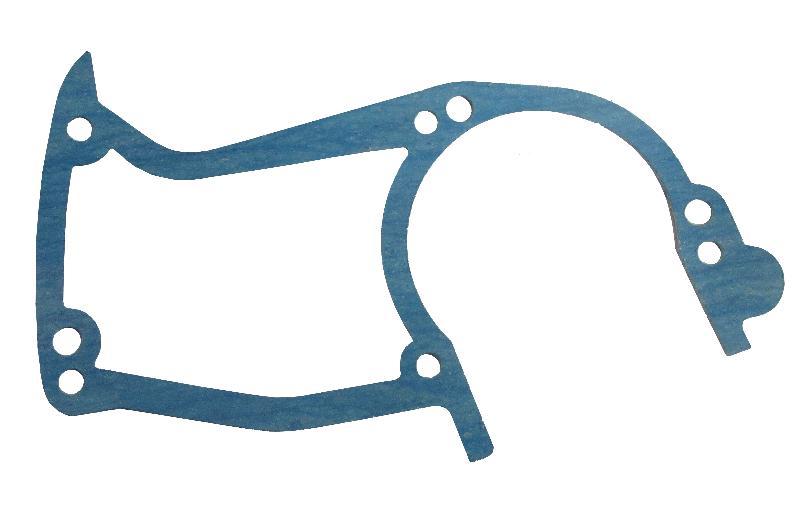

A-6 Packing Paper Pad

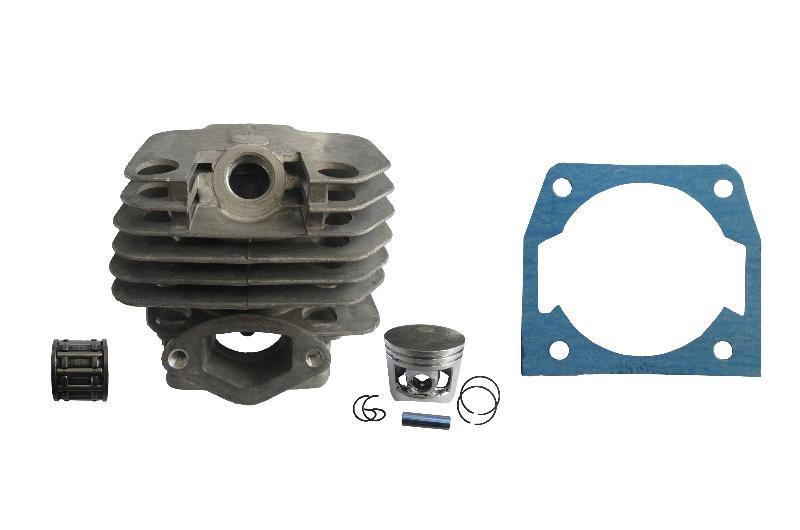

B-1 B-5 B-10 B-11 Cylinder Assy

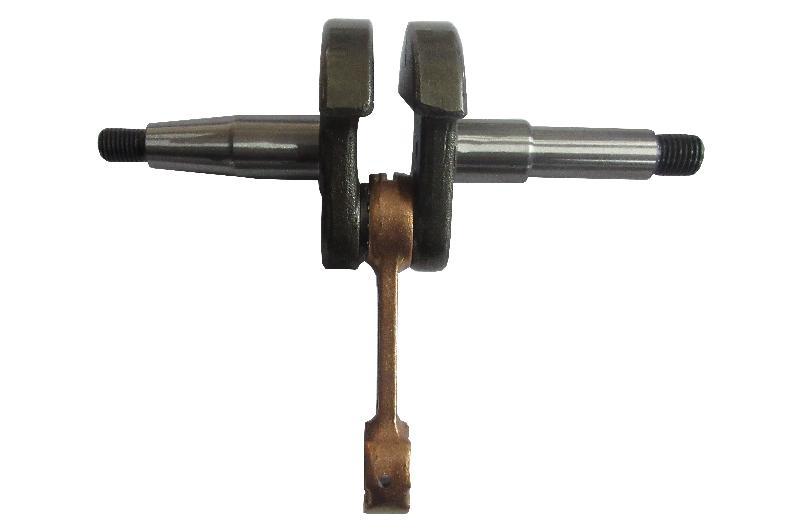

B-3 Crankshaft

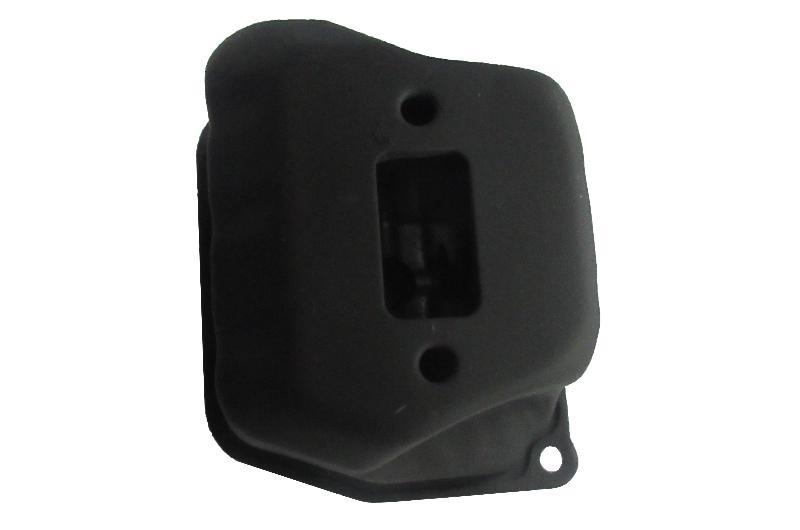

C1-4 Silencer (double hole)

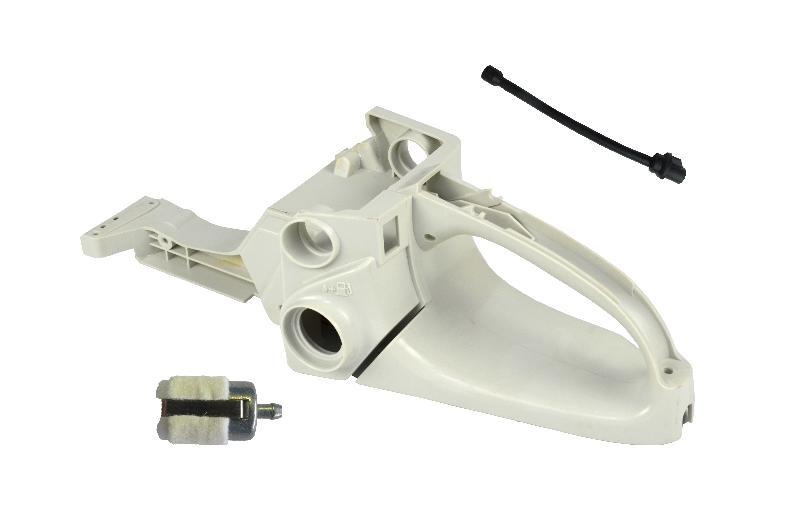

C2-4 C2-10 C2-17 Chain Saw Fuel Tank Assy

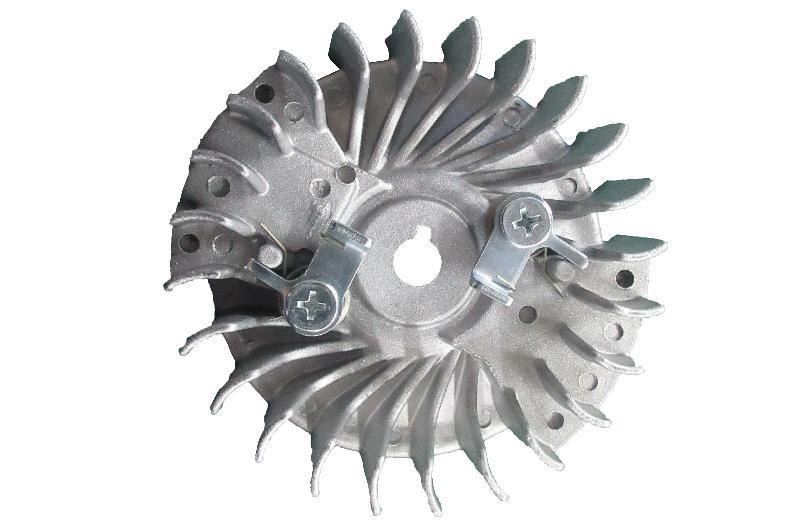

D-3 Flywheel

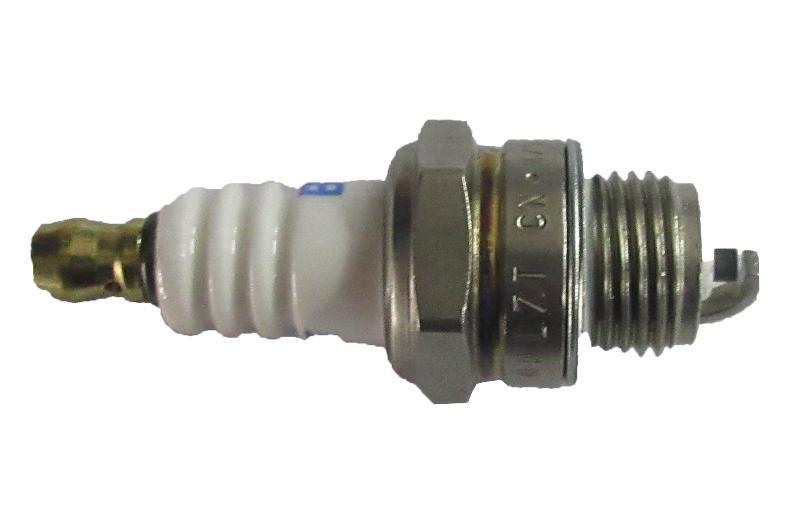

D-10 Spark Plug

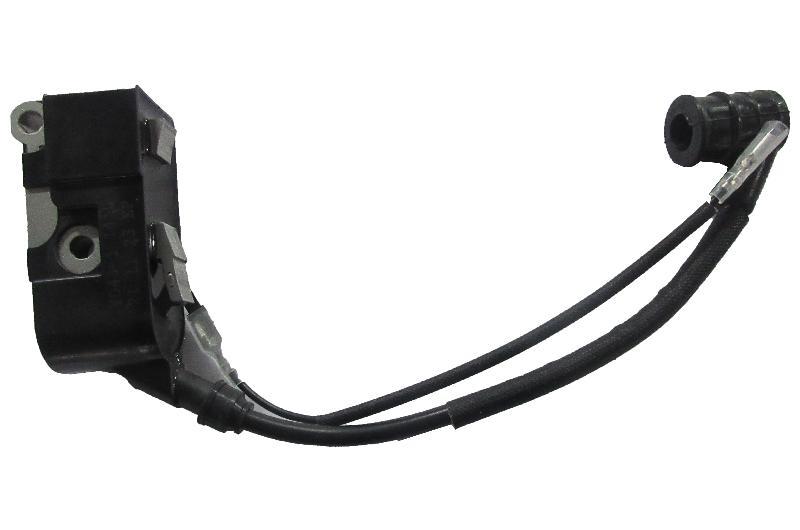

D-12 Ignition Assembly

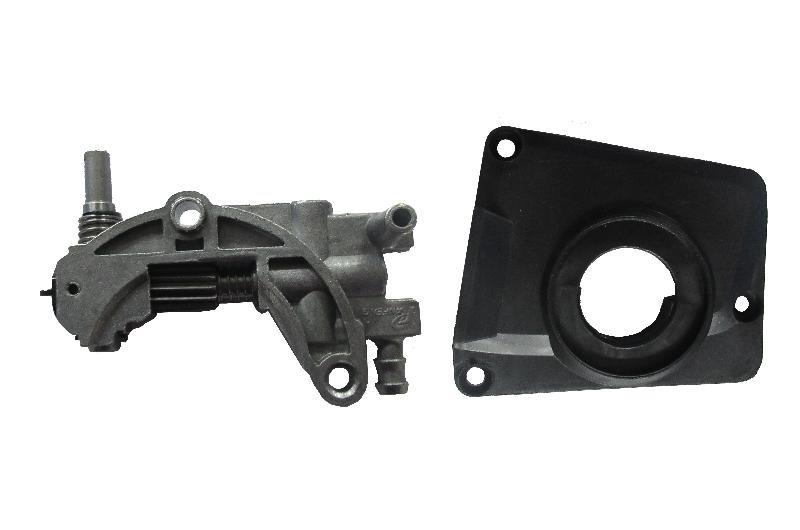

D-17 D-27 Oil Pump Assy
D-25 Passive Disk

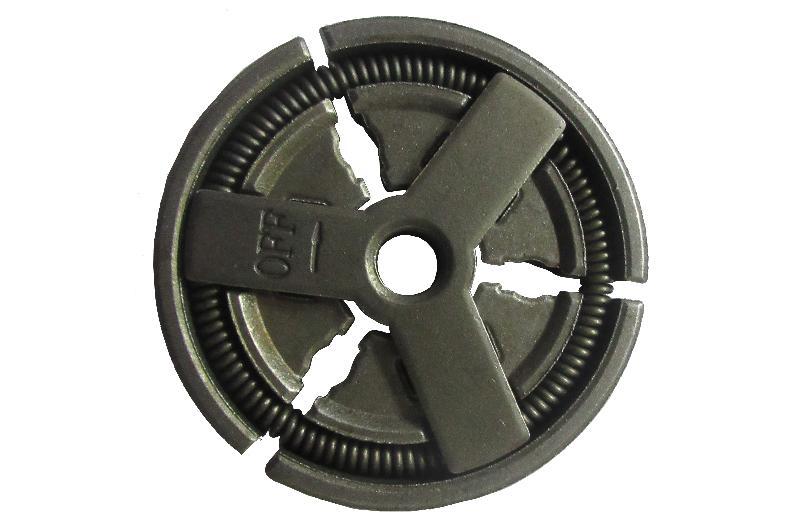

D-27 Clutch

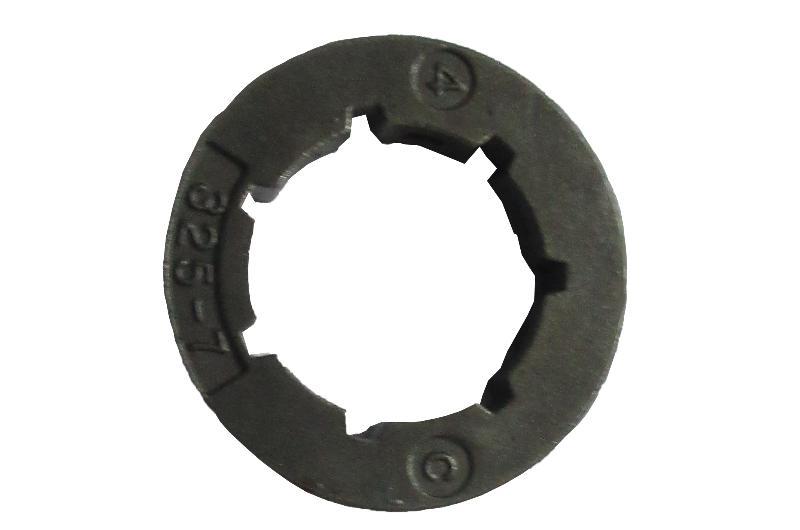

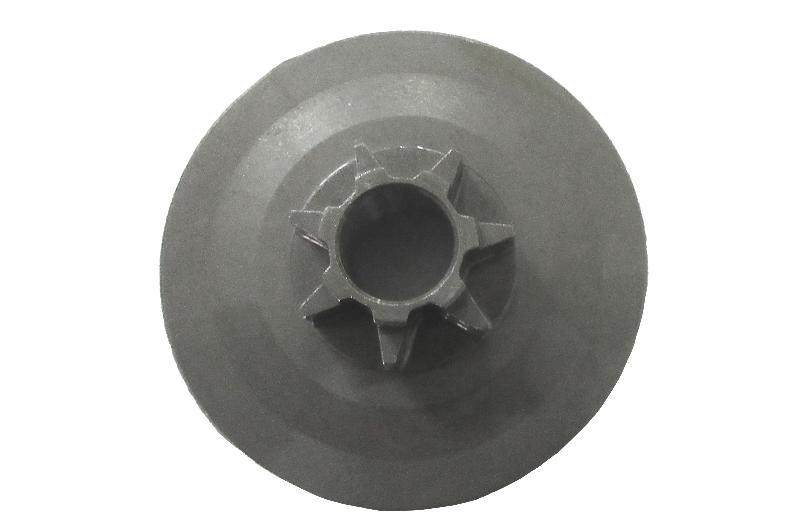

D-28 Sprocket

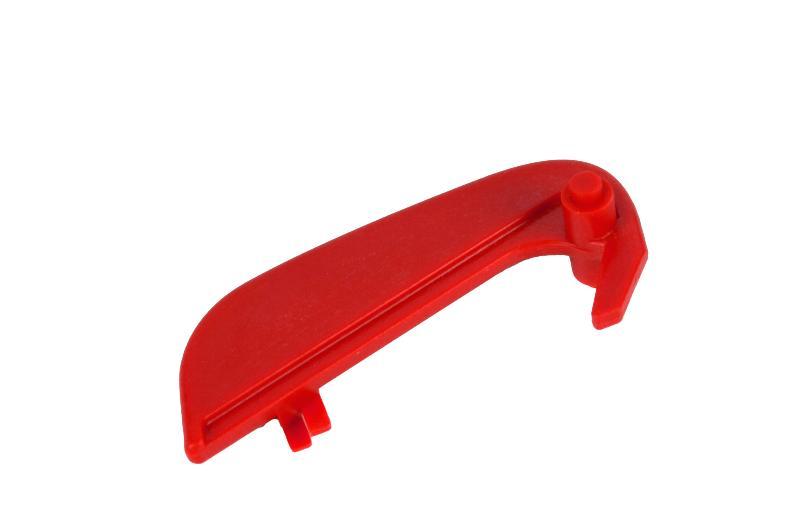

E-14 Trigger Control Arm

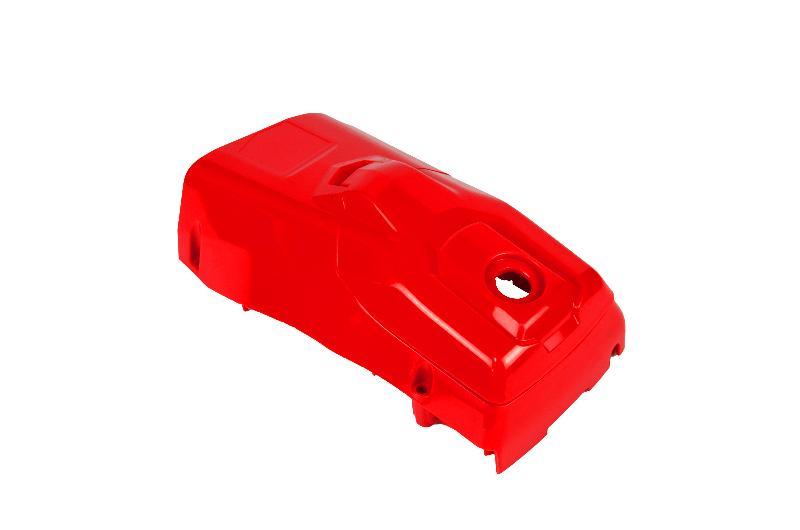

F-5 Cylinder Cover

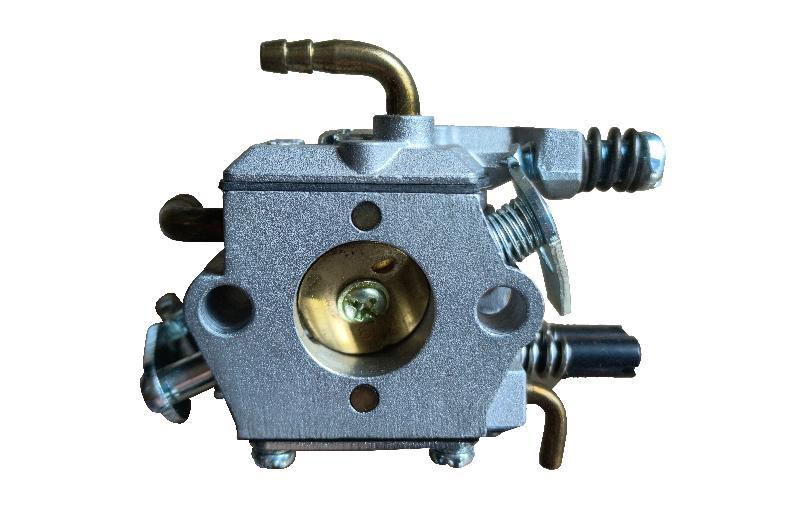

F-9 Carburetor

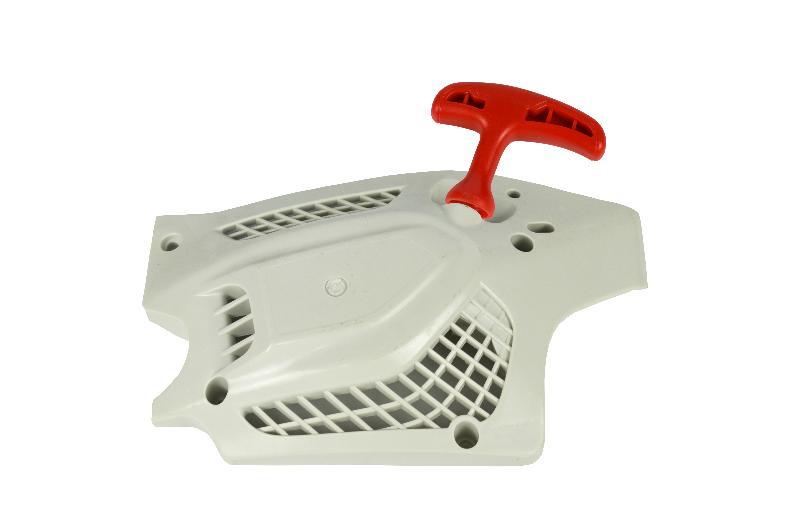

G1 Starter Assembly

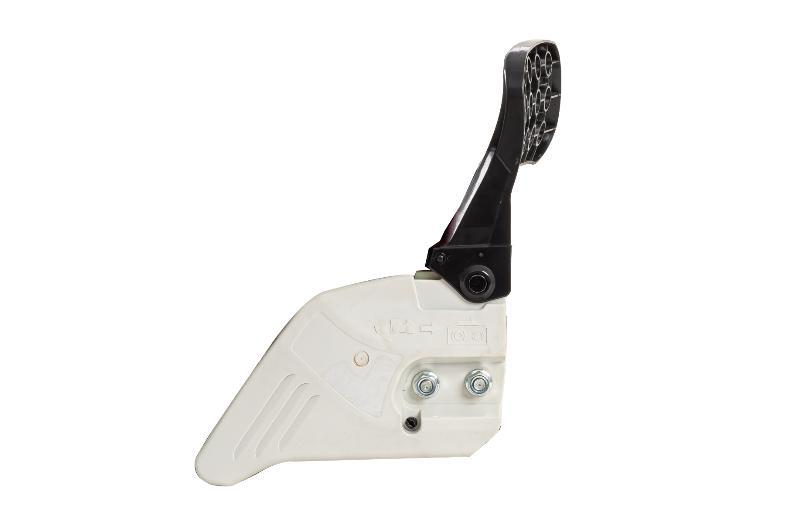

H Brake Assembly
F-17 Wire Mesh Air Filter

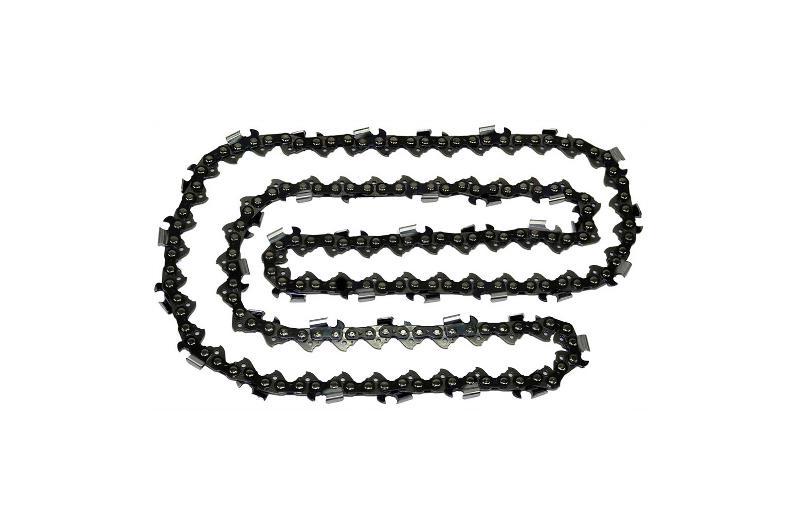

Chainsaw Chain
Chainsaw Guide Bar

Other Spare Parts

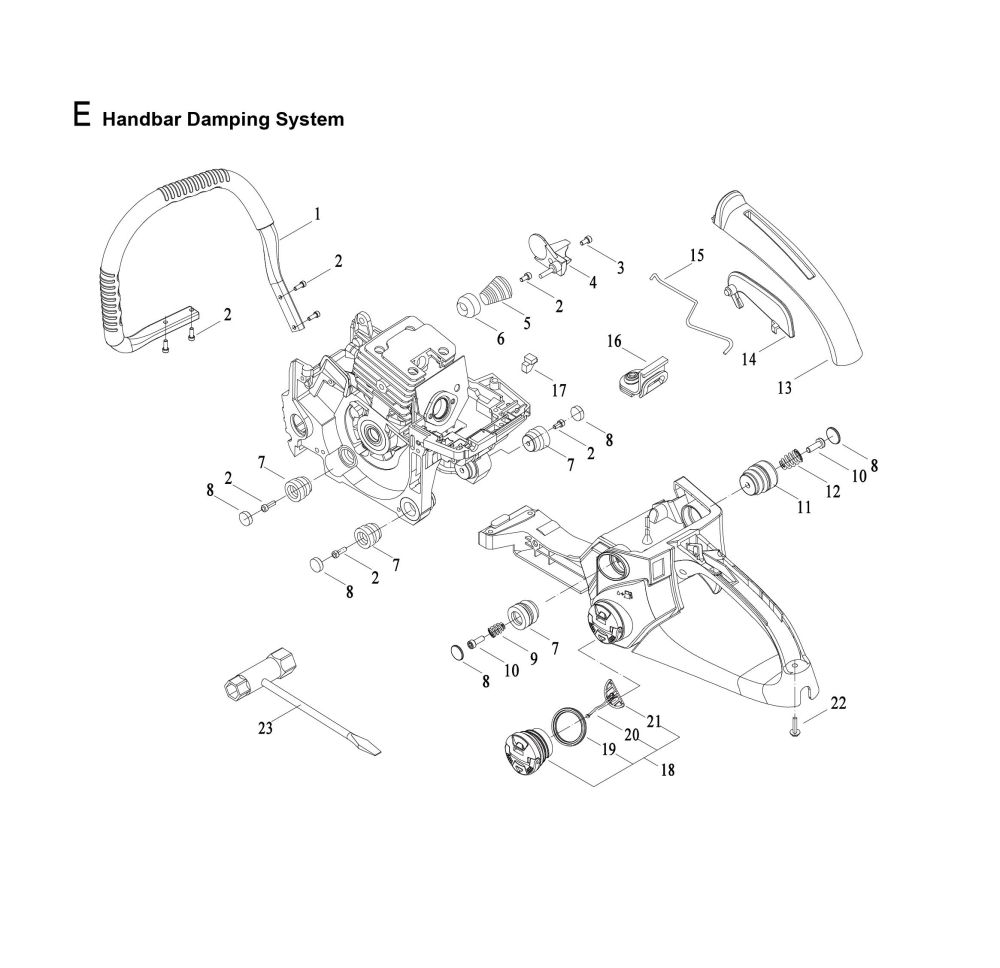

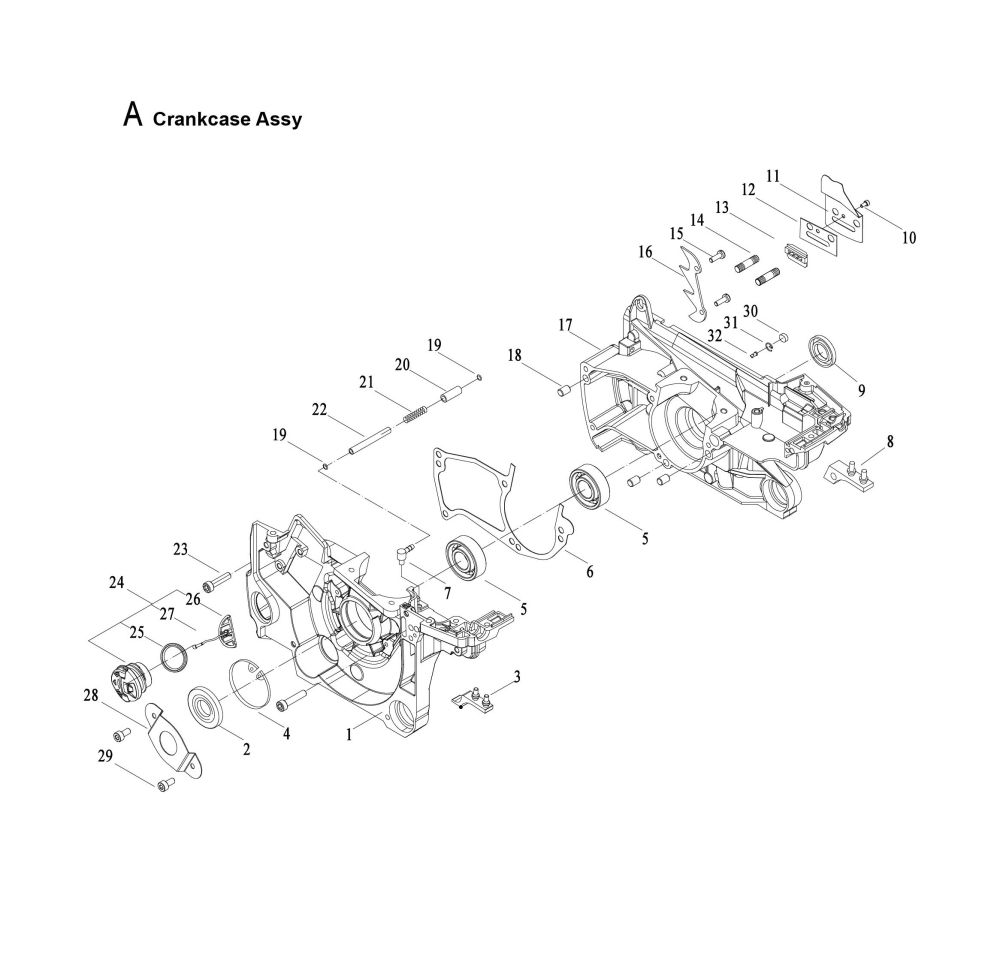

A. Box Assembly		E. Handlebar and Shock Absorption System
Code	Part Name	Code	Part Name
A-1	Left Box	E-1	Handle
A-2	Left Oil Seal	E-2	Screw
A-3	Left Box Shock Absorber	E-3	Screw
A-4	Hole Retaining Ring	E-4	Tower Spring Gland
A-5	Bearing	E-5	Conical Tower Spring
A-6	Packing Paper Pad	E-6	Tower Spring Seat
A-7	Pipe Joint	E-7	Shock Absorber Seat (Short)
A-8	Double Needle Shock Absorber	E-8	Dust Cover
A-9	Right Oil Seal	E-9	Shock Absorber Spring (Short)
A-10	Screw	E-10	Screw
A-11	Oil Outlet Cover	E-11	Shock Absorbing Seat (Long)
A-12	Oil Outlet Cover Gasket	E-12	Shock Absorber Spring (Long)
A-13	Chain Adjuster	E-13	Rear Handle Cover
A-14	Stud A	E-14	trigger Control Arm
A-15	Screw	E-15	Throttle Push Rod
A-16	Chainsaw Bumper Spikes	E-16	Dustproof Rubber Block
A-17	Right Box	E-17	Wind Resistance Tie Rod Shock Absorber
A-18	Cylindrical Pin	E-18	Fuel Tank Cap Assembly
A-19	Oil Inlet Pipe Circlip	E-19	Fuel Tank Cap Gasket
A-20	Insulation Sleeve	E-20	Oil Bottle Cap Lanyard
A-21	Spring Sleeve	E-21	Hook Up
A-22	Negative Pressure Oil Pipe	E-22	Screw
A-23	Screw	E-23	Socket Wrench

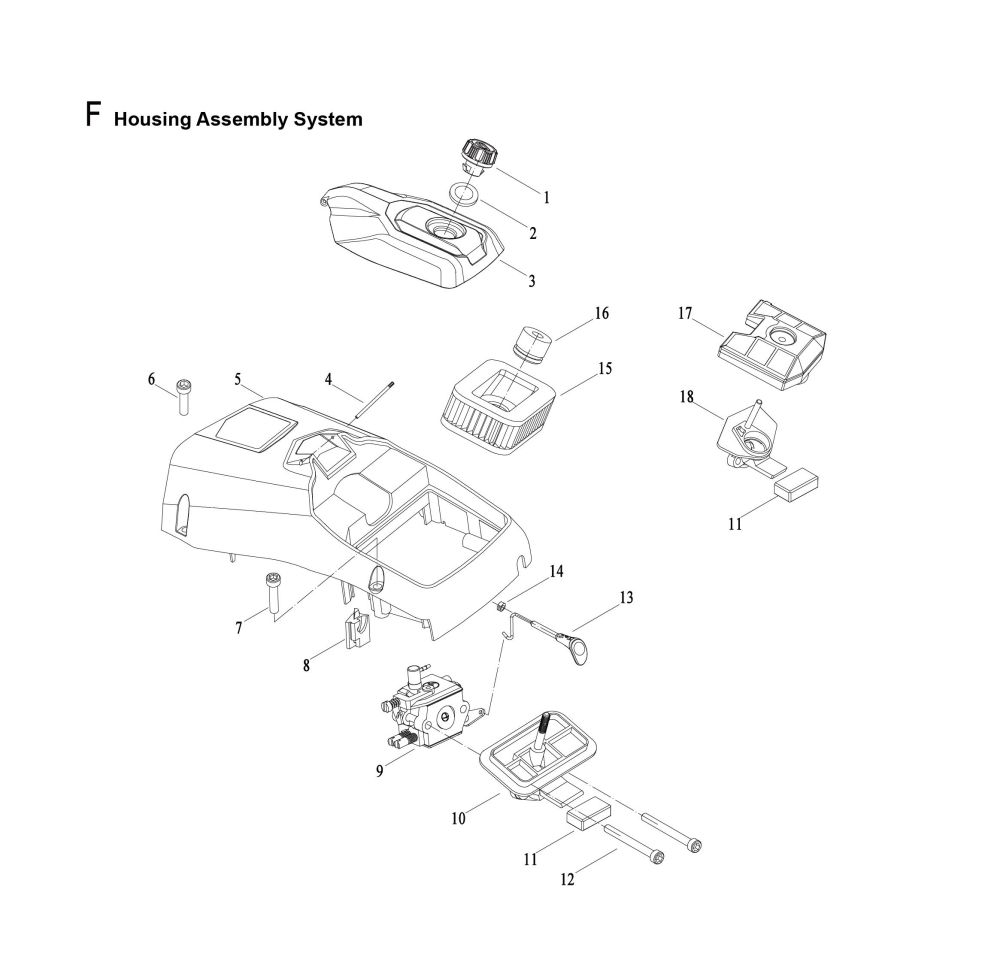

A-24	Oil Tank Cap Assembly	F. Air filter and outer cover
A-25	Oil Tank Cap Gasket	Code	Part Name
A-26	Hook Up	F-1	Upper Cover Knob
A-27	Oil Bottle Cap Lanyard	F-2	Lock Nut Gasket
A-28	Oil Seal Pressure Plate	F-3	Upper Cover
A-29	Screw	F-4	Fuel Tank Cap Pin
A-30	Sponge	F-5	Cylinder Cover
A-31	Intake Valve Circlip	F-6	Screw
A-32	Breather Valve	F-7	Screw

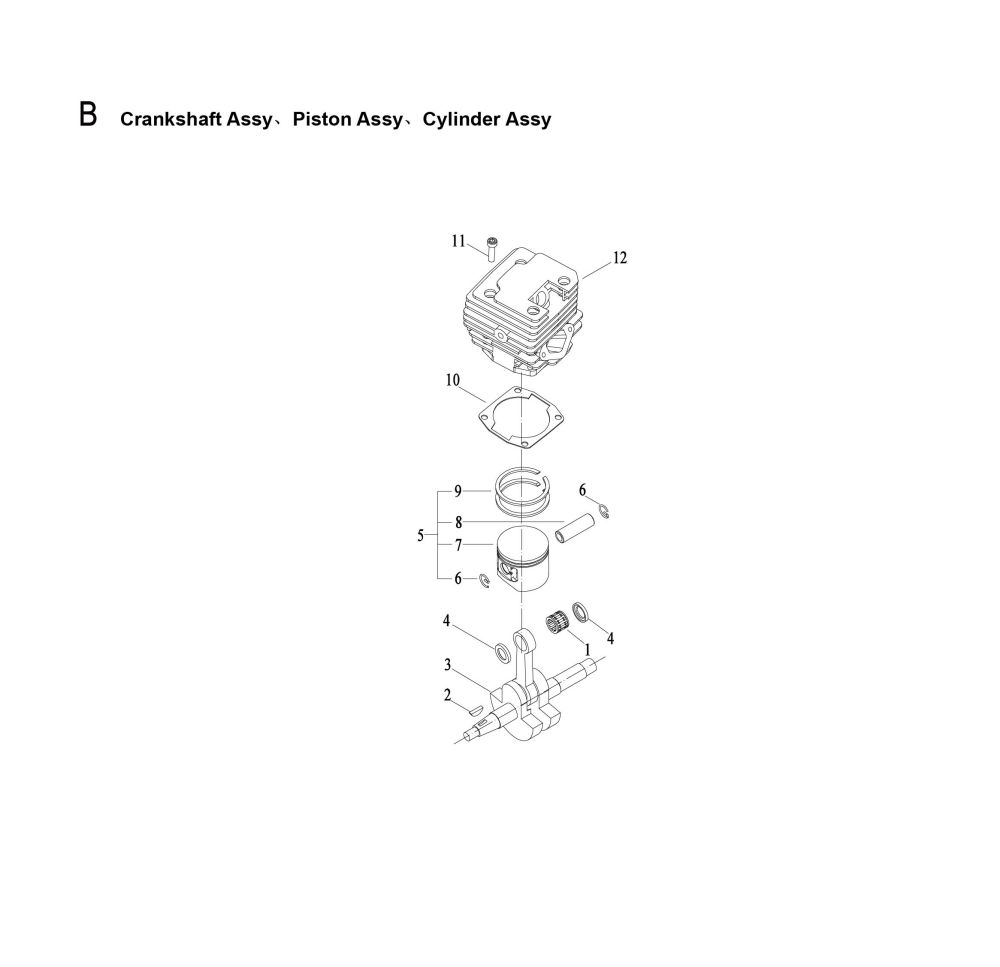

B. Crankshaft Piston Cylinder Assembly		F-8	High Voltage Line Sealing Sheet
Code	Part Name	F-9	Carburetor (Linked, With Oil Bubble)
B-1	Small Head Needle Roller Bearing	F-10	Air Filter Seat
B-2	Half Round Key	F-11	Buffer Block
B-3	Crankshaft	F-12	Screw
B-4	Small Head Anti-Friction Pad	F-13	Damper Lever
B-5	NT58 piston group	F-14	Open Rubber Gasket
B-6	Piston Pin Circlip	F-15	Paper Air Filter
B-7	Piston	F-16	Air Filter Compression Ring
B-8	Piston Pin	F-17	Wire Mesh Air Filter
B-9	Piston Rings	F-18	Air Filter Seat

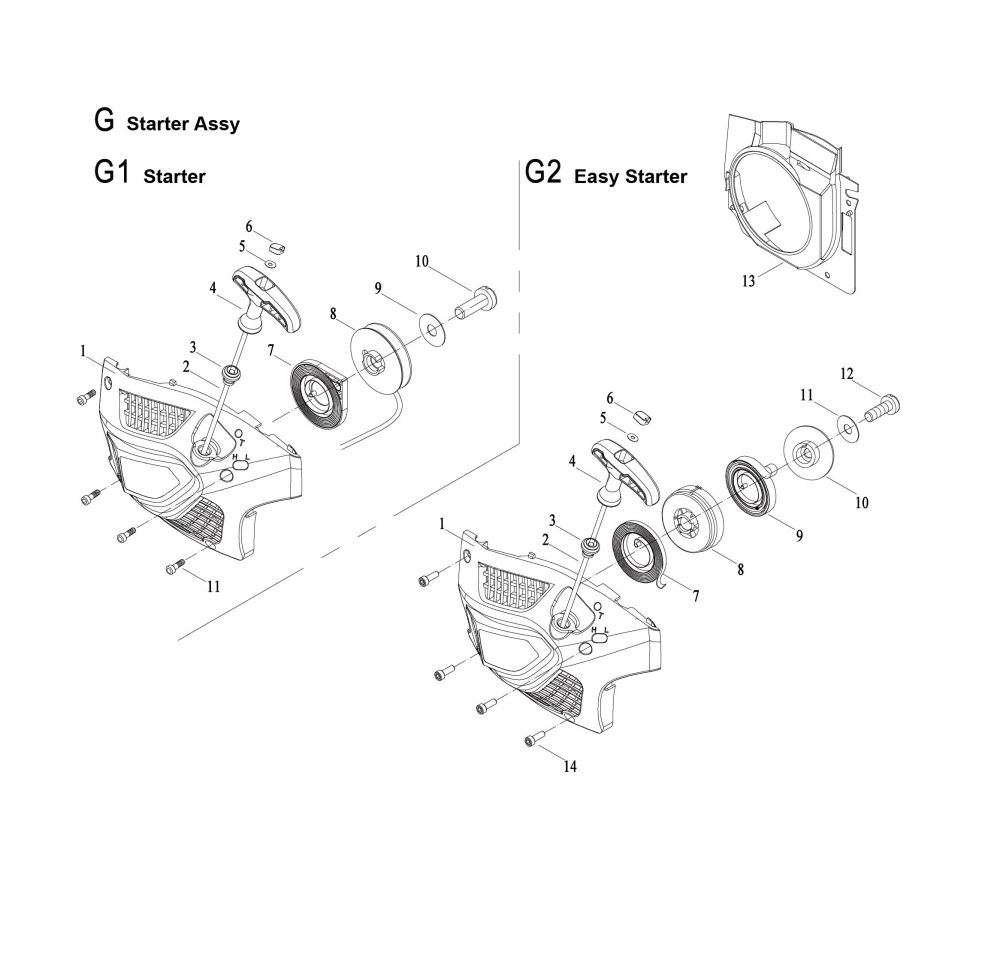

B-10	Cylinder Gasket	G1. Starter Assembly
B-11	Cylinder	Code	Part Name
B-12	Screw	G1	Starter Assembly

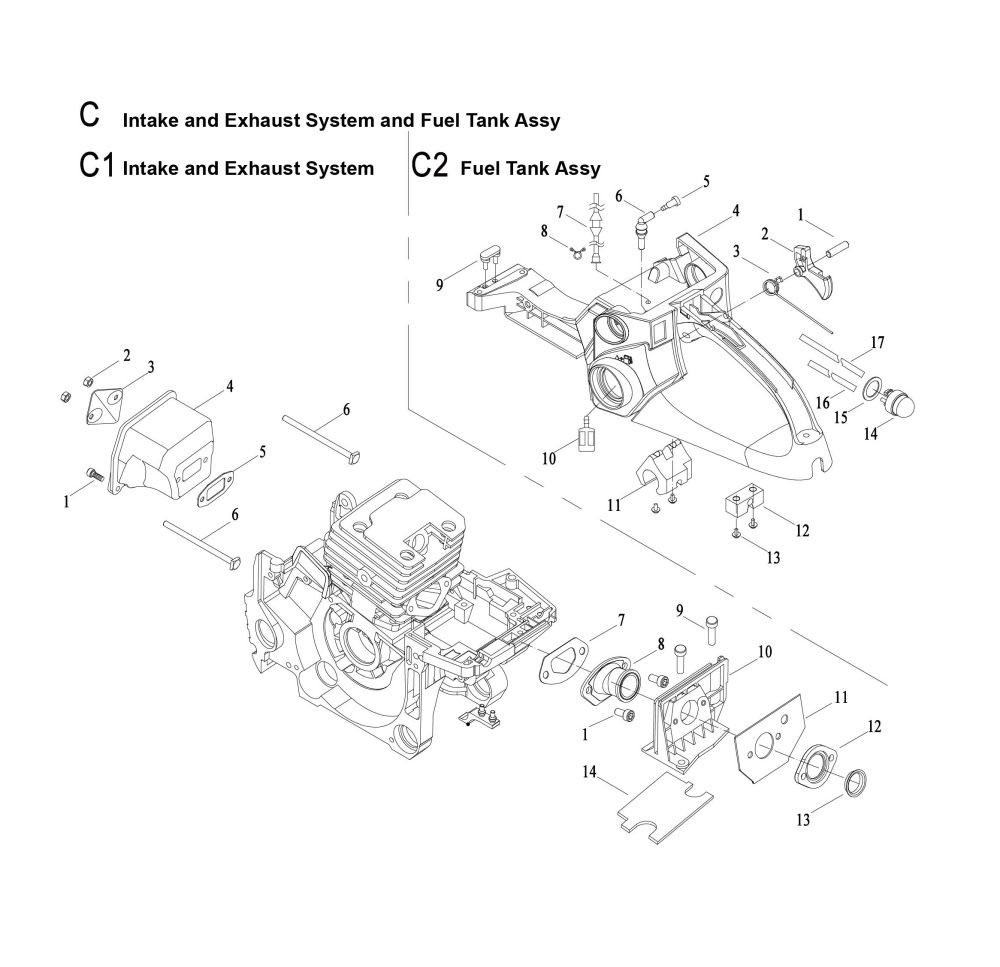

C1. Intake and Exhaust System		G1-1	Starter Cover
Code	Part Name	G1-2	Drawstring
C1-1	Screw	G1-3	Noose
C1-2	Nut	G1-4	Start The Handle
C1-3	Double Hole Silencer Pressure Plate	G1-5	Flat Pad
C1-4	Silencer (Double Hole)	G1-6	Handle Plug
C1-5	Muffler Gasket	G1-7	Return Coil Spring (With Box)
C1-6	Bolt	G1-8	Rope Pulley
C1-7	Intake Pipe Paper Gasket	G1-9	Flat Pad
C1-8	Intake Pipe	G1-10	Screw
C1-9	Screw	G1-11	Screw
C1-10	Intake Pipe Bracket	G2. Easy Starter Assembly
C1-11	Thermal Paper Pad	Code	Part Name
C1-12	Flange	G2	Easy Starter Assembly
C1-13	Intake Pipe Liner	G2-1	Starter Cover (Easy Start)
C1-14	Lower Potholder	G2-2	Drawstring
C1-15	G2-3	Noose
C2. Fuel Tank Components		G2-4	Start The Handle
Code	Part Name	G2-5	Flat Pad
C2-1	Cylindrical Pin	G2-6	Handle Plug
C2-2	Throttle trigger	G2-7	Return Coil Spring
C2-3	trigger Torsion Spring	G2-8	Rope Pulley
C2-4	Chain Saw Fuel Tank	G2-9	Buffer Spring
C2-5	Balancer	G2-10	Start The Cover
C2-6	Balancer Tube	G2-11	Flat Pad
C2-7	Fuel Pipe	G2-12	Screw
C2-8	Fuel Pipe Circlip	G2-13	Air Deflector
C2-9	Double Headed Pin	G2-14	Screw

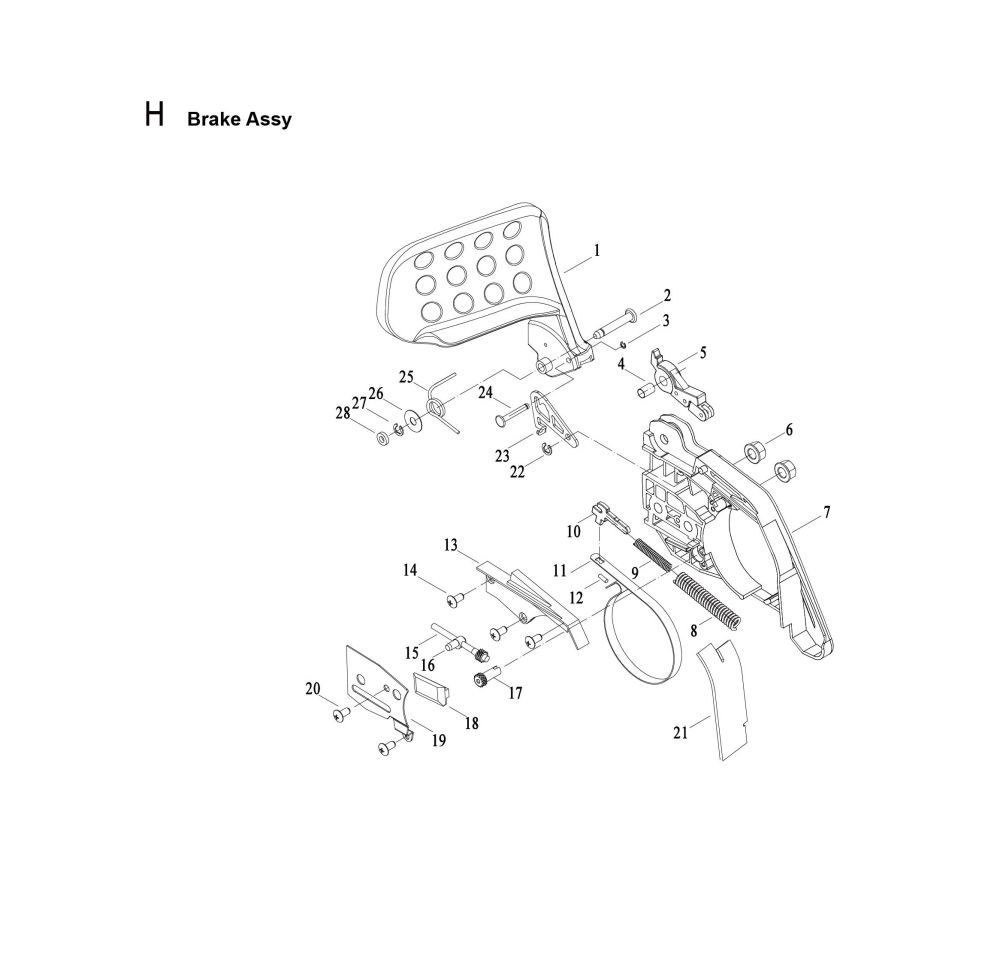

C2-10	Fuel Filter	H. Brake Assembly
C2-11	Wrench Fixing Rubber Block (Front)	Code	Part Name
C2-12	Rubber Block (Rear)	H	Brake Assembly
C2-13	Screw	H-1	Front Fender
C2-14	Oil Injector	H-2	Front Fender Pin
C2-15	Oil Injector Gasket	H-3	Open Retaining Ring
C2-16	Oil Injector Return Pipe	H-4	Baffle Pin Sleeve
C2-17	Negative Pressure Oil Pipe	H-5	Main And Auxiliary Lever Assembly

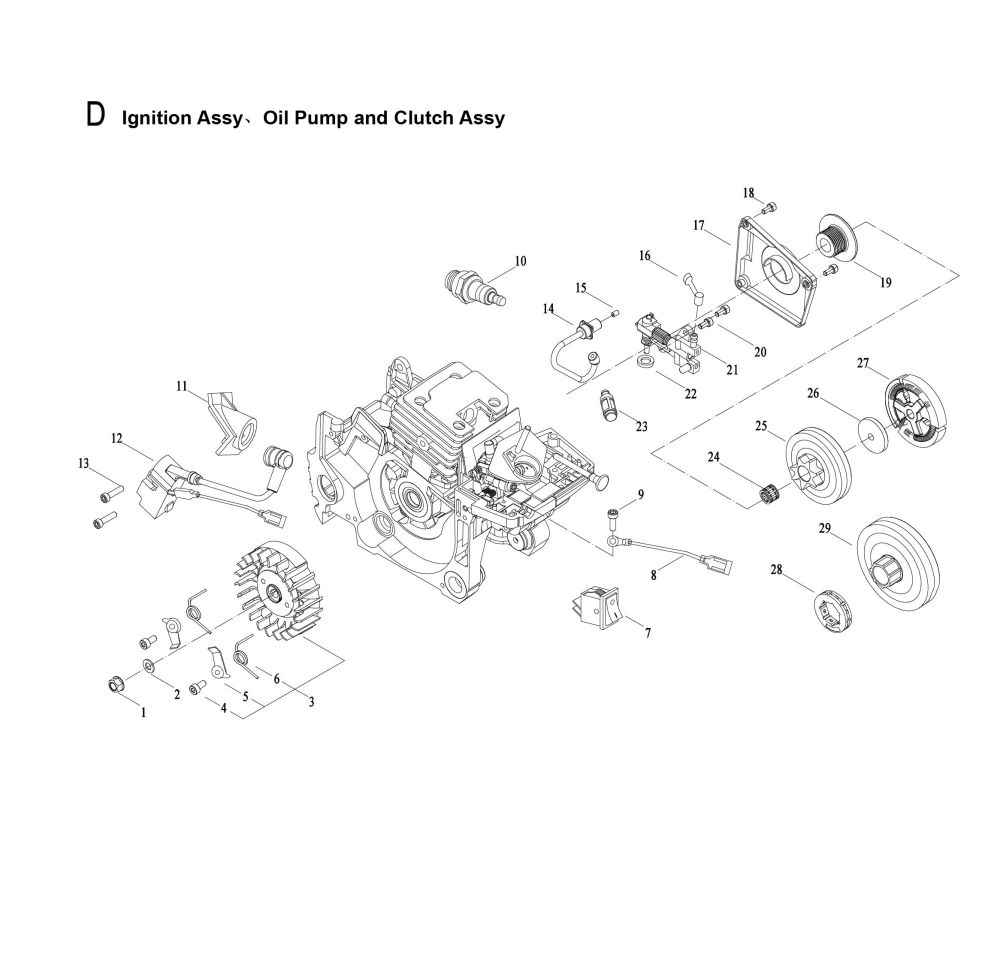

D. Ignition system, pump oil and clutch components		H-6	Nut
Code	Part Name	H-7	Right Cover
D-1	Nut	H-8	Brake Spring
D-2	Disc Spring Pad	H-9	Brake Auxiliary Spring
D-3	Flywheel	H-10	Brake Lever
D-4	Flywheel Pawl Screw	H-11	Brake Band
D-5	Iron Claw	H-12	Cylindrical Pin
D-6	Paw Torsion Spring	H-13	Brake Cover
D-7	Kill Switch	H-14	Screw
D-8	Flameout Line	H-15	Tension Driven Gear
D-9	Screw	H-16	Guide Plate Adjusting Nut
D-10	Spark Plug	H-17	Tension Drive Gear
D-11	Ignition Wire Sheath	H-18	Chain Guide Block
D-12	Ignition Assembly	H-19	Tensioner Cover
D-13	Screw	H-20	Screw
D-14	Oil Inlet Pipe	H-21	Chipboard
D-15	Oil Pipe Expansion Sleeve	H-22	Open Retaining Ring
D-16	Fuel Injector	H-23	Limit Plate
D-17	Oil Pump Cover	H-24	Limit Pin
D-18	Screw	H-25	Brake Torsion Spring
D-19	Worm	H-26	Flat Pad
D-20	Screw	H-27	Open Retaining Ring
D-21	Oil Pump	H-28	Rubber Gasket
D-22	Sponge
D-23	Oil Filter Assembly
D-24	Needle Roller Bearings
D-25	Passive Disk
D-26	Clutch Gasket
D-27	Clutch
D-28	Sprocket
D-29	Passive Disk
