NT6020 Accessories

NT6020 Chainsaw Parts

CRAFTOP NT6020 chainsaw spare parts offer exceptional quality, obtained from reputable suppliers, comparable to renowned chainsaw brands.
The CRAFTOP NT6020 saw chain blades feature razor-sharp edges and superior durability, thanks to the incorporation of advanced CrNiMo technology. These blades/saw tooth come in various types such as full chisel (round tooth), semi-chisel (square tooth) and low profile that suitable for forest logging, wood cutting, farming, and gardening. Each chainsaw tooth seamlessly fits into its designated position, preventing skipping and breakage.
The CRAFTOP guide bar for NT6020 chainsaws is equipped with a reinforced head made of a special alloy-steel. This head undergoes a complex welding process to achieve exceptional hardness, effectively guarding against breakage.
Our chain saw crankshaft is meticulously crafted using wear-resistant alloy steel and undergoes innovative heat treatment processes. As a result, it surpasses its competitors in terms of strength and toughness.
The NT6020 gasoline saw cylinder is crafted by lank die-casting and advanced electroplating. Rigorously tested for high strength, minimal deformation, rapid heat dissipation, impeccable corrosion resistance, and exceptional wear resistance.

Exploded View of the Whole Machine

Important Spare Parts

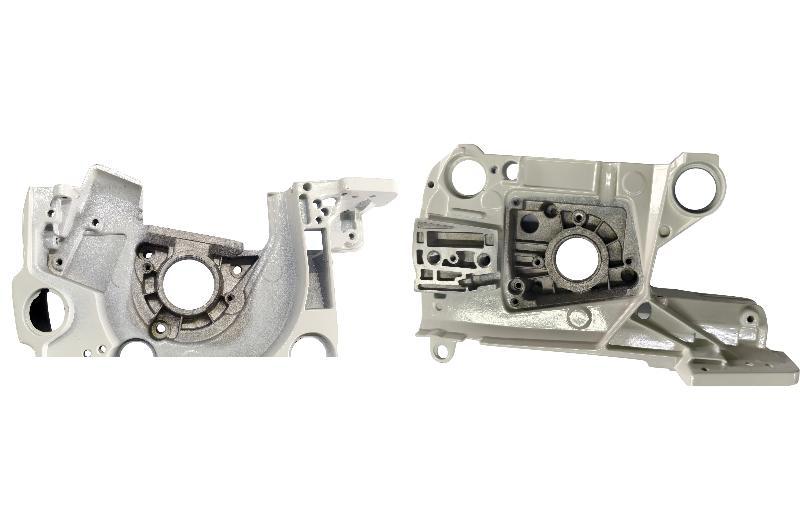

A-1/A-17 Crankcase

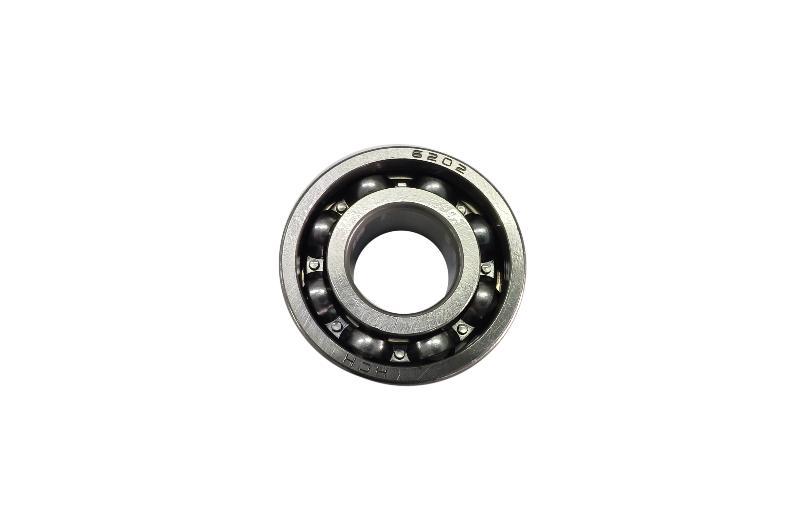

A-5 Bering

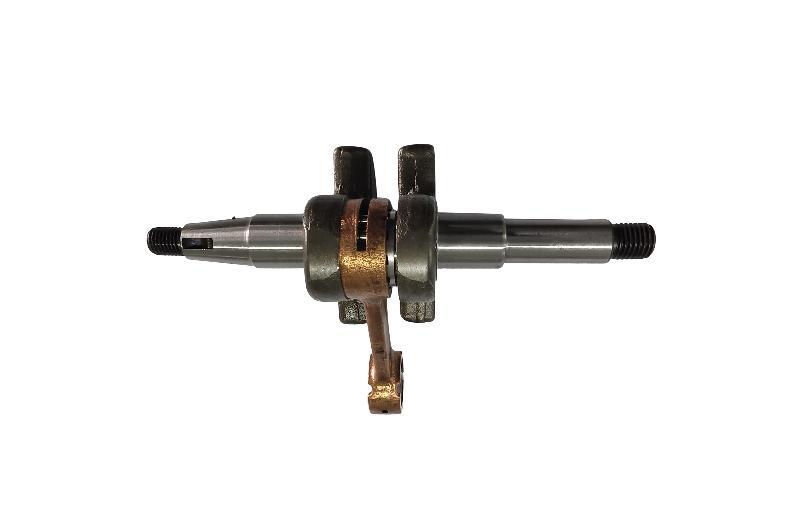

B-3 Crankshaft

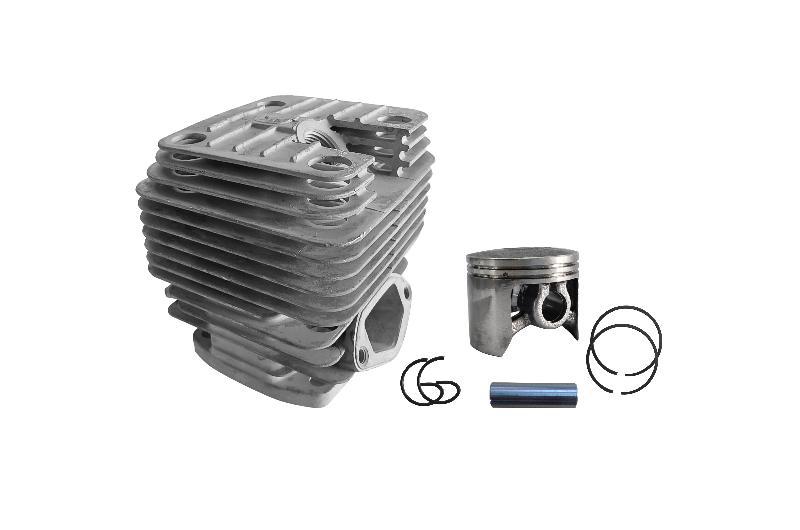

B-12/B-5 Cylinder Assy
C2-4 C2-10 C2-17 Chain Saw Fuel Tank Assy
C2-10 Fuel Fliter

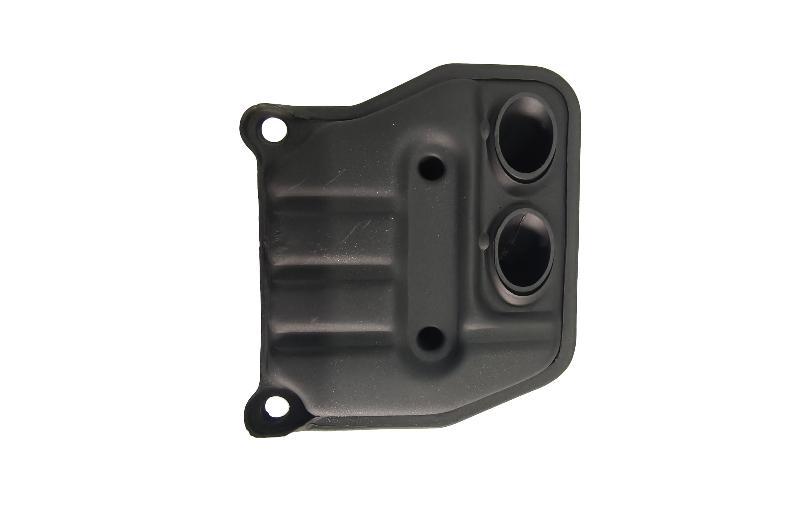

C4 Muffler (double holes)

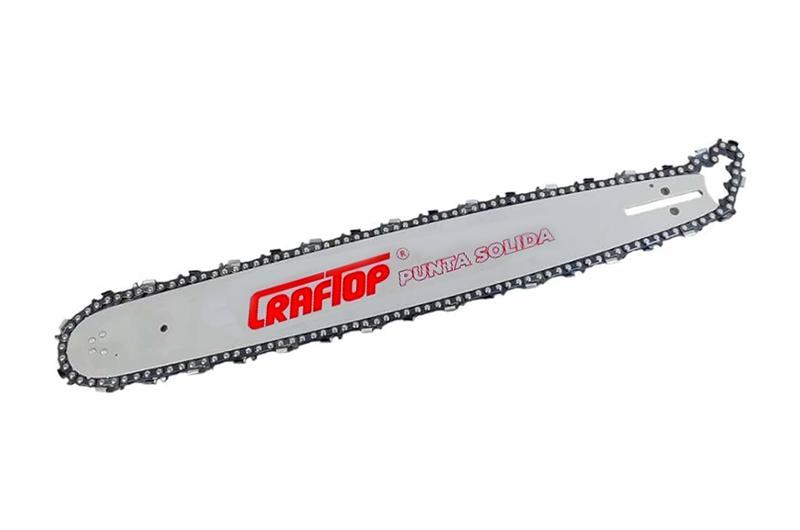

Chainsaw Chain & Guide Bar

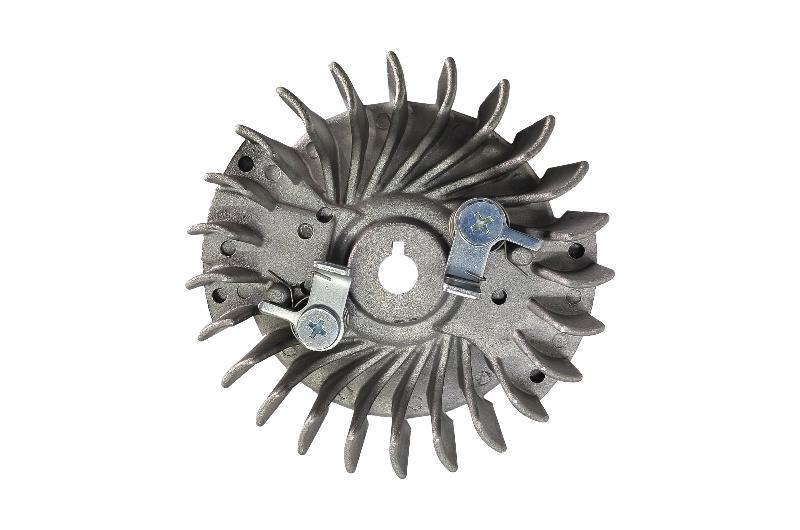

D-3 Flywheel

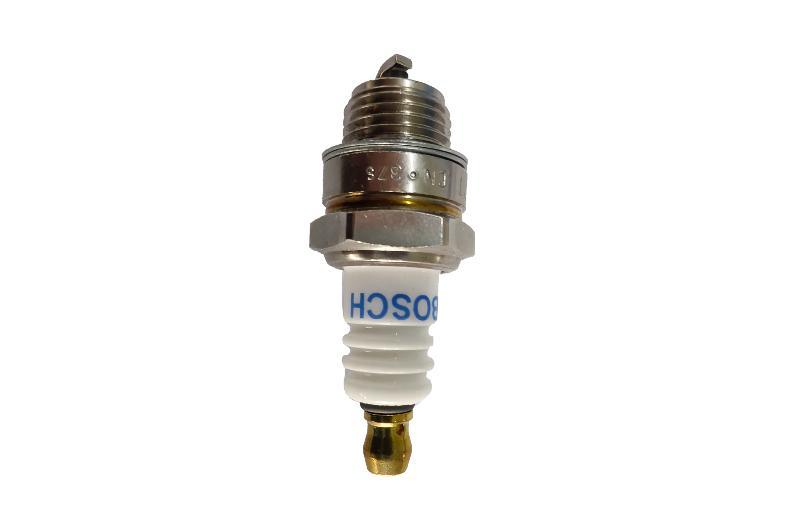

D-10 Spark Plug
D-12 Ignition Assy

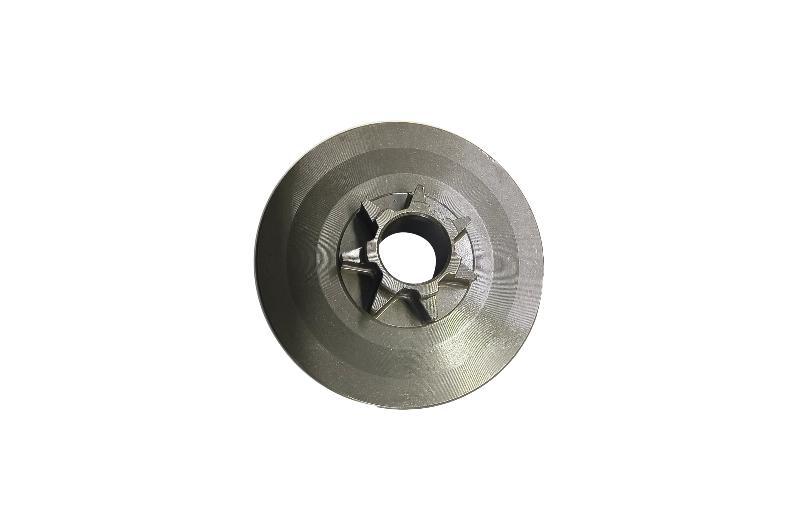

D-25 Clutch Drum

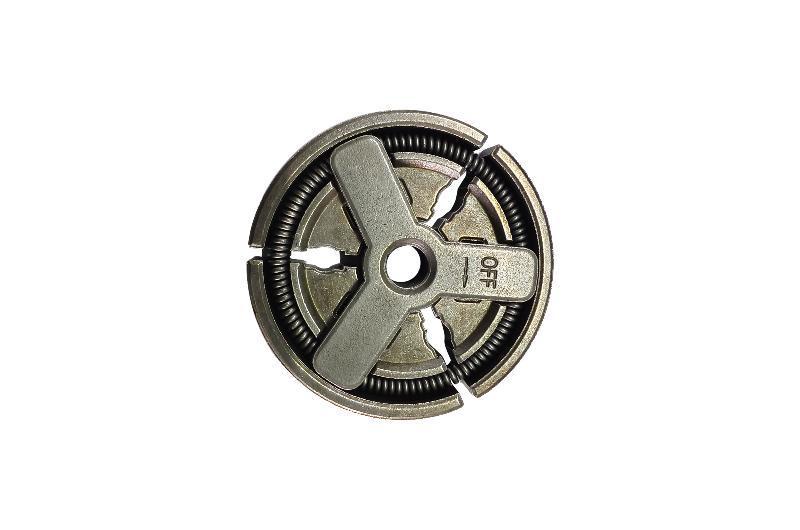

D-27 Clutch

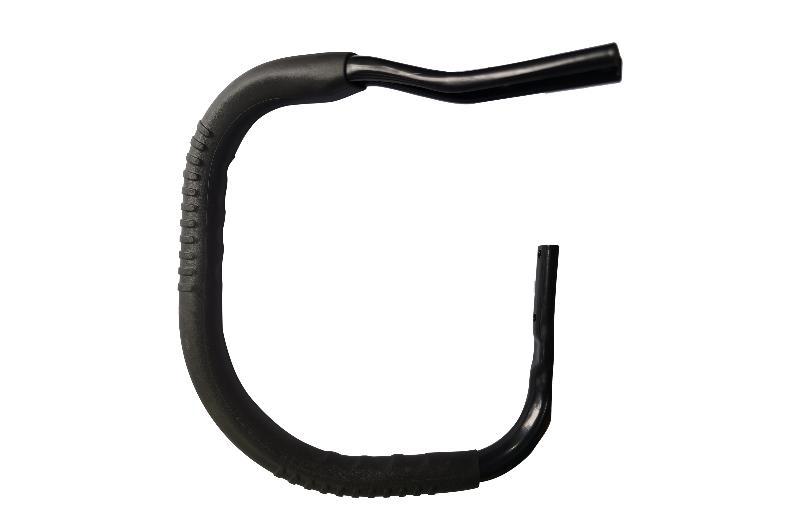

E-1 Handle

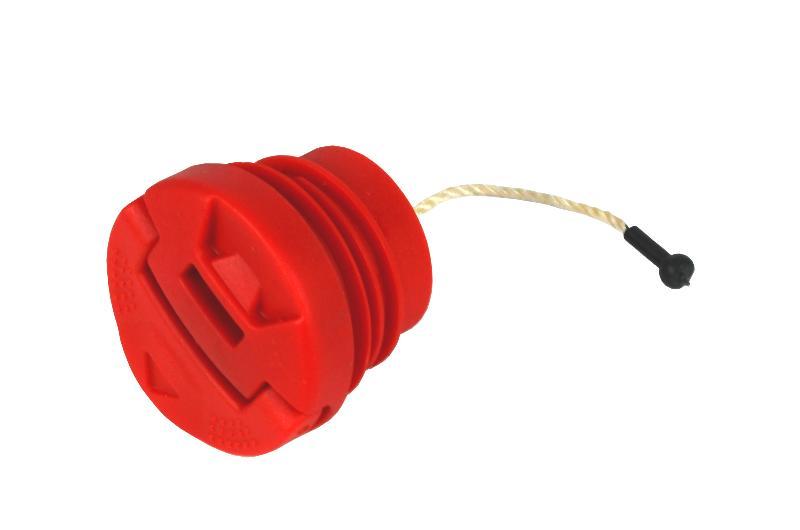

E-18 Fuel Filler Cap Ass

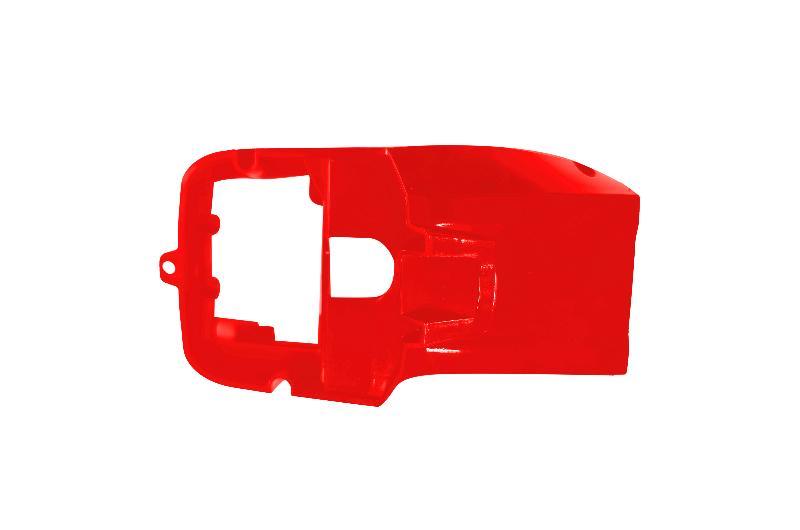

F-4 Cylinder Cover

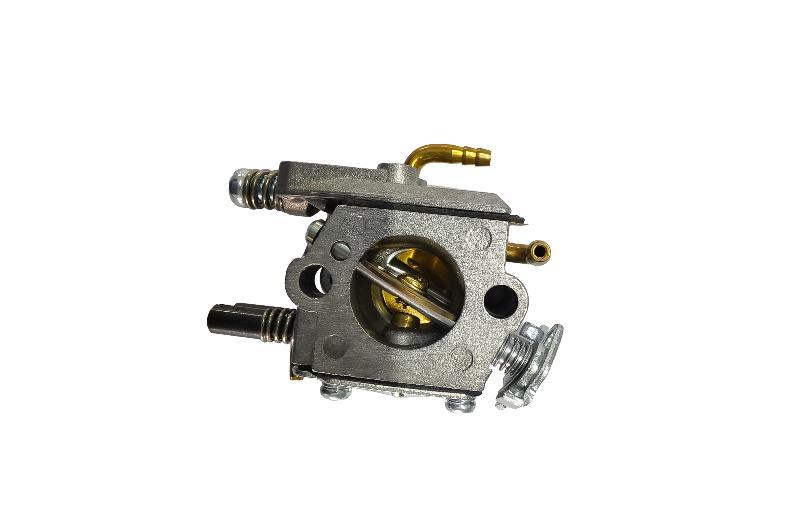

F-8 Carburetor
F-15 Air Filter

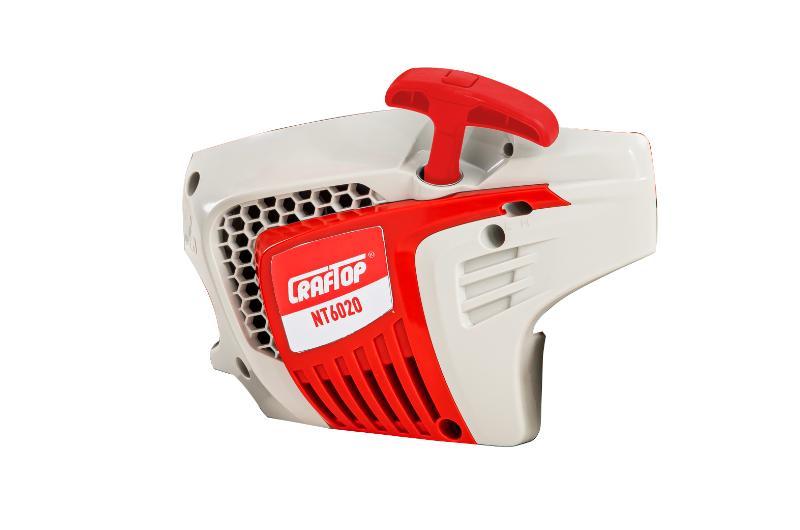

G1 Starter Assy
H Brake Assy

Other Spare Parts

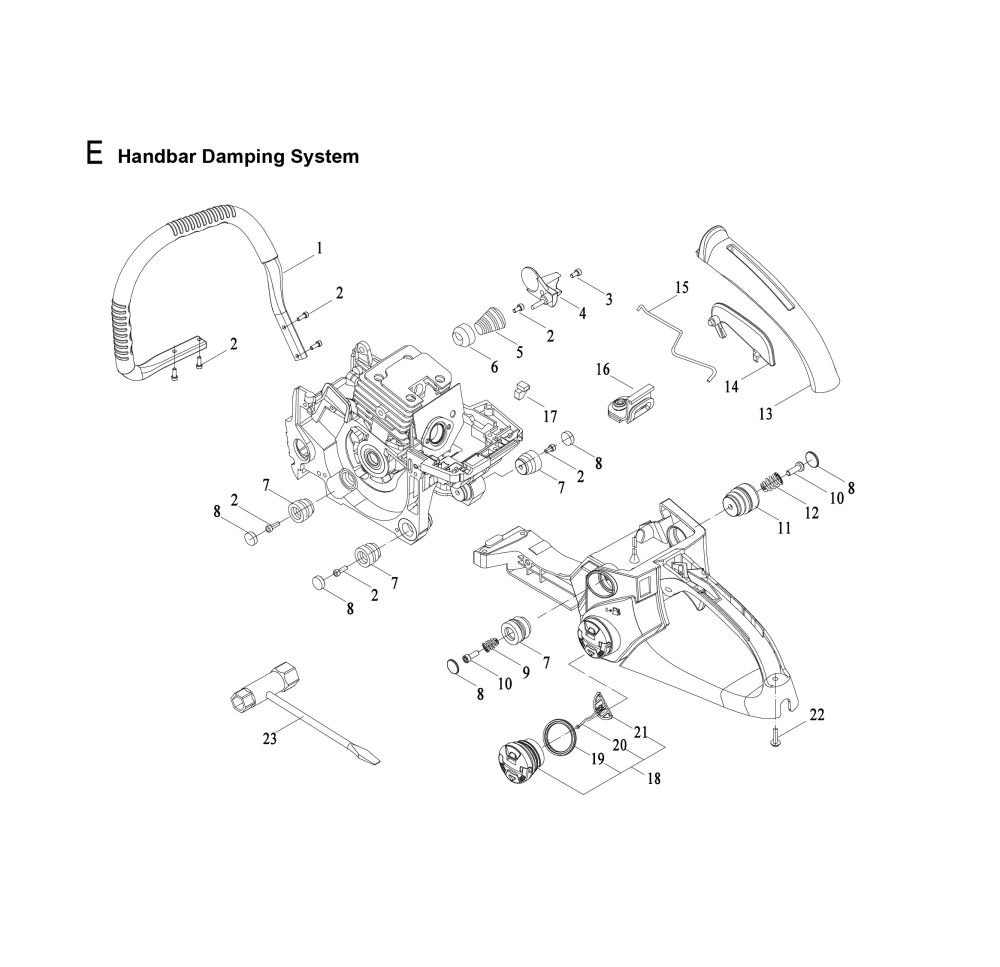

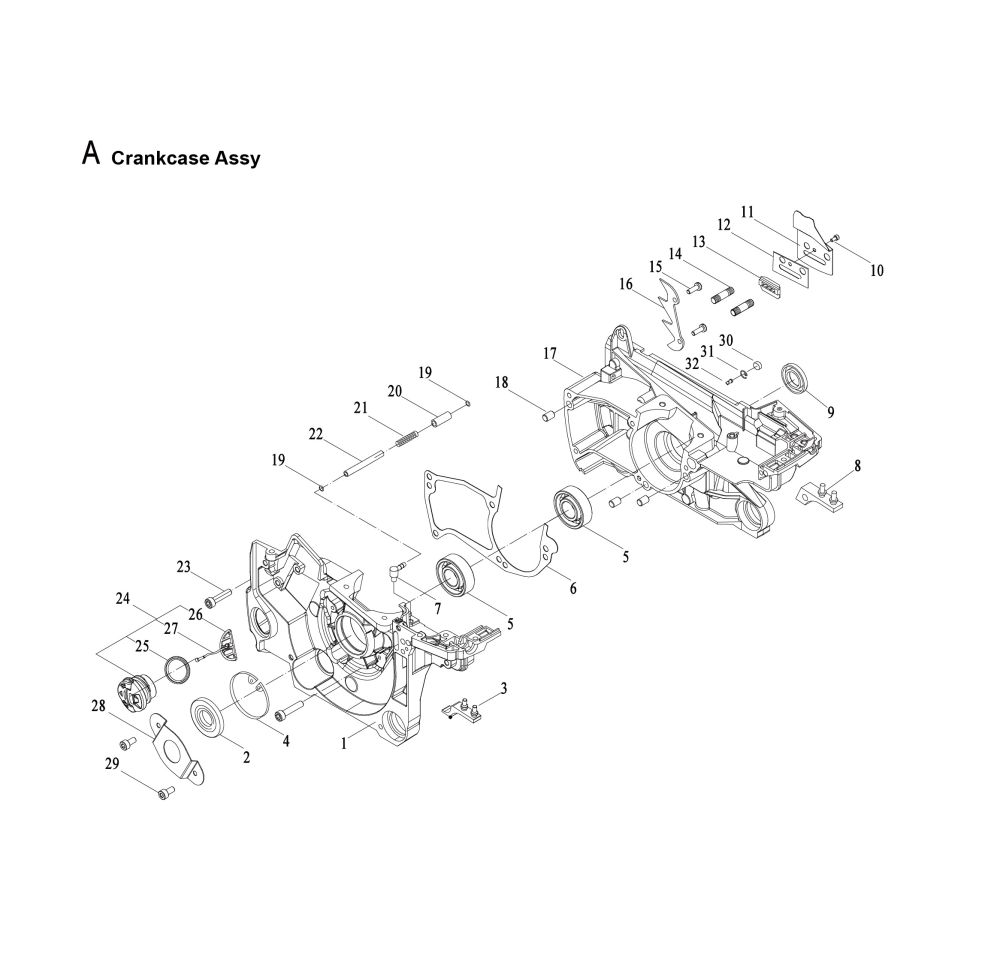

A. Box Assembly		E. Handlebar and Shock Absorption System
Code	Part Name	Code	Part Name
A-1	Crankcase L	E-1	Handle
A-2	Left Oil Seal	E-2	Screw
A-3	Left Box Shock Absorber	E-3	Screw
A-4	Hole Retaining Ring	E-4	Tower Spring Gland
A-5	Bearing	E-5	Conical Tower Spring
A-6	Packing Paper Pad	E-6	Tower Spring Seat
A-7	Pipe Joint	E-7	Shock Absorber Seat (Short)
A-8	Double Needle Shock Absorber	E-8	Dust Cover
A-9	Right Oil Seal	E-9	Shock Absorber Spring (Short)
A-10	Screw	E-10	Screw
A-11	Oil Outlet Cover	E-11	Shock Absorbing Seat (Long)
A-12	Oil Outlet Cover Gasket	E-12	Shock Absorber Spring (Long)
A-13	Chain Guide Block	E-13	Rear Handle Cover
A-14	Stud	E-14	trigger Control Arm
A-15	Screw	E-15	Throttle Push Rod
A-16	Chainsaw Bumper Spikes	E-16	Dustproof Rubber Block
A-17	Crankcase R	E-17	Wind Resistance Tie Rod Shock Absorber
A-18	Cylindrical Pin	E-18	Fuel Filler Cap Assy
A-19	Oil Inlet Pipe Circlip	E-19	Fuel Tank Cap Gasket
A-20	Insulation Sleeve	E-20	Oil Bottle Cap Lanyard
A-21	Spring Sleeve	E-21	Hook Up
A-22	Negative Pressure Oil Pipe	E-22	Screw
A-23	Screw	E-23	Socket Wrench

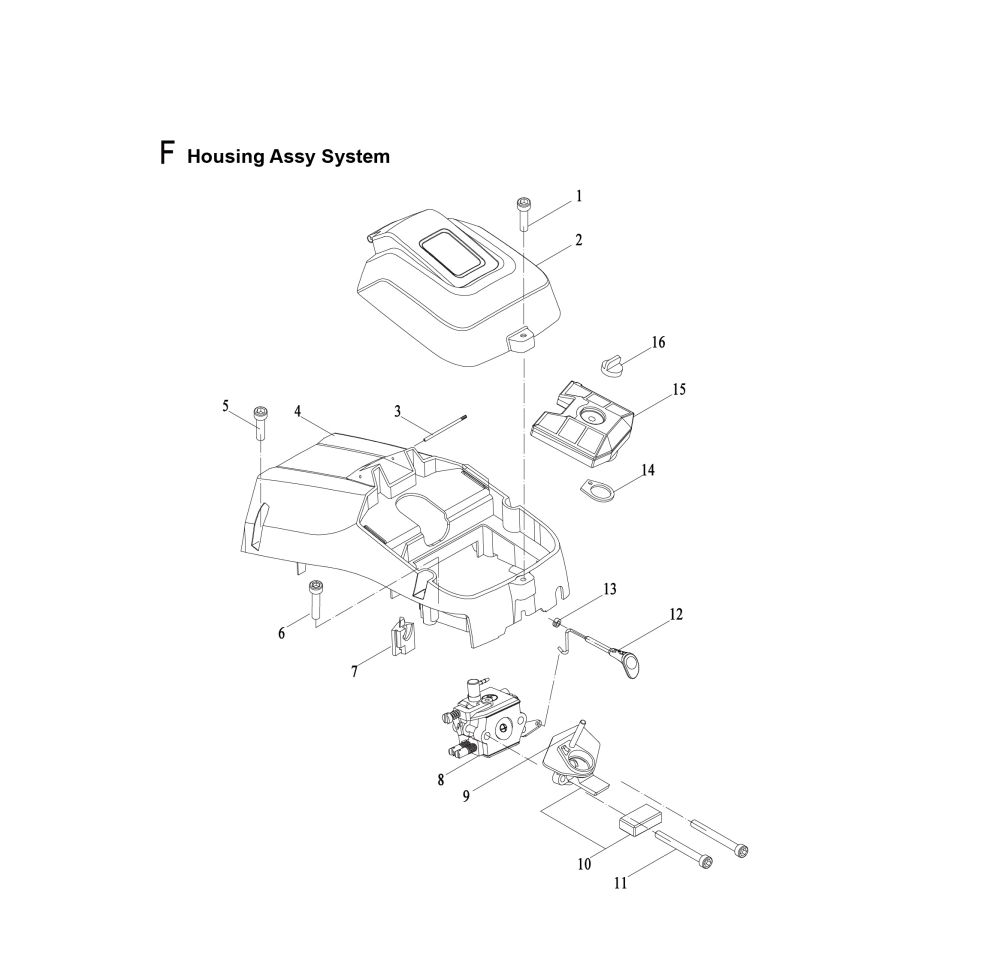

A-24	Oil Tank Cap Assembly	F. Air filter and outer cover
A-25	Oil Tank Cap Gasket	Code	Part Name
A-26	Hook Up	F-1	Screw
A-27	Oil Bottle Cap Lanyard	F-2	Upper Cover
A-28	Oil Seal Pressure Plate	F-3	Fuel Tank Cap Pin
A-29	Screw	F-4	Cylinder Cover
A-30	Sponge	F-5	Screw
A-31	Intake Valve Circlip	F-6	Screw
A-32	Breather Valve	F-7	High Voltage Line Sealing Sheet

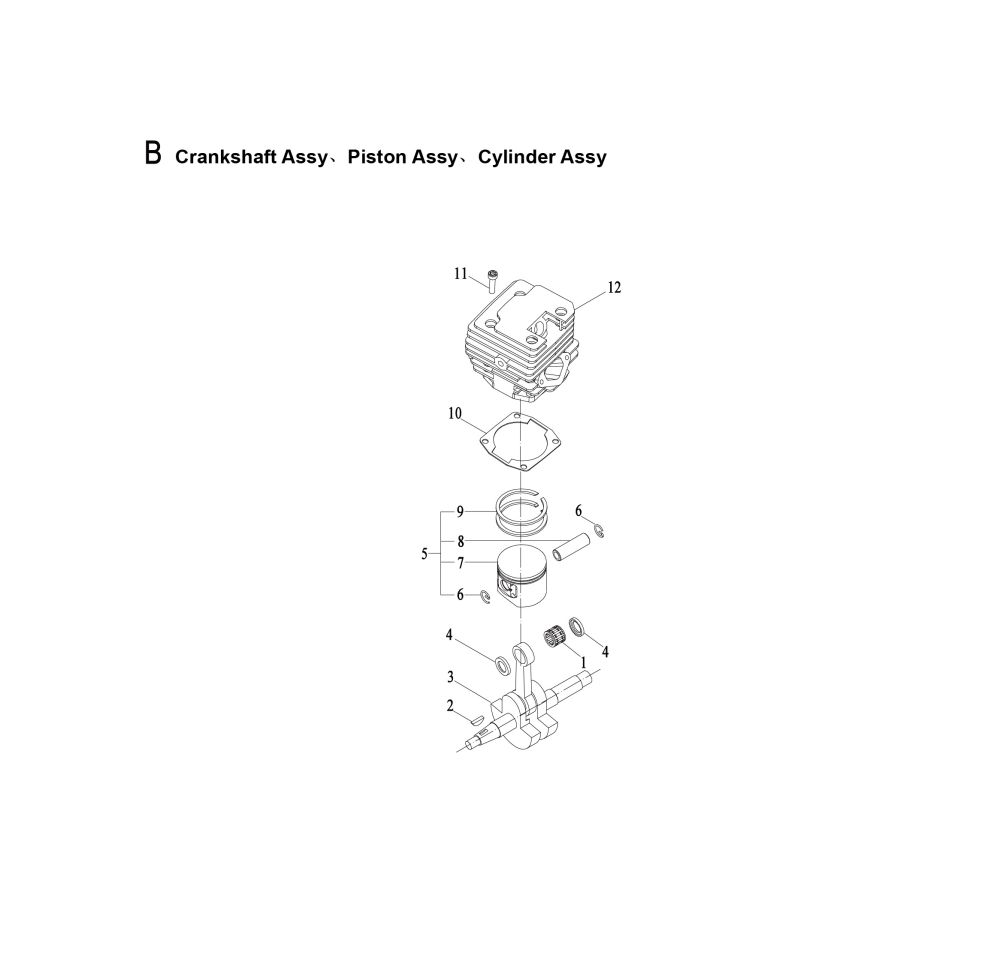

B. Crankshaft Piston Cylinder Assembly		F-8	Carburetor (Linked, With Oil Bubble)
Code	Part Name	F-9	Stud
B-1	Small Head Needle Roller Bearing	F-10	Intake Pipe
B-2	Half Round Key	F-11	Screw
B-3	Crankshaft	F-12	Damper Lever
B-4	Small Head Anti-Friction Pad	F-13	Open Rubber Gasket
B-5	Piston Group	F-14	Gasket, Air Filiter
B-6	Piston Pin Circlip	F-15	Air Filter
B-7	Piston	F-16	Knob, Air Filter

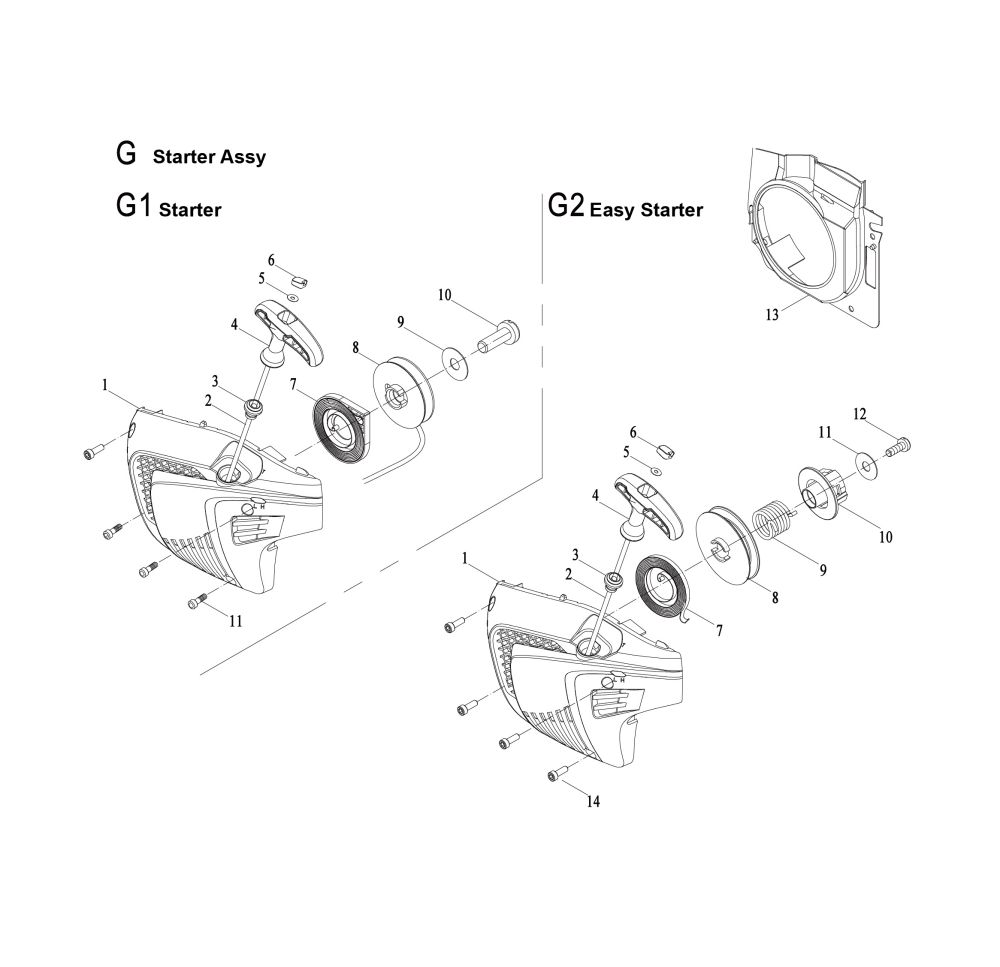

B-8	Piston Pin	G1. Starter Assembly
B-9	Piston Rings	Code	Part Name
B-10	Cylinder Gasket	G1	Starter Assembly
B-11	Screw	G1-1	Cover, Starter
B-12	Cylinder	G1-2	Drawstring

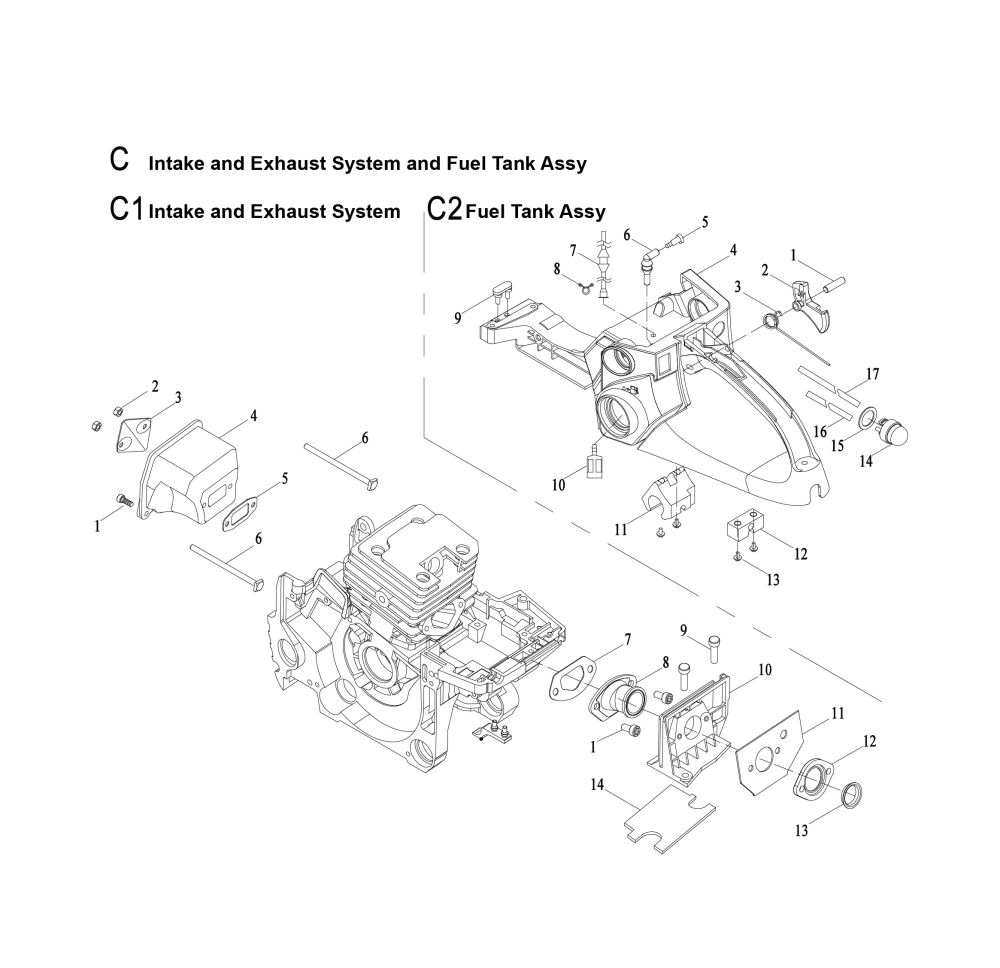

C1. Intake and Exhaust System		G1-3	Noose
Code	Part Name	G1-4	Start The Handle
C1-1	Screw	G1-5	Flat Pad
C1-2	Nut	G1-6	Handle Plug
C1-3	Double Holes Silencer Pressure Plate	G1-7	Return Coil Spring (With Box)
C1-4	Muffler (double holes)	G1-8	Rope Pulley
C1-5	Muffler Gasket	G1-9	Flat Pad
C1-6	Bolt	G1-10	Screw
C1-7	Intake Pipe Paper Gasket	G1-11	Screw
C1-8	Intake Pipe	G2. Easy Starter Assembly
C1-9	Screw	Code	Part Name
C1-10	Intake Pipe Bracket	G2	Easy Starter Assembly
C1-11	Thermal Paper Pad	G2-1	Starter Cover (Easy Start)
C1-12	Flange	G2-2	Drawstring
C1-13	Intake Pipe Liner	G2-3	Noose
C1-14	Lower Potholder	G2-4	Start The Handle
C2. Fuel Tank Assy	00000000	G2-5	Flat Pad
Code	Part Name	G2-6	Handle Plug
C2-1	Cylindrical Pin	G2-7	Return Coil Spring (With Box)
C2-2	Throttle trigger	G2-8	Rope Pulley
C2-3	trigger Torsion Spring	G2-9	Buffer Spring
C2-4	Chain Saw Fuel Tank	G2-10	Cover, Pulley
C2-5	Balancer	G2-11	Flat Pad
C2-6	Balancer Tube	G2-12	Screw
C2-7	Fuel Pipe	G2-13	Air Deflector
C2-8	Fuel Pipe Circlip	G2-14	Screw

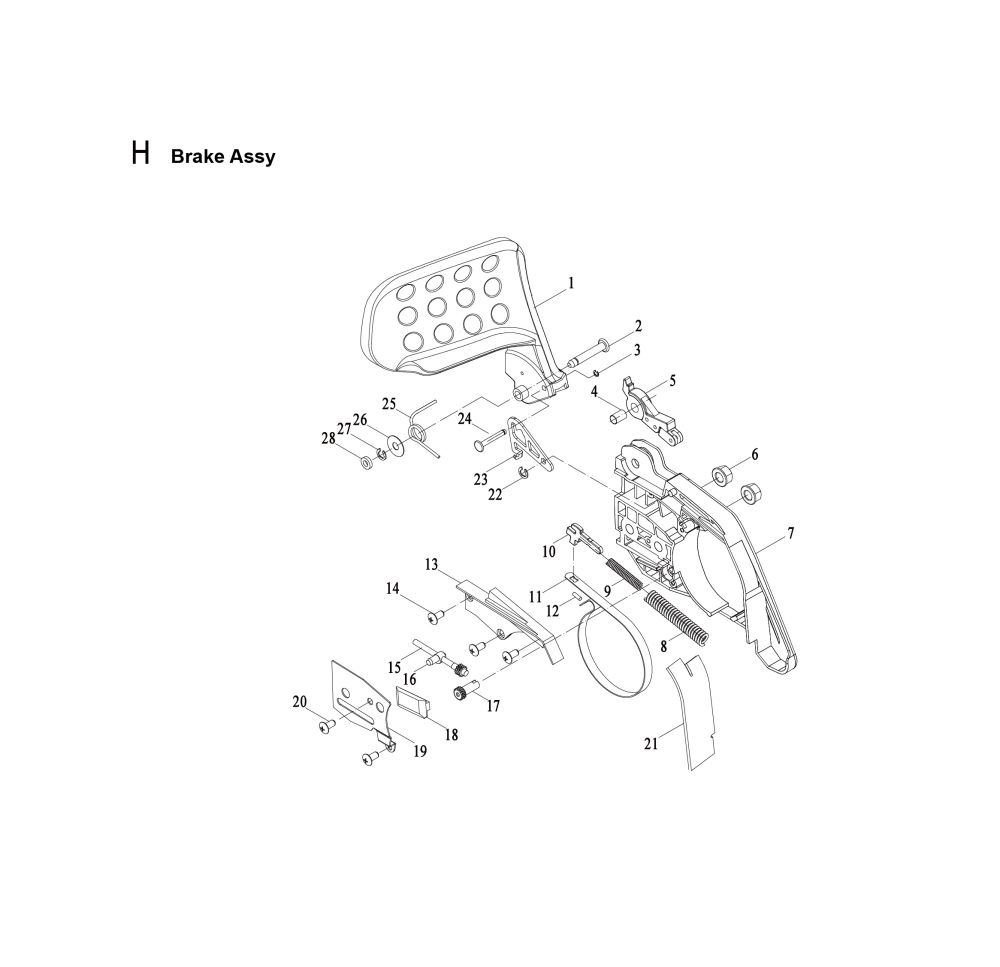

C2-9	Double Headed Pin	H. Brake Assembly
C2-10	Fuel Filter	Code	Part Name
C2-11	Wrench Fixing Rubber Block (Front)	H	Brake Assembly
C2-12	Rubber Block (Rear)	H-1	Front Fender
C2-13	Screw	H-2	Front Fender Pin
C2-14	Oil Injector	H-3	Open Retaining Ring
C2-15	Oil Injector Gasket	H-4	Baffle Pin Sleeve
C2-16	Oil Injector Return Pipe	H-5	Main And Auxiliary Lever Assembly
C2-17	Negative Pressure Oil Pipe	H-6	Nut

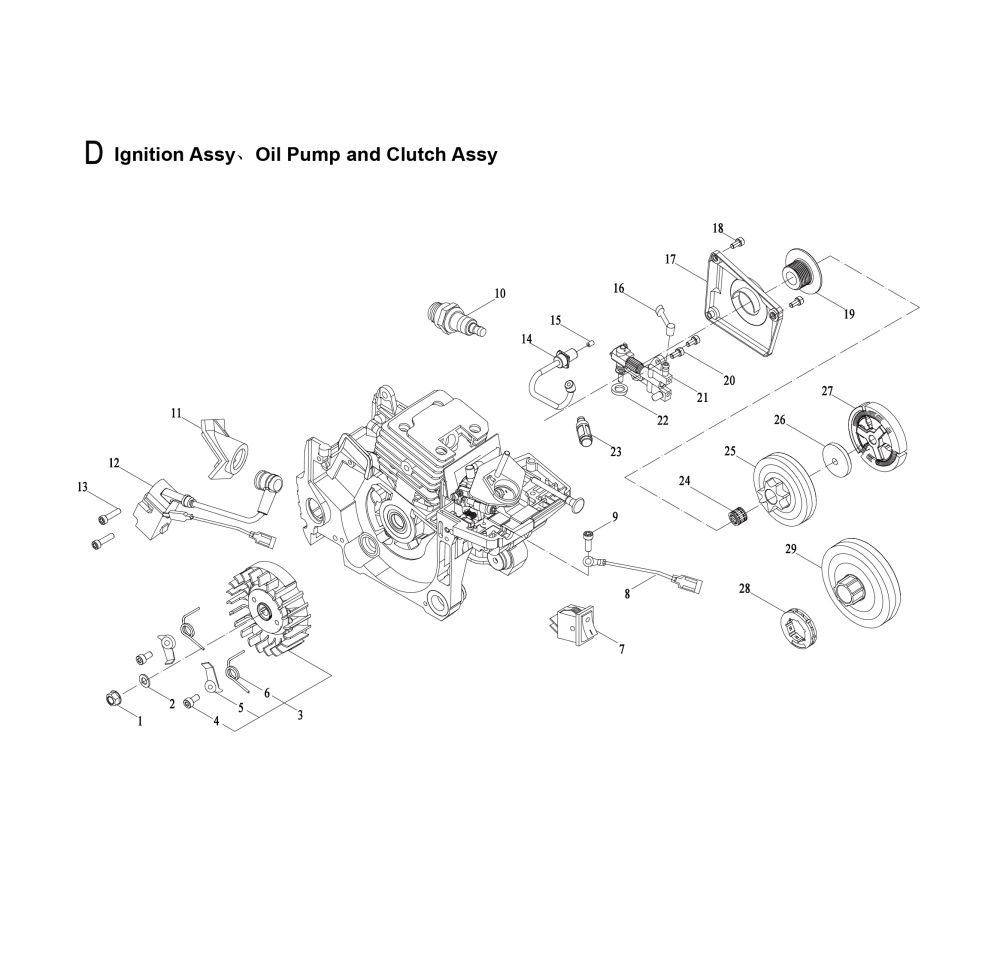

D. Ignition system, pump oil and clutch components		H-7	Right Cover
Code	Part Name	H-8	Brake Spring
D-1	Nut	H-9	Brake Auxiliary Spring
D-2	Butterfly Washer	H-10	Brake Lever
D-3	Flywheel	H-11	Brake Band
D-4	Flywheel Pawl Screw	H-12	Cylindrical Pin
D-5	Iron Claw	H-13	Brake Cover
D-6	Paw Torsion Spring	H-14	Screw
D-7	Kill Switch	H-15	Tension Driven Gear
D-8	On/off Wire	H-16	Guide Plate Adjusting Nut
D-9	Screw	H-17	Tension Drive Gear
D-10	Spark Plug	H-18	Chain Guide Block
D-11	Ignition Wire Sheath	H-19	Tensioner Cover
D-12	Ignition Assembly	H-20	Screw
D-13	Screw	H-21	Chipboard
D-14	Oil Inlet Pipe	H-22	Open Retaining Ring
D-15	Oil Pipe Expansion Sleeve	H-23	Limit Plate
D-16	Fuel Injector	H-24	Limit Pin
D-17	Oil Pump Cover	H-25	Brake Torsion Spring
D-18	Screw	H-26	Flat Pad
D-19	Worm	H-27	Open Retaining Ring
D-20	Screw	H-28	Rubber Gasket
D-21	Oil Pump
D-22	Sponge
D-23	Oil Filter Assembly
D-24	Needle Roller Bearings
D-25	Clutch Drum
D-26	Clutch Gasket
D-27	Clutch
D-28	Sprocket
D-29	Clutch Drum
