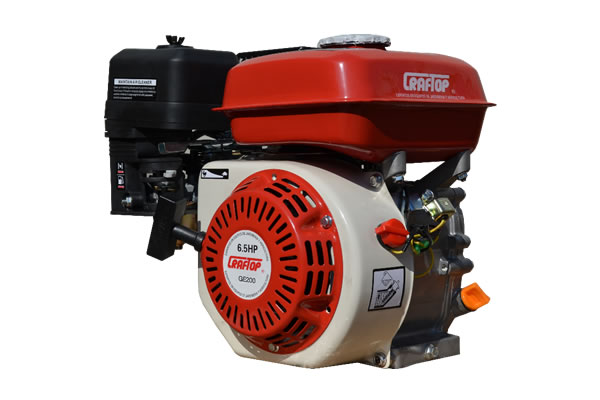

Operation and Maintenance of the CRAFTOP GE200 Air-Cooled, 4-Stroke Engine

The CRAFTOP GE200 gasoline engine is a general-purpose engine commonly used in small machinery such as generators, water pumps, and construction equipment. Below is a general instruction guide for its operation, maintenance, and safety precautions.

1. Safety Precautions

Before operating the GE200 engine

Read the manual thoroughly.

Operate in a well-ventilated area to avoid carbon monoxide poisoning.

Keep flammable materials away from the engine.

Wear protective gear (gloves, goggles) when handling fuel or performing maintenance.

Ensure the engine is on a stable surface before starting.

Do not operate near children or pets.

2. Specifications (General)

Engine Model:GE200

Type: Air-cooled, 4stroke, single cylinder gasoline engine

Displacement: 196cc

Power Output: 6.5 HP

Fuel Type: Unleaded gasoline (87 octane or higher)

Oil Type: SAE 10W30 (4stroke engine oil)

Oil Capacity: 0.6L

Ignition System: CDI (Capacitor Discharge Ignition)

Starting Method: Recoil start (pull cord)

3. Initial Setup & First Start

A. Adding Fuel

Use clean, fresh unleaded gasoline (no ethanol blend preferred).

Fill the fuel tank to about 80% capacity (avoid overfilling).

B. Adding Engine Oil

Place the engine on a level surface.

Remove the oil filler cap/dipstick.

Add SAE 10W30 oil until it reaches the upper mark on the dipstick.

Reinstall the dipstick securely.

C. Starting the Engine

Turn the fuel valve to the ON position (if equipped).

Move the choke lever to the CLOSED position (for cold starts).

Pull the starter cord firmly until the engine fires.

Once running, gradually open the choke.

Allow the engine to warm up for 12 minutes before applying load.

4. Operating Instructions

Do not overload the engine, check the rated power for your equipment.

Monitor engine temperature—avoid prolonged use at maximum RPM.

Shut down properly before refueling or maintenance.

5. Storage Guidelines

Drain fuel or add a fuel stabilizer if storing >30 days.

Change oil before long term storage.

Store in a dry, cool place away from direct sunlight.

6. Warranty & Support

Check the warranty time.

Contact CRAFTOP customer service for technical support or spare parts.

For detailed model specific instructions, always refer to the official CRAFTOP GE200 manual provided with your engine. Welcome to contact us if you are interested in this CRAFTOP GE200 gasoline engine.
