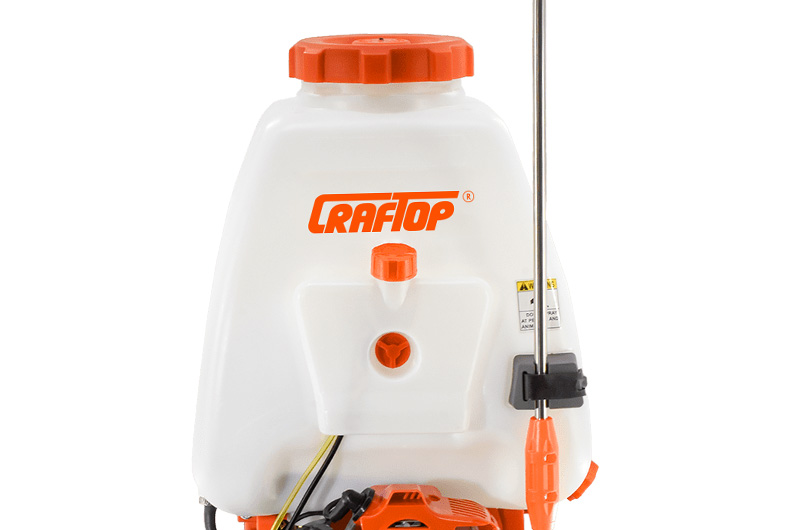

ENIntroducing the powerful and versatile CRAFTOP GS767 Backpack Petrol Sprayer, the ultimate solution for all your agricultural and sanitation spraying needs. Whether you're searching for pesticide spraying, fertilizer spraying, weedicide spraying or seeding, the GS767 gasoline backpack sprayer has got you covered.
Experience the convenience of this knapsack power sprayer as it effortlessly reaches a spraying range of up to 12m with its 90cm lance, ensuring precise coverage even at heights of 10m. Equipped with a three-nozzle gun, every nook and cranny receives equal attention.

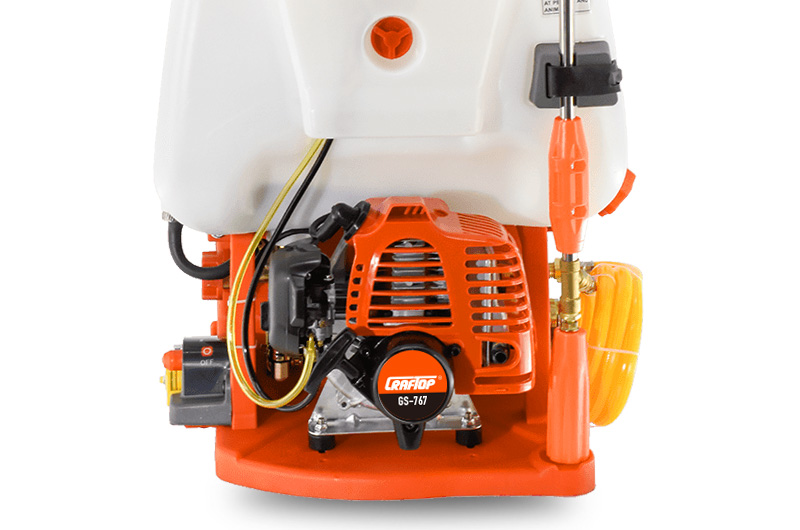

Quality and durability are our top priorities. This 2-cycle gasoline power sprayer features a high-quality power pump, providing stability and consistent pump pressure for uninterrupted spraying. Its reinforced copper pump and piston boast an exceptional lifespan of up to 100 hours, surpassing other petrol sprayers.
Versatile and reliable, this backpack sprayer is your go-to agri sprayer for crop protection and sanitation needs. Safeguard crops against diseases, pests, and weeds, or utilize its power for sanitation and disinfection purposes in post-disaster environments.
Choose the CRAFTOP GS767 Backpack Petrol Sprayer, the epitome of a 2-stroke gasoline backpack sprayer, and unlock a new level of efficiency and performance for all your spraying requirements.
| Product Name | 25L Gasoline Knapsack Sprayer |
| Model Name | GS767 |
| Engine stroke type | 2 stroke |
| Cylinder displacement (cc) | 26cc |
| Power output (kW/hp/rpm) | 0.75kW/1hp/7500rpm |
| Max engine speed (rpm) | 7500rpm |
| Carburetor type | Diaphragm |
| Quick-release air filter cover | √ |
| Quick-release air filter | √ |
| Choke look to start | √ |
| Fuel tank capacity | 650ml |
| Fuel mixture ratio (gasoline:two-cycle oil) | 25:1 |
| Weight (kg) | 10kg |
| Chemist tank capacity (L) | 25L |
| Sprayer capacity (only liquid/ liquid+powder) | Liquid |
| Max air speed (kW/h) | 9000-10000 |
| Spraying horizontal range (m) | 10-12m |
| Spraying vertical max height (m) | 6-7m |
| Hose nozzle type | two nozzle,three nozzle, four nozzle/ 60cm straight gun /90cm straight gun |
| Box size (mm) | 410x320x650mm |
| Gross Weight | 12KGS |
| Units container 20/40HQ (PCS) | 20ft: 340sets, 40HQ: 810sets |
To better cater to your needs, please include some keywords in your inquiry, ie. chainsaw, brush cutter, sprayer/mist duster, leaf blower, hedge trimmer, water pump, generator, engine, lawn mower, battery-powered tools, etc.
To begin the start-up process, fill the fuel tank with a 50:1 fuel mix.
We recommend using Craftop Brand Oil the proper fuel mix ratio.
Here is a link for a correct mix of oil and gasoline.
The priming bulb is located towards the bottom of the carburetor. Pump the bulb 5-7 times until fuel begins to flow through the fuel pipes.
Position the choke upright on a cold start (first start - right out of the box).
Set the throttle to 50%.
Pull the recoil starter 3-5 times to get the engine to start.
Push the choke down once you hear the engine flutter (turn over).
Set the throttle to 50%.
To start the engine, pull the recoil starter.
Allow the engine to warm up for 1-2 minutes at low throttle.
Fill the tank halfway with fresh water. Then, pump the handle while holding the trigger wand open to spray out everything in the tank. Pump the handle a few dozen times while keeping the trigger open.
After each usage, your sprayer should be drained and cleaned. It is normally acceptable to leave the product in the sprayer if you intend to spray again later that day or the next day. If you are not going to spray again for at least a day or two, you will need to drain the tank. You should triple-rinse your sprayer after draining the tank. This entails flushing the system three times with fresh water to remove as much chemical residue as possible.
It is a useful and effective device for protecting plants from diseases and pests; it is ideal for plantations, cultivated fields, gardens, and parks.
