GWP20H2

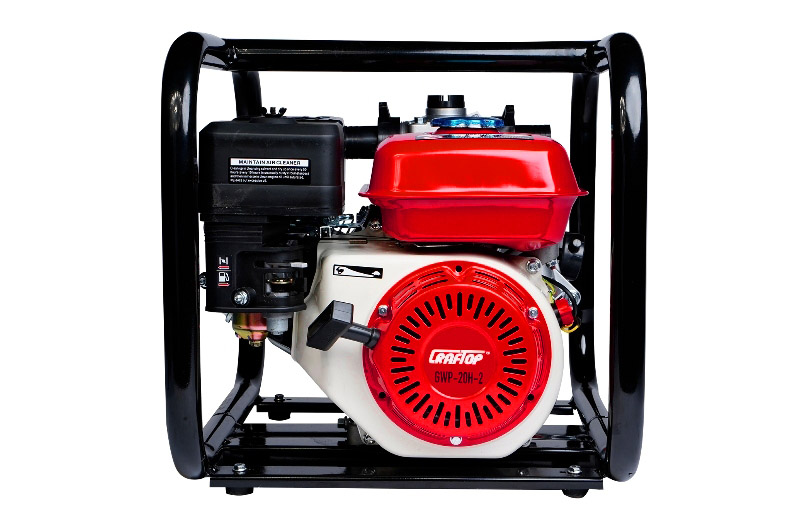

Gasoline Water Pump GWP20H2, Ideal for Pressure at Maximum Lift

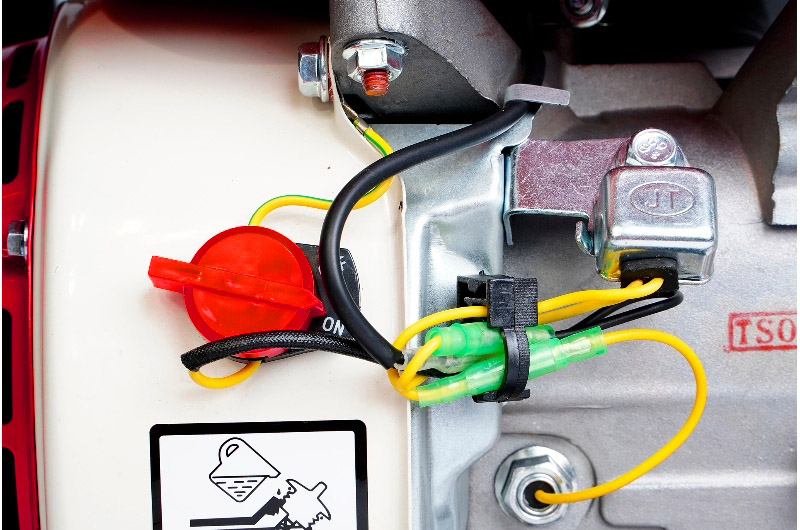

  • Oil alarm system is equipped on this machine: when the oil level is too low, the gasoline engine will automatically stop running to avoid specific damage to the engine.
  • Aluminum alloy and durable cast iron body can withstand high pressure, more durable, simple and reliable structure, and maximized flow.
  • Using wear-resistant graphite, ceramic magnetic mechanical seal to provide excellent sealing performance.
  • The high-pressure pump adopts wear-resistant cast iron vortex shell and aluminum alloy impeller to maximize the rate of flow.
  • PRODUCT DESCRIPTION
  • SPECIFICATIONS
  • INCLUDES
  • INQUIRY
PRODUCT DESCRIPTION

This high pressure water pump is powered by a 7.0 hp 4-stroke gasoline engine. It is designed for demanding jobs that require high pressures, or when you want to transport water to great heights; such as in sprinkler irrigation or firefighting.

The GWP20H2 gasoline water pump is built with a double cast iron impeller and a durable aluminum housing. It has 2” inlet connections and 3 outlets with triple connector, and a 2” thread, plus 2 1-1/2” threads.

It has a perimeter chassis that protects it from blows and its tank has great capacity.

SPECIFICATIONS
Package dimension550 x 450 x 456 mm (21.7 x 17.7 x 18 inch)
Gross weight28 kg (61.7 lbs)
Net weight26 kg (57.3 lbs)
Application typeHome use

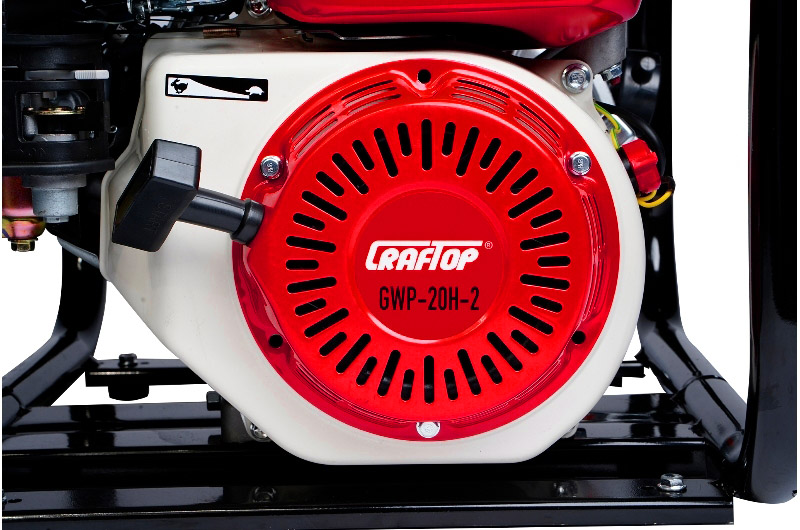

Engine4-stroke, valve-in-head, single cylinder, air cooled
Displacement212 cc
Engine power4.2 kW / 3600 rpm
Starter typeRecoil start
FuelUnleaded gasoline
Fuel capacity3.6 L
Engine oilSAE 10W-30
Oil capacity600 ml
Suction port diameter50 mm  (2”)
Discharge port diameter50 mm  (2”)
Maximum discharge20 m3/h
Total water head (Max.)70 m (230 ft)
INCLUDES
  • (1x) Gasoline water pump
  • 2-inch hose fitting (inlet/outlet)
  • 2-inch hose adapter
  • 1.5-inch plastic hose fitting (outlet)
  • 1.5-inch plastic hose adapter (outlet)
  • 2-inch sealing gasket
  • 1.5-inch sealing gasket
  • 2-inch clamp
  • 1.5-inch clamp
  • Water filter
  • Spark plug wrench
  • Owner’s Manual
