15 Horsepower Outboard Motor Parts T15 63V Outboard Boat Engine Accessories

T15 63V Outboard Parts

15 Horsepower Outboard Motor Parts T15 63V Outboard Boat Engine Accessories
  • CRAFTOP T15 63V outboard boat motor parts offer durability, reliability, and longevity, suit for 15 horsepower outboard motor engines.
  • Benefit from a strong and durable crankshaft, long-lasting piston and piston ring, robust gears and gear case for excellent reliability.
  • The cylinder design of the outboard boat motor provides proven power, efficiency, and endurance.
  • Enjoy automatic spark and maximum power with the outboard motor's CDI ignition system.
  • Choose CRAFTOP for reliable and powerful gasoline outboard motor engine parts.
Send An Inquiry

Packaging Style

Outboard Motor

Exploded View of the Whole Machine

E F

K L

M N

O P

Important Spare Parts

Other Spare Parts

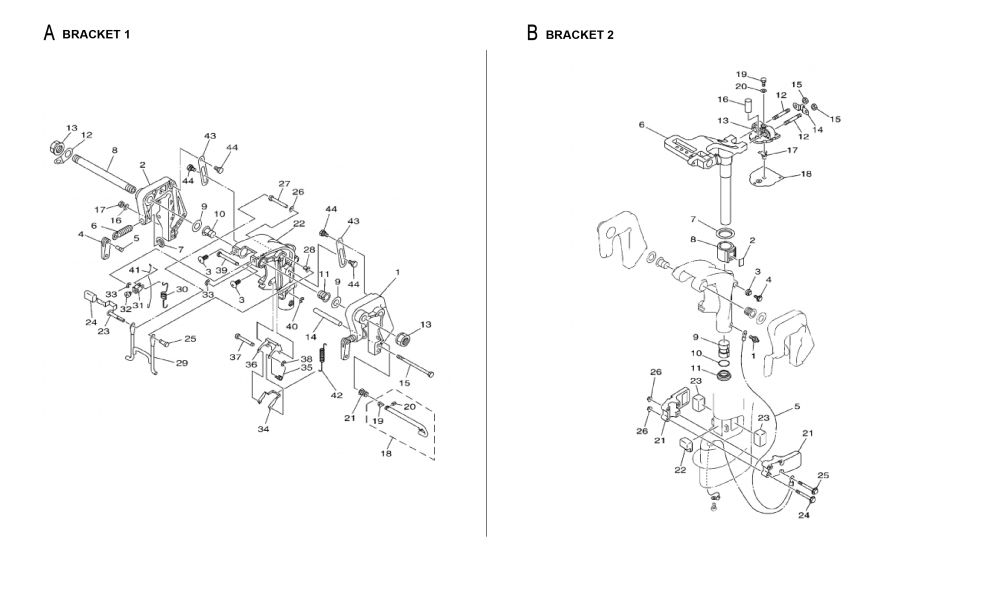

CODEPART NAMECODEPART NAME
A1Bracket Clamp1A24Cover
A2Bracket Clamp2A25Shaft, Stopper
A3Screw Pan Head M7*15A26Washer, Plate
A4Handle Transom ClampA27Collar
A5Pin Φ4*24 A28Bush
A6Screw M14*2*48*L70A29Receiver Assy
A7Pad Transom ClampA30Spring, Tension
A8Bolt, Clamp BracketA31Lever, Tilt
A9Washer, PlateA32Screw Pan Head M5*14
A10BushA33Circlip
A12Plate Clamp BracketA34Plate, Tilt Lock
A13Nut Self Locking M22*1.75A35Spring, Torsion
A14Collar Φ6.2*Φ10.2*108.4A36Plate, Tilt Lock
A15Bolt M6*135A37Shaft, Tilt Lock
A16Washer Φ6.5Xφ12X1.5A38Circlip
A17Nut Hexagon M6A39Shaft, Reverse Lock
A18Tilt Rod AssyA40Circlip
A19Plate Tilt LockA41Rod, Tilt Lock
A20Pin Spring Φ3X8A42Spring, Reverse Lock 1
A21Spring ConicalA43Lever, Tilt Stop 1
A22Bracket SwivelA44Bolt
A23Tilt Lever Assy—
CODEPART NAMECODEPART NAME
B1Nipple GreaseB15Nut Self-Locking M8
B2Plate Friction B16Collar
B3Seal DamperB17Damper, Water Sea
B4Bolt Flange M6*20B18Gasket, Upper Casing
B5Wire Lead2B19Bolt M6*18
B6Shaft Steering PivotB2092900-08600
B7WasherB21Housing, Lower Mount Rubber 1
B8Bushing Pivot ShaftB21Housing, Lower Mount Rubber 2
B9Bush B22Mount Damper, Lower Front
B10O-RingB23Mount Damper, Lower Side
B11Bushing Pivot ShaftB24Bolt M6*55
B12 Bolt, StudB25Bolt M6*75
B13Mount Damper, Upper SideB26Nut Self-Locking M6
B14Plate—

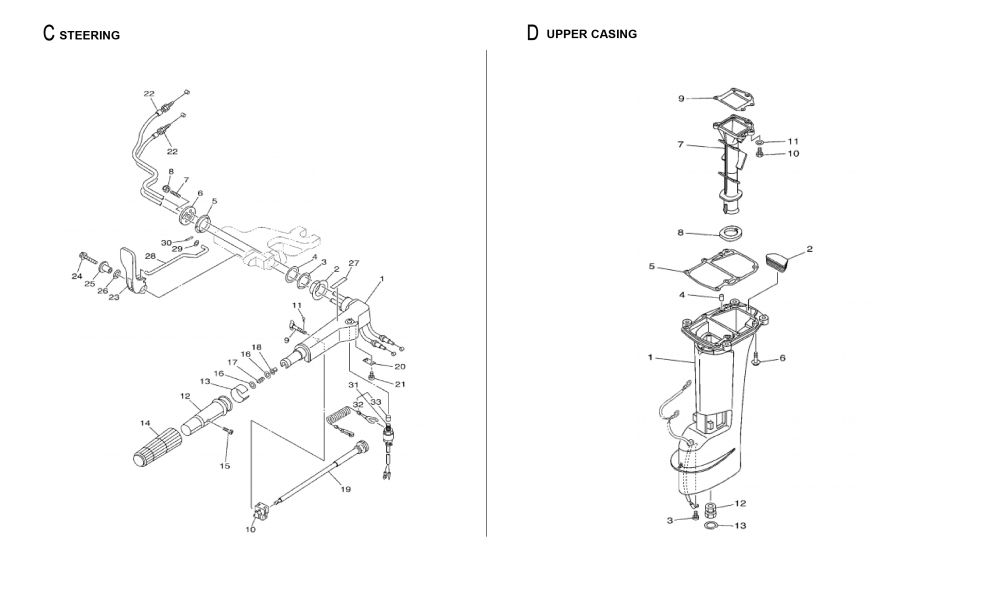

CODEPART NAMECODEPART NAME
C1Handle SteeringC18Bush
C2 BushC19Lever Throttle
C3 Bushing, RubberC20Stay
C4 Bushing, RubberC21 Screw, Pan Head
C5 BushC22Throttle Cable Assy
C6Cover, Handle SteeringC23Handle Gear Shift
C7Nut Self-Locking M8C24Bolt M6*40
C8 Bolt, StudC25Collar
C9Bolt Friction AdjustingC26Washer, Wave
C10Friction, Steering Handle GripC2726 Indicator, Shift
C11Pin CotterC28Link, Shift Rod
C12Grip, Steering HandleC29Washer Φ6.5Xφ12X1.5
C13Indicator, ThrottleC30Clip

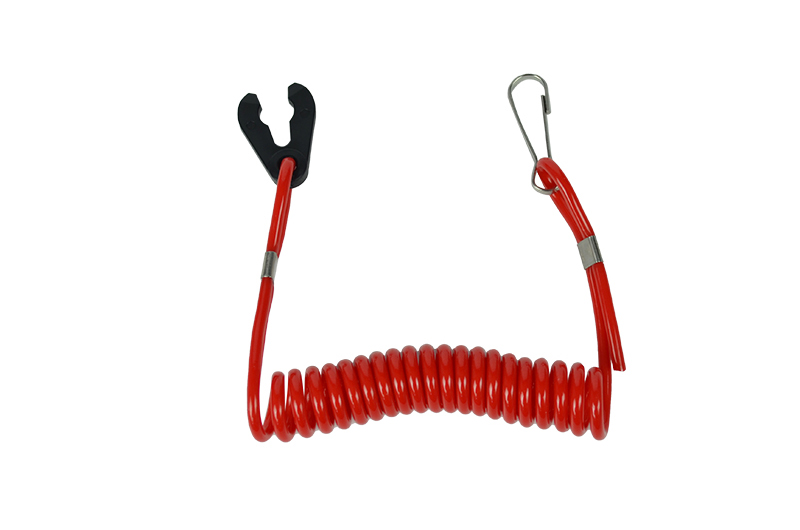

C14Rubber, HandleC31Engine Stop Switch Assy.
C15ScrewC32Cap
C16Washer, PlateC33Stopper
C17Spring Compression—
CODEPART NAMECODEPART NAME
D1Casing UpperD8Seal
D2Plate, Seal DamperD9Gasket Exhaust Manifold
D3Screw Pan Head M4*6D10Bolt M6*20
D4Pin DowelD11Washer Φ6.5Xφ12X1.5
D5Gasket Upper CasingD12Bushing Drive Shaft
D6Bolt M8*30D13
D7Manifold Ext1D14Circlip Φ32

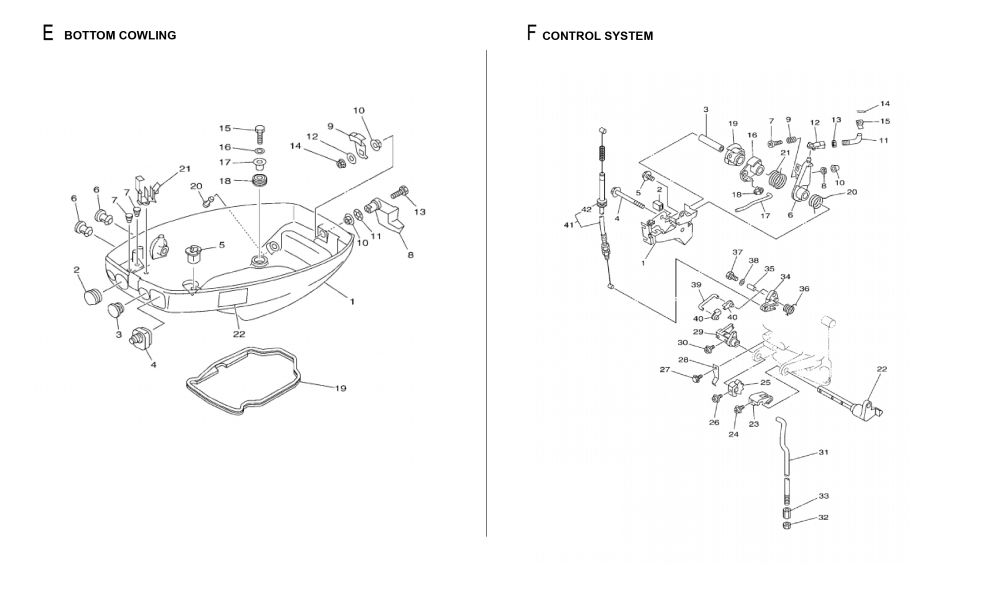

CODEPART NAMECODEPART NAME
E1Cowling BottomE12Washer  Φ6.5Xφ16X1.5
E2GrommetE13Bolt M6*25
E3GrommetE14Nut Self-Locking M6
E4GrommetE15Bolt M6*25
E5GrommetE16Washer Φ6.5Xφ12X1.5
E6GrommetE17Collar
E7GrommetE18Grommet
E8Lever ClampE19Rubber Seal1
E9Lever ClampE20Nipple Hose
E10BushE21Clamp
E11Washer Wave Φ12E22Label Caution
CODEPART NAMECODEPART NAME
F1Stay, Throttle WireF22 Arm, Shift Rod
F2CapF23Lever, Shift Rod
F3Collar Φ6.5*Φ12*49F24Bolt M5*25
F4Bolt M6*65F25 Lever, Shift Rod
F5Bolt M6*12F26
F6Lever Free AccelF27Bolt M6*12
F7Screw Pan Head M6*30F28Spring
F8Nut Hexagon M6F29Bushing, Shift Rod Lever
F9Spring, CompressionF30
F10CapF31Rod Shift
F11Joint, LinkF32Nut Hexagon M6
F12Joint, LinkF33Connector Shift Rod
F13Nut Hexagon M6F34Arm
F14ClipF35Collar  Φ6.5*Φ8*11
F15Washer, Lock 1F36Spring Torsion
F16Lever, Free AccelF37Bolt M6*20
F17Link AccelF38Washer Φ6.5Xφ12X1.5
F18Joint, Choke LeverF39Link
F19PulleyF40Joint Choke Lever
F20Spring, TorsionF41Cable Comp Starter Stop
F21Spring TorsionF42Grommet

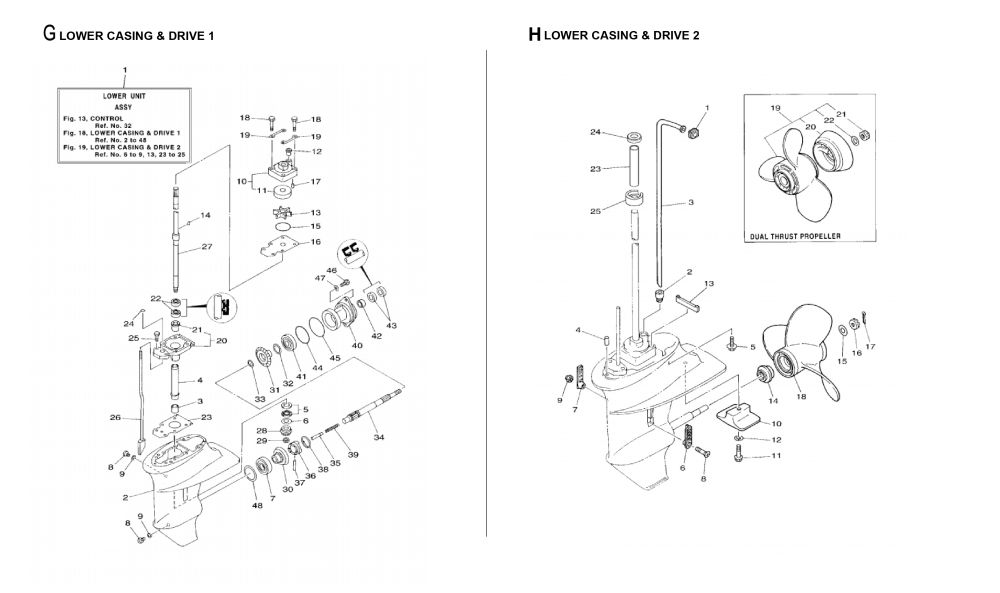

CODEPART NAMECODEPART NAME

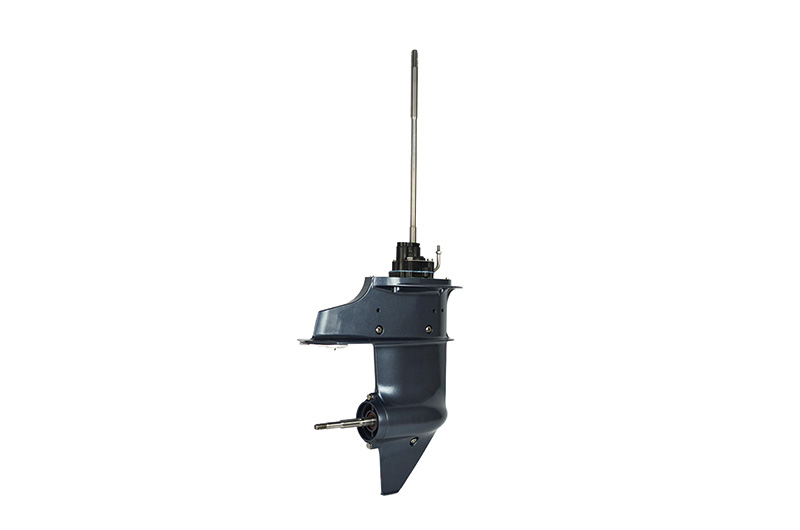

G1Lower Unit AssyG24O-Ring
G2Casing LowerG25Bolt M8*25
G3Bearing Nsk F-1420G26Shift Cam Assy
G4Sleeve Drive ShaftG27Drive Shaft Comp

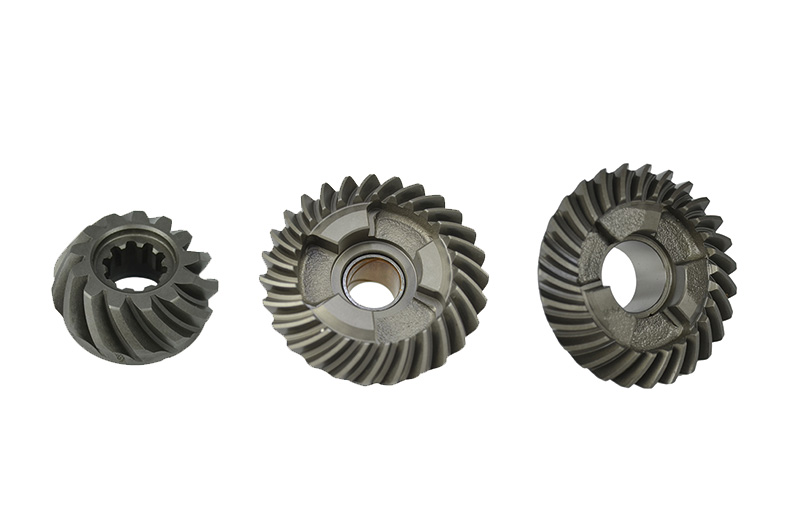

G5BearingG28Pinion（13T）
G6Shim (T:1.13Mm)G29Nut M8*1*5
G6Shim (T:1.20Mm)G30Gear1（27T）
G7Bearing Φ25*Φ52*16.25G31Gear2（27T）
G8Plug Straight ScrewG32Washer Plate
G8Plug DrainG33Washer Plate
G9GasketG34Shaft Propeller
G10Housing Water PumpG35Plunger Shift

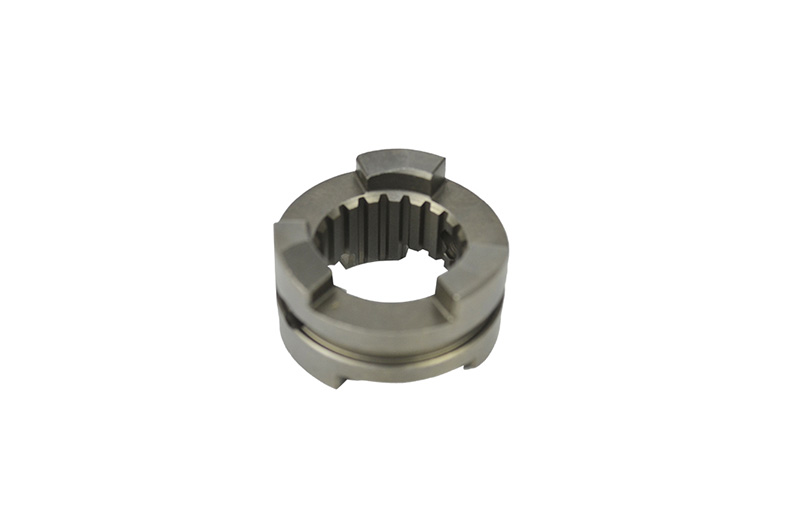

G11Insert CartridgeG36Clutch Dog
G12Damper Water Seal1G37Pin Strsight Φ5*30

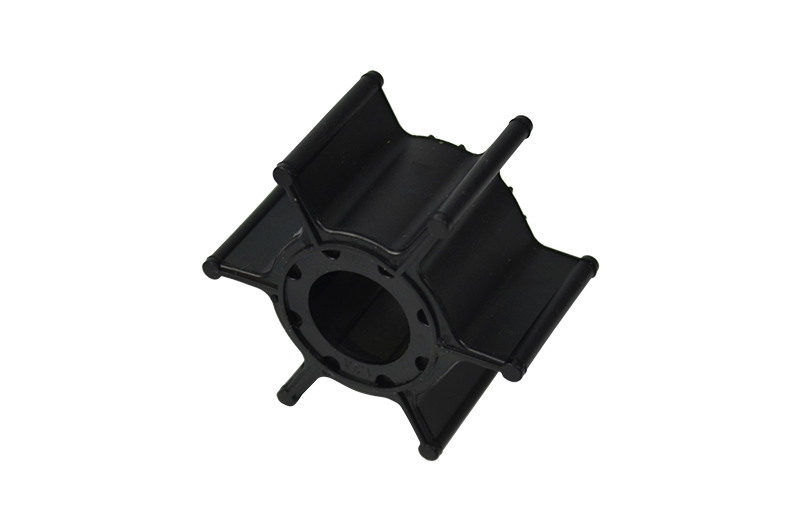

G13ImpellerG38Ring Cross Pin
G14Key WoodruffG39Spring Compression
G15O-RingG40Cap Lower Casing
G16Outer Plate CartridgeG41Bearing Φ25*Φ47*12
G17Pin DowelG42Bearing Φ17*Φ23*12
G18Bolt M8*45  B=25G43Oil Seal Φ17*Φ30*6
G19PlateG44O-Ring

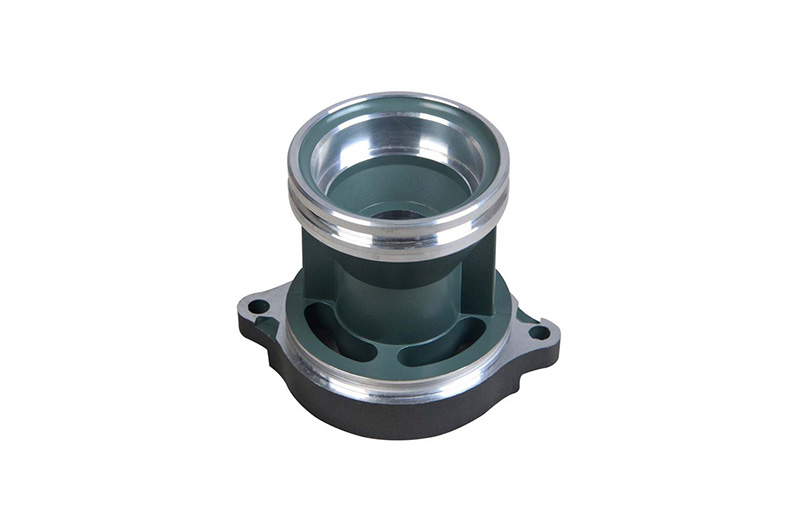

G20Housing BearingG45O-Ring
G21Bushing Drive ShaftG46Bolt M6*20
G22Oil Seal Φ20*Φ30*6G47Washer Φ6.5Xφ12X1.5
G23Packing Lower CasingG48Washer Plate
CODEPART NAMECODEPART NAME

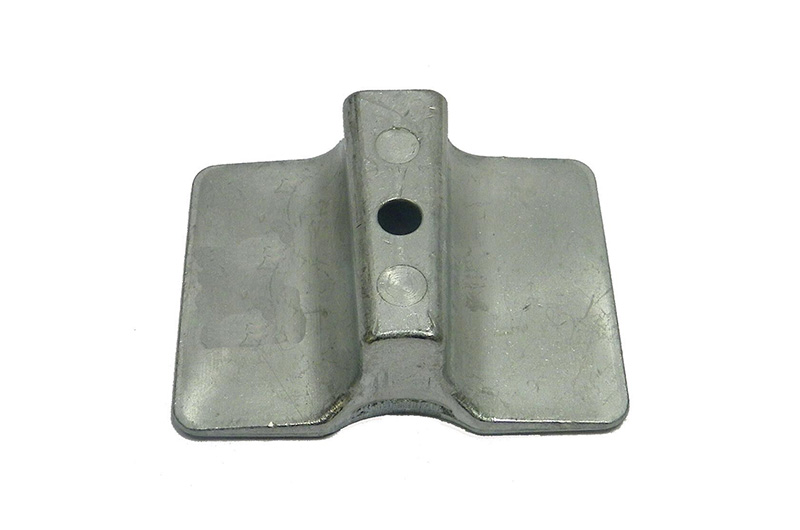

H1Damper, Water Seal 1H10Anode
H2Rubber, Water Seal 4H11Bolt Flange M6*30  B=20
H3Tube Water1H12Washer Internal Tooth
H4Pin DowelH13Damper, Seal
H5Bolt M8*30H14Spacer1
H6Cover, Water Inlet 1H15Washer Plain Φ10.5*Φ30*2.5

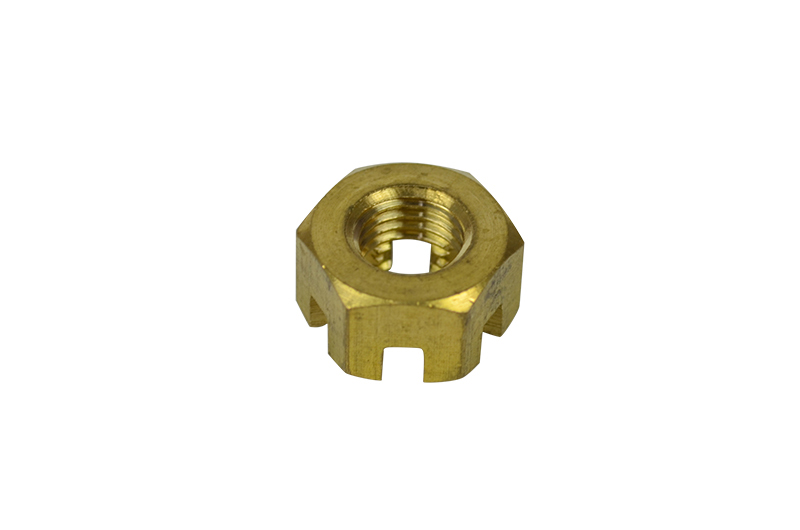

H7Cover, Water Inlet 2H16Nut Castle M10*1.25
H8Screw M5*20H17Pin Cotter

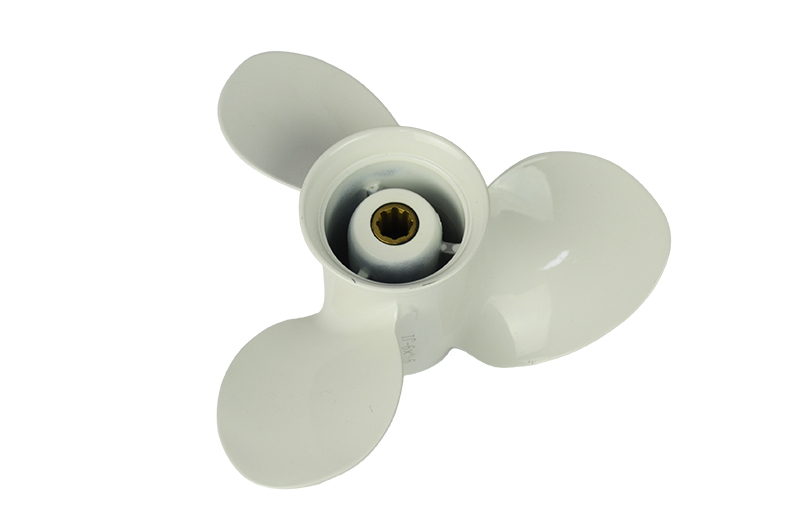

H9Nut Self-Locking M5H18Propeller

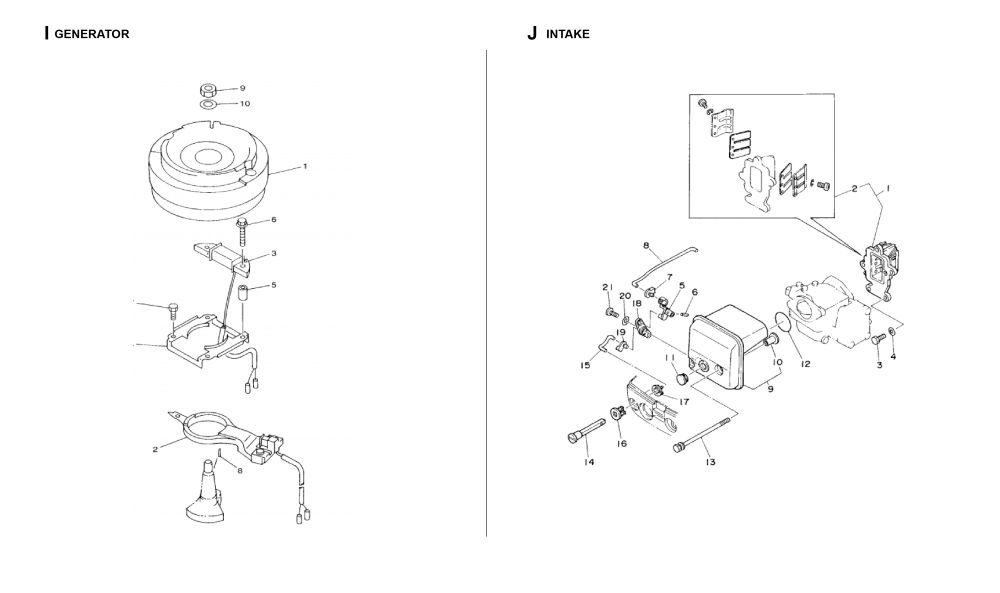

CODEPART NAMECODEPART NAME
I1Rotor AssyI6Bolt, Flange

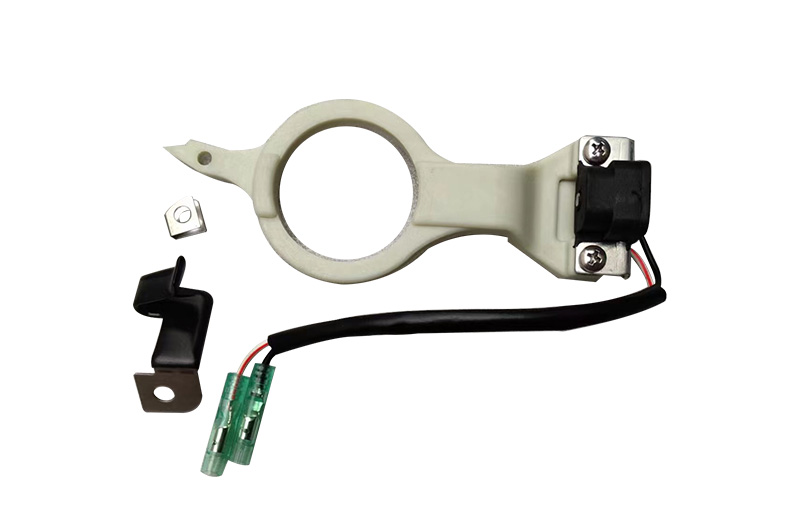

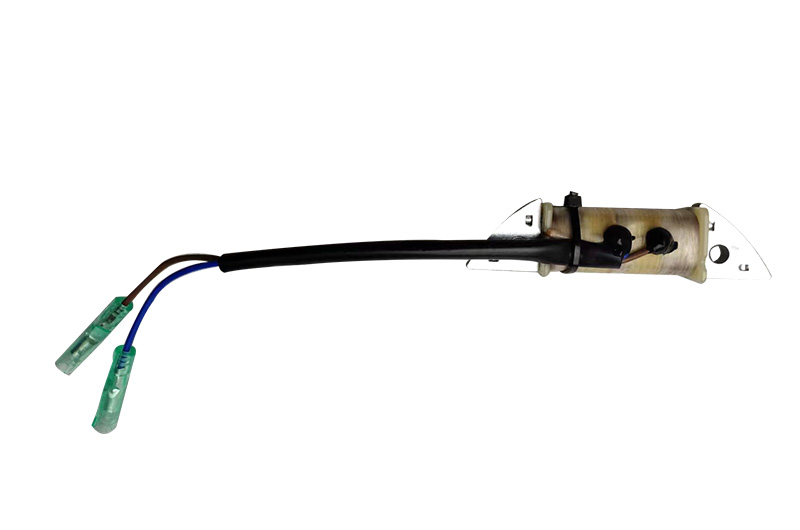

I2Coil, PulserI7Bolt M6*16
I3Coil ChargeI8Key Woodruff
I4Retainer, Magneto BaseI9Nut M12
I5Bolt M6*30I10Washer Plate
CODEPART NAMECODEPART NAME

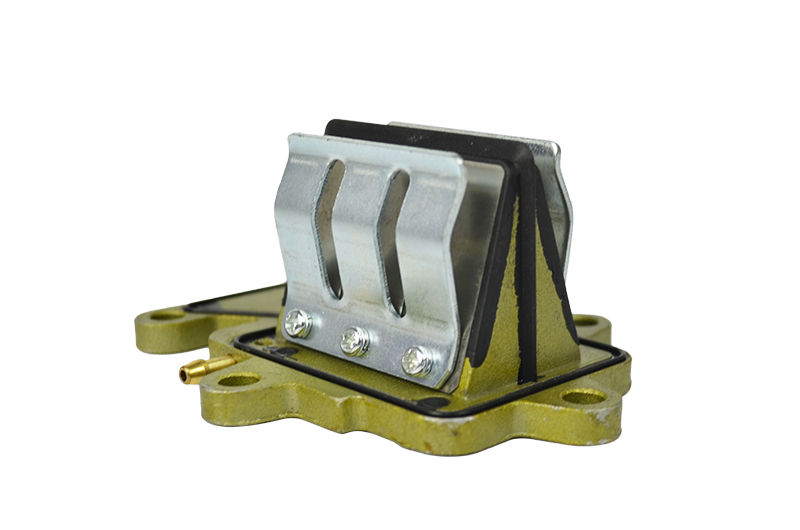

J1Reed Valve AssyJ11Grommet
J3Bolt M6*20J12O Ring
J4Washer Φ6.5Xφ12X1.5J13Bolt M6*95
J5Lever, ChokeJ14Knob Choke
J6Pin Spring Φ2X12J15Rod, Choke 1
J7Joint Choke LeverJ16Grommet
J8Knob ChokeJ17Grommet2
J9Silencer Assy. IntakeJ18Lever, Choke 1
J10CollarJ19Joint Choke Lever

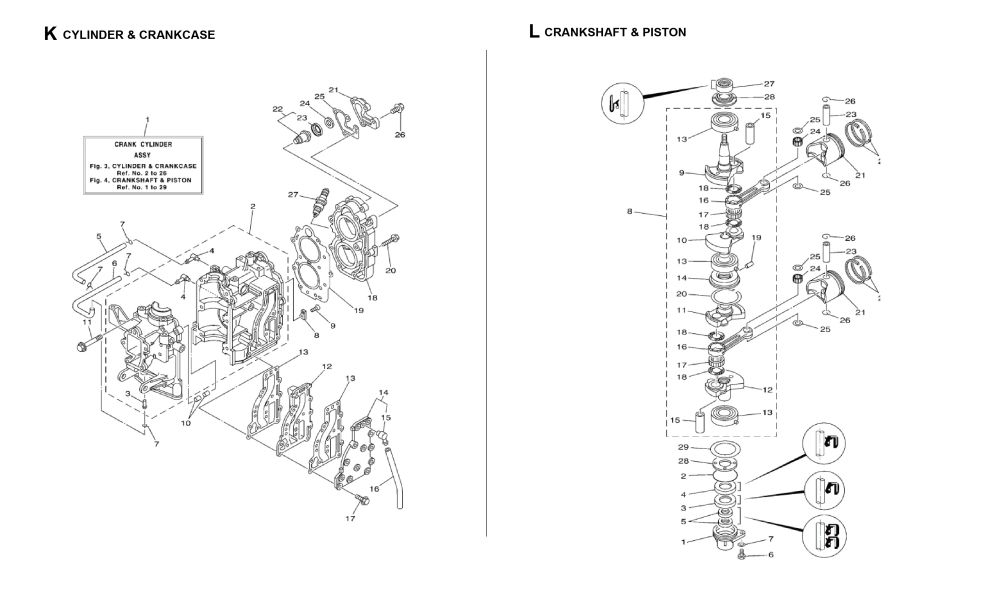

CODEPART NAMECODEPART NAME
K1Crank Cylinder AssyK14Outer Cover Exhaust
K2Crankcase AssyK15Nipple Hose
K3Pipe JointK16Hose（L300）
K4Pipe JointK17Bolt M6*30
K5Hose（L220）K18Head Cylinder 1
K7Clip Φ6K19Gasket Cylinder Head1
K8AnodeK20Bolt Flange M7*38
K9Screw CountersunkK21Cover Thermostat
K10Pin DowelK22Thermostat
K11Bolt M8*60K25Gasket Cover
K12Inner Cover ExhaustK26Bolt M6*25

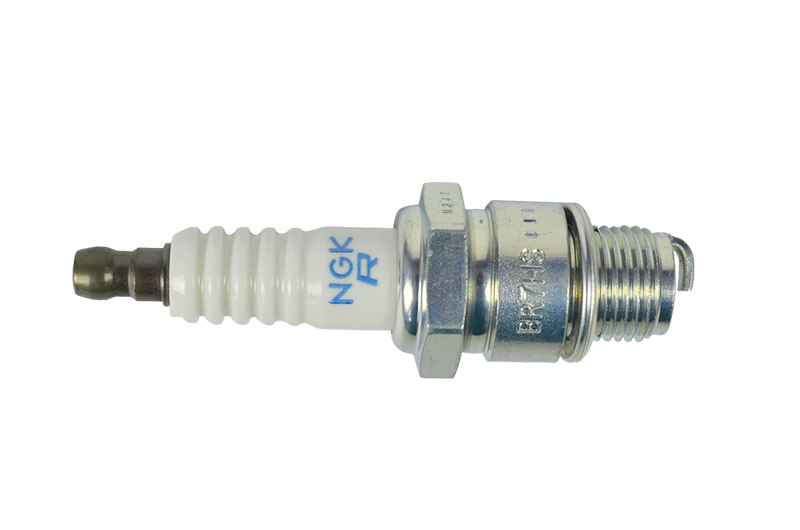

K13Gasket Exhaust Inner CoverK27Plug Spark （Ngk）
CODEPART NAMECODEPART NAME
L1Housing Oil SealL16Rod Connecting
L2O-RingL17Bearing
L3Oil Seal Φ25*Φ38*7L18Washer
L5Oil Seal Φ13*Φ25*6L20Circlip

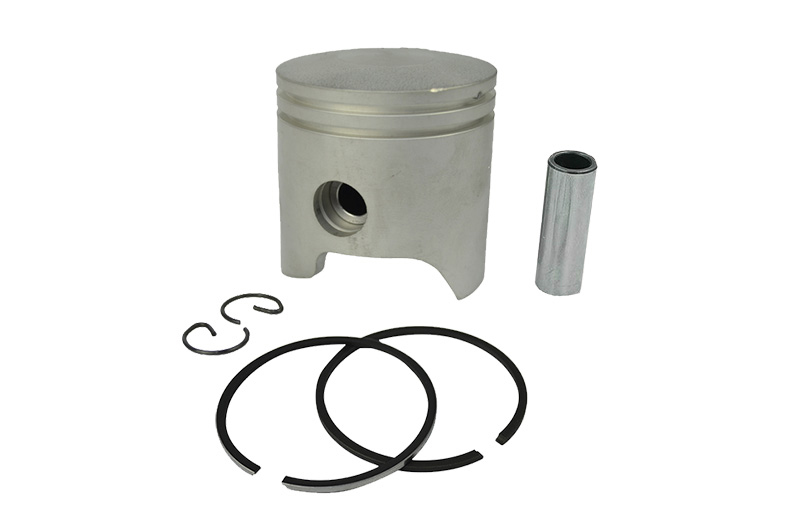

L6Bolt M6*16L21Piston
L7Washer Φ6.5Xφ12X1.5L22Piston Ring

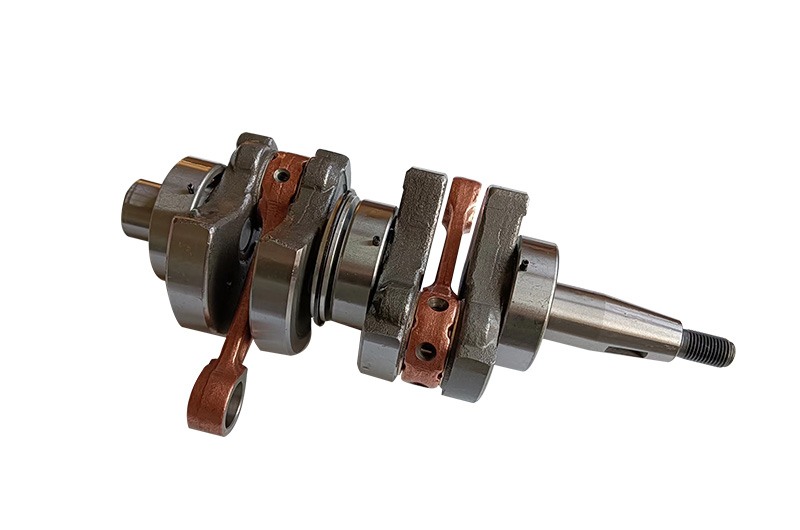

L8Crankshaft AssyL23Pin Piston
L9Crank1L24Pin Dowel
L10Crank2L25Washer Plate
L11Crank3L26Clip Piston Pin
L12Crank4L27Oil Seal Φ23*Φ36*13
L13Bearing Φ25*Φ52*15L28Spacer
L14Seal LabyrinthL29Washer Plate
L15Pin Crank1—

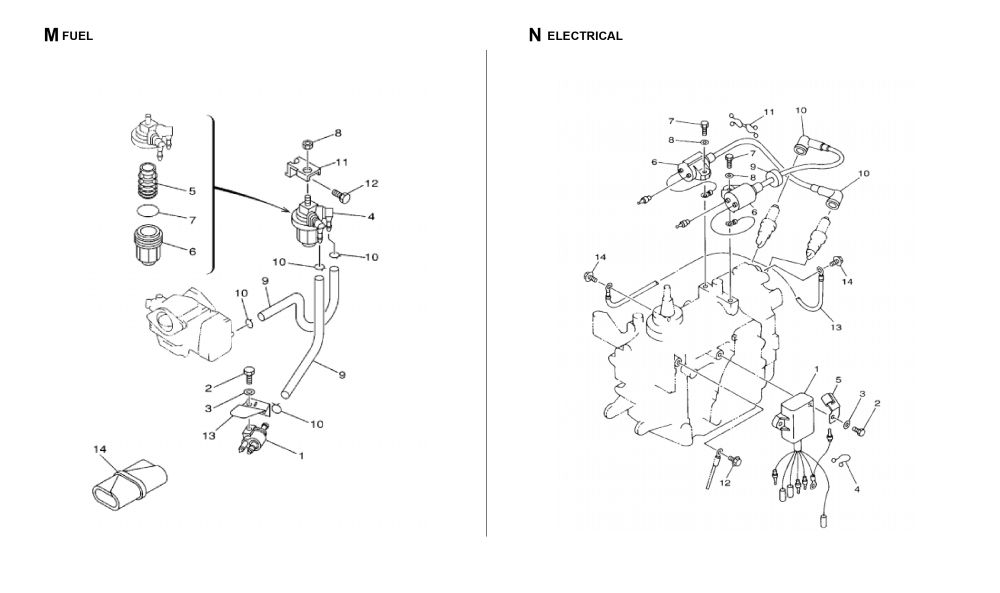

CODEPART NAMECODEPART NAME
M1Fule Pipe Joint CompM8Nut M8
M2Bolt M6*20M9Pipe Φ9Xφ5Xl180
M3Washer Φ6.5Xφ12X1.5M10Clip Φ9

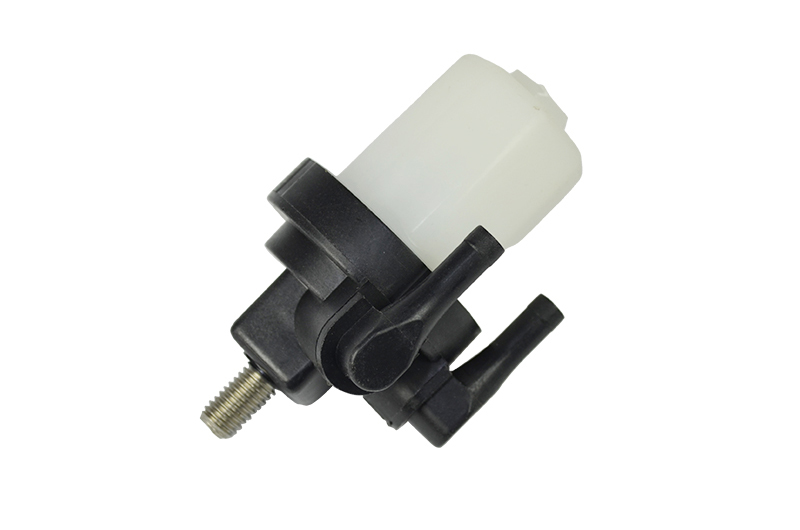

M4Filter Assy.M11Bracket Filter
M5Element FilterM12Bolt M6*12
M6Cup FilterM13Plate
M7O -Ring—
CODEPART NAMECODEPART NAME

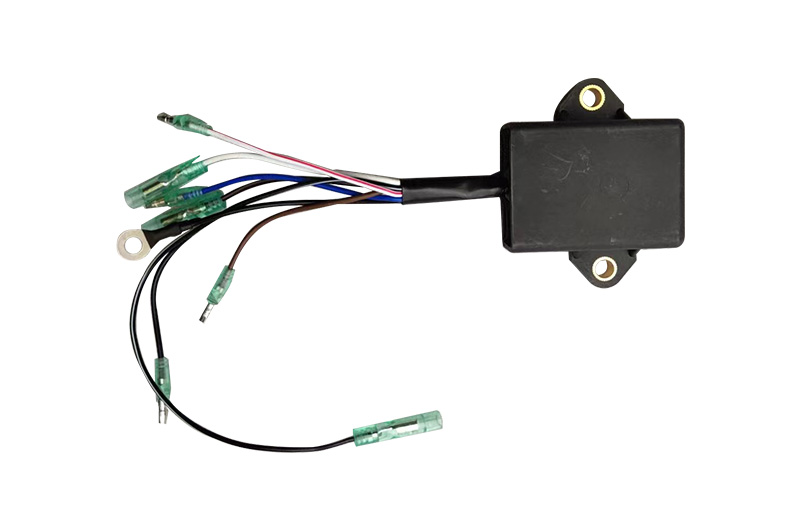

N1Cdi Unit AssyN8Washer Φ6.5Xφ12X1.5
N2Bolt M6*30N9Grommet
N3Washer  Φ6.5Xφ16X1.5N10Cap Plug
N4ClampN11Clamp
N5ClampN12Bolt M6*12

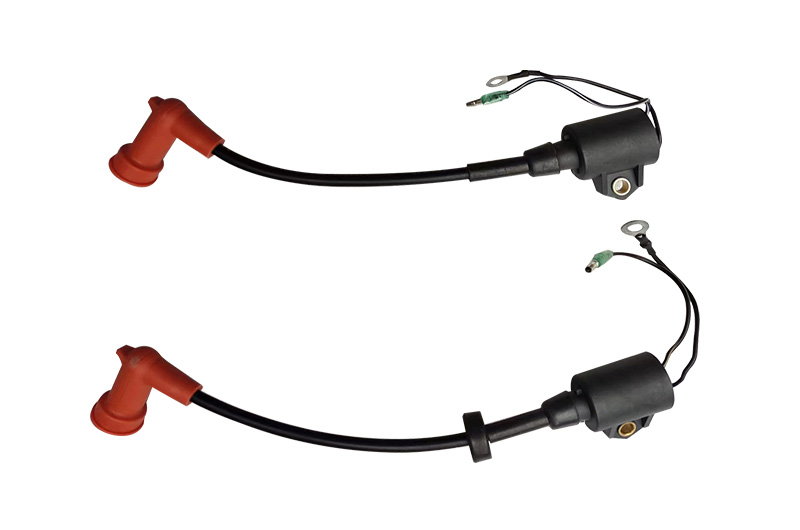

N6Ignition Coil AssyN1312 Wire, Earth Lead
N7Bolt M6*16N14Bolt M6*12

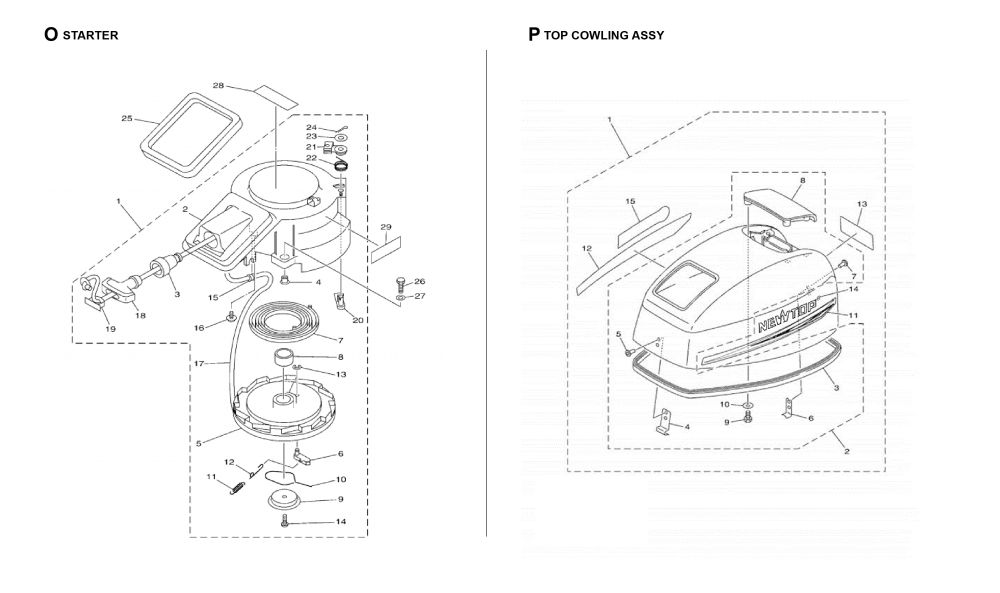

CODEPART NAMECODEPART NAME
O1Stater Assy.O15Collar
O2Case StaterO16Screw Tapping St4.8X10
O3Guide, RopeO17Wire Starter L1800Mm
O4CollarO18Handle Starter
O5Drum SheaveO19Cover
O6Pawl DriveO20Stopper
O7Spring StaterO21Plunger Starter Stop
O8BushO22Spring Return
O9Plate DriveO23Pin Cotter
O10Spring Drive PawelO24Washer Flat
O11SpringO25Seal, Rubber
O12Spring ReturnO26Bolt M6*20
O13Circlip Φ8O27Washer Φ6.5Xφ12X1.5
O14Bolt M6*16O28Label Warning
CODEPART NAMECODEPART NAME
P1Top  Cowling Assy P10 Washer, Spring
P2Top Cowling W/O
Graphics		P11Graphic Side1
P3SealP12Graphic Side2
P4HookP13Graphic Rear
P5Screw Pan Head M4*12P14Graphic Side2
P6Holder Clamp BandP15
P7Screw Pan Head M4*12P16Nut Self-Locking M4
P8Molding, Air DuctP17Graphic Two Stroke
P9Screw Pan Head M6*16—

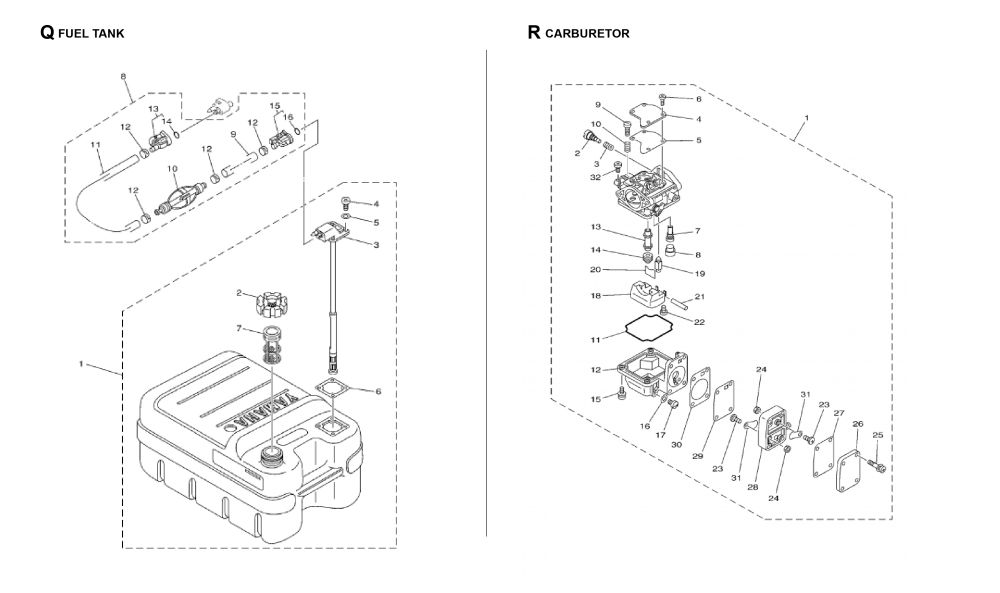

CODEPART NAMECODEPART NAME
Q1Fuel Tank Assy(24L)Q8Fuel Pipe Comp.
CODEPART NAMECODEPART NAME

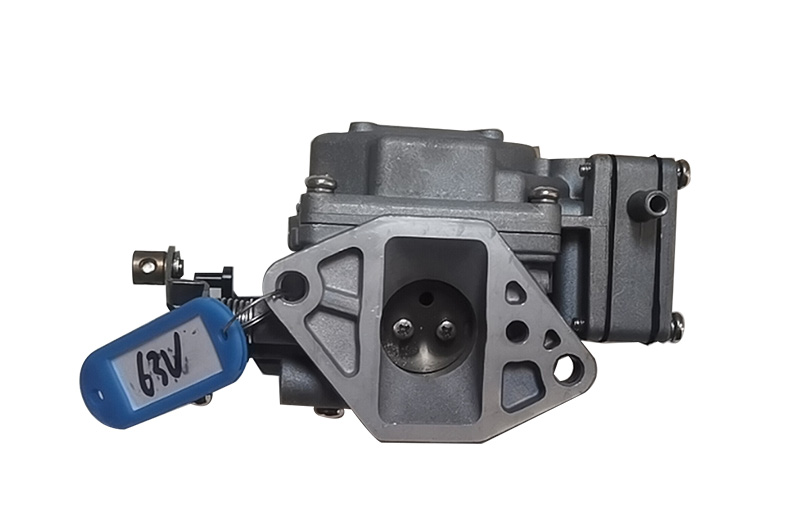

R1Carburetor AssyR17Screw, Drain
R2Screw, PilotR18Float
R3SpringR19.Valve, Needle
R4PlateR20Clip
R5GaskeR21Pin, Float Arm
R6Screw Pan Head M4*10R22Screw Pan Head M4*8
R7Jet (#48)R23Screw Pan Head M3*6
R8Rubber CapR24Nut Hexagon M3
R9Screw, StopR25Screw, With Washer
R10Spring, CompressionR26Cover
R11Gasket, Float ChamberR27Diaphragm
R12Body, Float ChamberR28Body 1
R13Jet, NeedleR29Diaphragm
R14Jet, Main (#110)R30Gasket, Fuel Pump 1
R15Screw, With WasherR31Valve, Check
R16 Washer, SpringR32Screw Pan Head M4*6
