T30 Outboard Parts

30 HP Outboard Motor Rplacement Parts T30 Outboard Boat Engine Accessories

CRAFTOP T30 outboard motor spare parts guarantee the best possible quality, ensuring perfect fitment for your 30 hp outboard boat engine.
Our outboard boat motor features a strong crankshaft, durable piston and piston ring, robust gears, and gear case for reliable performance.
The motor cylinder design delivers proven power, efficiency, and endurance.
Experience automatic spark and maximum power with our CDI ignition system.
Enjoy easy maintenance and low-cost operation with our high-quality outboard motor replacements.

Send An Inquiry

Packaging Style

Outboard Motor

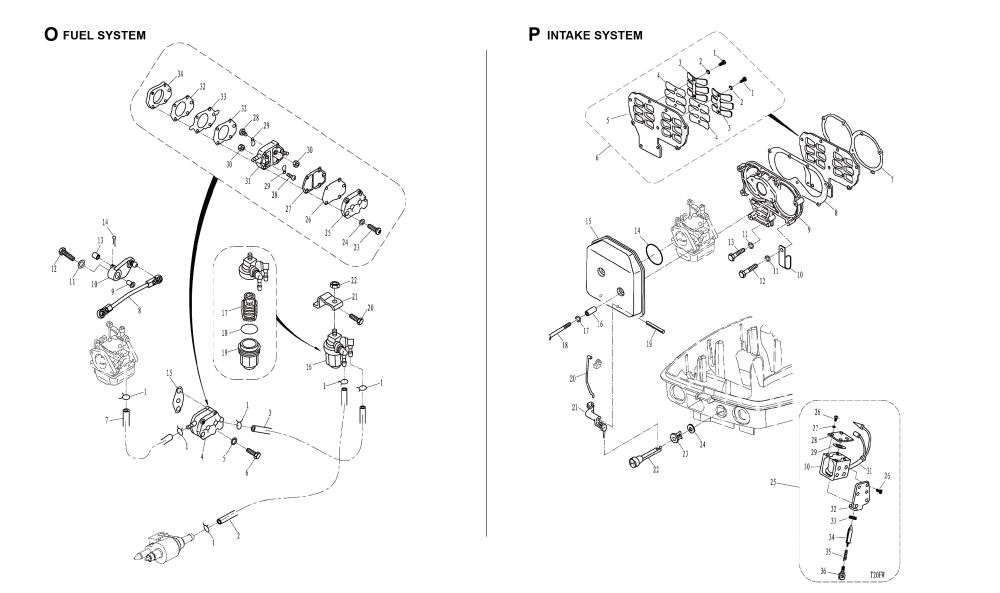

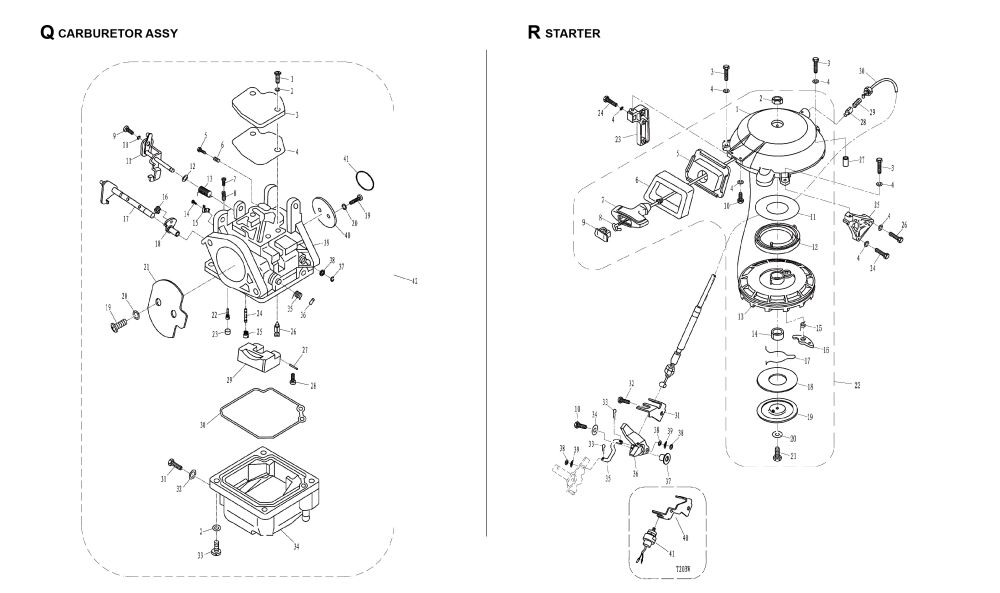

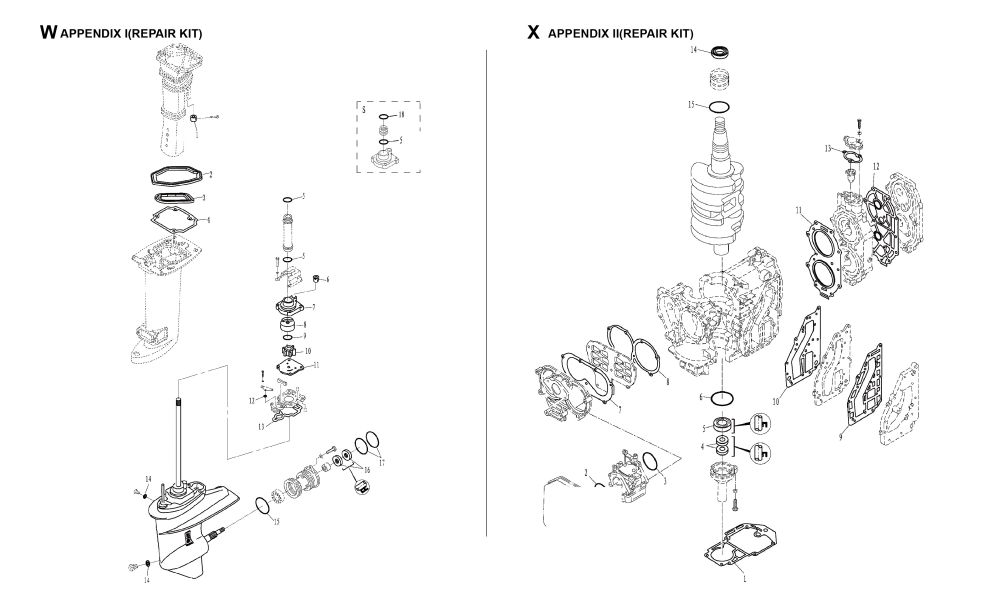

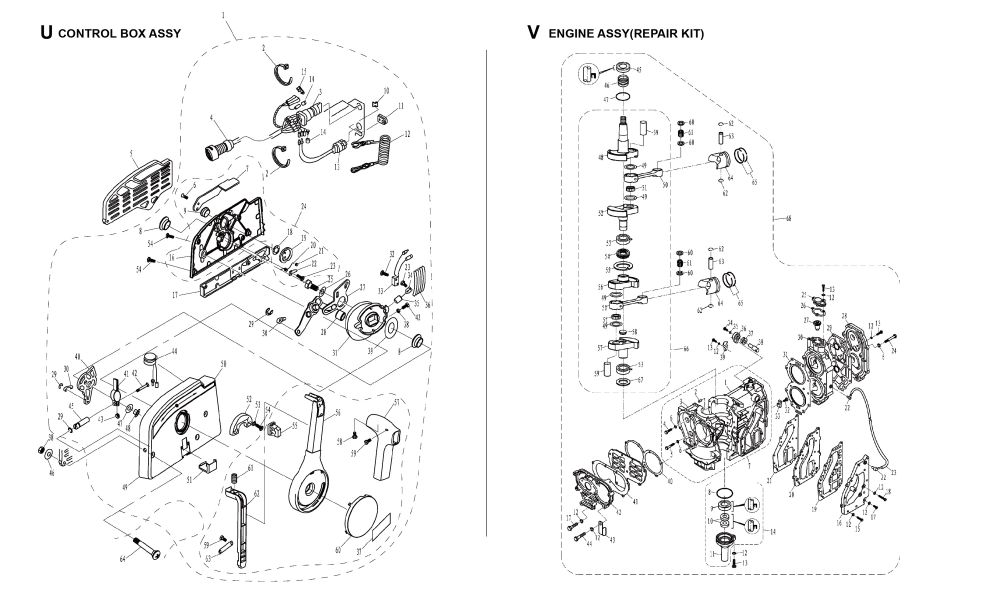

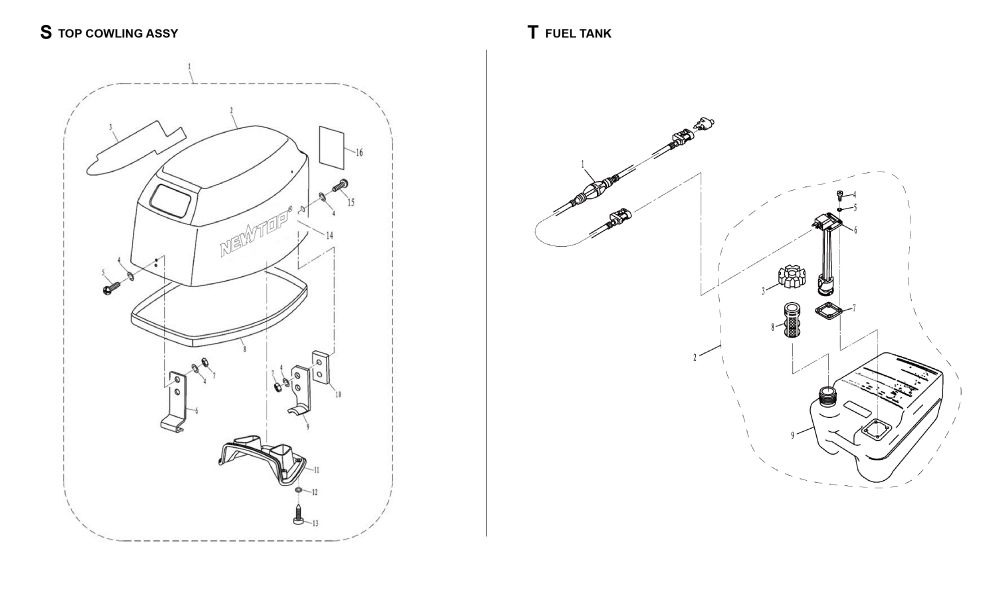

Exploded View of the Whole Machine

Important Spare Parts

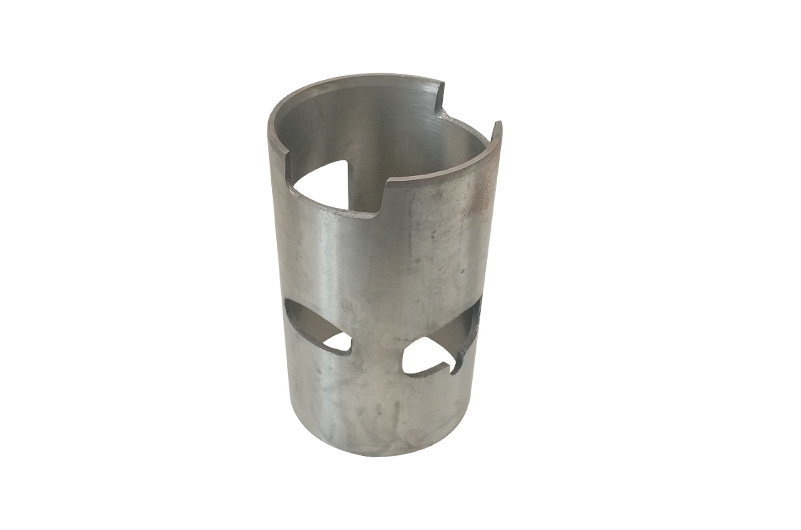

Cylinder Linar

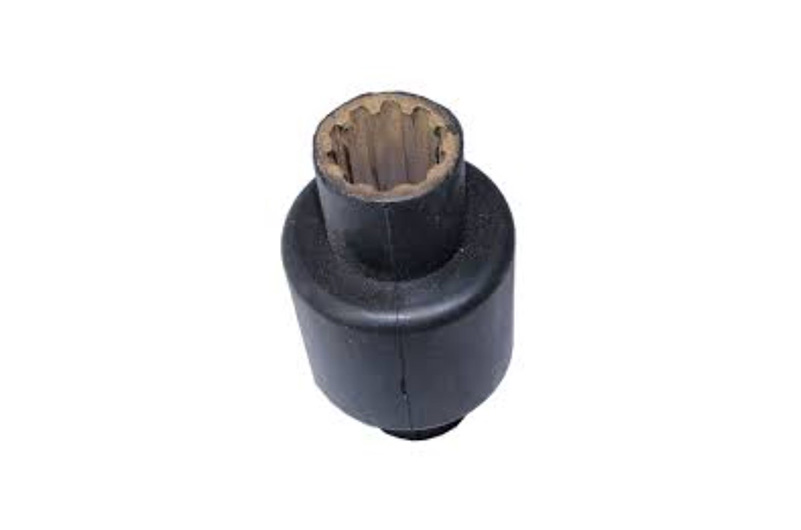

Damper Propeller Bush PROP

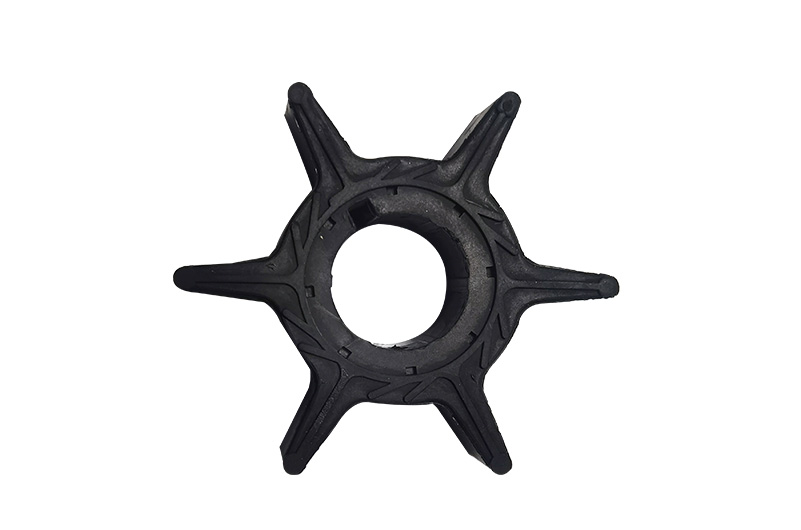

G11 Impeller

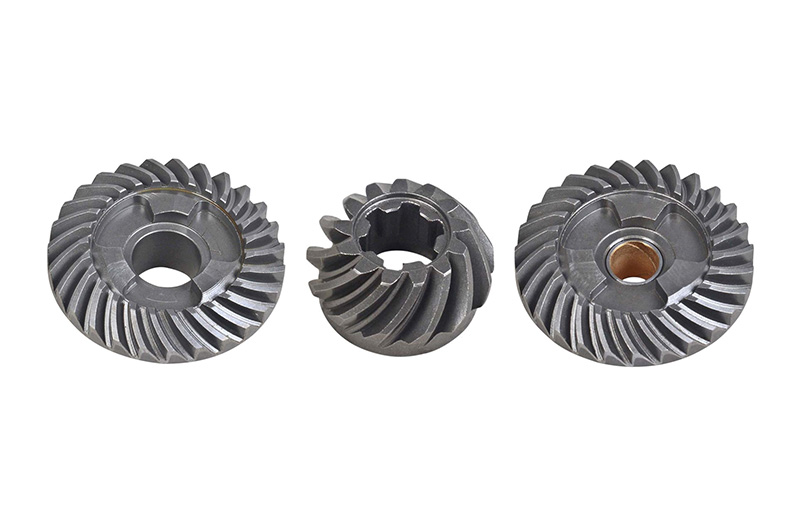

G42 45 54 Drive Gear Set

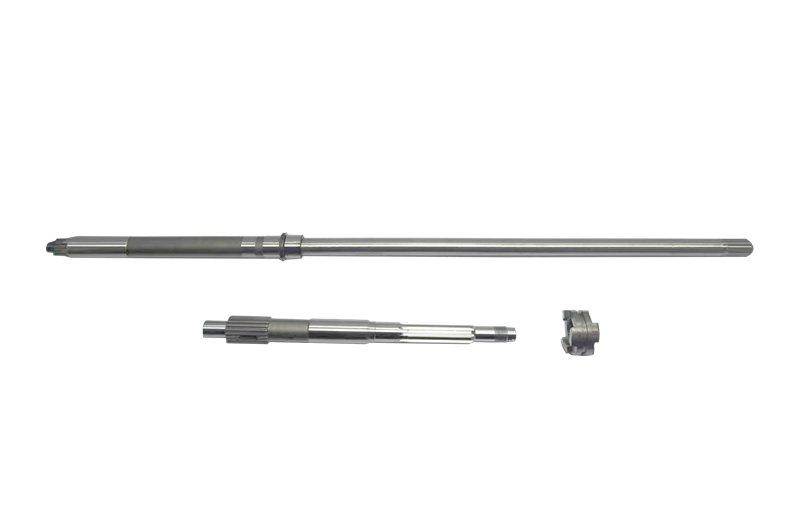

G51 Drive Shaft(S&L) PropellerShaft Clutch Dog

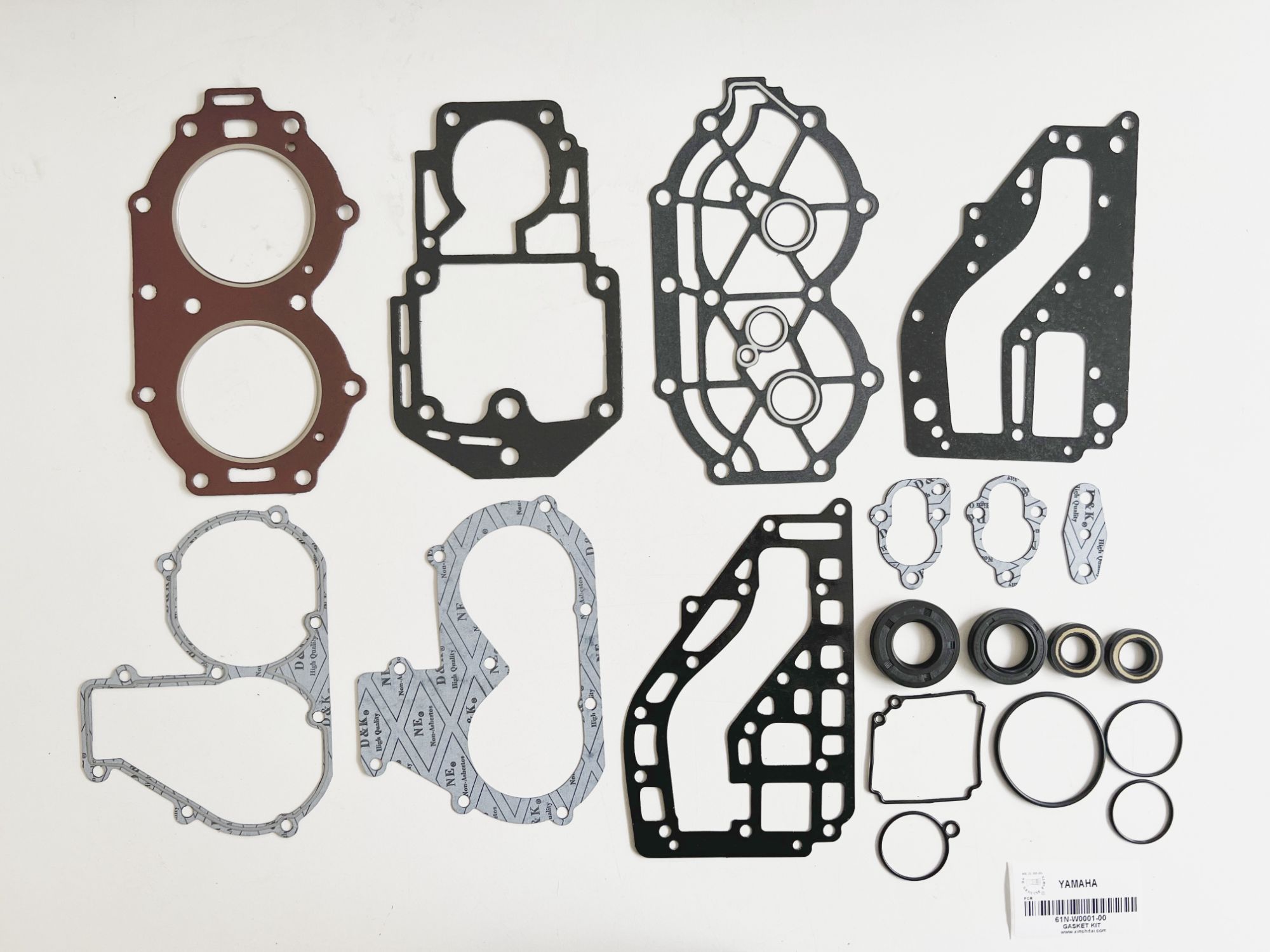

Gasket Set

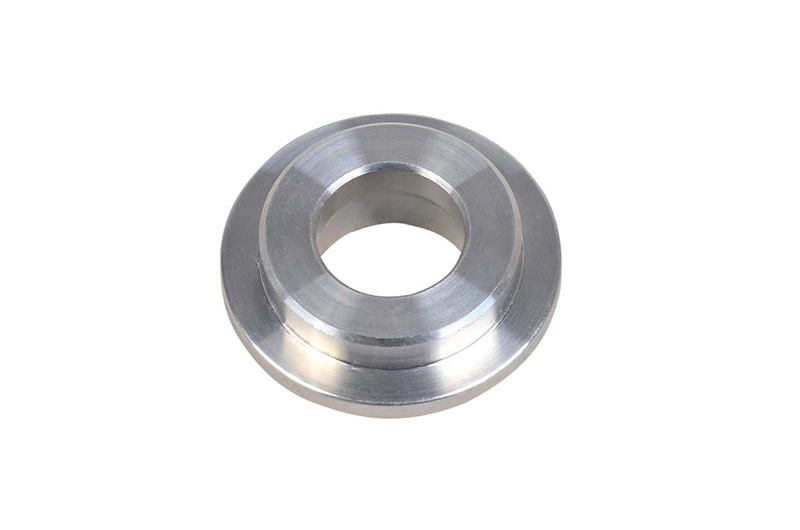

H6 Propeller Spacer

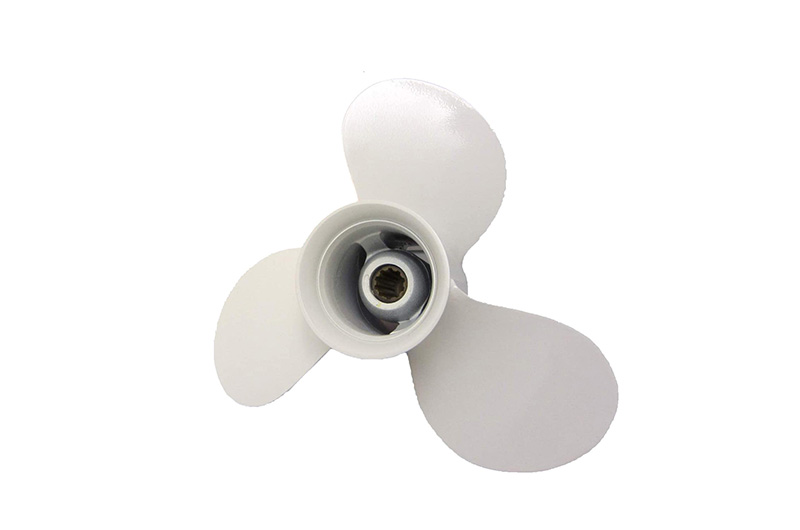

H7 Propeller

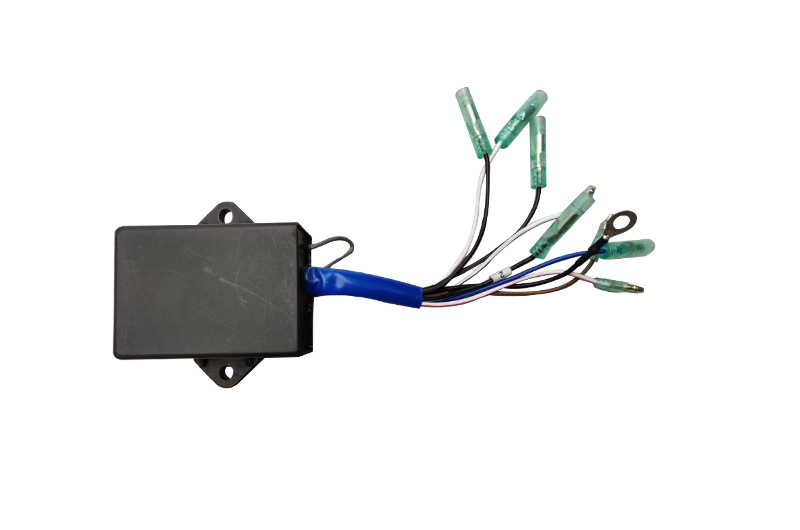

I1 CDI Unit

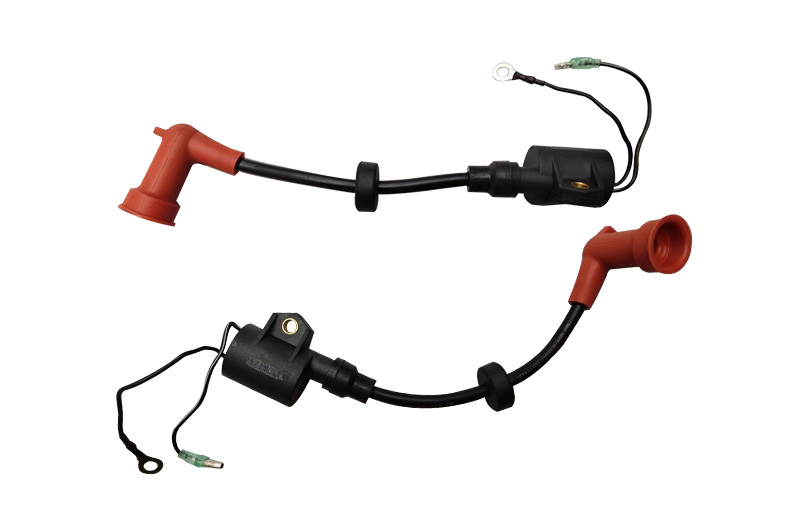

I4 Ignition Coil Assy

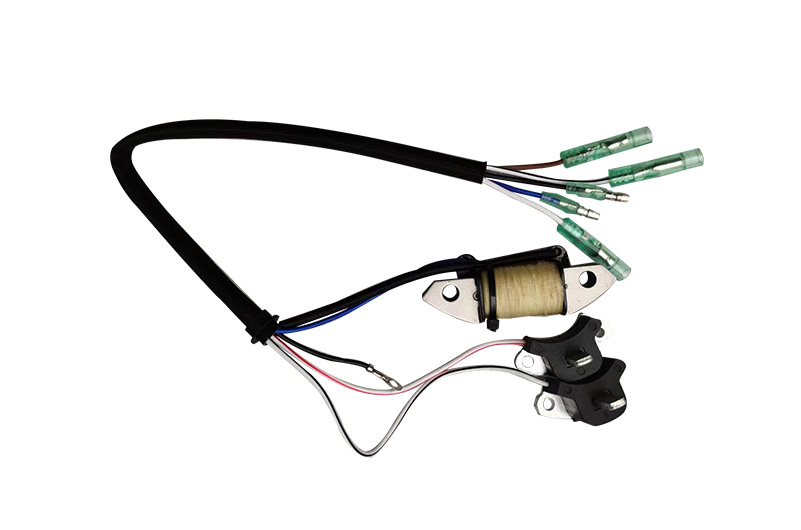

J11 Charging Coil Assy& Pulser

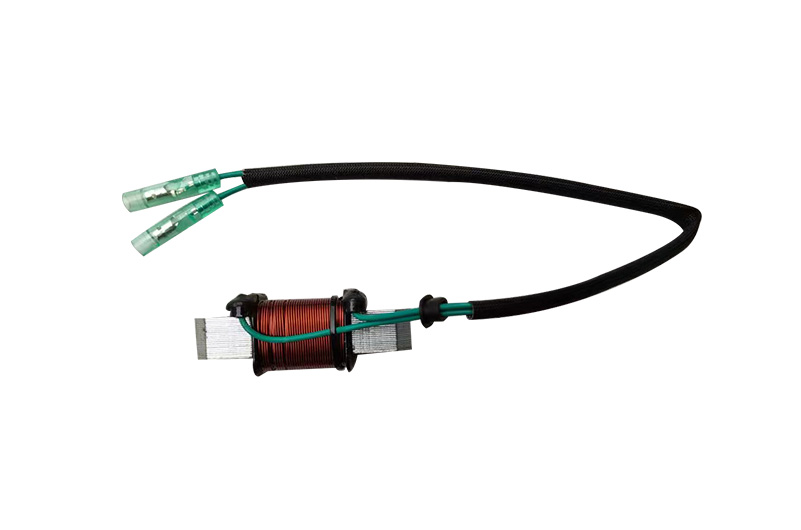

J12 Lighting Coil

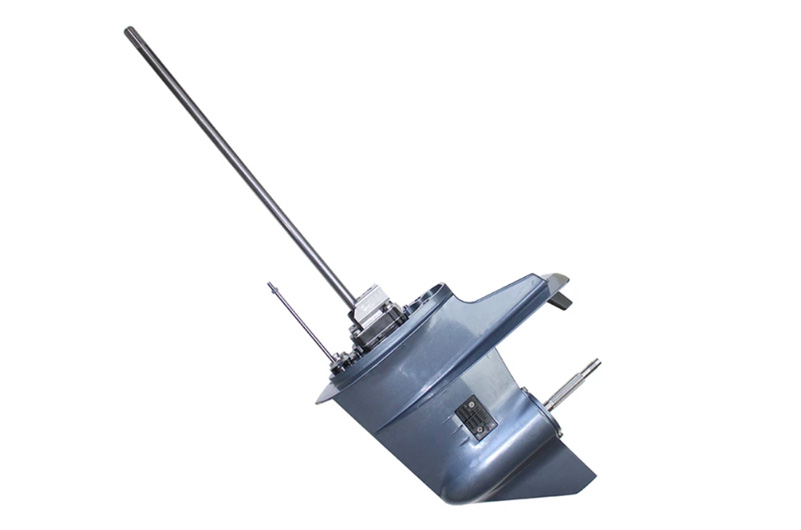

Lower Unit Assy

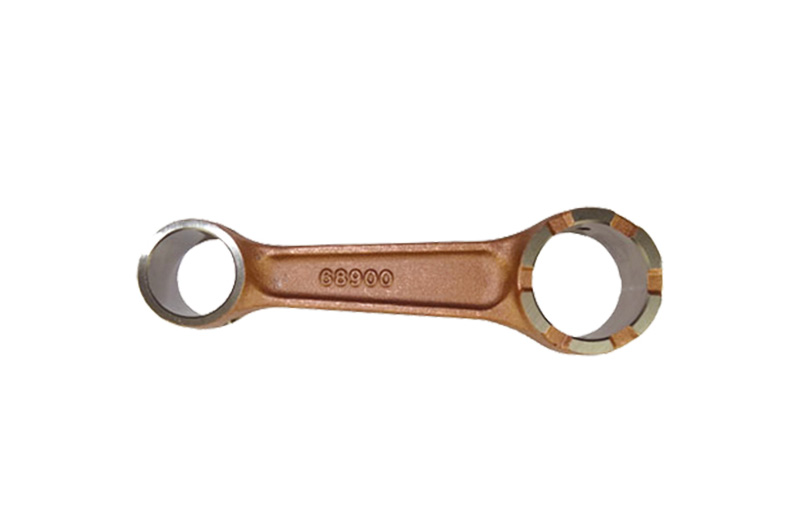

M6 Connecting Rod

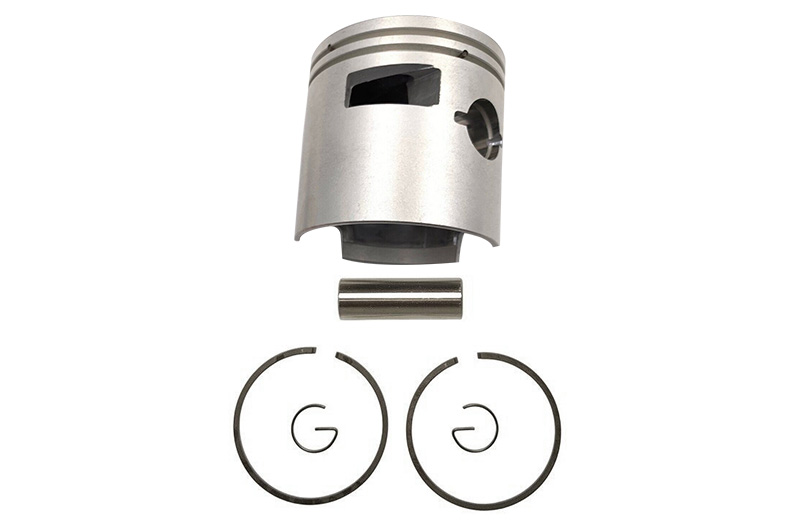

M18 19 20 21 Piston Assy

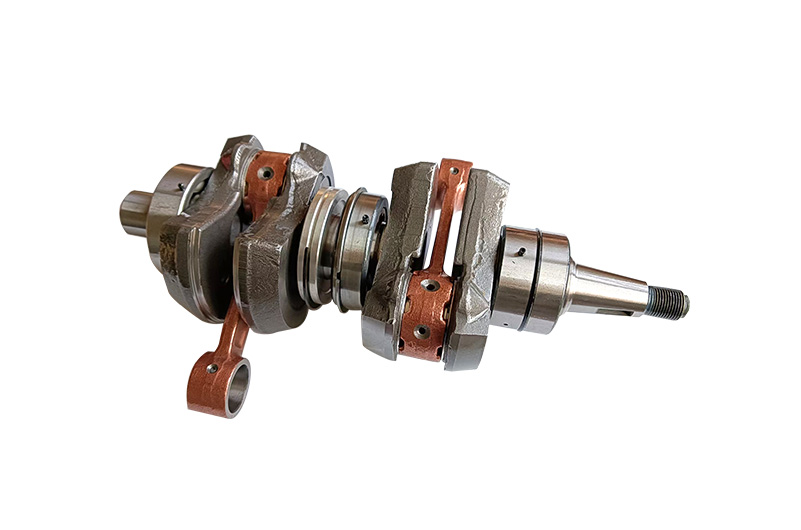

M22 Crankshaft

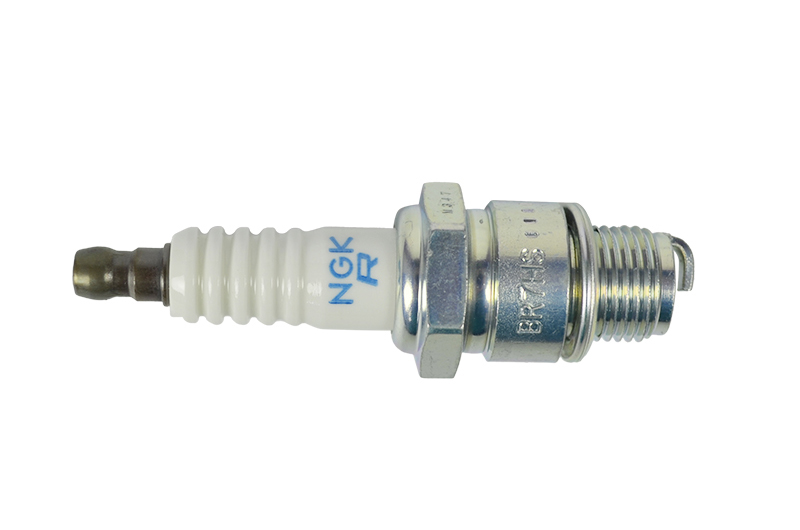

N26 Spark Plug

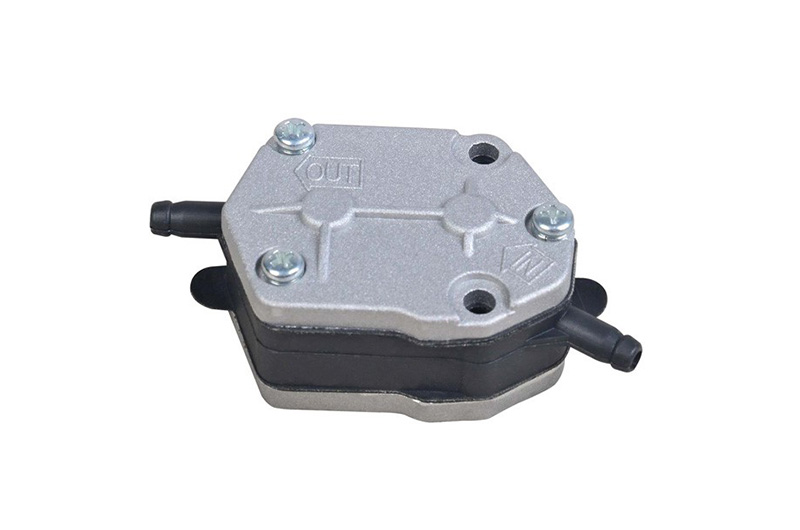

O4 Fuel Pum

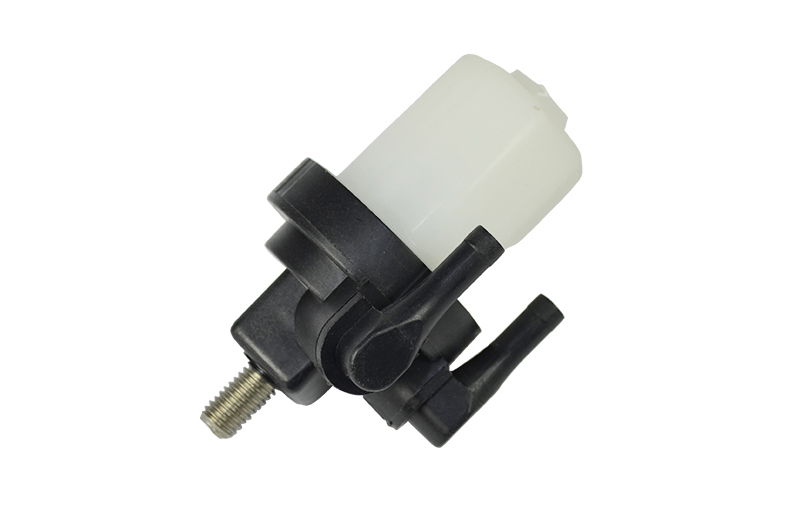

O16 Fuel Filter

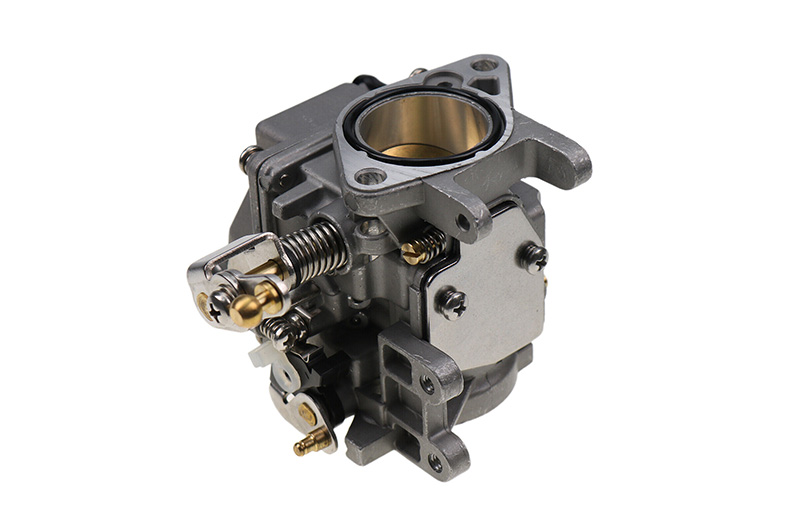

Q42 Carburator

Other Spare Parts

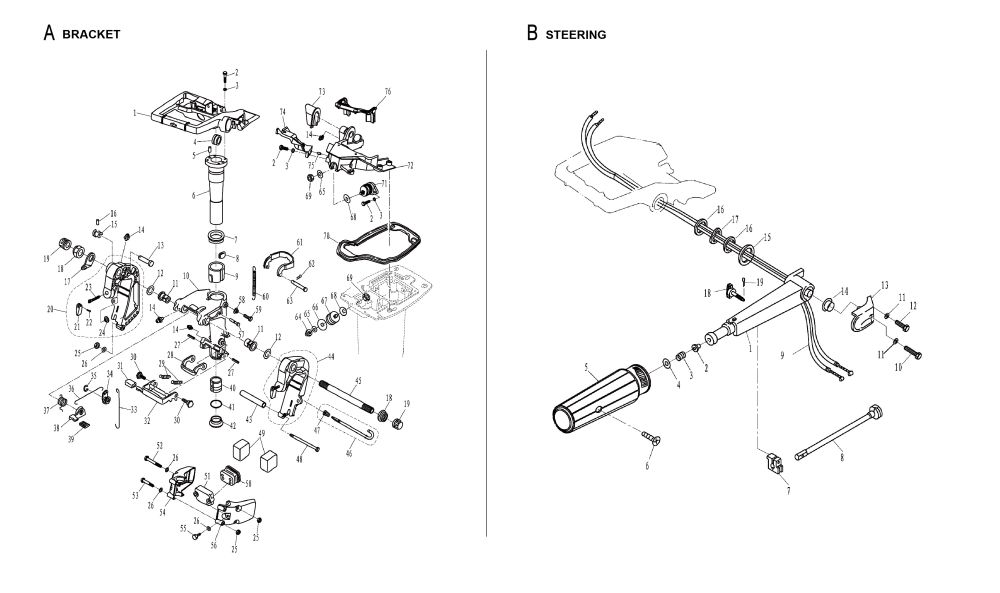

CODE	PART NAME	CODE	PART NAME
A1	Bracket, Helm	A40	Bush, Rotary Bracket
A2	Bolt Gb/T9074.14-M6X20	A41	O-Ring
A3	Washer Gb/T97.1-6	A42	Washer, Rotary Bracket
A4	Rubber Ring, Bracket	A43	Tube, Bolt
A5	Pin 8X12	A44	Left Clamp Bracket Assy
A6	Shaft, Helm Bracket	A45	Double-Edged Tube
A7	Washer, Rotary Bracket	A46	Limitative Rod, Tilt Lock
A8	Plate, Lock	A47	Conical Spring
A9	Bush, Rotary Bracket	A48	Bolt Gb/T5782-M8X155
A10	Bracket, Rotary	A49	Mount Damper
A11	Bush, Rotary Bracket	A50	Damper, Front
A12	Washer	A51	Cover, Front Damper
A13	Limited Shaft, Tilt	A52	Bolt Gb/T5782-M8X105
A14	Nipple, Grease Jb/T9740.1-M6	A53	Bolt Gb/T5782-M8X70
A15	Limiting Handle, Tilt	A54	Right Absorber Cover
A16	Pin Gb/T879.2-3X16	A55	Bolt Gb/T9074.14-M8X25
A17	Plate, Two Hole	A56	Left Absorber Cover
A18	Nut, Self-Locking	A57	Shaft, Pull Rod
A19	Plastic Nut	A58	Seal, Lock Bolt
A20	Right Clamp Bracket Assy	A59	Bolt Gb/T5787-M6X25
A21	Handle, Clamp	A60	Spring, Outer Frame
A22	Rivet, Clamp Handle	A61	Frame Assy, Locked Handle
A23	Screw, Clamp	A62	Cotter Pin Gb/T91-1.2X12
A24	Clamp Plate	A63	Shaft, Locked Handle
A25	Nut Gb/T6170-M8	A64	Cover Nut Gb/T923-M10X1.25
A26	Wahser Gb/T97.1-8	A65	Washer Gb/T97.1-10
A27	Pin Gb/T879.1-4X38	A66	Gasket A, Absorber
A28	Inner Frame, Locker Handle	A67	Absorber Assy
A29	Spring, Support	A68	Gasket B, Absorber
A30	Screw, Flat Hexagon	A69	Nut Gb/T6170-M10X1.25
A31	Jacket, Handle	A70	Seal, Upper Casing
A32	Support Bracket Assy	A71	Absorber, Shift Rod Bracket
A33	Pull Rod, Inner Frame	A72	Bracket, Shift Rod
A34	Bracket, Pull Rod	A73	Rubber Ring, Shift Handle
A35	Circlip Gb/T896-5	A74	Bracket, Bottom Cowling
A36	Spring, Pull Rod	A75	Pin 6X12
A37	Wrest Spring	A76	Gasket, Shift Rod Bracket
A38	Locking Handle
A39	Jacket, Locking Handle
CODE	PART NAME	CODE	PART NAME
B1	Tiller Handle	B11	Washer Gb/T97.1-6
B2	Bush	B12	Bolt Gb/T9074.14-M6X20
B3	Spring	B13	Cover, Tiller Handle
B4	Washer Gb/T848-10	B14	Damper, Handle
B5	Grip Assy, Tiller Handle	B15	Bush, Handle
B6	Screw Gb/T820-M5X25	B16	Wave Wahser
B7	Friction, Tiller Handle	B17	Wave Washer
B8	Throttle Lever Assy	B18	Bolt, Friction Adjusting
B9	Throttle Cable Assy	B19	Cotter Pin Gb/T91-1.6X12
B10	Bolt Gb/T5782-M6X50	B20	Tiller Handle Assy

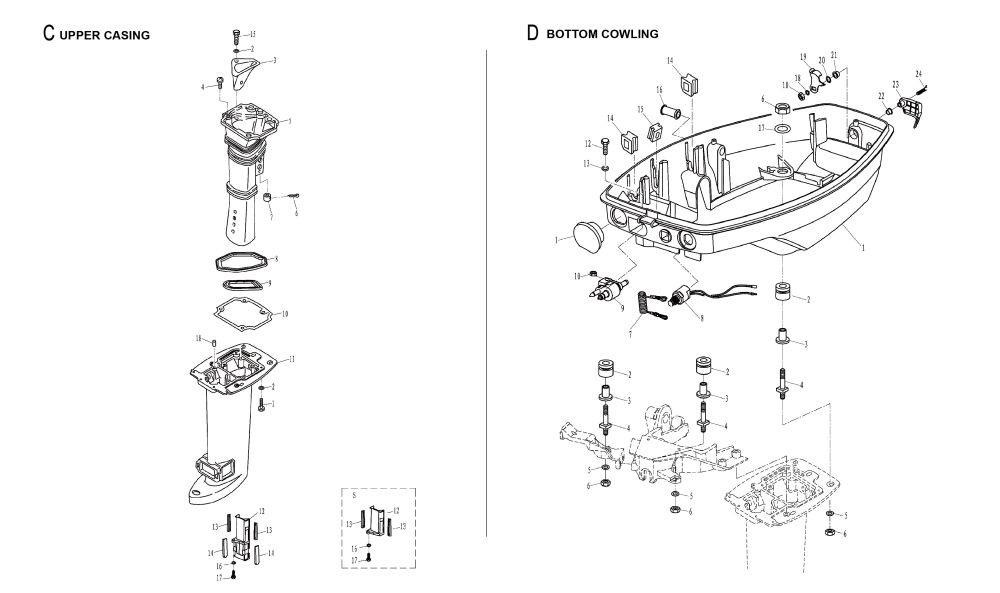

CODE	PART NAME	CODE	PART NAME
C1	Bolt Gb/T9074.14-M8X30	C11	Upper Casing L
C2	Wahser Gb/T97.1-8	C11	Upper Casing S
C3	Spacer, Manifold	C12	Clapboard, Exhaust L
C4	Screw Gb/T818-M6X16	C12	Clapboard, Exhaust S
C5	Exhaust Manifold	C13	Gasket A, Exhaust
C6	Cotter Pin Gb/T91-2.5X25	C14	Gasket, Exhaust
C7	Jam, Nylon	C15	Bolt Gb/T9074.14-M8X20
C8	Gasket, Exhaust Manifold	C16	Washer Gb/T97.1-6
C9	Gasket, Exhaust Manifold	C17	Bolt Gb/T9074.14-M6X20
C10	Gasket, Exhaust Manifold	C18	Pin 6X12
CODE	PART NAME	CODE	PART NAME
D1	Bottom Cowling	D13	Washer Gb/T97.1-6
D1	Bottom Cowling	D14	Wire Clamp, Rubber
D2	Damper, Bottom Cowling	D15	Jacket, Throttle Cable
D3	Spacer, Bottom Cowling	D16	Rubber Plug A
D4	Bolt, Bottom Cowling	D17	Thick Washer 8
D5	Wahser Gb/T97.1-8	D18	Big Washer Gb/T96-6
D6	Nut Gb/T6170-M8	D19	Locking Hook Assy
D7	Stoper, Hang Rope Assy	D20	Wave Washer
D8	Engine Stop Switch Assy	D21	Bush B
D9	Fuel Fitting Assy	D22	Bush A
D10	Nut Gb/T6170-M6	D23	Locking Handle
D11	Rubber Plug, Circular	D24	Bolt Gb/T9074.14-M6X25
D12	Bolt Gb/T9074.14-M6X20

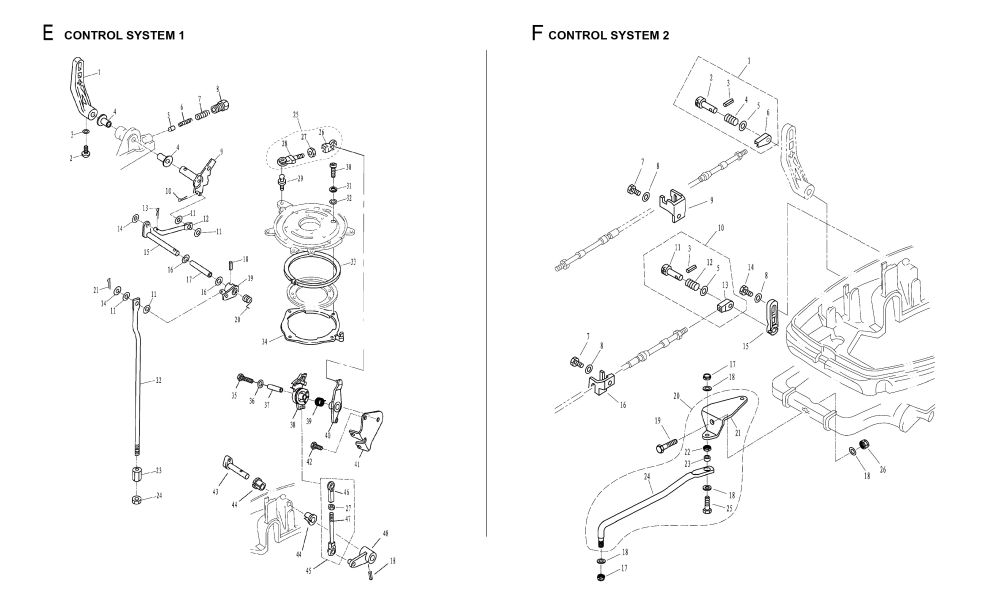

CODE	PART NAME	CODE	PART NAME
E1	Handle, Shift	E26	Joint B, Connecting Rod
E2	Screw Gb/T823-M6X20	E27	Nut Gb/T6170-M5
E3	Washer Gb/T97.1-6	E28	Joint A, Connecting Rod
E4	Bush, Nylon	E29	Joint, Connecting Rod
E5	Plunger, Shift Cam	E30	Screw Gb/T818-M5X12
E6	Spring A, Plunger	E31	Washer, Spring Gb/T93-5
E7	Spring B, Plunger	E32	Washer Gb/T97.1-5
E8	Nut, Plunger	E33	Retainer, Stator Coil
E9	Fixed Plate Assy, Shift Lever	E34	Plate, Stator Coil
E10	Cotter Pin Gb/T91-1.2X14	E35	Bolt Gb/T5782-M6X45
E11	Washer, Small Shaft	E36	Washer, Throttle Actuator
E12	Link, Shift Cam	E37	Bush, Throttle Actuator
E13	Cotter Pin Gb/T91-1X12	E38	Drive Pulley, Throttle
E14	Washer Gb/T848-5	E39	Spring, Drive Wheel
E15	Shift Rod Assy	E40	Driven Wheel Assy
E16	Nylon Washer, Shift Rod	E41	Plate, Throttle Actuator
E17	Jacket, Shift Rod	E41	Plate, Throttle Actuator Fw
E18	Pin Gb/T879.1-4X16	E42	Bolt Gb/T5783-M6X12
E19	Seat Assy, Shift Rod	E43	Shaft, Throttle
E20	Spring, Shift Rod	E44	Bush, Swing Link
E21	Cotter Pin Gb/T91-1.6X12	E45	Push Rod Assy, Throttle
E22	Shift Rod	E46	Tie-In, Pulser Coil
E23	Nut, Plunger	E47	Throttle Push Rod
E24	Nut Gb/T6170-M6	E48	Swing Link Assy, Throttle
E25	Link Assy, Stator Coil
CODE	PART NAME	CODE	PART NAME
F1	Joint Assy, Shift	F15	Handle, Throttle Control
F2	Pin Roll Assy, Shift	F16	Bracket, Throttle Cable
F3	Pin Gb/T879.1-3X12	F17	Lock Nut 3/8
F4	Spring, Shift Rod	F18	Washer Gb/T97.1-10
F5	Wahser Gb/T97.1-8	F19	Bolt M10X1.25X40
F6	Joint, Shift	F20	Steering Link Rod Assy
F7	Bolt Gb/T5783-M6X16	F21	Link Plate, Steering
F8	Washer Gb/T97.1-6	F22	Nut 3/8
F9	Bracket Assy, Shift Rod	F23	Bush, Bolt
F10	Joint Assy, Throttle Control	F24	Link Rod, Steering
F11	Pin Assy, Throttle Control	F25	Bolt, Steering Link
F12	Spring, Throttle Control	F26	Lock Nut Gb/T889.1-M10X1.25
F13	Joint, Throttle Control
F14	Bolt Gb/T5783-M6X12

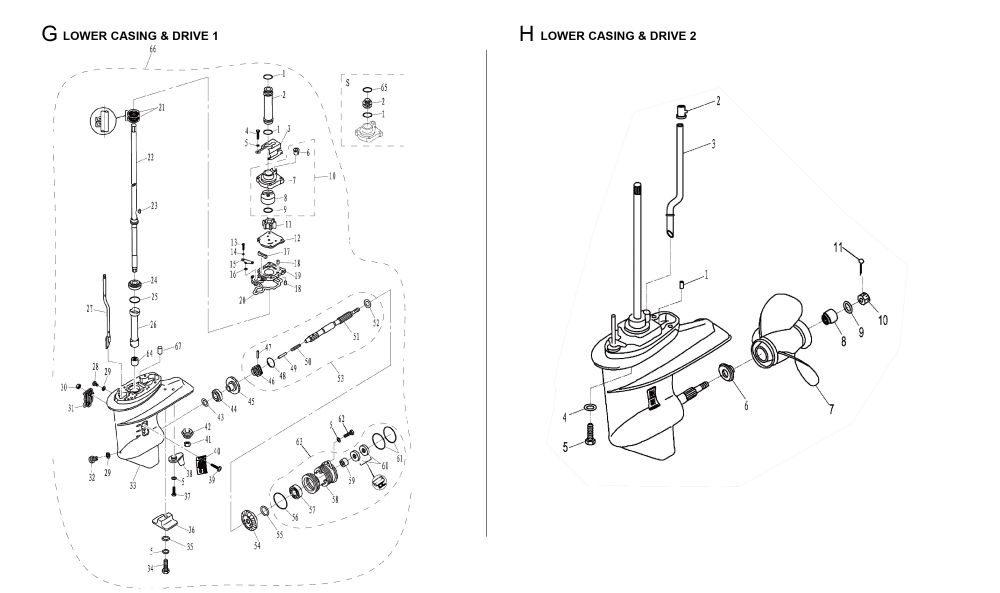

CODE	PART NAME	CODE	PART NAME
G1	O-Ring Gb/T3452.1-25.8X2.65	G34	Bolt Gb/T9074.14-M6X35
G2	Bush, Drive Shaft L	G35	Locking Washing Gb/T86.1-6
G2	Bush, Drive Shaft S	G36	Anode
G3	Fixed Plate, Water Pump	G37	Bolt Gb/T9074.14-M6X20
G4	Bolt Gb/T5782-M6X40	G38	Course Tab
G5	Washer Gb/T97.1-6	G39	Screw Gb/T820-M5X30
G6	Seal, Water Tube	G40	Water Inlet A
G7	Housing, Water Pump	G41	Nut, Pinion
G8	Insert Cover, Water Pump	G42	Pinion
G9	O-Ring	G43	Shim T:1.00Mm
G10	Housing Assy, Water Pump	G43	Shim T:1.10Mm
G11	Impeller Assy	G43	Shim T:1.20Mm
G12	Outer Plate	G43	Shim T:1.30Mm
G13	Bolt Gb/T9074.14-M6X25	G43	Shim T:1.40Mm
G14	Washer Gb/T97.1-6	G44	Roller Bearing Hr30205J
G15	Plate, O-Ring	G45	Forward Gear Assy
G16	O-Ring	G46	Clutch, Dog
G17	Water Seal	G47	Pin, Clutch
G18	Pin 4X10	G48	Ring, Clutch
G19	Base, Drive Shaft	G49	Plunger, Shift Rod
G20	Seal Ring	G50	Spring, Clutch
G21	Oil Seal 22X36X6	G51	Propeller Shaft
G22	Drive Shaft Assy L	G52	Washer, Reverse Gear
G22	Drive Shaft Assy S	G53	Propeller Shaft Assy
G23	Woodruff Key	G54	Gear, Reverse
G24	Roller Bearing Hr32004Xj	G55	Shim T:1.00Mm
G25	Shim T:0.70Mm	G55	Shim T:1.10Mm
G25	Shim T:1.00Mm	G55	Shim T:1.20Mm
G25	Shim T:1.10Mm	G55	Shim T:1.30Mm
G25	Shim T:1.20Mm	G56	O-Ring A
G25	Shim T:1.30Mm	G57	Ball Bearing Gb/T276-6006/P6
G25	Shim T:1.40Mm	G58	Cover, Lower Casing
G25	Shim T:1.50Mm	G59	Needle Bearing Gb/T290-Hk2016
G25	Shim T:1.60Mm	G60	Oil Seal 20X34X6.5
G26	Bush, Nylon	G61	O-Ring B
G27	Shift Cam Shaft Assy L	G62	Bolt Gb/T9074.14-M6X20
G27	Shift Cam Shaft Assy S	G63	Cover Assy, Lower Casing
G28	Screw Plug	G64	Needle Bearing Gb/T290-F2020
G29	Gasket, Screw Plug	G65	O-Ring Gb/T3452.1-21.2X1.8
G30	Lock Nut Gb/T889.1-M5	G66	Lower Casing Assy L
G31	Water Inlet B	G66	Lower Casing Assy S
G32	Bolt, Drain	G67	Pin 6X12
G33	Lower Casing
CODE	PART NAME	CODE	PART NAME
H1	Pin 6X12	H7	Propeller Assy 3-9 7/8"X12“
H2	Seal, Water Tube	H7	Propeller Assy 3-9 7/8"X11 1/4"
H3	Water Tube L	H8	Spacer
H3	Water Tube S	H9	Washer Gb/T97.1-14
H4	Washer Gb/T97.1-10	H10	Slotted Nut
H5	Bolt M10X1.25X35	H11	Cotter Pin Gb/T91-3.2X25
H6	Spacer, Propeller

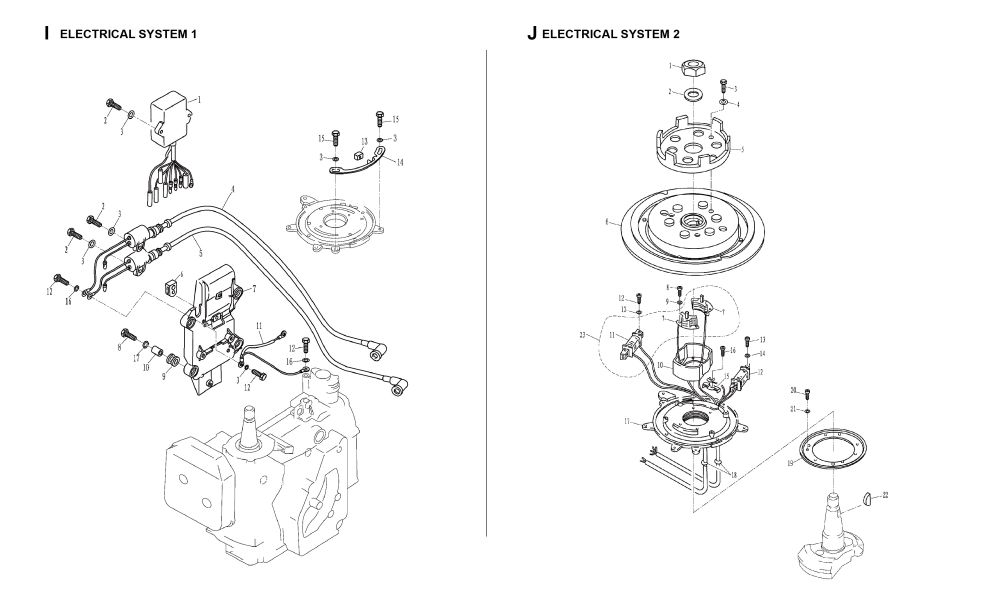

CODE	PART NAME	CODE	PART NAME
I1	Cdi Unit Assy	I10	Bush, Absorber
I2	Bolt Gb/T9074.14-M6X20	I11	Earth Wire
I3	Washer Gb/T97.1-6	I12	Bolt Gb/T5783-M6X12
I4	Ignition Coil Assy A	I13	Bush, Limited Plate
I5	Ignition Coil Assy B	I14	Plate, Stator Coil Base
I6	Clamp, Ignition Coil	I15	Bolt Gb/T5783-M6X10
I7	Bracket, Ignition Coil	I16	Washer, Spring Gb/T93-6
I8	Bolt Gb/T9074.14-M6X30	I17	Big Washer Gb/T96-6
I9	Damper, Ignition Coil
CODE	PART NAME	CODE	PART NAME
J1	Nut, Fly Wheel	J13	Screw Gb/T818-M6X25
J2	Washer, Flywheel Nut	J14	Washer, Spring Gb/T93-6
J3	Bolt Gb/T5783-M8X14	J15	Plate, Wire
J4	Wahser Gb/T97.1-8	J16	Screw Gb/T818-M4X6
J5	Pulley, Starter	J17	Base, Stator Coil
J6	Flywheel Assy	J18	Jacket, Wire
J7	Pulser Coil Assy	J19	Plate, Stator Coil Base
J8	Screw Gb/T818-M4X12	J20	Bolt Gb/T5783-M6X14
J9	Washer,Spring Gb/T93-4	J21	Washer Gb/T97.1-6
J10	Fixed Frame, Pulser Coil	J22	Woodruff Key, Fly Wheel
J11	Stator Coil Assy	J23	Light Supply Coil
J12	Lighting Coil

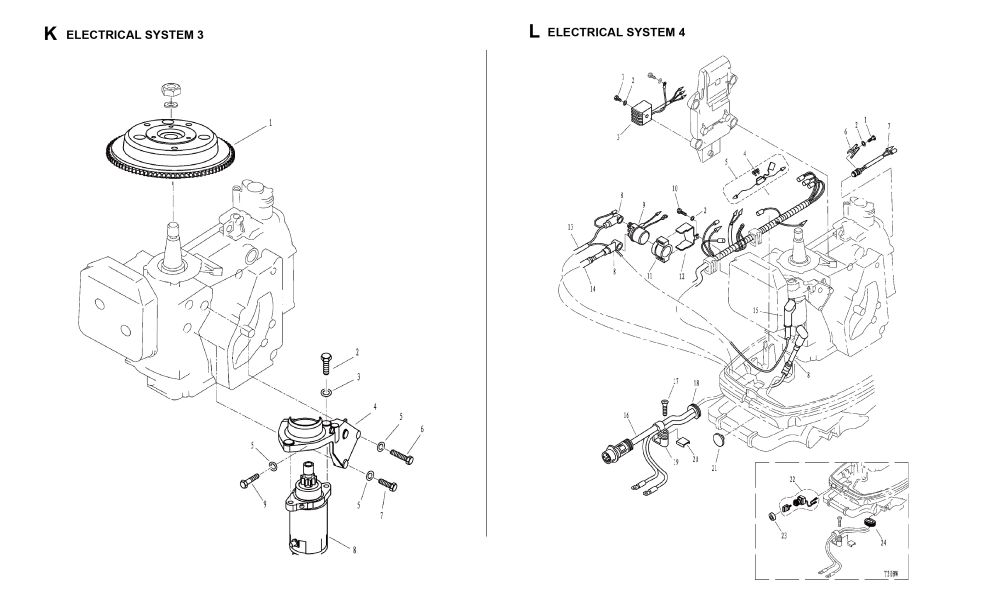

CODE	PART NAME	CODE	PART NAME
K1	Flywheel Assy	K6	Bolt Gb/T5782-M6X50
K2	Bolt Gb/T9074.14-M8X30	K7	Bolt Gb/T9074.14-M6X30
K3	Wahser Gb/T97.1-8	K8	Starter Motor
K4	Bracket, Startup Motor	K9	Bolt Gb/T5782-M6X45
K5	Washer Gb/T97.1-6
CODE	PART NAME	CODE	PART NAME
L1	Bolt Gb/T5783-M6X12	L13	Power Cable Assy
L2	Washer Gb/T97.1-6	L14	Power Cable, Motor
L3	Rectifier Assy	L15	Jacket A, Power Cable
L4	Fuse 20A	L16	Control Wire Assy
L5	Fuse Assy	L17	Screw Gb/T6561-M6X25
L6	Plate, Thermosensor	L18	Jacket, Rubber
L7	Thermosensor Assy	L19	Clamp, Wire
L8	Jacket, Power Cable	L20	Plate, Clamp
L9	Starter Relay Assy	L21	Circular Plug
L10	Bolt Gb/T9074.14-M6X35	L22	Start Switch Assy
L11	Cover, Relay	L23	Bush, Start Switch Bw
L12	Fixed Plate, Relay	L24	Rubber Plug A

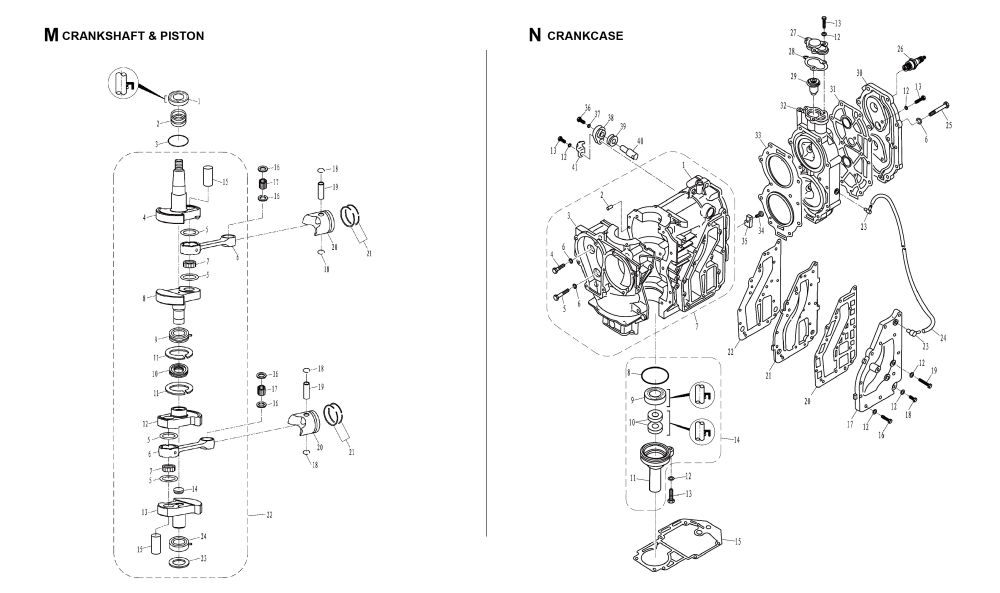

CODE	PART NAME	CODE	PART NAME
M1	Oil Seal	M13	Block, Swing D
M2	Needle Bearing With Pin	M14	Jam, Swing Block
M3	O-Ring 45X2.65	M15	Pin, Crankshaft
M4	Block, Swing A	M16	Washer, Piston
M5	Thrust Washer	M17	Needle Bearing 2X19.8
M6	Connecting Rod	M18	Circlip
M7	Needle Bearing	M19	Pin, Piston
M8	Block, Swing B	M20	Piston
M9	Ball Bearing With Pin	M21	Piston Ring Assy
M10	Seal Ring	M22	Crankshaft Rod Assy
M11	Circlip	M23	Fixed Washer, Crankshaft
M12	Block, Swing C	M24	Ball Bearing With Pin
CODE	PART NAME	CODE	PART NAME
N1	Cylinder Case	N22	Gasket, Inner Cover
N2	Pin 6X12	N23	Pipe, Joint
N3	Crankcase	N24	Hose 10X5X106
N4	Bolt M8X60	N25	Bolt M8X65
N5	Bolt M8X45	N26	Spark Plug Bpr7Hs
N6	Wahser Gb/T97.1-8	N27	Cover, Thermostat
N7	Crankcase Assy	N28	Gasket, Thermostat
N8	O-Ring A	N29	Thermostat
N9	Oil Seal 25X48X8	N30	Outer Cover, Cylinder
N10	Oil Seal 16X30X6	N31	Gasket, Cylinder Cover
N11	Casing, Oil Seal	N32	Cylinder Cover
N12	Washer Gb/T97.1-6	N33	Gasket, Cylinder Head
N13	Bolt Gb/T9074.14-M6X20	N34	Screw Gb/T819.1-M6X20
N14	Oil Seal Casing Assy	N35	Anode, Crankcase
N15	Gasket, Engine	N36	Screw Gb/T818-M5X12
N16	Bolt Gb/T9074.14-M6X30	N37	Washer Gb/T97.1-5
N17	Outer Cover, Exhaust	N38	Plate, Anode
N18	Bolt Gb/T9074.14-M6X25	N39	Seal, Anode
N19	Bolt Gb/T5782-M6X50	N40	Anode, Crankcase
N20	Gasket, Outer Cover	N41	Plate, Anode
N21	Inner Cover, Exhaust
CODE	PART NAME	CODE	PART NAME
O1	Clip Spring B	O18	O-Ring Gb/T3452.1-32.5X1.8
O2	Hose 5X10X330	O19	Cup, Filter
O3	Fixed Hose A	O20	Bolt Gb/T5783-M6X14
O4	Fuel Pump Assy	O21	Bracket, Filter Cup
O5	Washer Gb/T97.1-6	O22	Nut Gb/T6170-M8
O6	Bolt Gb/T5782-M6X40	O23	Screw Gb/T818-M5X30
O7	Fixed Hose B	O24	Washer, Spring Gb/T93-5
O8	Link, Carburetor	O25	Upper Cover, Fuel Pump
O9	Washer, Swing Shaft	O26	Diaphragm, Upper Cover
O10	Swing Link Assy, Throttle	O27	Seal, Upper Cover
O11	Big Washer Gb/T96-6	O28	Screw, Valve
O12	Bolt Gb/T9074.14-M6X20	O29	Plate, Check Valve
O13	Pulley, Swing Shaft	O30	Nut Gb/T6170-M3
O14	Cotter Pin Gb/T91-1.6X12	O31	Cover, Fuel Pump
O15	Gasket, Fuel Pump	O32	Seal, Lower Cover
O16	Fuel Filter Assy	O33	Diapwagm, Lower Cover
O17	Element, Filter	O34	Lower Cover, Fuel Pump
CODE	PART NAME	CODE	PART NAME
P1	Bolt Gb/T5783-M5X10	P19	Pin Gb/T879.1-4X50
P2	Washer, Spring Gb/T93-5	P20	Linker, Choke
P3	Limitative Plate, Valve	P21	Swing Link, Choke
P4	Plate, Intake Valve	P22	Handle, Choke
P5	Intake Valve Seal Seat	P23	Bush, Choke
P6	Intake Valve Assy	P24	Rubber Collar, Choke
P7	Gasket A, Intake Valve	P25	Magnetic Coil Assy
P8	Gasket C, Intake Valve	P26	Screw Gb/T818-M4X6
P9	Manifold, Intake	P27	Washer,Spring Gb/T93-4
P10	Clamp	P28	Cover Board Assy
P11	Washer Gb/T97.1-6	P29	Gasket
P12	Bolt Gb/T9074.14-M6X35	P30	Fixed Plate, Relay
P13	Bolt Gb/T9074.14-M6X25	P31	Magnetic Coil
P14	O-Ring Gb/T3452.1-44X2	P32	Fixed Plate, Relay
P15	Intake Silencer Assy	P33	Damper B
P16	Bush, Intake Silencer	P34	Iron Core
P17	Big Washer Gb/T96-6	P35	Link, Iron Core
P18	Bolt Gb/T5782-M6X115	P36	Hook, Iron Core
CODE	PART NAME	CODE	PART NAME
Q1	Screw Gb/T818-M4X10	Q23	Rubber Cap
Q2	Washer,Spring Gb/T93-4	Q24	Main Nozzle
Q3	Plate	Q25	Jet, Main
Q4	Gasket	Q26	Needle Valve
Q5	Screw, Air Adjusting	Q27	Pin, Float
Q6	Spring, Air Adjusting	Q28	Screw Gb/T818-M4X8
Q7	Stop Screw, Throttle	Q29	Float
Q8	Spring, Stop Screw	Q30	Gasket, Float Chamber
Q9	Screw Gb/T818-M5X10	Q31	Bolt, Drain
Q10	Big Washer Gb/T96-5	Q32	Gasket, Drain Bolt
Q11	Swing Link, Throttle	Q33	Screw Gb/T818-M4X12
Q12	Screw, Swing Link	Q34	Float Chamber
Q13	Spring, Swing Link	Q35	Spring, Swing Link
Q14	Screw Gb/T818-M4X6	Q36	Gb/T879.2-3
Q15	Spring, Choke	Q37	Circlip Gb/T896-4
Q16	Joint, Throttle Link Rod	Q38	Washer, Nylon
Q17	Swing Link, Choke	Q39	Body, Carburetor
Q18	Bush, Swing Link	Q40	Damper, Throttle
Q19	Screw Gb/T818-M3X6	Q41	O-Ring
Q20	Washer, Spring Gb/T93-3	Q42	Carburetor Assy
Q21	Baffle Plate, Choke
Q22	Jet, Air Slow
CODE	PART NAME	CODE	PART NAME
R1	Cover, Starter	R22	Starter Assy
R2	Nut Gb/T6170-M8	R23	Right Bracket, Starter
R3	Bolt Gb/T9074.14-M6X35	R24	Bolt Gb/T9074.14-M6X25
R4	Washer Gb/T97.1-6	R25	Left Bracket, Starter
R5	Guide, Starter	R26	Bolt Gb/T5782-M6X45
R6	Seal, Frothy Rubber	R27	Hollow Pin 10X8.4X14
R7	Starter Handle Assy	R28	Joint, Detent
R8	Start Rope 4X1.78	R29	Spring, Detent
R9	Handle Cover, Starter	R30	Detent Cable Assy
R10	Bolt Gb/T9074.14-M6X20	R31	Frame, Detent Cable
R11	Washer, Thrust	R32	Bolt Gb/T5783-M6X10
R12	Spring, Volute	R33	Cotter Pin Gb/T91-1.2X12
R13	Wheel, Start-Up	R34	Big Washer Gb/T96-6
R14	Bush, Start-Up Wheel	R35	Rod, Limited Plate
R15	Spring, Pawl	R36	Limited Plate, Detent
R16	Pawl, Drive	R37	Collar, Limited Plate
R17	Spring, Plate	R38	Washer Gb/T97.1-5
R18	Washer	R39	Spring-Washer Gb/T860-5
R19	Plate, Start Wheel	R40	Frame, Detent Cable
R20	Washer, Spring Gb/T93-8	R41	Inching Switch
R21	Bolt Gb/T9074.14-M8X35
CODE	PART NAME	CODE	PART NAME
S1	Top Cowling Assy	S10	Washer, Pothook
S2	Top Cowling	S11	Cover, Top Cowling Muffle
S3	Decal, Top Cowling	S12	Gasket, Rubber
S4	Washer 5	S13	Screw Gb/T845-St4.8X16
S5	Screw Gb/T818-M5X144	S14	Decal, Top Cowling
S6	Front Hook	S15	Screw Gb/T818-M5X20
S7	Nut Gb/T6170-M5	S16	30Hp Decal
S8	Seal, Rubber	S16	25Hp Decal
S9	Back Pothook
CODE	PART NAME	CODE	PART NAME
T1	Fuel Line Assy	T6	Oleometer Assy
T2	Portable Fuel Tank Assy 24L	T7	Gasket
T3	Fuel Tank Cap Assy	T8	Filter, Fuel Tank
T4	Screw Gb/T818-M5X16	T9	Body, Fuel Tank
T5	Washer Gb/T97.1-5
CODE	PART NAME	CODE	PART NAME
U1	Control Box Assy	U34	Spring Plate, Shift Lever
U2	Nylon Clamp 2.5X60	U35	Pulley, Shift Lever
U3	Start Switch Assy	U36	Spring, Shift Lever B
U4	Control Wire Assy	U37	Mark 16
U6	Screw Gb/T819.1-M5X12	U39	Washer, Cam
U7	Inching Handle, Throttle	U40	Shift Rod
U8	Bush, Cam	U41	Adjusting Plate
U9	Bush, Handle	U42	Bolt M5X25
U10	Block, Rubber	U43	Nut Gb/T6170-M5
U11	Jacket, Cable	U44	Buzzer Assy
U12	Stoper, Hang Rope Assy	U45	Adjusting Pin
U13	Engine Stop Switch Assy	U47	Bush, Handle
U14	Insulated Plug B	U48	Bush, Shift Swing Shaft
U15	Insulated Plug A	U49	Bracket, Control Box
U16	Cover, Control Box	U50	Mark 13
U17	Small Cover, Control Box	U51	Cover, Waterproof
U18	Wave Washer B	U52	Block, Control Handle
U19	Locked Disk Assy	U53	Washer, Locked Gb/T956.1-5
U20	Wring Spring	U54	Screw Gb/T819.1-M5X18
U21	Each Locked Pulley	U55	Jam, Button
U22	Plate, Pulley	U56	Handle, Control Box
U23	Screw M4X6	U57	Tiller, Control Box
U24	Cover Assy, Control Box	U58	Gb/T84.5-St4.8X12
U25	Bolt M8X30	U59	Screw Gb/T818-M4X10
U26	Wahser Gb/T97.1-8	U60	Cover, Control Handle
U27	Control, Throttle	U61	Spring
U28	Washer	U62	Orientation, Control
U29	Circlip Gb/T896-6	U63	Fixed Plate, Located
U30	Joint B, Remote Cable	U5	Plate, Control Box
U31	Cam	U38	Nut Gb/T6170-M6
U32	Screw Gb/T818-M3X14	U46	Big Washer Gb/T5287-6
U33	Inching Switch	U64	Screw Gb/T820-M6X90
CODE	PART NAME	CODE	PART NAME
V1	Cylinder Case	V36	Plate, Anode
V2	Pin 6X12	V37	Seal, Anode
V3	Crankcase	V38	Anode, Crankcase
V4	Bolt M8X60	V39	Plate, Anode
V5	Bolt M8X45	V40	Gasket A, Intake Valve
V6	Wahser Gb/T97.1-8	V41	Gasket C, Intake Valve
V7	Crankcase Assy	V42	Manifold, Intake
V8	O-Ring A	V43	Clamp
V9	Oil Seal 25X48X8	V44	Bolt Gb/T9074.14-M6X35
V10	Oil Seal 16X30X6	V45	Oil Seal
V11	Casing, Oil Seal	V46	Needle Bearing With Pin
V12	Washer Gb/T97.1-6	V47	O-Ring
V13	Bolt Gb/T9074.14-M6X20	V48	Block, Swing A
V14	Oil Seal Casing Assy	V49	Thrust Washer
V15	Bolt Gb/T9074.14-M6X30	V50	Connecting Rod
V16	Outer Cover, Exhaust	V51	Needle Bearing
V17	Bolt Gb/T9074.14-M6X25	V52	Block, Swing B
V18	Bolt Gb/T5782-M6X50	V53	Ball Bearing With Pin
V19	Gasket, Outer Cover	V54	Seal Ring
V20	Inner Cover, Exhaust	V55	Circlip
V21	Gasket, Inner Cover	V56	Block, Swing C
V22	Pipe, Joint	V57	Block, Swing D
V23	Hose 10X5X106	V58	Jam, Swing Block
V24	Bolt Gb/T5782-M8X65	V59	Pin, Crankshaft
V25	Cover, Thermostat	V60	Washer, Piston
V26	Gasket, Thermostat	V61	Needle Bearing 2X19.8
V27	Thermostat	V62	Circlip
V28	Outer Cover, Cylinder	V63	Pin, Piston
V29	Gasket, Cylinder Cover	V64	Piston
V30	Cylinder Cover	V65	Piston Ring Assy
V31	Gasket, Cylinder Head	V66	Crankshaft Rod Assy
V32	Screw Gb/T819.1-M6X20	V67	Fixed Washer, Crankshaft
V33	Anode, Crankcase	V68	Engine Assy
V34	Screw Gb/T818-M5X12
V35	Washer Gb/T97.1-5
CODE	PART NAME	CODE	PART NAME
W1	Jam, Nylon	W10	Impeller Assy
W2	Gasket, Exhaust Manifold	W11	Outer Plate
W3	Gasket, Exhaust Manifold	W12	O-Ring
W4	Gasket, Exhaust Manifold	W13	Seal Ring
W5	O-Ring Gb/T3452.1-25.8X2.65	W14	Gasket, Screw Plug
W6	Seal, Water Tube	W15	O-Ring A
W7	Housing, Water Pump	W16	Oil Seal 20X34X6.5
W8	Insert Cover, Water Pump	W17	O-Ring B
W9	O-Ring	W18	O-Ring Gb/T3452.1-21.2X1.8
CODE	PART NAME	CODE	PART NAME
X1	Gasket, Engine	X9	Gasket, Outer Cover
X2	O-Ring Gb/T3452.1-44X2	X10	Gasket, Inner Cover
X3	O-Ring	X11	Gasket, Cylinder Head
X4	Oil Seal 16X30X6	X12	Gasket, Cylinder Cover
X5	Oil Seal 25X48X8	X13	Gasket, Thermostat
X6	O-Ring A	X14	Oil Seal
X7	Gasket C, Intake Valve	X15	O-Ring
X8	Gasket A, Intake Valve

Wholesale only. No retail and individual buyers. No job recruitment, please.

Plesae provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.
