40 HP Outboard Motor Rplacement Parts T40 Outboard Boat Engine Accessories

T40 Outboard Parts

40 HP Outboard Motor Rplacement Parts T40 Outboard Boat Engine Accessories
  • CRAFTOP T40 outboards motor parts are precision manufactured to exact fitment standards, well fit with 40 horsepower outboard motor in the market.
  • Outboard boat motor covers: High-grade marine aluminum alloy, 5-layer paint coating for superior corrosion protection.
  • CDI ignition system: Automatic spark advance, maximizing power throughout RPM range.
  • Strong crankshaft, durable piston, robust gears and gear case for reliability.
  • Proven power, efficiency, and endurance with our cylinder design.
  • High-performance outboard motor propeller: Optimized performance and maneuverability.
  • Strict quality control: Durable and cost-effective high-quality outboard replacements and accessories.
Send An Inquiry

Packaging Style

Outboard Motor

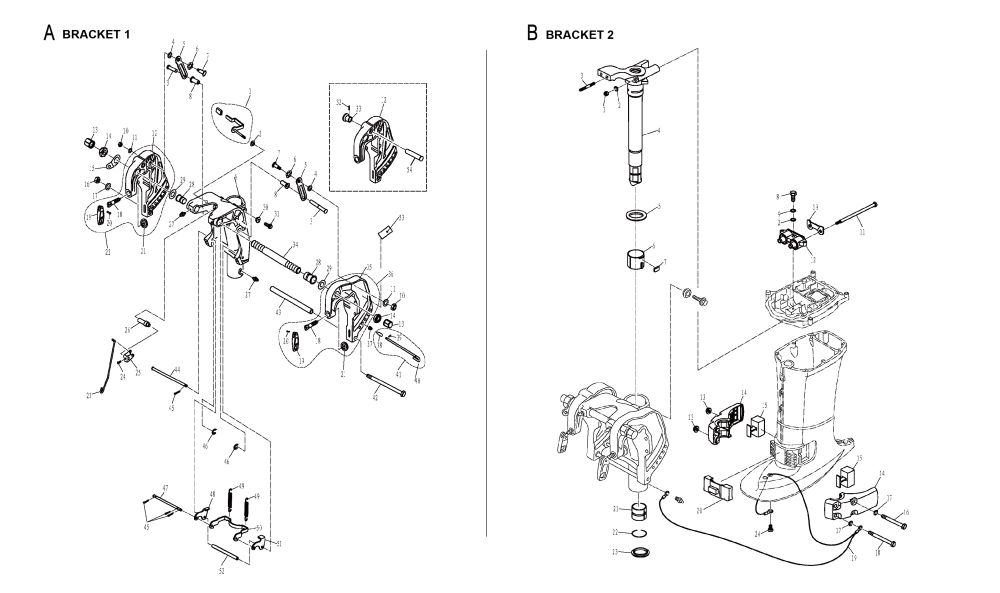

Exploded View of the Whole Machine

Important Spare Parts

Other Spare Parts

CODEPART NAMECODEPART NAME
A1Tilt Clamp Handle AssyA28Bush, Nylon
A2Washer, Locked HandleA29Washer
A3Pin, DetentA30Seal, Lock Bolt
A4Washer, Nylon A31Bolt M8X20
A5Plate, Tilt StopperA32Pin 3X20
A6Wave WasherA33Limiting Handle, Tilt
A7Screw, Flat HexagonA34Double-Edged Tube
A8Bush, NylonA35Left Bracket Clamp
A9Bracket, Rotary LA36Left Bracket Clamp Assy
A9Bracket, RotaryA37Conical Spring
A10Lock Nut M8A38Bracket, Anti-Off
A11Thick Washer 8 A39Pin 3X8
A12Right Bracket, ClampA40Limitative Rod, Tilt Lock
A13Plastic NutA41Limitative Rod, Tilt Lock
A14Nut, Self-LockingA42Bolt M8X255
A15Plate, Two HoleA43Tube, Bolt
A16Nut M8 A44Locking Bracket L
A17Washer, Spring 8A45Cotter Pin 2X12
A18Screw, ClampA46Circlip 9
A19Handle, ClampA47Outer Bracket S
A20Rivet, Clamp Handle A48Out Bracket B, Tilt Lock
A21Clamp PlateA49Spring, Tension
A22Right Clamp Bracket AssyA50Inner Bracket, Tilt Lock
A23Link, BracketA51Out Bracket A, Tilt Lock
A24Screw M5X6 A52Sleeve
A25Lever, Tilt LockA53Mark 6
A26Bush, Locked HandleA54Limited Shaft, Tilt
A27Nipple, Grease M6A55O-Ring 10.8X1.9
CODEPART NAMECODEPART NAME
B1Locknut M8X1B15Mount Damper
B2Wahser 8B16Bolt M10X120
B3Bolt StudB17Washer 10
B4Bracket, Helm LB18Bolt M10X80
B4Bracket, Helm SB19Earth Wire
B5Washer, Rotary BracketB20Damper, Front
B6Bush, Rotary BracketB21Bush, Rotary Bracket
B7Lock Plate AssyB21Bush, Rotary Bracket
B8Bolt M8X30B22O-Ring,
B9Washer, Spring 8B22O-Ring
B10Plate, AbsorberB23Washer, Rotary Bracket
B11Long BoltB23Washer, Rotary Bracket
B12Absorber Assy, Double HoleB24Screw M6X12
B13Nut M10B25Nipple, Grease M6
B14Cover, Absorber

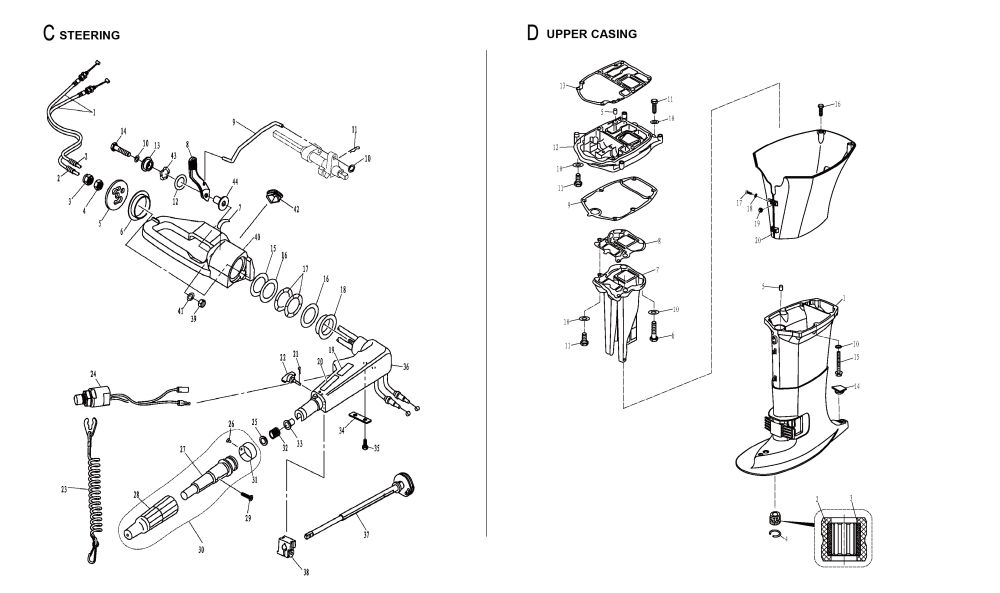

CODEPART NAMECODEPART NAME
C1Throttle Cable AssyC24Engine Stop Switch Assy
C2BellowsC25Washer 10
C3Lock Nut M10X1.25C26Rivet 2X5
C4Nut M10X1.25C27Grip, Tiller Handle
C5Plate, HandleC28Grip, Tiller Handle
C6Bush, HandleC29Screw M5X25
C7Mark 11C30Tiller Handle Assy
C8Handle, ShiftC31Indicator, Throttle
C9Shift RodC32Spring
C10Washer 6C33Bush
C11Spring 1.8 C34Fixed Plated, Throttle
C12Washer, HandleC35Bolt M6X20
C13Spacer, HandleC36Tiller Handle
C14Bolt M6X50C37Throttle Lever Assy
C15Washer, NylonC38Friction, Tiller Handle
C16Wave WahserC39Nut M6
C17Wave WahserC40Bracket, Handle
C18Bush, HandleC41Washer 6
C21Cotter Pin 1.6X12C42Jacket, Handle Bracket
C22Knob Assy, Friction AdjustingC43Wave Washer
C23Stoper, Hang Rope AssyC44Tube, Flange
CODEPART NAMECODEPART NAME
D1Upper Casing D11Bolt M8X30
D1Upper Casing D12Seat, Exhaust Manifold
D2Rubber BushD13Gasket, Engine
D3Bush, Drive ShaftD14Jam, Lower Casing
D4Circlip 30D15Bolt M8X80
D5Pin 6X12D16Bolt M6X16
D6Bolt M8X45 D17Screw M6X25
D7Exhaust ManifoldD18Washer, Spring 6
D8Gasket, Exhaust ManifoldD19Nut M6
D9Gasket, Exhaust SeatD20Cover, Upper Casing
D10Wahser 8

CODEPART NAMECODEPART NAME

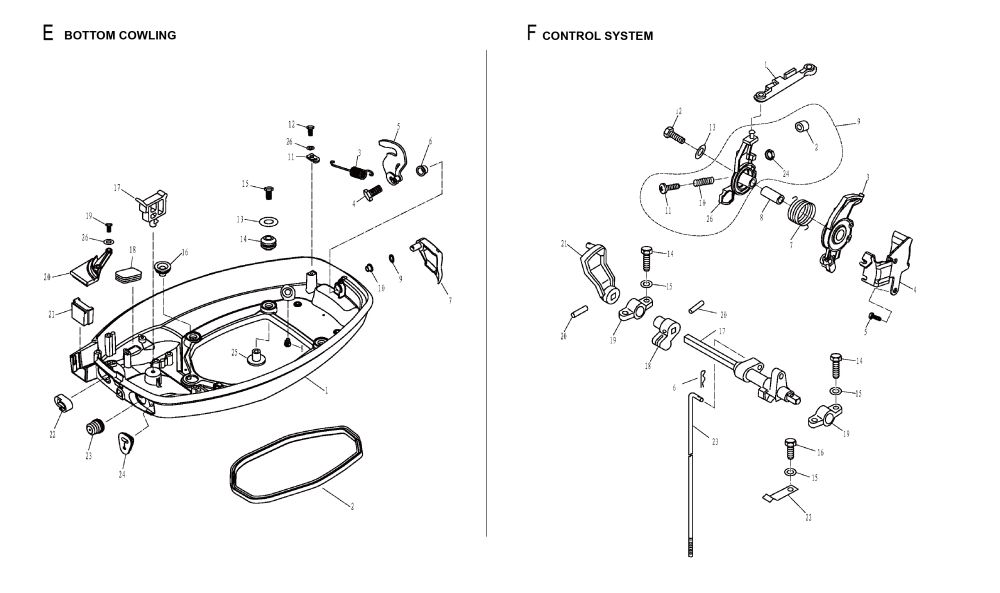

E1Bottom CowlingE14Damper
E2Seal, Bottom CowlingE15Bolt M6X30
E3Spring, Locked BlockE16Jacket, Shift Rod
E4Bolt M6X12E17Square Clamp A
E5Locking Hook AssyE18Rubber Plug, Quadrate
E6Bush B E19Bolt M6X25
E7Locking Handle AssyE20Cover, Bottom Cowling
E8Nozzle, PlasticE21Jam, Rubber
E9Wave WasherE22Spacer, Fuel Filter
E10Bush AE23Jacket, Bellows
E11Bracket,Tension SpringE24Jacket, Throttle Cable
E12Bolt M6X20E25Bush, Damper
E13Big Washer 6 E26Washer 6
CODEPART NAMECODEPART NAME
F1Link, Pulser CoilF14Bolt M6X25
F2Cover, NutF15Washer 6
F3Drive Pulley, ThrottleF16Bolt M6X16
F4Plate, Throttle ActuatorF17Lever Assy, Shift Rod
F5Bolt M6X16F18Rocker, Detent
F6Spring 1.8 F19Bracket, Shift Rod
F7Spring, Drive WheelF20Pin,Spring Bolt M6X20
F8Bush, Throttle ActuatorF21Block, Throttle
F9Pulley, Throttle ActuatorF22Spring, Shift Lever
F10SpringF23Shift Rod
F11Screw M6X40F23Shift Rod
F12Bolt M8X45 F19Nut M6
F13Washer, Throttle ActuatorF26Pulley, Throttle Actuator
CODEPART NAMECODEPART NAME

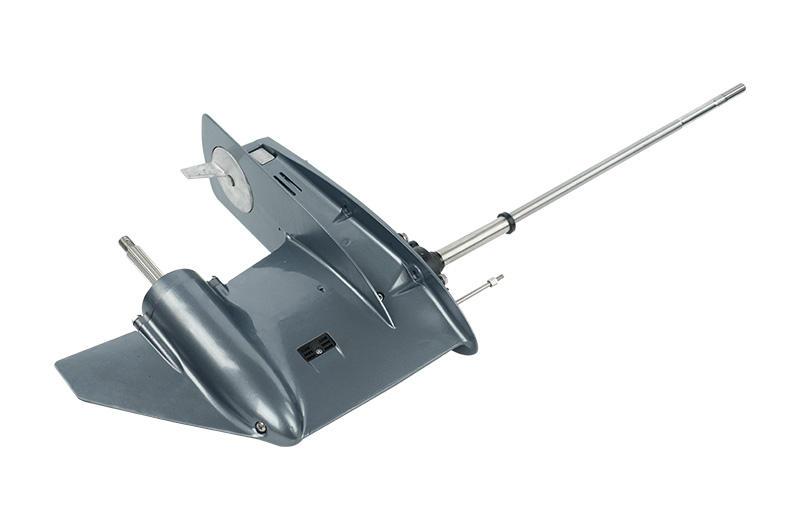

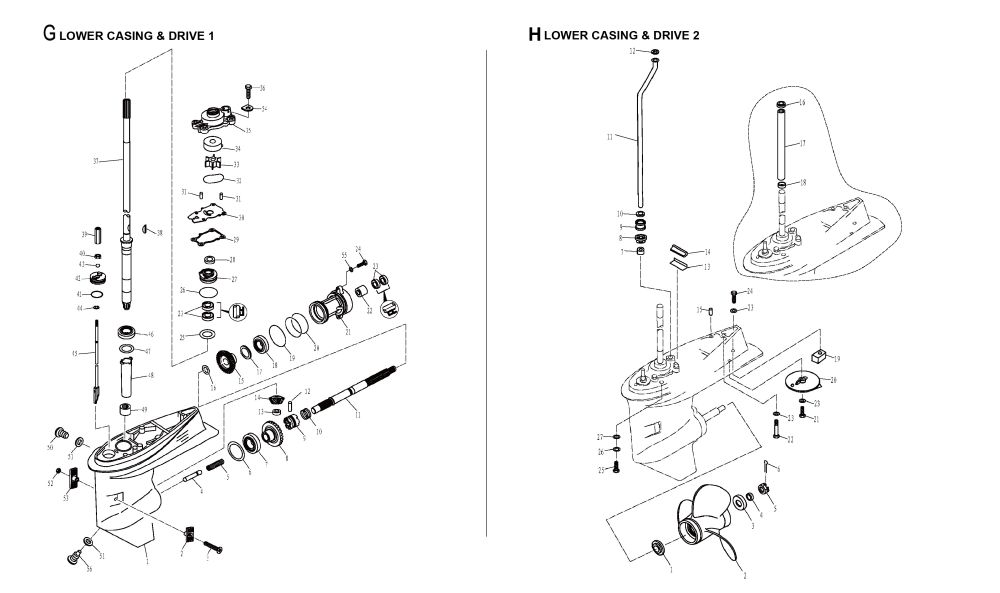

G1Lower CasingG30Outer Plate
G2Water Inlet AG31Pin 4X10
G3Screw M5X28G32O-Ring

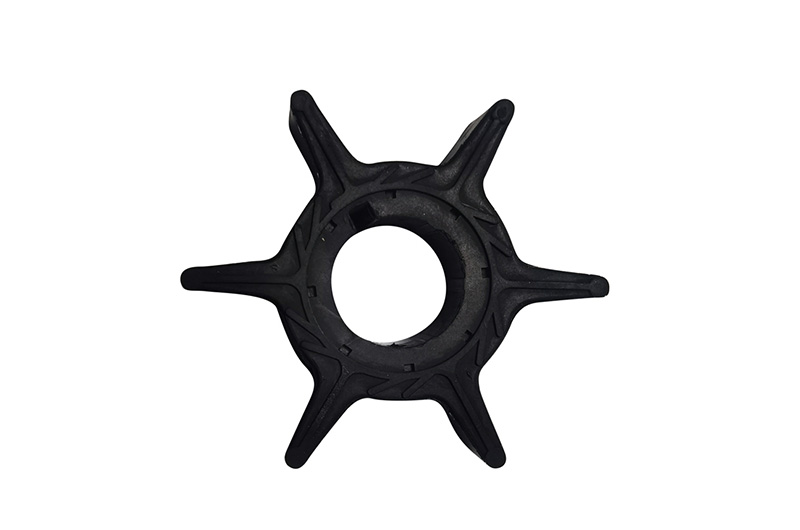

G4Plunger, Shift RodG33Impeller, Water Pump
G5Spring, ClutchG34Insert Cover, Water Pump
G6Shim T:0.10MmG35Housing, Water Pump
G6Shim T:0.20MmG36Bolt M8X30

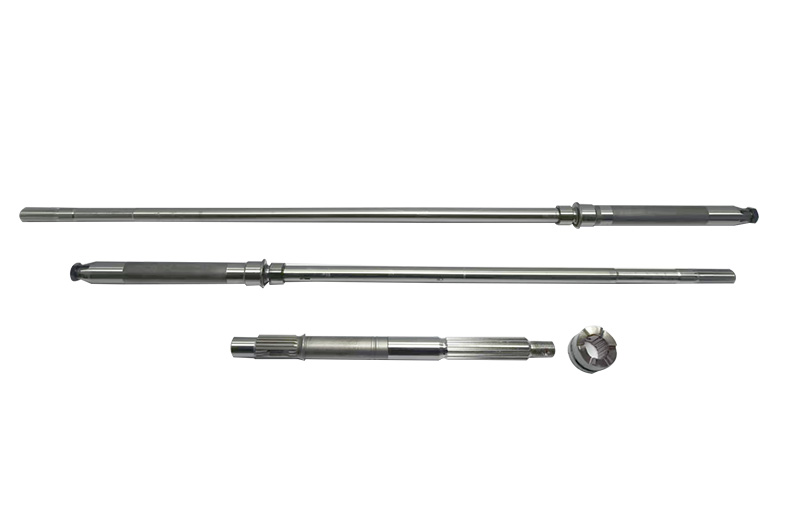

G6Shim T:0.30MmG37Drive Shaft Assy L
G6Shim T:0.40MmG37Drive Shaft Assy S
G6Shim T:0.50MmG37Drive Shaft Assy X
G7Roller BearingG38Woodruff Key
G8Forward Gear AssyG39Nut, Plunger
G9Clutch, DogG40Nut M6
G10Ring, ClutchG41O-Ring
G11Shaft, PropellerG42Cover Plate, Shift Cam
G12Pin, ClutchG43O-Ring
G13Nut, Pinion M12X1.25G44Washer 6

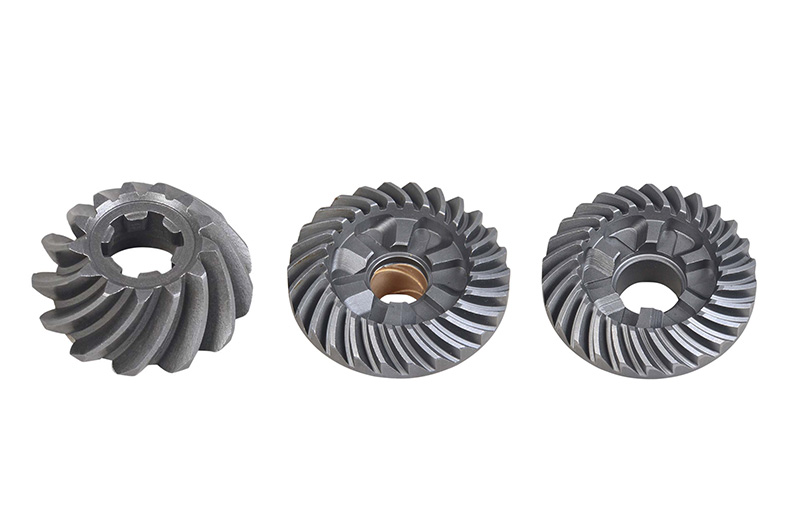

G14PinionG45Shift Cam Shaft Assy L
G15Gear, ReverseG45Shift Cam Shaft Assy S
G16Washer, Reverse GearG46Roller Bearing 32005
G17Shim T:0.30MmG47Shim T:0.15Mm
G17Shim T:0.40MmG47Shim T:0.18Mm
G18Bearing 6007 P5C4G47Shim T:0.30Mm
G19O-Ring AG48Bush, Nylon
G20O-Ring BG49Needle Bearing 1416
G21Cover, Lower CasingG50Screw Plug
G22Needle Bearing 2220G51Gasket, Screw Plug
G23Oil Seal 22X36X6G52Nut M5
G24Bolt M8X25G53Water Inlet B
G25Big WasherG54Wahser 8
G26O-RingG55Wahser 8
G27Casing A, Oil SealG56Bolt, Drain
G28Cover, Oil Seal
G29Gasket, Water Pump Base
CODEPART NAMECODEPART NAME

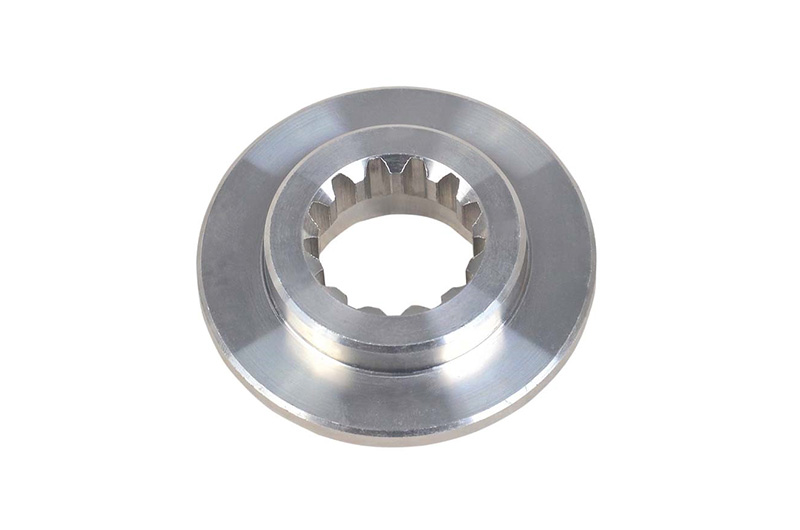

H1Spacer, PropellerH14Water Seal

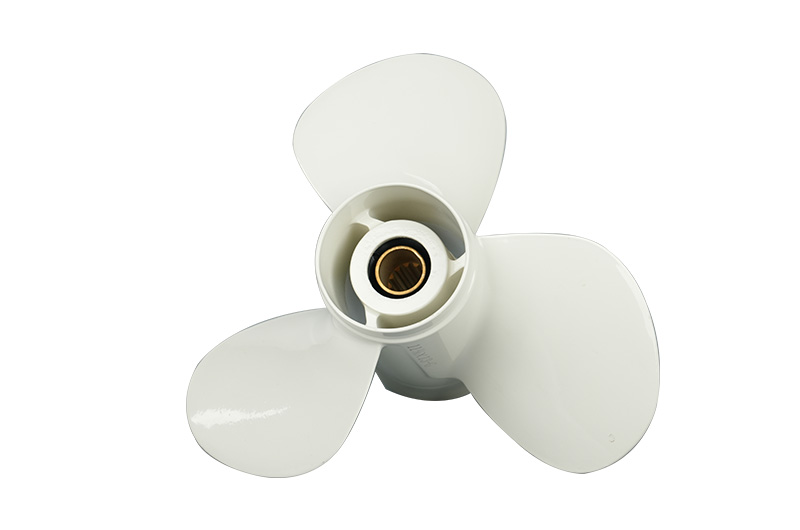

H2Propeller Assy 3-11 1/8"X13"H15Pin 6X12
H2Propeller Assy 3-11 3/8"X12"H16Seal B, Drive Shaft
H2Propeller Assy 3-11 5/8"X11"H17Bush, Drive Shaft
H3Bush A, PropellerH17Bush, Drive Shaft
H4Bush B, PropellerH18Seal A, Drive Shaft

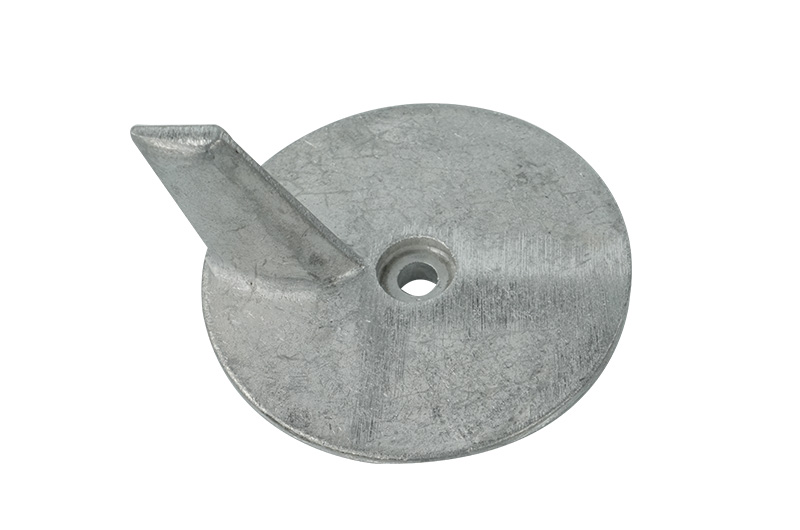

H5Slotted NutH19Anode A
H6Cotter Pin 3.2X25 H20Course Tab
H7Seal, Water Tube H21Bolt M8X25
H8Bush, Water TubeH22Bolt M8X65
H9Bush, Water TubeH23Washer, Spring 8
H10Seal, Water Tube H24Bolt M8X35
H11Water Tube LH25Bolt M10X1.25X40
H11Water Tube SH26Washer, Spring 10
H12Washer, Water TubeH27Washer 10
H13Plate, Water Seal

CODEPART NAMECODEPART NAME

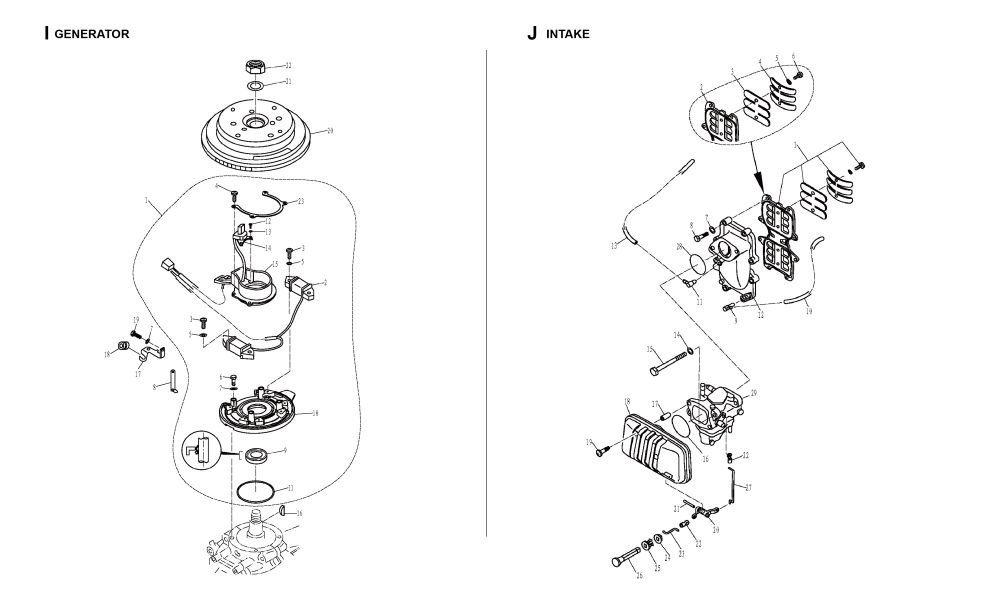

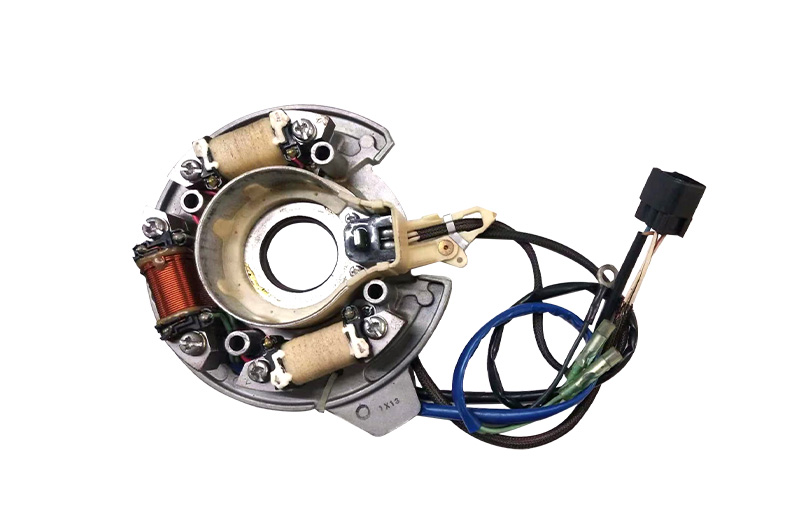

I1Stator Coil AssyI13Washer 4

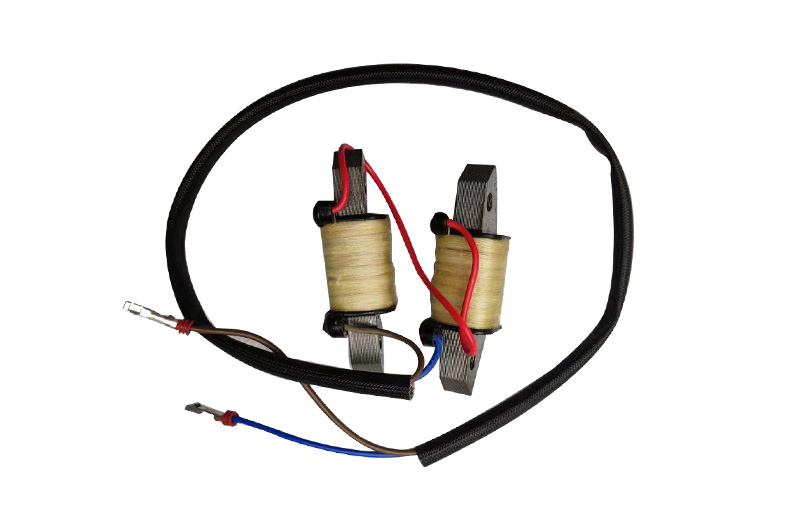

I2Charge CoilI14Pulser Coil Assy
I3Screw M6X30I15Bracket, Pulser Coil
I4Screw M4X6I16Woodruff Key, Fly Wheel
I5Washer, Spring 6I17Clamp
I6Bolt M6X40I18Washer, Ringent
I7Washer, Spring 6I19Bolt M6X16
I8Clamp, NylonI20Flywheel Assy
I9Oil Seal 35X50X8 I21Washer, Flywheel Nut
I10Base, Stator CoilI22Nut, Fly Wheel
I11O-Ring, Stator CoilI23Plate,Pulser Coil
I12Screw M4X8

CODEPART NAMECODEPART NAME
J1Intake Valve AssyJ16O-Ring
J2Intake Valve Seal SeatJ17Bush, Intake Silencer
J3Plate, Intake ValveJ18Intake Silencer Assy
J4Limitative Plate, ValveJ19Screw M6X40
J5Washer, Spring 5J20Swing Link, Choke
J6Screw M5X10J21Pin 4X30
J7Washer 6J22Joint, Throttle Actuator
J8Bolt M6X35J23Linker A, Choke
J9Nipple Assy AJ24Rubber Collar, Choke
J10Hose C 7X2.5X245J25Bush, Choke
J11Nipple Assy BJ26Handle, Choke
J12Manifold, Intake J27Linker B, Choke
J13Hose 7X2.5X285J28O-Ring

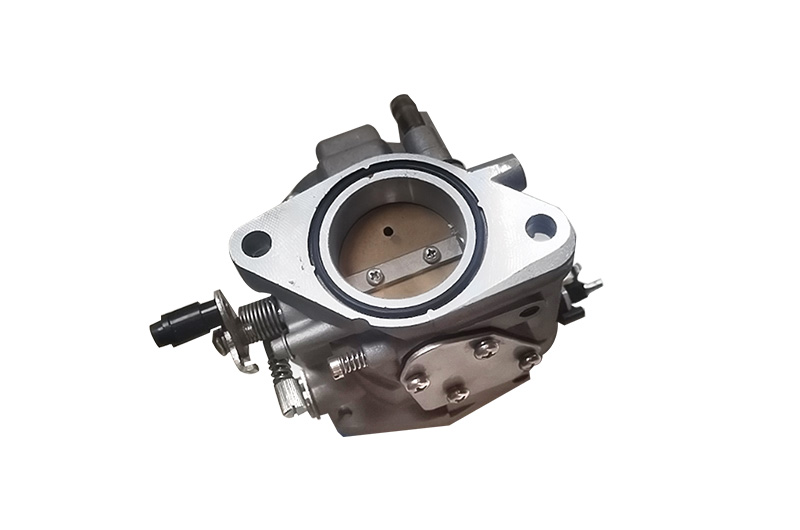

J14Wahser 8J29Carburetor Assy
J15Bolt M8X100

CODEPART NAMECODEPART NAME

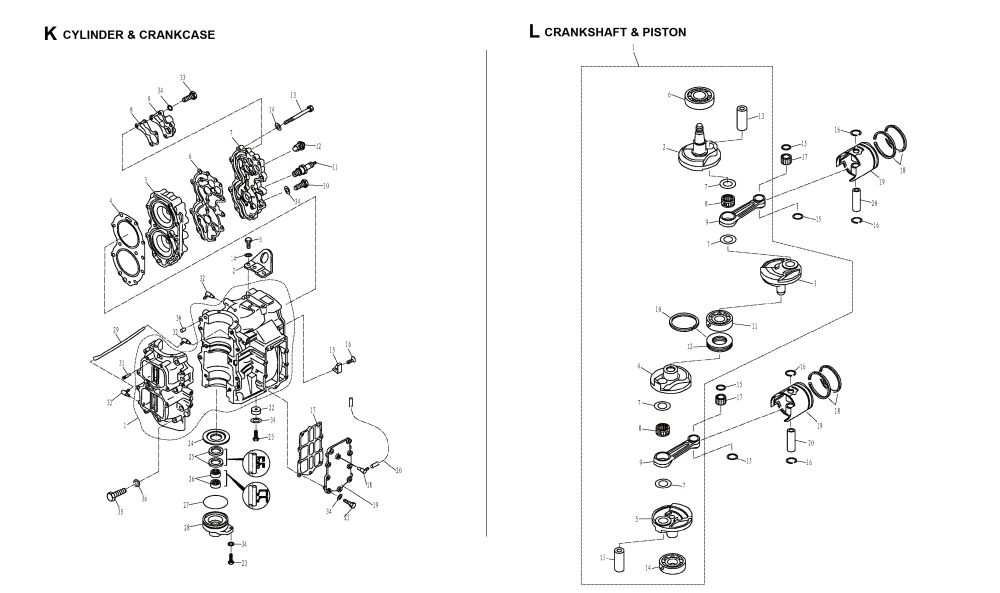

K1Crankcase AssyK19Cover, Exhaust
K2Pothook, EngineK20Hose 5X10X400
K3Bolt M8X20K21Bolt M6X25
K4Gasket, Cylinder Head K22Anode A, Crankcase
K5Cylinder CoverK23Bolt M6X20
K6Gasket, Cylinder Cover K24Fixed Washer, Crankshaft
K7Outer Cover, Cylinder K25Oil Seal A 30X42X6
K8Gasket, ThermostatK26Oil Seal 16X30X6
K9Cover, ThermostatK27O-Ring
K10Bolt M6X25K28Casing, Oil Seal

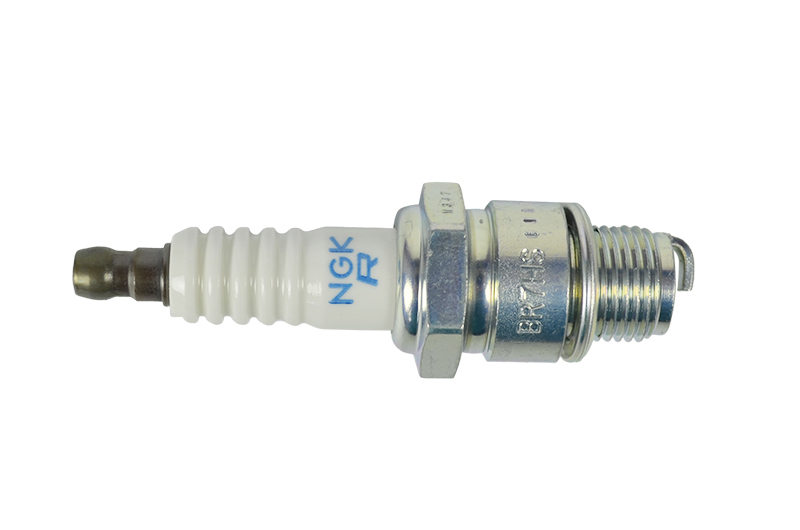

K11Spark Plug Bpr7HsK29Hose B 2.5X7X215
K12ThermostatK30Pin 8X12
K13Bolt M8X70K31Nozzle, Water
K14Wahser 8K32Nipple Assy B
K15Anode B, CrankcaseK33Bolt M6X35
K16Screw M6X25 K34Washer 6
K17Gasket, Exhaust CoverK35Bolt M8X1.25X55
K18Nozzle AssyK36Washer 10
CODEPART NAMECODEPART NAME

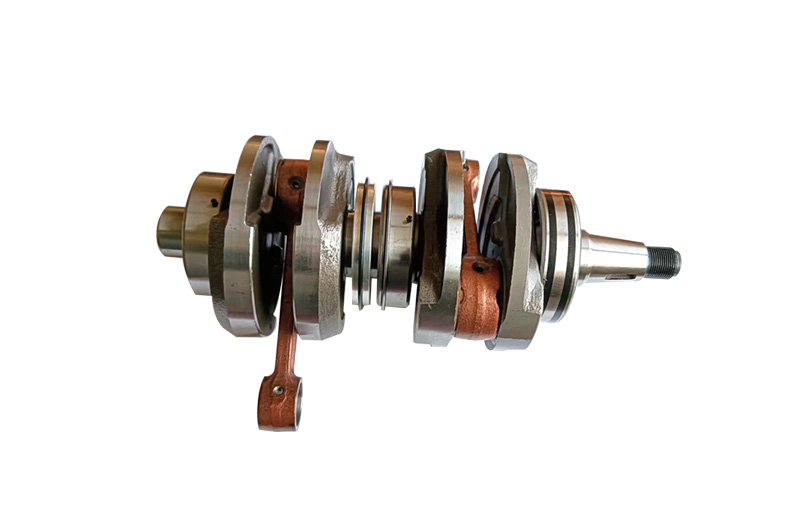

L1Crankshaft Rod AssyL11Roller Bearing
L2Block, Swing AL12Seal, Retainer
L3Block, Swing BL13Pin, Crankshaft
L4Block, Swing CL14Ball Bearing
L5Block, Swing DL15Washer, Piston
L6Ball BearingL16Circlip
L7Thrust WasherL17Needle Bearing 2.5X20.8
L8Needle Bearing L18Piston Ring Assy

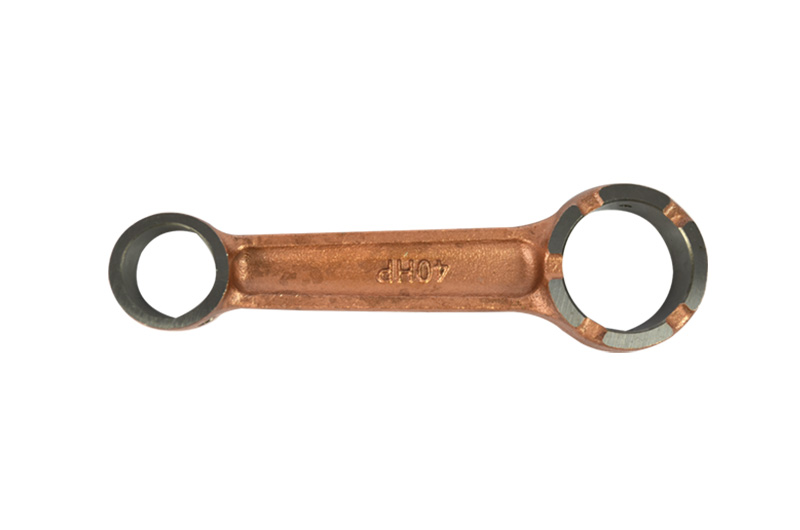

L9Connecting Rod L19Piston
L10Circlip L20Pin, Piston
CODEPART NAMECODEPART NAME

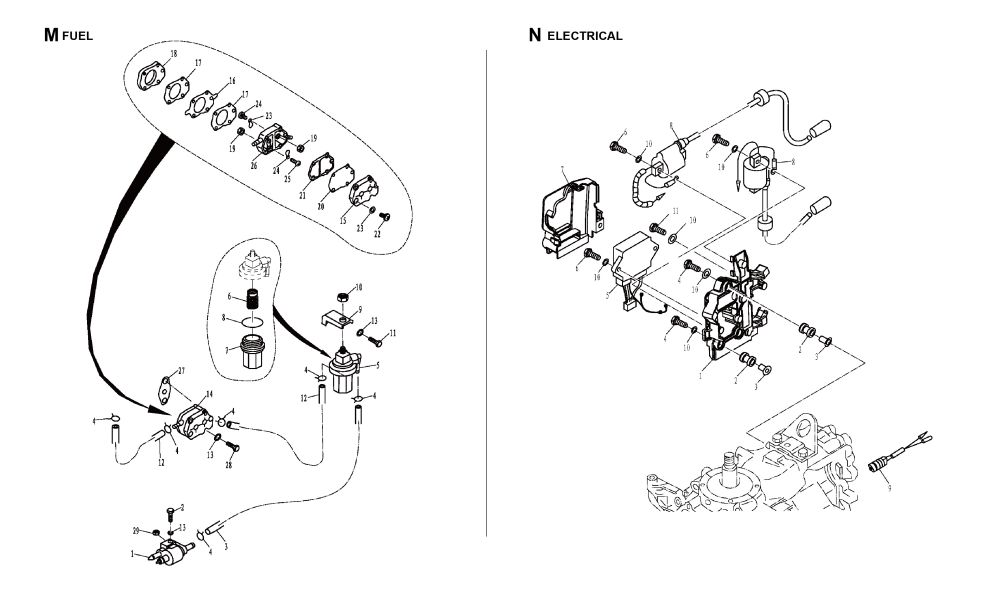

M1Fuel Fitting AssyM16Diapwagm, Lower Cover
M2Bolt M6X30M17Seal, Lower Cover
M3Hose 10X 5X550M18Lower Cover, Fuel Pump
M4Clip Spring BM19Nut M3

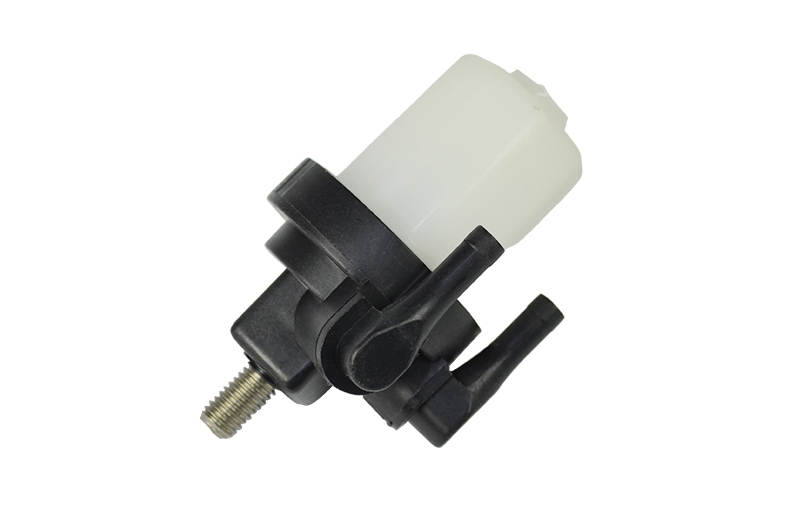

M5Filter Cup AssyM20Diaphragm, Upper Cover
M6Element, FilterM21Seal, Upper Cover
M7Cup, FilterM22Screw M5X30
M8O-Ring 32.5X1.8M23Washer, Spring 5
M9Bracket, Filter CupM24Plate, Check Valve
M10Nut M8 M25Screw, Valve
M11Bolt M6X14M26Cover, Fuel Pump
M12Hose 5X10X170M27Gasket, Fuel Pump
M13Washer 6M28Bolt M6X45

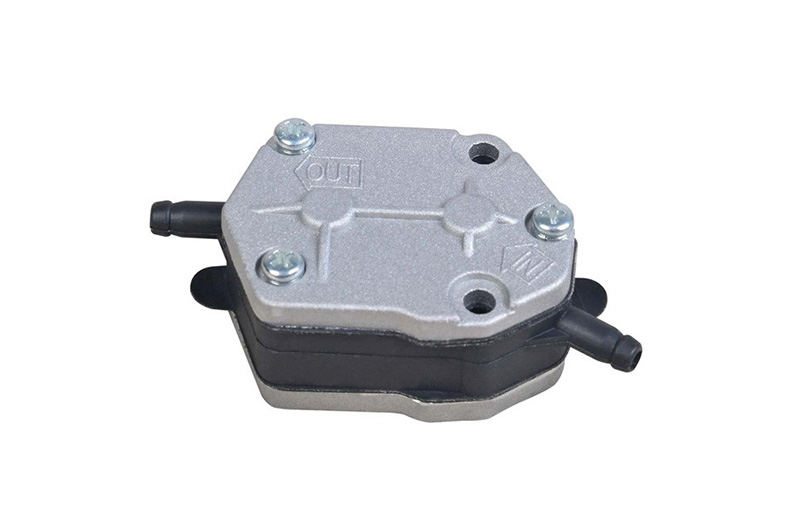

M14Fuel Pump Assy M29Nut M6
M15Upper Cover, Fuel Pump

CODEPART NAMECODEPART NAME
N1Bracket, Ignition CoilN7Bracket Cover, Ingnition Coil

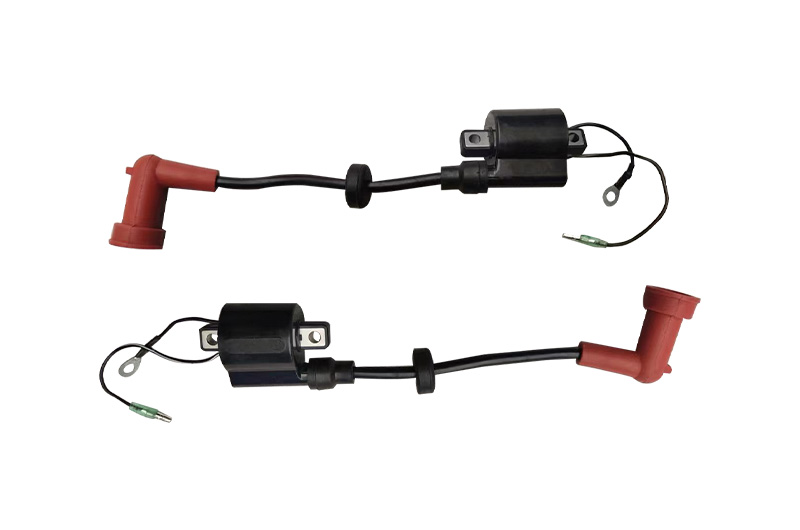

N2Damper, Ignition CoilN8Ignition Coil Assy A
N3Bush, AbsorberN8Ignition Coil Assy B
N4Bolt M6X30N9Thermosensor Assy

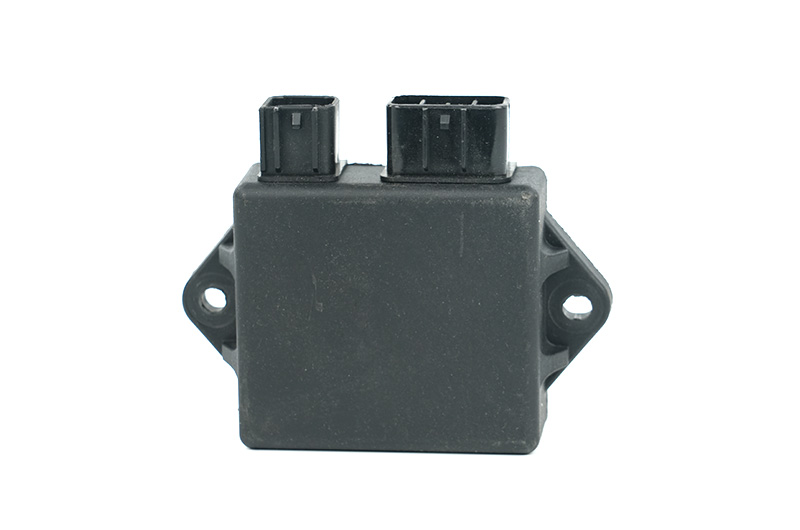

N5Cdi Unit AssyN10Washer 6
N6Bolt M6X25N11Bolt M6X12

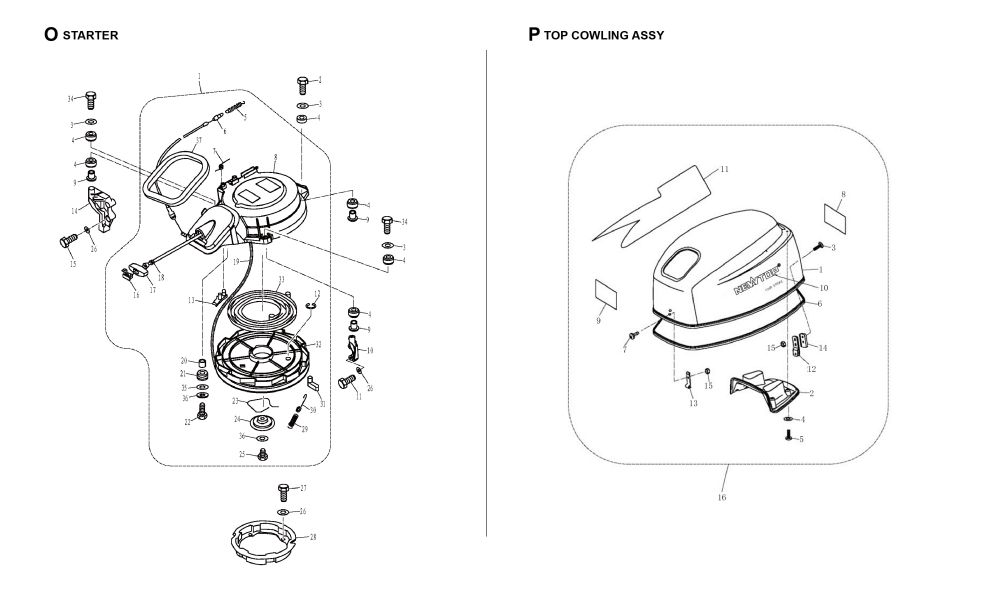

CODEPART NAMECODEPART NAME
O1Starter AssyO20Bush, Pulley
O2Bolt M8X25O21Pulley, Start Wheel
O3Wahser 8O22Bolt M6X25
O4Damper, Starter O23Spring, Start Wheel
O5Spring, DetentO24Plate, Start Wheel
O6Detent Cable AssyO25Bolt M6X14
O7Spring, DetentO26Washer 6
O8Cover Assy, Starter O27Bolt M6X12
O9Bush, Start WheelO28Pulley, Starter
O10Left Bracket, Starter O29Spring, Pawl
O11Bolt M6X30O30Link, Pawl
O12Circlip 8O31Pawl, Drive
O13DetentO32Wheel, Start-Up
O14Right Bracket, StarterO33Spring, Volute
O15Bolt M6X30O34Bolt M8X35
O16Handle Cover, StarterO35Big Washer 6
O17Starter Handle O36Washer, Spring 6
O18Damper, HandleO37Seal, Frothy Rubber
O19Start Rope 4X1.78

CODEPART NAMECODEPART NAME

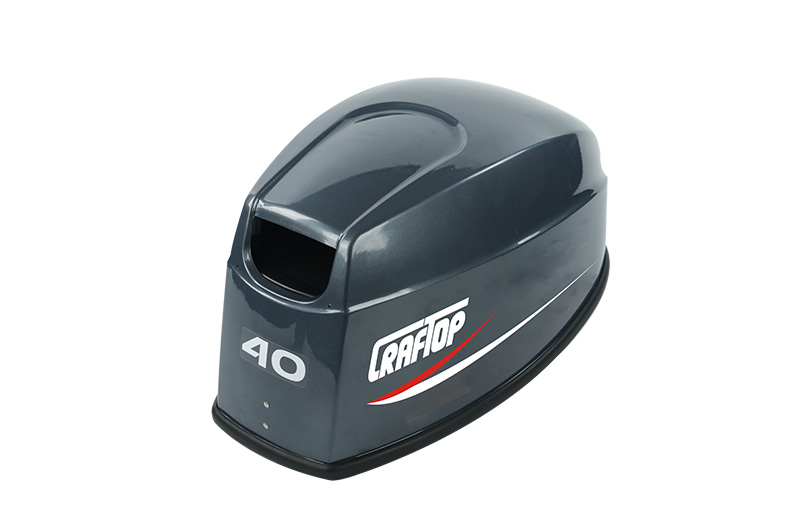

P1Top CowlingP10Decal, Top Cowling
P2Cover, Top Cowling MuffleP11Decal, Top Cowling
P3Screw M6X10P12Back Pothook Assy
P4Gasket, RubberP13Front Hook
P5Screw 4.8X16P14Washer, Pothook
P6Rubber Seal, Top CowlingP15Locknut M6
P7Screw M6X25P16Top Cowling Assy
P840Hp DecalP17Cushion, Back Pothook

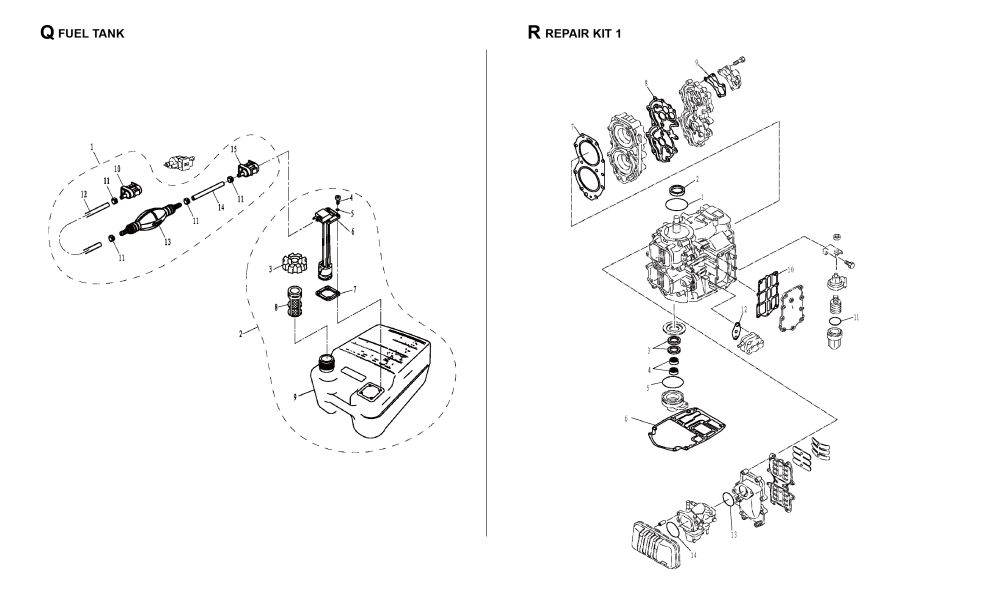

CODEPART NAMECODEPART NAME
Q1Fuel Line Assy Q9Body, Fuel Tank
Q2Portable Fuel Tank Assy 24LQ10Fuel Fitting Assy
Q3Fuel Tank Cap AssyQ11Clamp B
Q4Screw M5X16Q12Hose A 10X6X2080
Q5Washer 5Q13Primer Bulb Assy
Q6Oleometer Assy Q14Hose B 10X6X850
Q7GasketQ15Fuel Fitting Assy
Q8Filter, Fuel Tank

CODEPART NAMECODEPART NAME

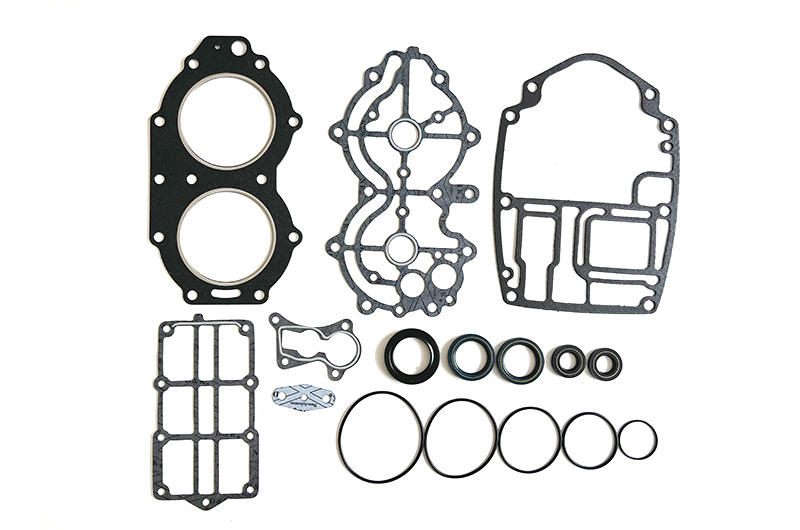

R1O-Ring, Stator CoilR8Gasket, Cylinder Cover
R2Oil Seal 35X50X8 R9Gasket, Thermostat
R3Oil Seal A 30X42X6 R10Gasket, Exhaust Cover
R4Oil Seal 16X30X6R11O-Ring 32.5X1.8
R5O-RingR12Gasket, Fuel Pump
R6Gasket, EngineR13O-Ring
R7Gasket, Cylinder Head R14O-Ring
CODEPART NAMECODEPART NAME
S1Gasket, Exhaust ManifoldS10Seal, Water Tube
S2Gasket, Exhaust SeatS11Bush, Water Tube
S3Oil Seal 22X36X6S12Gasket, Screw Plug
S4O-RingS13O-Ring
S5Gasket, Water Pump BaseS14O-Ring
S6Outer PlateS15Woodruff Key
S7O-RingS16O-Ring B
S8Impeller, Water PumpS17O-Ring A
S9Insert Cover, Water PumpS18Oil Seal 22X36X6
CODEPART NAMECODEPART NAME
T1Carburetor AssyT24Jet, Main
T2GB/T818-M4T25Needle Valve
T3Washer, Spring 4T26Screw, Jet
T4PlateT27Float
T5GasketT28Pin, Float
T6Screw M3X6T29Gasket, Float Chamber
T7Damper, ThrottleT30Float Chamber Assy
T8Body A, CarburetorT31Float Chamber
T9Washer, Swing Shaft T32Gasket, Drain Bolt
T10Washer, Swing Shaft T33Bolt, Drain
T11Pin 3X12 T34Screw M5X25
T12Baffle Plate, ChokeT35Washer, Spring 5
T13Washer, Spring 3T36Plate, Swing Shaft
T14Screw M3X6T37Swing Link A, Throttle
T15Joint, Throttle Link RodT38Washer, Swing Shaft
T16Bush, ChokeT39Screw, Swing Link
T17Spring, Swing Link T40Spring, Swing Link
T18Swing Link, ChokeT41Swing Link B, Throttle
T19O-RingT42Screw, Air Adjusting
T20Jet, Air SlowT43Spring, Air Adjusting
T21Body B, CarburetorT44Stop Screw, Throttle
T22Gasket, Carburetor T45Spring, Stop Screw
T23Gasket, Main JetT46O-Ring


Wholesale only. No retail and individual buyers. No job recruitment, please.

Plesae provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.

RELATED ENTIRE MACHINE

9.8HP Outboard Motor Boat Engine 2 Stroke Ship Outboard Engine
T9.8

9.8HP Outboard Motor Boat Engine 2 Stroke Ship Outboard Engine

LEARN MORE
9.9 HP Outboard Motor Boat Engine 2-Cycle Outboard Engine for Ship
T9.9

9.9 HP Outboard Motor Boat Engine 2-Cycle Outboard Engine for Ship

LEARN MORE
30 HP Outboard Motor 2-Cycle Outboard Boat Engine for Ship
T30

30 HP Outboard Motor 2-Cycle Outboard Boat Engine for Ship

LEARN MORE
40 HP Outboard Motor 2-Cycle Outboard Boat Engine for Ship
T40

40 HP Outboard Motor 2-Cycle Outboard Boat Engine for Ship

LEARN MORE

Hot categories
