9.8 HP Outboard Motor Replacement Parts T9.8 Outboard Boat Engine Accessories

T9.8 Outboard Parts

9.8 HP Outboard Motor Replacement Parts T9.8 Outboard Boat Engine Accessories
  • Precision-manufactured CRAFTOP T9.8 outboard motor parts with exact fitment standards.
  • Made from finest materials for durability and reliability, CRAFTOP outboard motor replacement parts are easy to maintain with low cost.
  • Strong crankshaft, long-lasting piston and piston ring, robust gears, and gear case for excellent reliability.
  • Proven power, efficiency, and endurance with the cylinder design.
  • CDI ignition system provides automatic spark and maximum power.
  • Trust CRAFTOP for reliable and powerful gasoline outboard motor engine parts.
Send An Inquiry

Packaging Style

Outboard Motor

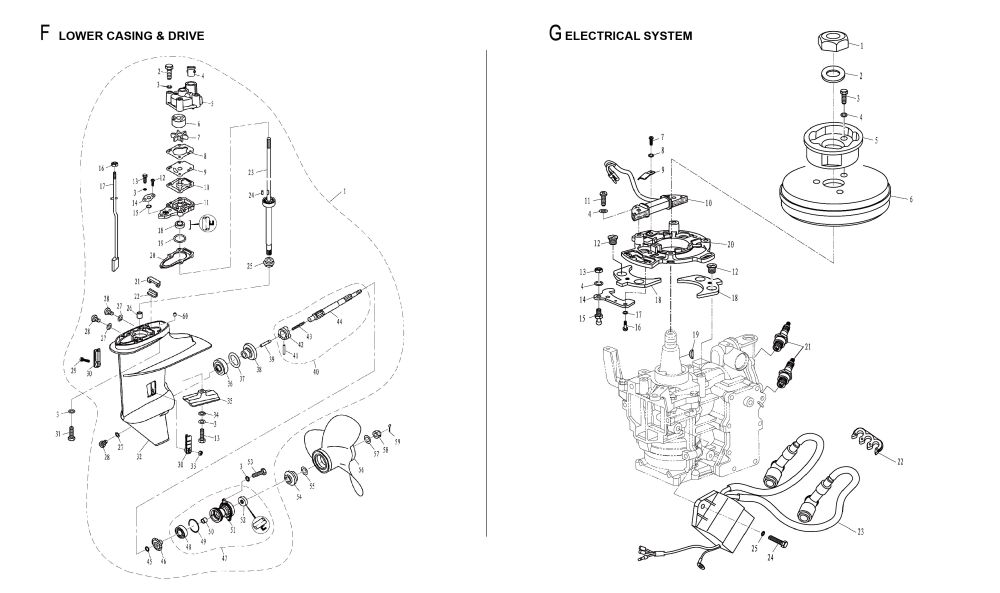

Exploded View of the Whole Machine

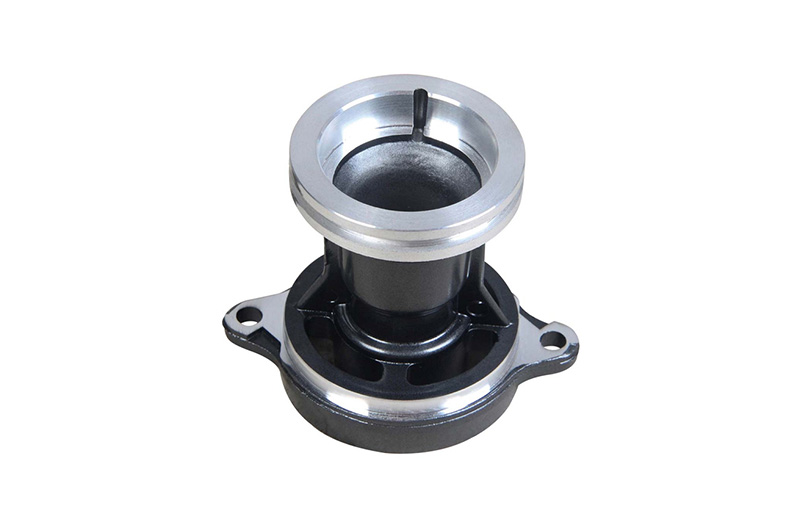

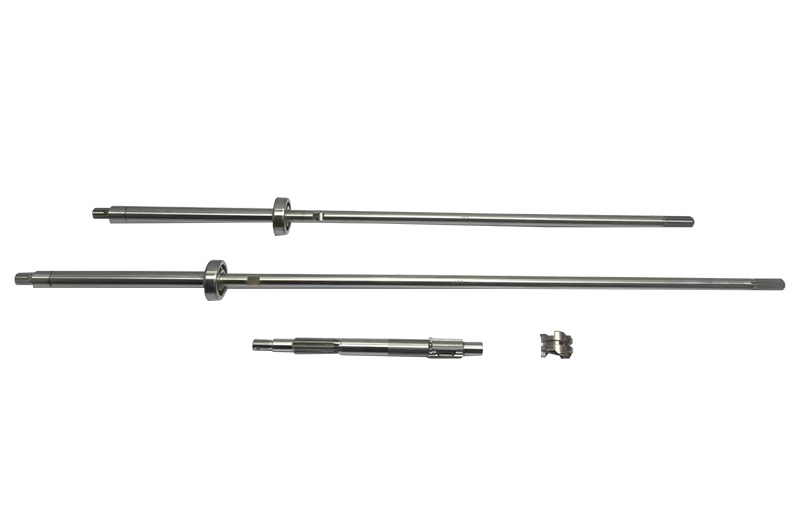

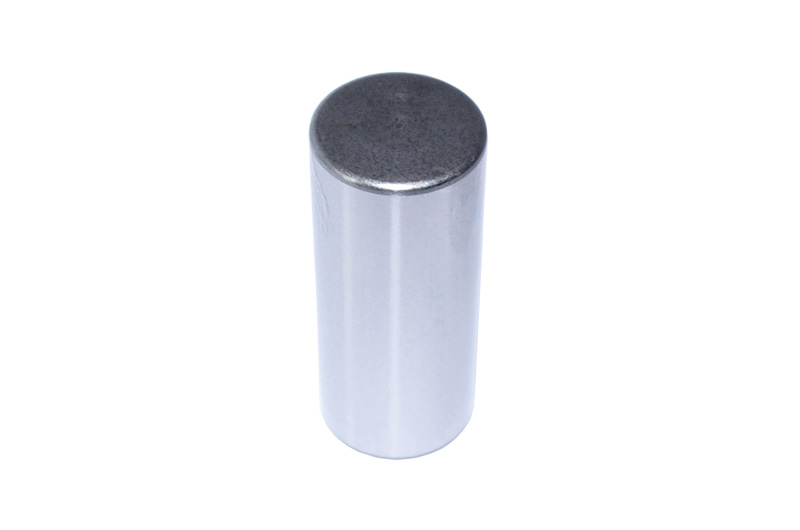

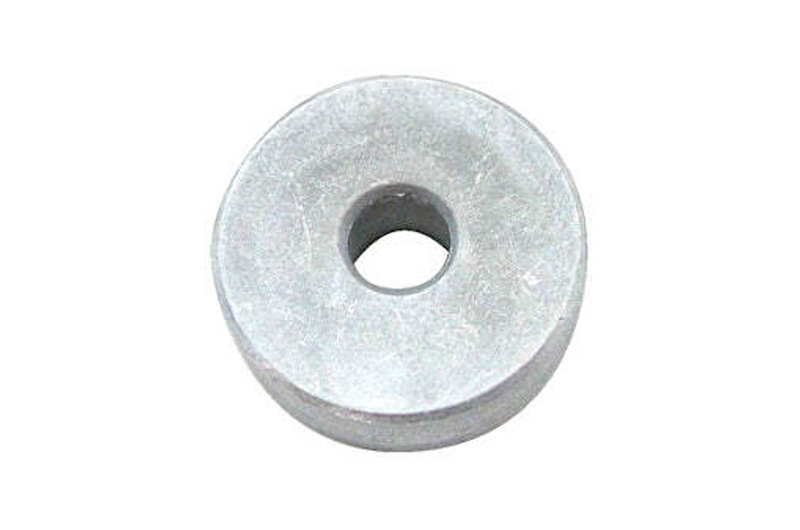

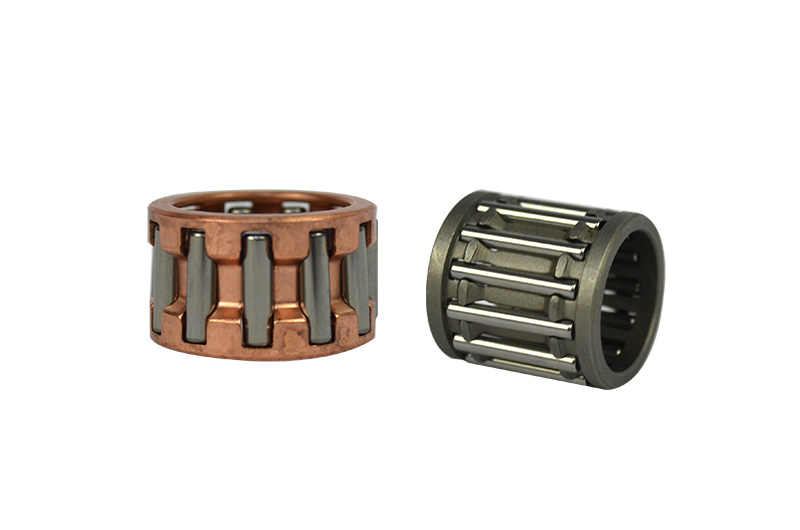

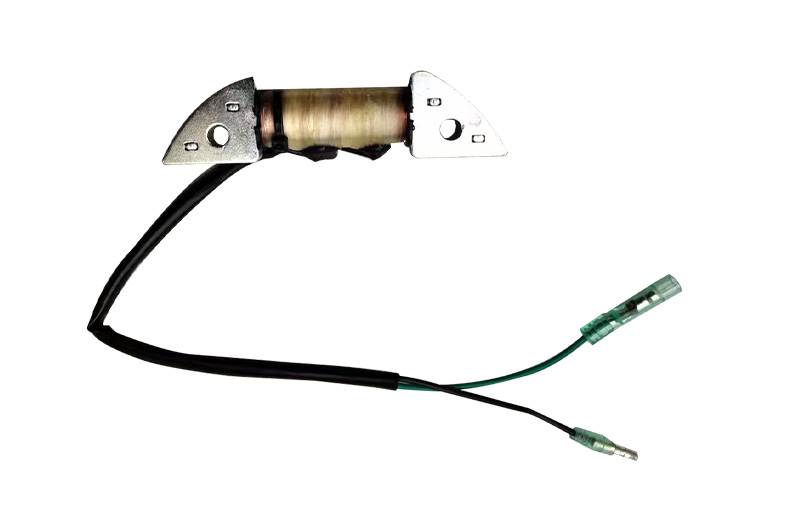

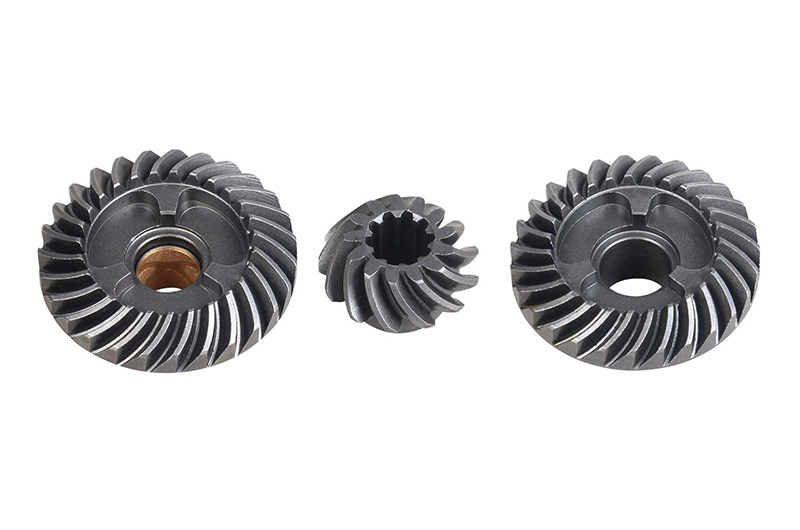

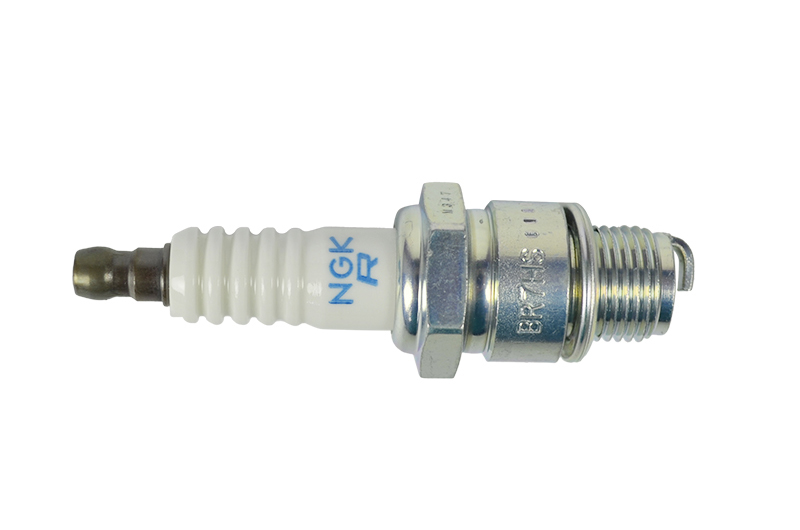

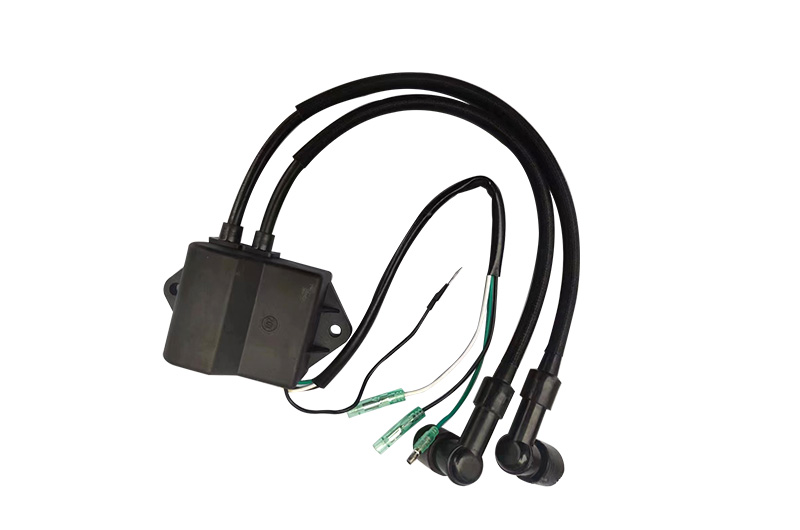

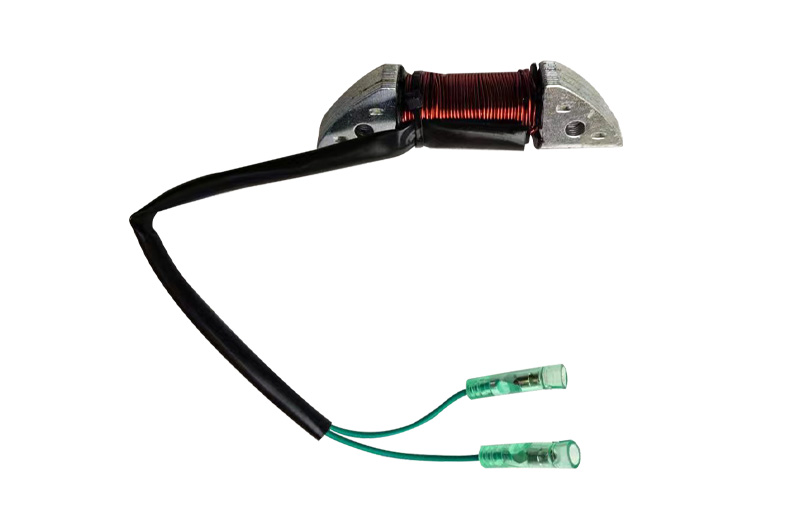

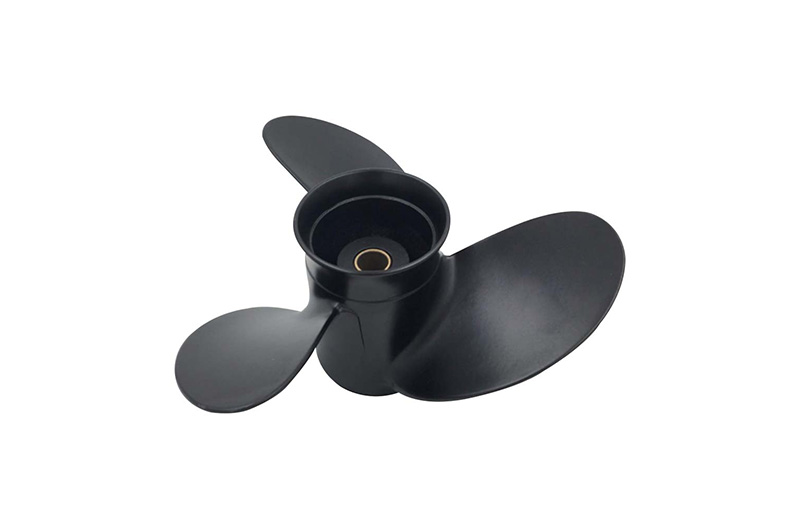

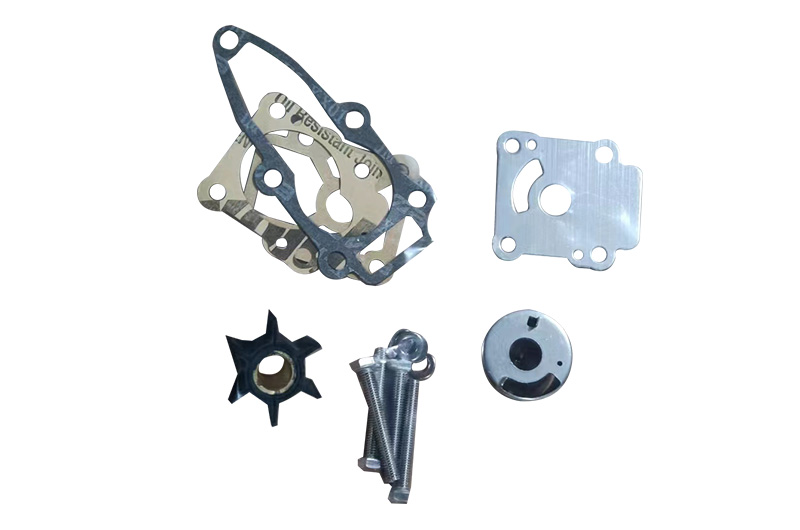

Important Spare Parts

Other Spare Parts

CODEPART NAMECODEPART NAME

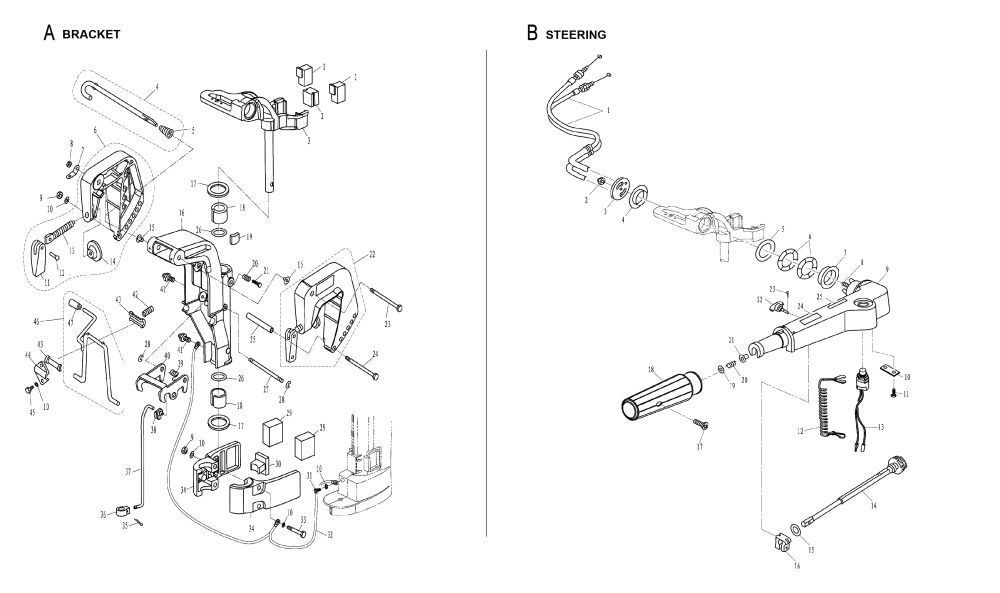

A1Absorber BA25Bush, Bolt
A2Damper B, FrontA26O-Ring 19.8X4.2
A3Helm Bracket AssyA27Shaft, Rotary Bracket
A4Limitative Rod, Tilt LockA28Circlip 5
A5Conical SpringA29Absorber A
A6Left Clamp Bracket AssyA30Damper A, Front
A7Plate, Two HoleA31Bolt M6X8
A8Lock Nut M8A32Earth Wire B
A9Nut M6A33Nut M6X65
A10Washer 6A34Cover, Absorber
A11Handle, ClampA35Cotter Pin 2X16
A12Rivet, Clamp Handle A36Bracket, Lock Hook
A13Screw, ClampA37Link, Lock Hook
A14Clamp PlateA38Joint, Inner Frame
A15Washer, Nylon A39Spring, Wrest
A16Bracket, RotaryA40Inner Frame. Rotary Bracket
A17Washer, Rotary Bracket A41Nipple, Grease M6
A18Bush, Rotary Bracket A42Spring, Support
A19Locked Block AssyA43Bush, Nylon
A20Spring, Locking A44Press Plate
A21Bolt M8X30A45Bolt M6X12
A22Right Clamp Bracket AssyA46Bracket Asyy, Tilt Lock
A23Bolt M8X140A47Jacket, Handle
A24Bolt M6X130—
CODEPART NAMECODEPART NAME
B1Throttle Cable Assy B14Throttle Lever Assy
B2Lock Nut M8B15Washer, Nylon
B3Plate, HandleB16Friction, Tiller Handle
B4Bush, HandleB17Screw M5X25
B5Washer, Nylon B18Grip Assy, Tiller Handle
B6Wave WasherB19Washer 10
B7Bush, HandleB20Spring
B8Bolt Stud M8X25 B21Bush
B9Tiller HandleB22Knob Assy, Friction Adjusting
B10Fixed Plated, ThrottleB23Cotter Pin 1.6X12
B11Screw M5X12B24Mark 14
B12Stoper, Hang Rope AssyB25Mark 16
B13Engine Stop Switch Assy—

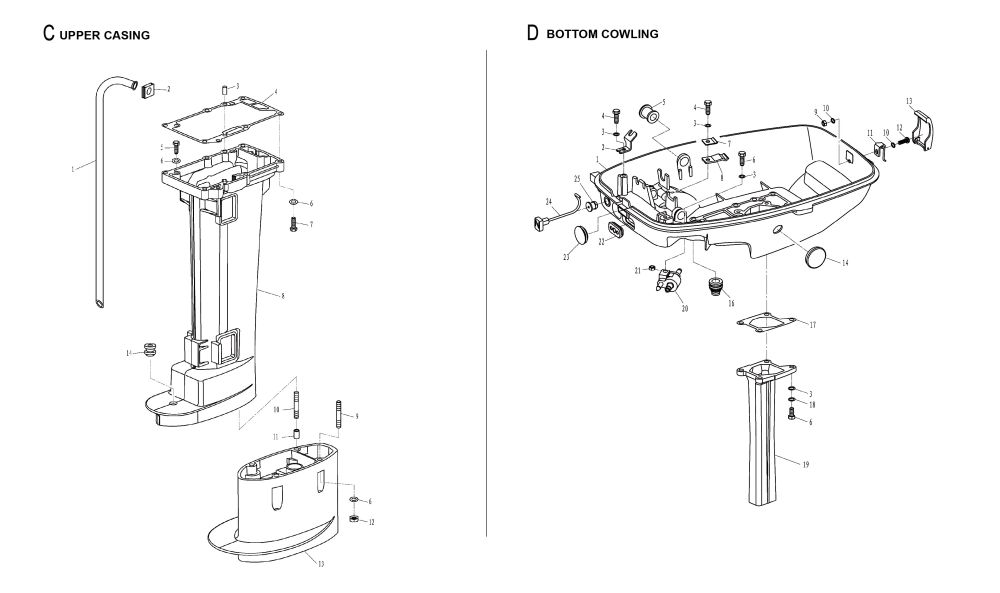

CODEPART NAMECODEPART NAME
C1Water Tube SC8Upper Casing S
C1Water Tube LC8Upper Casing L
C2I-Shaped Rubber SealC9Bolt Stud M6X23
C3Pin 6X18C10Bolt Stud M6X28
C4Gasket, Upper Casing C11Hollow Pin
C5Bolt M6X20C12Nut M6
C6Washer 6C13Extension
C7Bolt M6X35C14Washer, Shift Rod
CODEPART NAMECODEPART NAME
D1Bottom Cowling D13Locking Hook Assy
D2Frame, Detent CableD14Rubber Plug, Circular
D3Washer 6D16Jacket, Shift Rod
D4Bolt M6X16D17Gasket, Exhaust Pipe
D5Circular PlugD18Washer, Spring 6
D6Bolt M6X20D19Pipe, Exhaust
D7Spring Plate, Shift LeverD20Fuel Fitting Assy
D8Spring, Shift LeverD21Nut M6
D9Lock Nut M5D22Jacket, Throttle Cable
D10Washer 5D23Circular Plug
D11Locking Hook AssyD24Handle, Choke
D12Screw M5X16D25Rubber Collar, Choke
CODEPART NAMECODEPART NAME

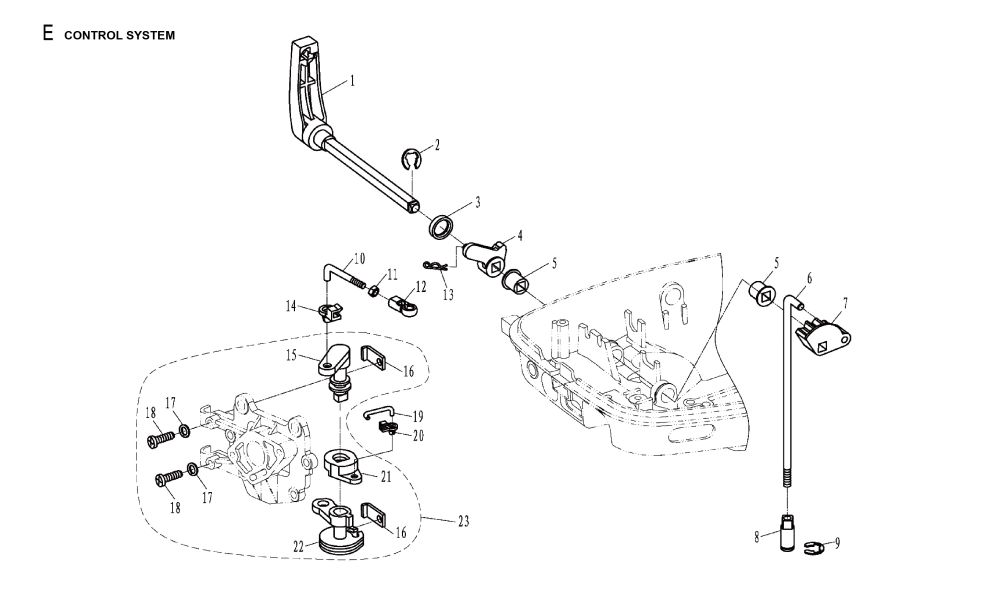

E1Shift Handle AssyE13Spring 1
E2Circlip 7 E14Joint, Inner Frame
E3Rubber Ring, Shift HandleE15Rocker, Stator Coil
E4Swing Link, DetentE16Plate, Throttle Control
E5Washer, Shift HandleE17Washer, Spring 5
E6Shift Rod E18Screw M5X20
E7Cam Plate, ShiftE19Link Rod, Throttle Control
E8Shift RodE20Joint, Throttle Link Rod
E9Circlip 9E21Rocker, Throttle Actuator
E10Link Assy, Stator CoilE22Drive Pulley, Throttle
E11Nut M5E23Intake Mainfold Assy
E12Tie-In, Pulser Coil

CODEPART NAMECODEPART NAME
F1Lower Casing Assy LF29Screw M4X25
F1Lower Casing Assy SF30Water Inlet
F2Bolt M6X50F31Bolt M6X35
F3Washer 6F32Lower Casing
F4Bush, Water TubeF33Lock Nut M4
F5Housing, Water PumpF34Locking Washing 6
F6Insert Cover, Water PumpF35Anode

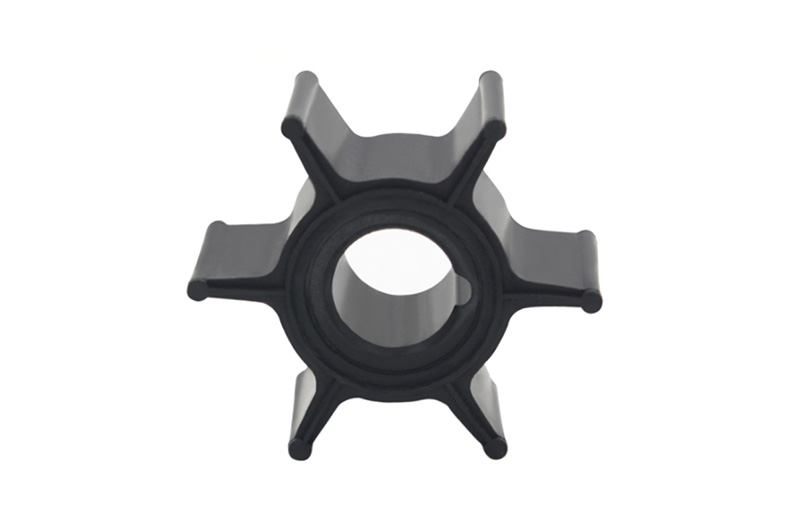

F7Impeller Assy F36Bearing 6204
F8Gasket, Outer PlateF37Shim T:0.15Mm
F9Outer Plate F37Shim T:0.15Mm
F10Gasket, Outer PlateF38Forward Gear Assy
F11Base, Water PumpF39Pin, Clutch
F12Screw M5X6 F40Propeller Shaft Assy
F13Bolt M6X25F41Pin 3.5X28
F14Plate, O-RingF42Clutch, Dog
F15O-Ring 4.9X3.5F43Spring, Clutch
F16Nut M5F44Shaft, Propeller
F17Shift Cam Shaft Assy LF45Washer, Reverse Gear
F17Shift Cam Shaft Assy SF46Gear, Reverse
F18Oil Seal 12.1X24X8F47Cover Assy, Lower Casing
F19Shim T:0.10Mm F48Bearing 6004C2
F19Shim T:0.15Mm F49O-Ring
F19Shim T:0.20Mm F50Barrel Bearing
F20Gasket, Water Pump BaseF51Cover, Lower Casing
F21Gasket, Water Seal F52Oil Seal 15X28X10
F22Water Seal F53Bolt M6X20
F23Drive Shaft Assy LF54Spacer, Propeller Shaft
F23Drive Shaft Assy SF55Spacer, Propeller Shaft
F24Pin, ImpellerF56Propeller Assy 3-8.9"X8.3"
F25Pinion F57Big Washer 10
F26Needle Bearing F58Slotted Nut
F27Gasket, Screw PlugF59Cotter Pin 2.5X20
F28Screw PlugF60Hollow Pin
CODEPART NAMECODEPART NAME
G1Nut, Fly WheelG14Limited Block
G2Washer, Fly WheelG15Joint, Connecting Rod
G3Bolt M6X12G16Screw M5X10
G4Washer, Spring 6G17Washer, Spring 5
G5Pulley, StarterG18Block, Nylon
G6Flywheel Assy G19Woodruff Key, Fly Wheel
G7Screw M4X6G20Base, Stator Coil
G8Washer,Spring 4G21Spark Plug Bpr7Hs
G9Plate, WireG22Clamp, Nylon
G10Stator Coil AssyG23Ignition Coil Assy
G11Screw M6X25G24Bolt M6X20
G12Screw M6X12 G25Washer 6
G13Nut M6

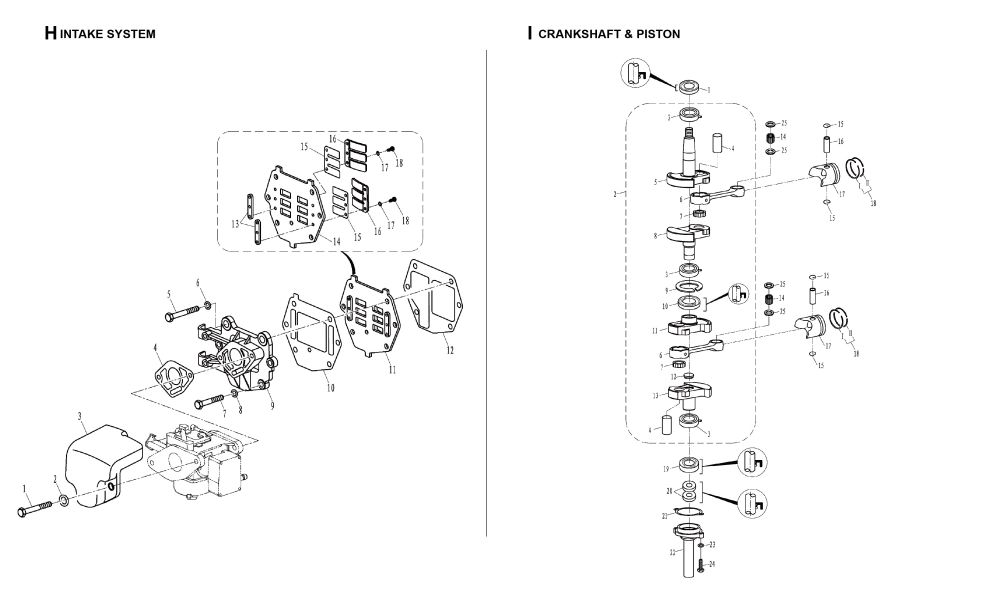

CODEPART NAMECODEPART NAME
H1Bolt M6X85H10Gasket A, Intake  Valve
H2Big Washer 6H11Intake Valve Assy
H3Silencer, IntakeH12Gasket B, Intake  Valve
H4Gasket, Carburetor H13Fixed Plate, Vale
H5Bolt M8X80H14Seat, Intake Valve
H6Wahser 8H15Plate, Intake Valve
H7Bolt M6X75 H16Limitative Plate, Valve
H8Washer 6H17Washer, Spring 3
H9Manifold, Intake H18Screw M3X8
CODEPART NAMECODEPART NAME

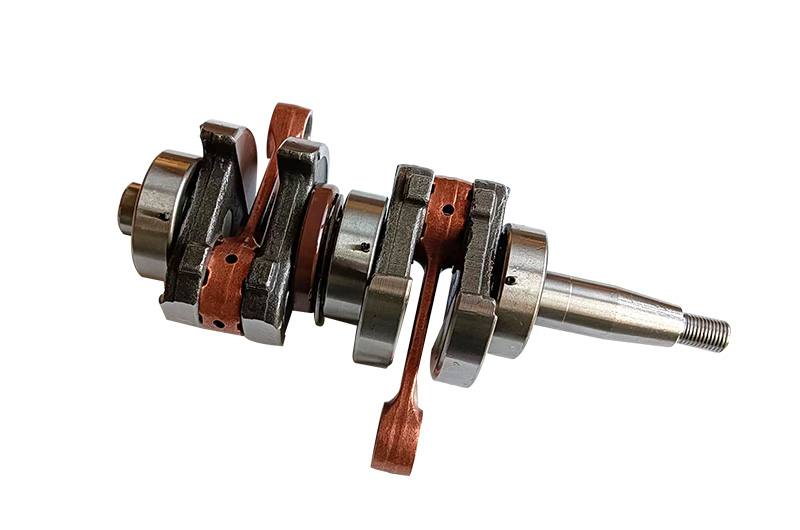

I1Oil Seal 20X35X7 I14Needle Bearing 2X13.8
I2Crankshaft AssyI14Needle Bearing14X18X19
I3Bearing 6204 With PinI15Circlip 14
I4Pin, CrankshaftI16Pin, Piston

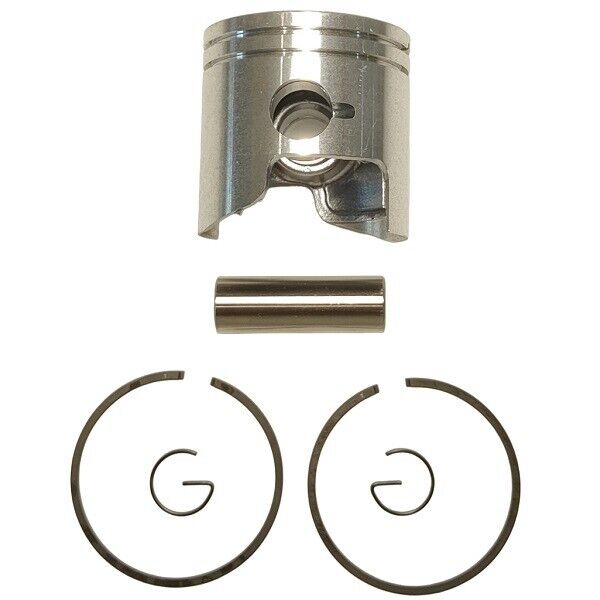

I5Block, Swing AI17Piston

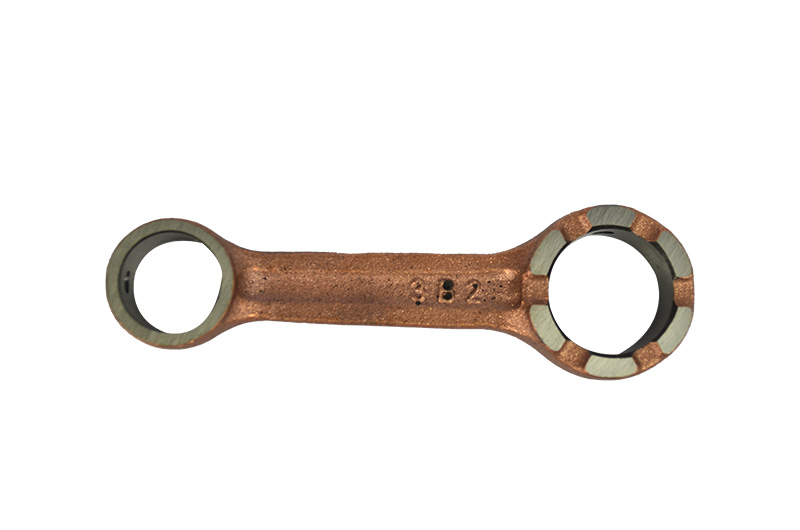

I6Connecting Rod I18Piston Ring Assy
I7Needle Bearing 17X23X13.8I19Oil Seal 20X40X7
I8Block, Swing BI20Oil Seal 12.1X28X5
I9Fixed Washer, CrankshaftI21Gasket, Oil Seal Casing
I10Oil Seal 25X47X7.5 I22Casing, Oil Seal
I11Block, Swing CI23Washer 6
I12Jam, Swing Block I24Bolt M6X20
I13Block, Swing DI25Washer, Piston

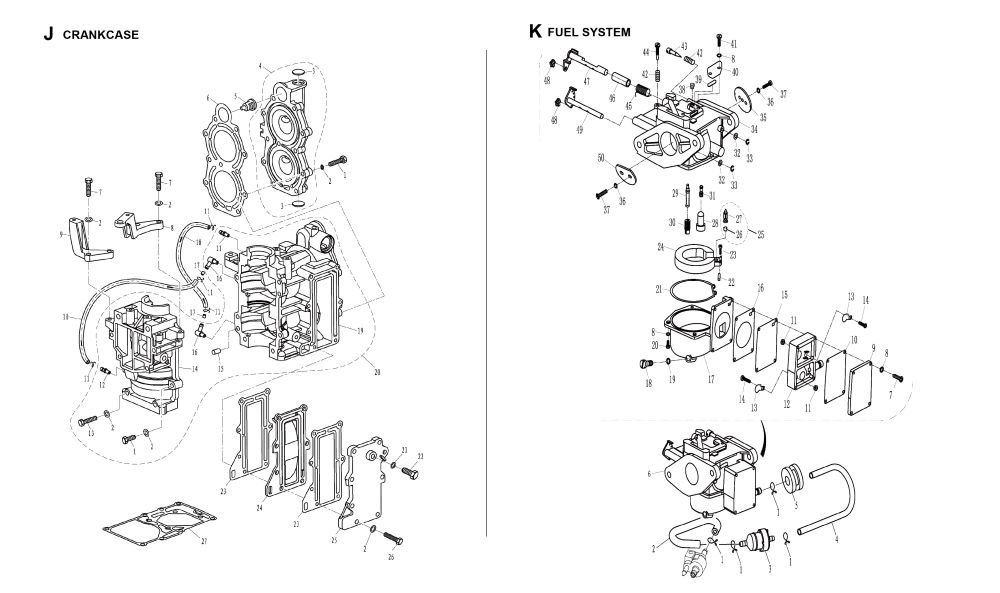

CODEPART NAMECODEPART NAME
J1Bolt M6X30 J15Pin 6X12
J2Washer 6J16Pipe, Joint
J3Plug, Cylinder Head J17Check Valve Assy
J4Cylinder Cover J18Hose 4X8X230
J5ThermostatJ19Cylinder Case
J6Gasket, Cylinder HeadJ20Crankcase Assy
J7Bolt M6X20J21Gasket, Screw Plug
J8Left Bracket, Starter J22Bolt M8X12
J9Right Bracket, StarterJ23Gasket, Exhaust Cover
J10Hose 4X8X120J24Inner Cover, Exhaust
J11Clip SpringJ25Outer Cover, Exhaust
J12Pipe, JointJ26Bolt M6X25
J13Bolt M6X50J27Gasket, Engine
J14Crankcase

CODEPART NAMECODEPART NAME
K1Clip Spring BK26Spring, Needle Valve
K2Hose 15X10X120K27Needle Valve
K3Fuel Filter AssyK28Rubber Cap
K4Fixed HoseK29Main Nozzle
K5Absorber, Fuel LineK30Jet, Main

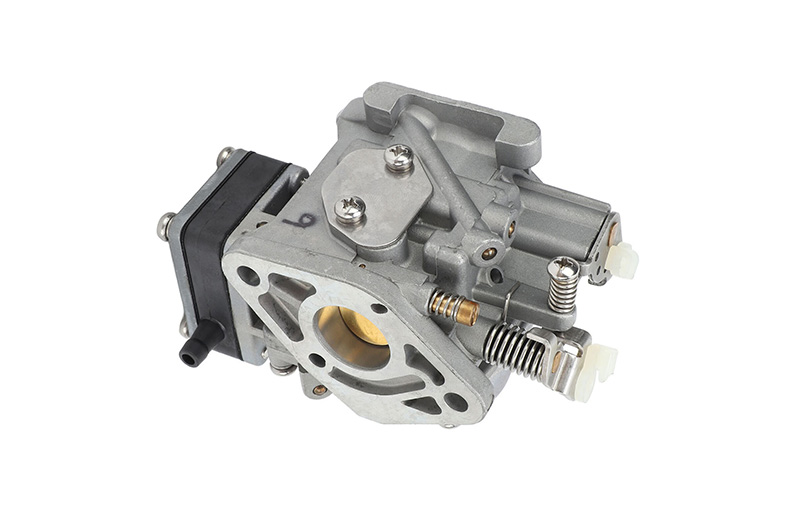

K6Carburetor Assy K31Jet, Air Slow
K7Screw M4X22K32Washer, Swing Shaft
K8Washer,Spring 4K33Circlip 4
K9Cover, Fuel PumpK34Body, Carburetor
K10Gasket,Fuel Pump CoverK35Damper, Throttle
K11Nut M3 K36Washer, Spring 3
K12Cover, Fuel Pump K37Screw M3X5
K13Plate, Check ValveK38Jam
K14Screw, ValveK39Rubber Plate
K15Diaphragm, Fuel PumpK40Plate
K16Gasket,Fuel Pump CoverK41Screw M4X10
K17Float Chamber K42Adjusting Spring
K18Bolt, DrainK43Screw, Air Adjusting
K19Gasket, Drain BoltK44Stop Screw
K20Screw M4X14 K45Spring, Swing Link
K21Gasket, Float ChamberK46Bush, Swing Link
K22Pin, FloatK47Swing Link Assy, Throttle
K23Screw M4X6K48Joint, Throttle Link Rod
K24Float K49Rocker Assy, Swing Link
K25Needle Valve AssyK50Baffle Plate, Choke
CODEPART NAMECODEPART NAME

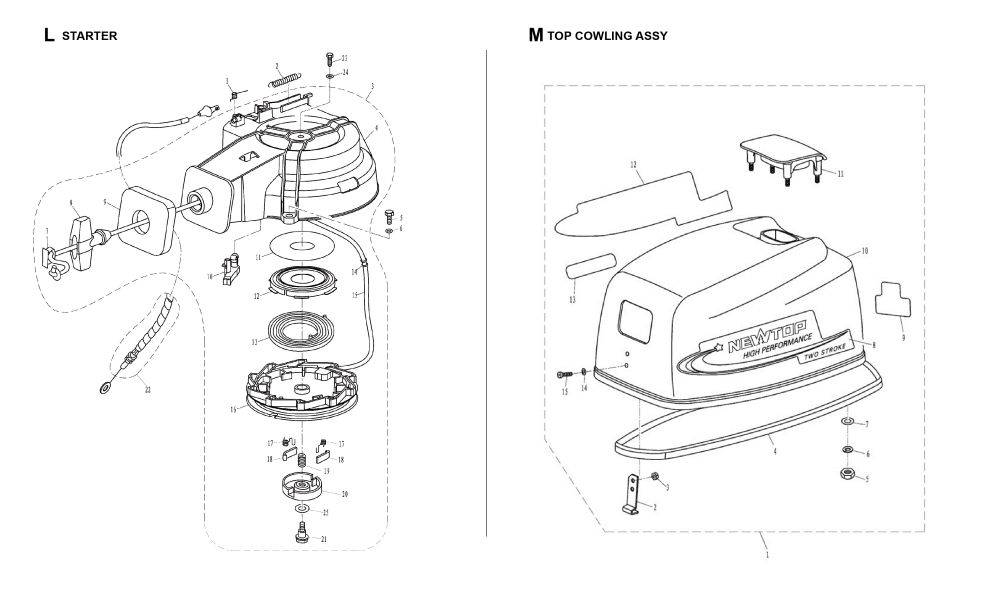

L1Spring, DetentL14Bush, Start Rope
L2Spring, DetentL15Start Rope 4X1.62
L3Starter AssyL16Wheel, Start-Up
L4Cover Assy, Starter L17Spring, Pawl
L5Bolt M6X20L18Pawl, Drive
L6Washer 6L19Spring, Plate
L7Handle Cover, StarterL20Plate, Start Wheel
L8Starter Handle L21Screw, Plate
L9Seal, Frothy RubberL22Detent Cable Assy
L10DetentL23Bolt M5X8
L11Washer, Thrust L24Big Washer 5
L12Base, Volute SpringL25Nylon Washer, Shift Rod
L13Spring, Volute

CODEPART NAMECODEPART NAME
M1Top Cowling Assy M98Hp Decal
M2Hook, LockingM96Hp Decal
M3Lock Nut M5M12Decal, Top Cowling
M4Seal, RubberM13Mark, Gear Shift
M5Nut M6M10Top Cowling
M6Washer, Spring 6M11Cover, Top Cowling
M7Washer 6M14Washer 5
M8Decal, Top CowlingM15Screw M5X12
M99.8Hp Decal

CODEPART NAMECODEPART NAME

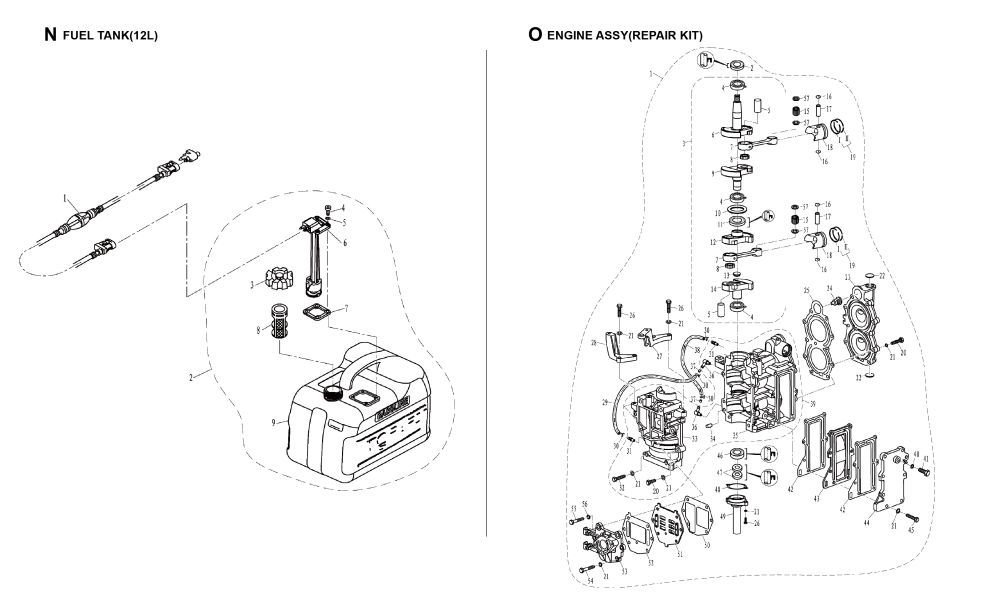

N1Fuel Line Assy N5Washer 5
N2Portable Fuel Tank Assy 12LN6Oleometer Assy
N3Fuel Tank Cap AssyN7Gasket
N8Filter, Fuel TankN9Body, Fuel Tank
N4Screw M5X18

CODEPART NAMECODEPART NAME
O1Engine AssyO31Pipe, Joint
O2Oil Seal 20X35X7 O32Bolt M6X50
O3Crankshaft AssyO33Crankcase
O4Bearing 6204 With PinO34Pin 6X12
O5Pin, CrankshaftO35Cylinder Case
O6Block, Swing AO36Pipe, Joint
O7Connecting Rod O37Check Valve Assy
O8Needle Bearing 17X23X13.8O38Hose 4X8X230
O9Block, Swing BO39Crankcase Assy
O10Fixed Washer, CrankshaftO40Gasket, Screw Plug
O11Oil Seal 25X47X7.5 O41Bolt M8X12
O12Block, Swing CO42Gasket, Exhaust Cover
O13Jam, Swing Block O43Inner Cover, Exhaust
O14Block, Swing DO44Outer Cover, Exhaust
O15Needle Bearing 2X13.8 O45Bolt M6X25
O16Circlip 14O46Oil Seal 20X40X7
O17Pin, PistonO47Oil Seal 12.1X28X5
O18Piston O48Gasket, Oil Seal Casing
O19Piston Ring AssyO49Casing, Oil Seal
O20Bolt M6X30 O50Gasket B, Intake  Valve
O21Washer 6O51Intake Valve Assy
O22Plug, Cylinder Head O52Gasket A, Intake  Valve
O23Cylinder Cover O53Manifold, Intake
O24ThermostatO54Bolt M6X75
O25Gasket, Cylinder HeadO55Bolt M8X80
O26Bolt M6X20O56Wahser 8
O27Left Bracket, Starter O57Washer, Piston
O28Right Bracket, Starter
O29Hose 4X8X120
O30Clip Spring

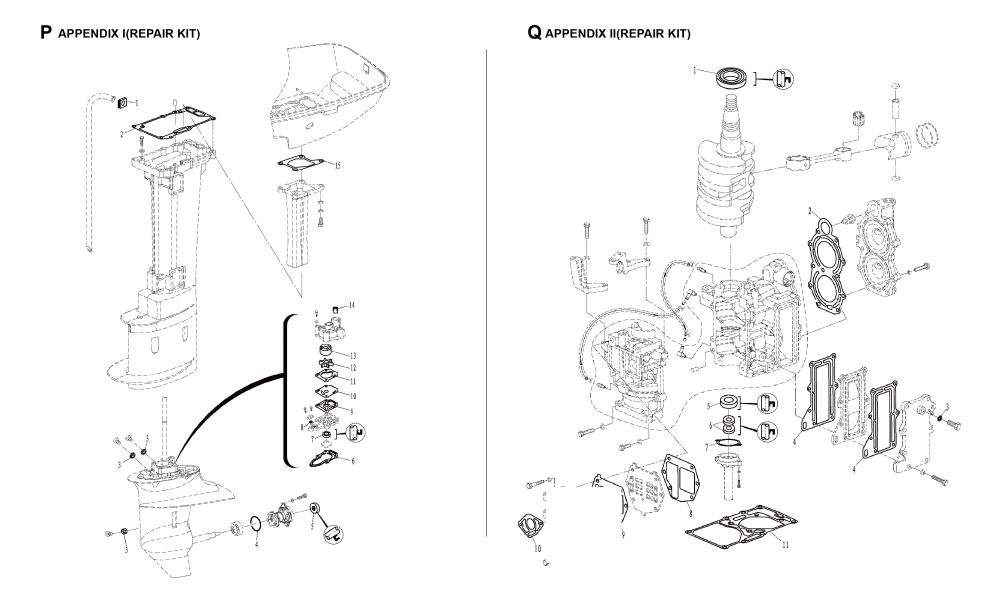

CODEPART NAMECODEPART NAME
P1I-Shaped Rubber SealP9Gasket, Outer Plate
P2Gasket, Upper Casing P10Outer Plate
P3Gasket, Screw PlugP11Gasket, Outer Plate
P4O-Ring P12Impeller Assy
P5Oil Seal 15X28X10P13Insert Cover, Water Pump
P6Gasket, Water Pump BaseP14Bush, Water Tube
P7Oil Seal 12.1X24X8P15Gasket, Exhaust Pipe
P8O-Ring 4.9X3.5

CODEPART NAMECODEPART NAME
Q1Oil Seal 20X35X7 Q7Gasket, Oil Seal Casing
Q2Gasket, Cylinder HeadQ8Gasket B, Intake  Valve
Q3Gasket, Screw PlugQ9Gasket A, Intake  Valve
Q4Gasket, Exhaust CoverQ10Gasket, Carburetor
Q5Oil Seal 20X40X7Q11Gasket, Engine
Q6Oil Seal 12.1X28X5
