GMD420 Accessories

GMD420 Sprayer Parts

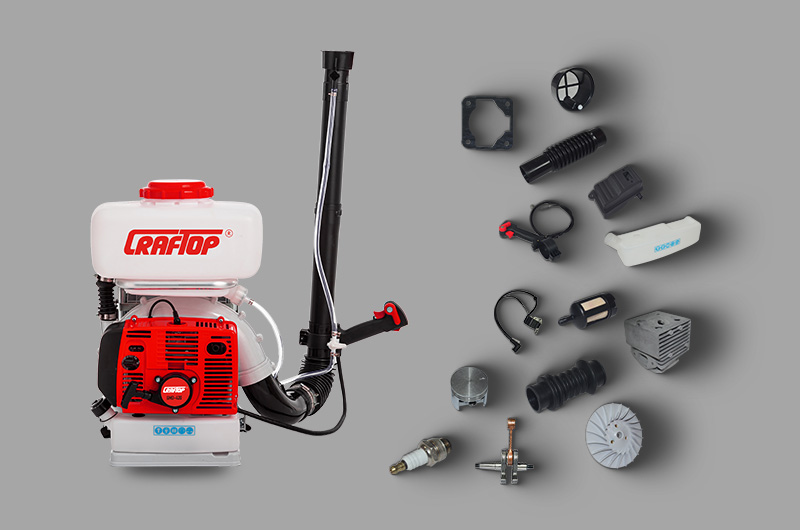

Keep your 420 Gasoline Mist Duster running smoothly with good quality CRAFTOP Spare Parts! Our components collection includes —

Engine Parts: crankshaft assembly, piston, piston ring, magneto stator cylinder washer, cylinder, muffler assembly, spark plug, etc.
Sprayer Parts: carburetor, fuel tank, belt assembly, impeller, cleaner, rubber pipe, hose, lever assembly, cover board, etc.
Find what you need by exploring our high-quality assemblies such as the engine assembly, fuel system, control assembly, etc.

Each assembly is designed with precision and reliability in mind, and can best fit your 420 Sprayer/Mist Duster.

Send An Inquiry

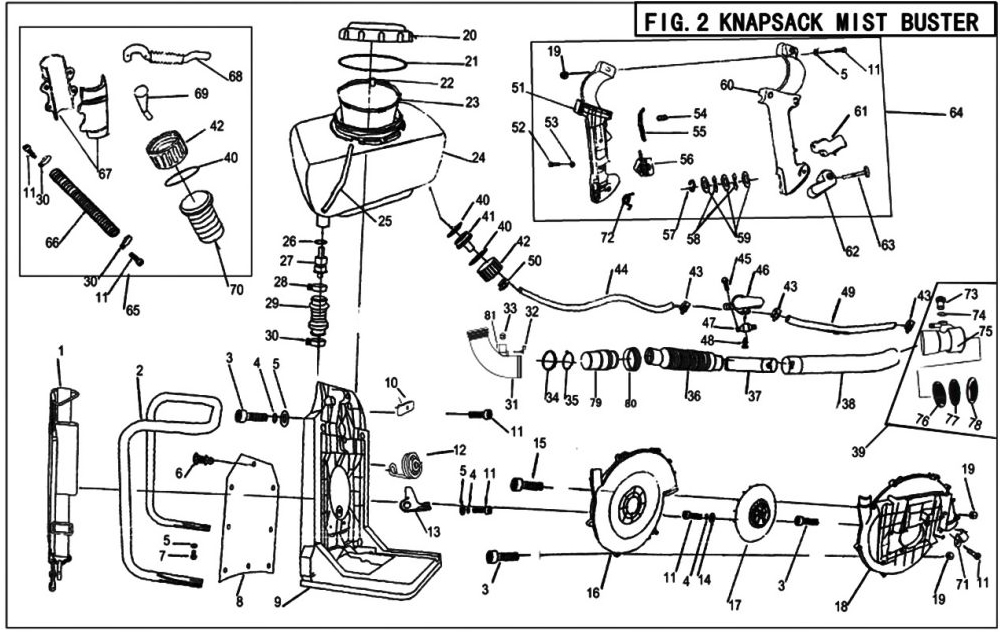

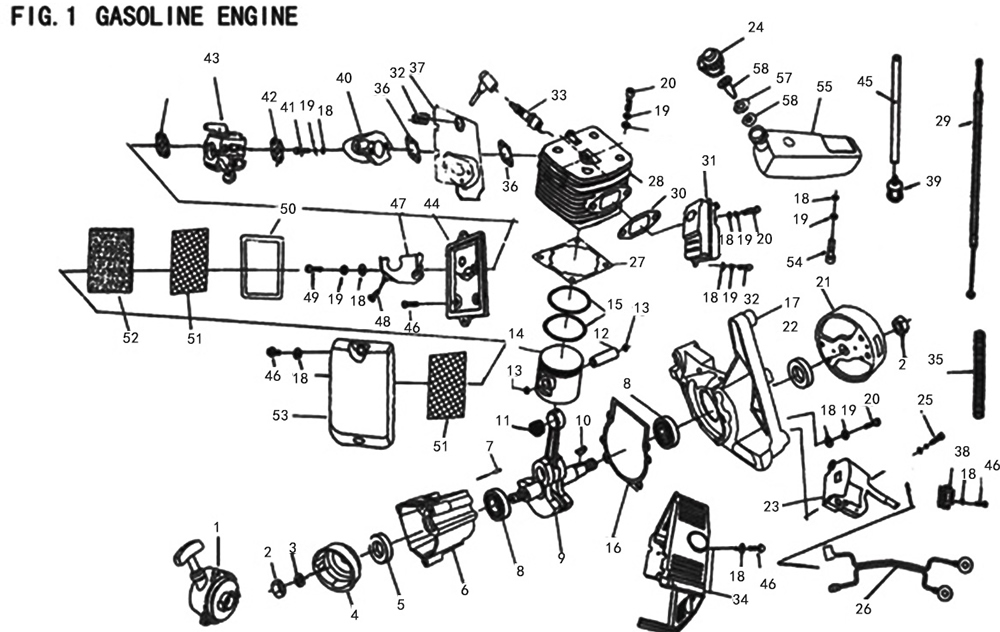

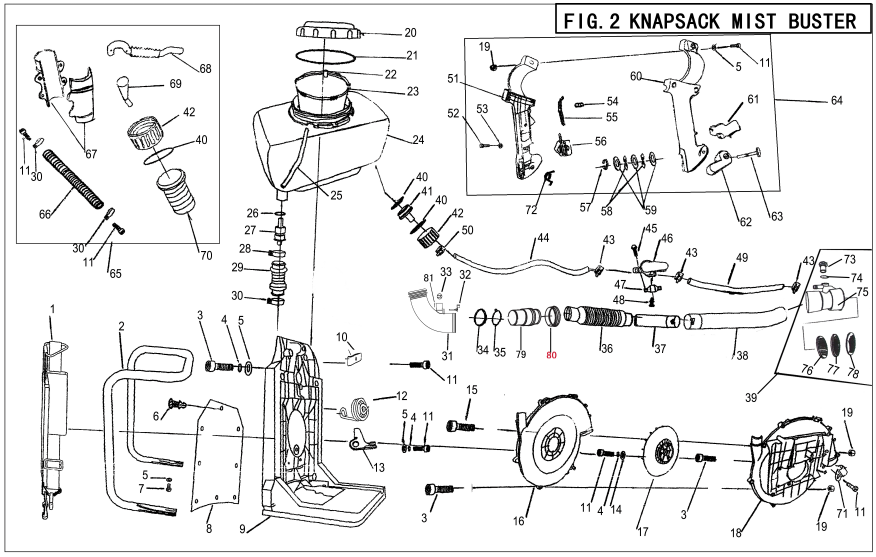

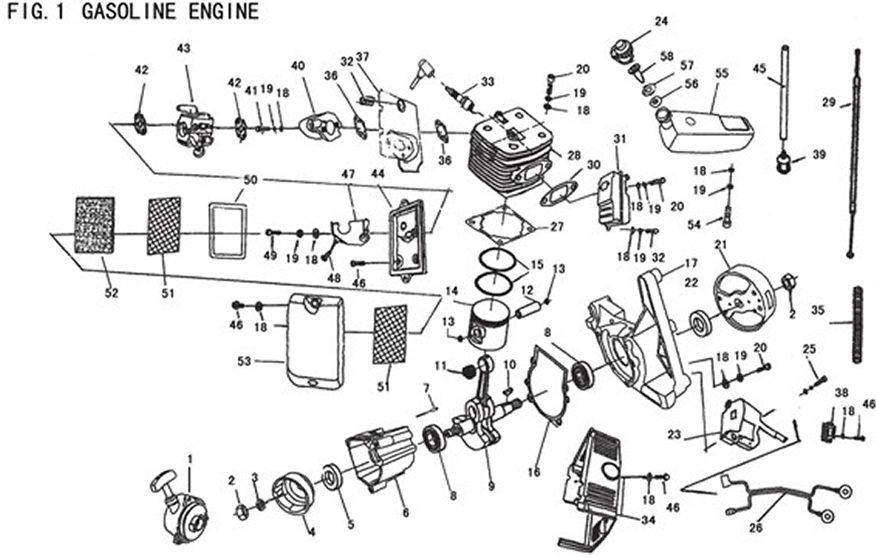

Exploded View of the Whole Machine

Important Spare Parts

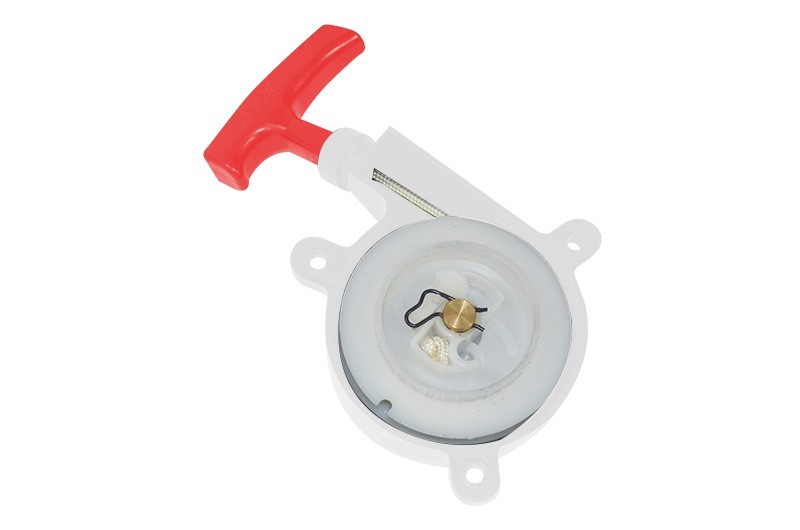

1-1 Starter

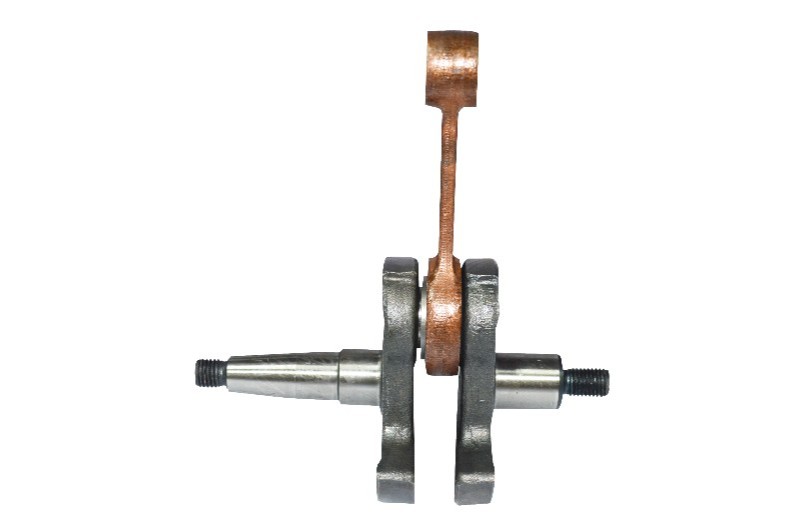

1-9 Crank Shaft Comp

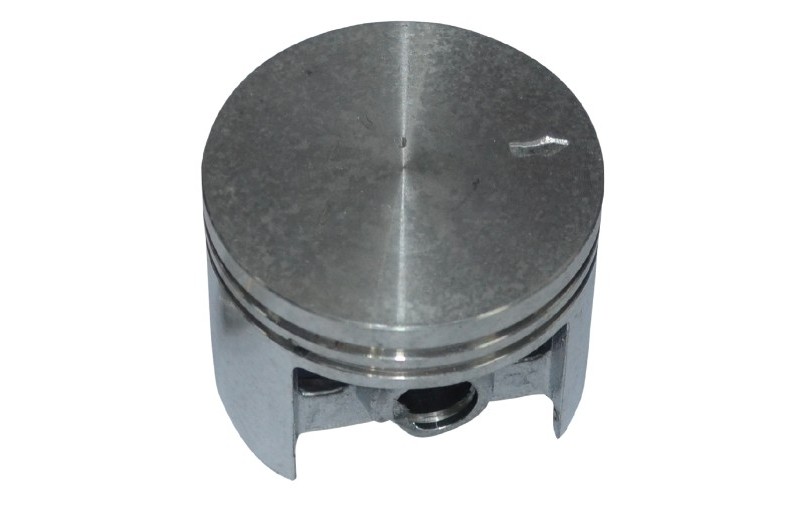

1-14 Piston

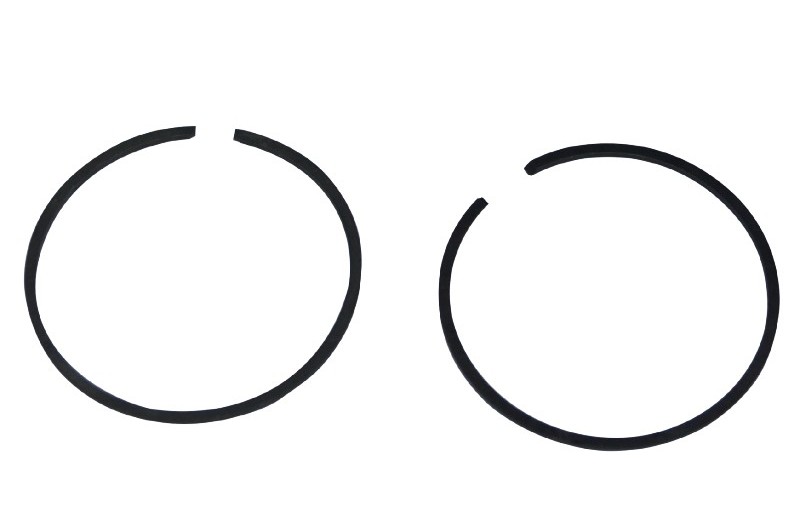

1-15 Piston Ring

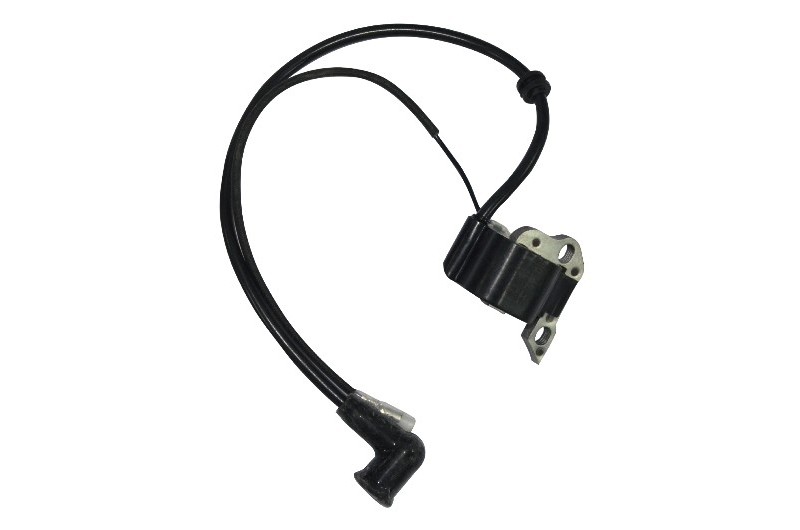

1-23 Nagneto Stator

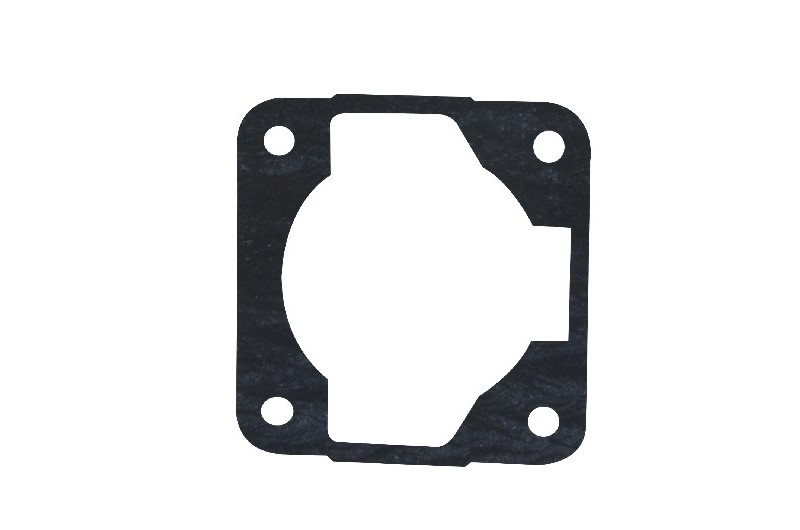

1-27 Cylinder Gasket

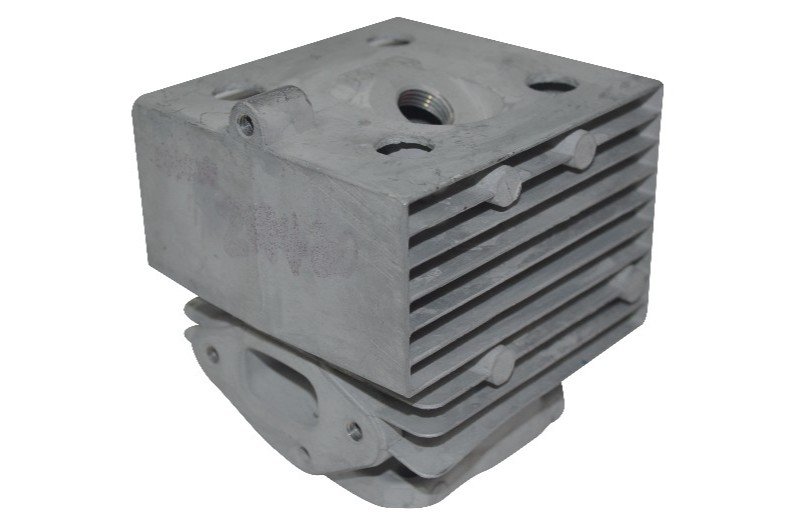

1-28 Cylinder

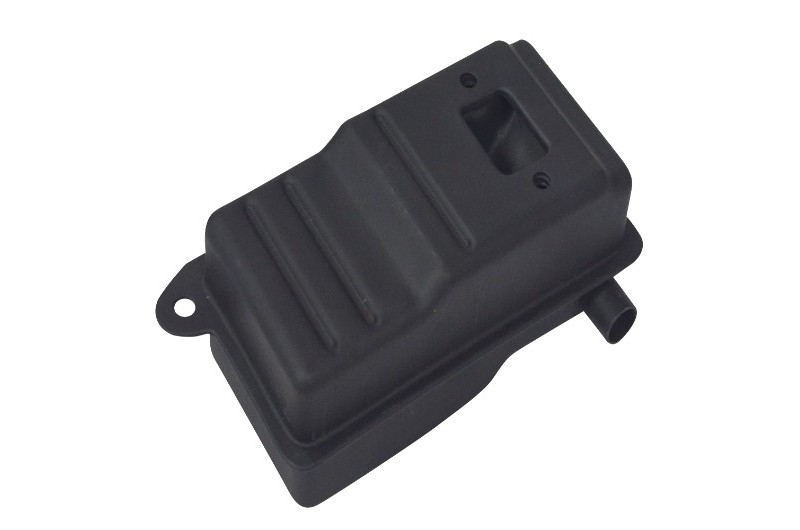

1-31 Muffler

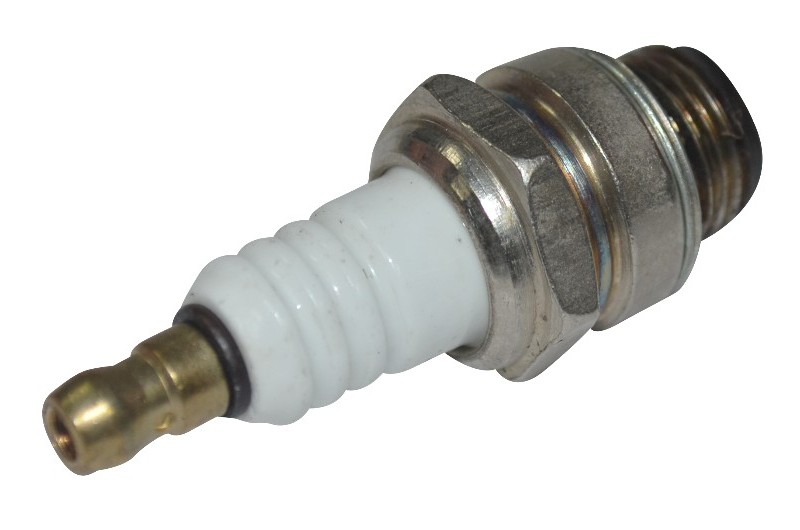

1-33 Spark Plug

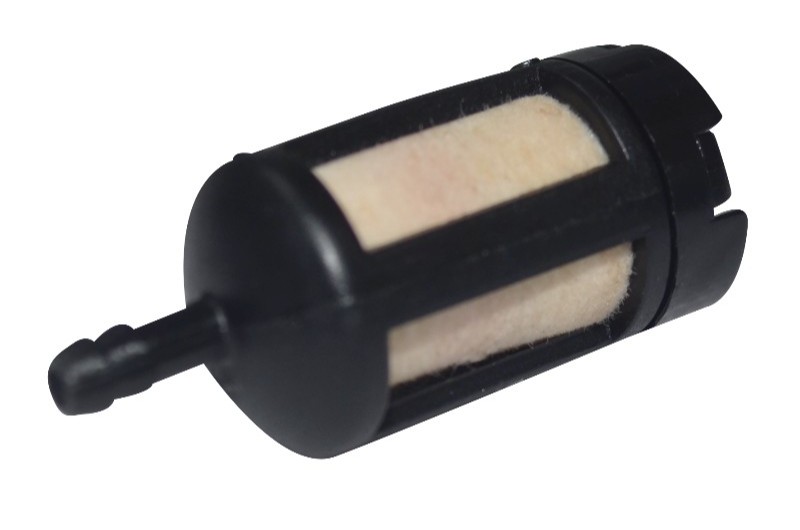

1-39 Cleaner

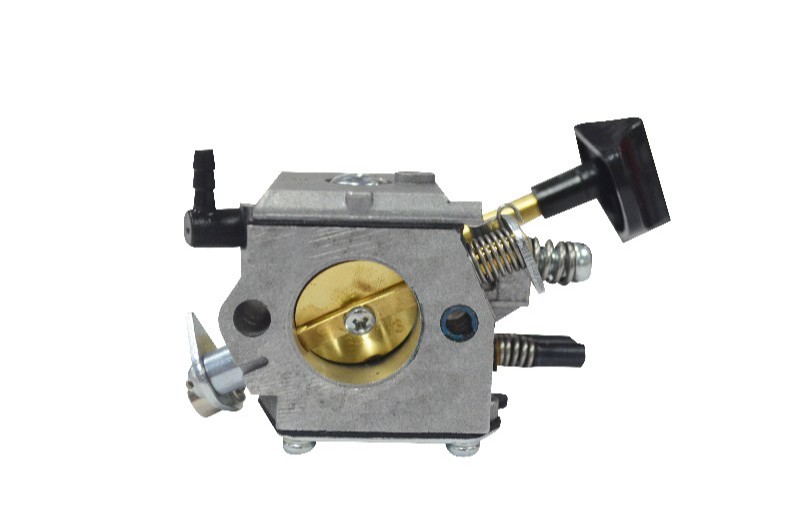

1-43 Carbvretor

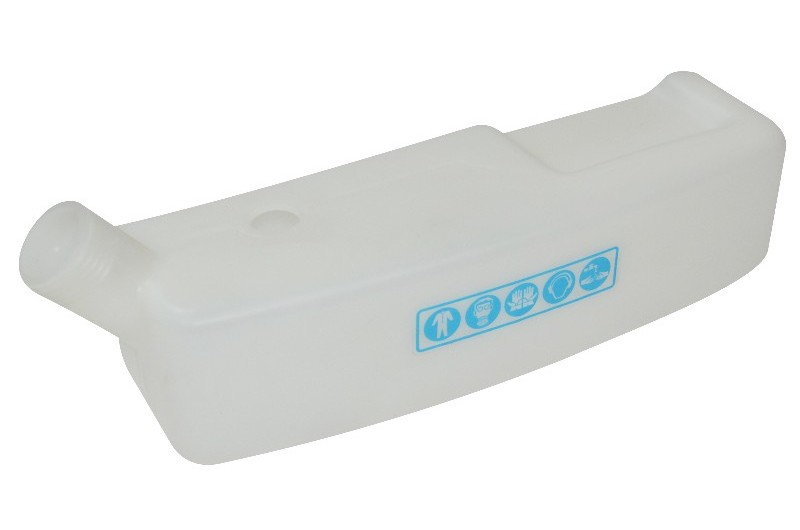

1-55 Fule Tank

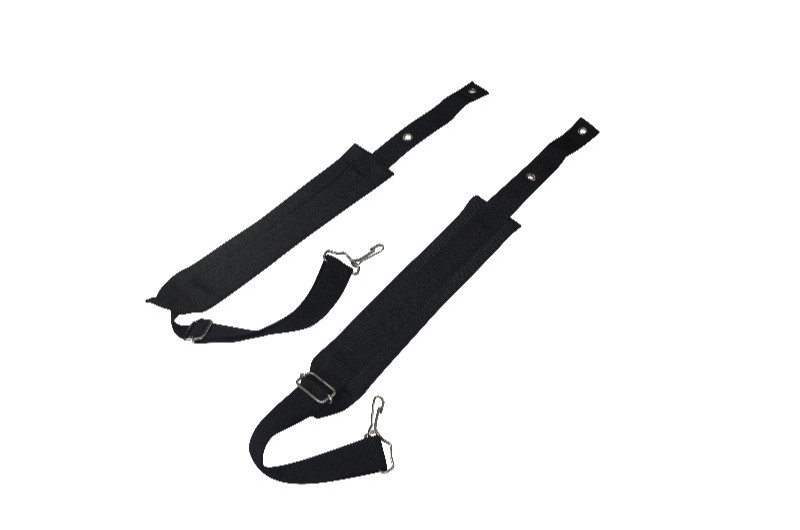

2-1 Belt Assem

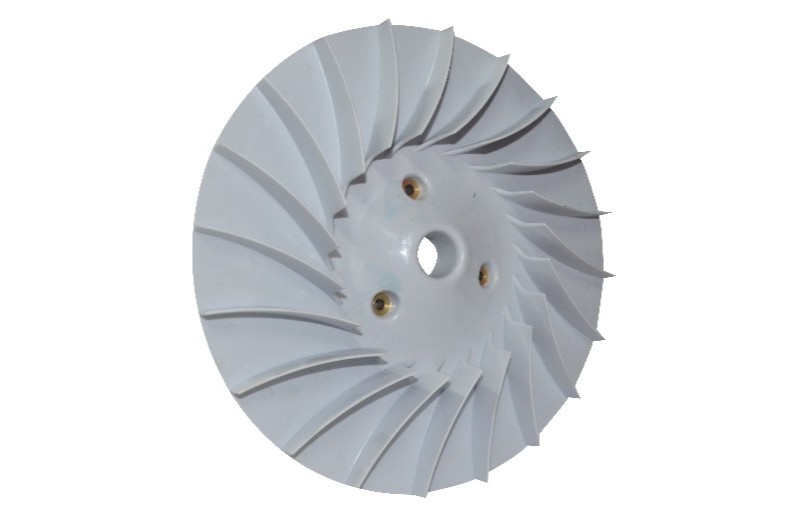

2-17 Impeller

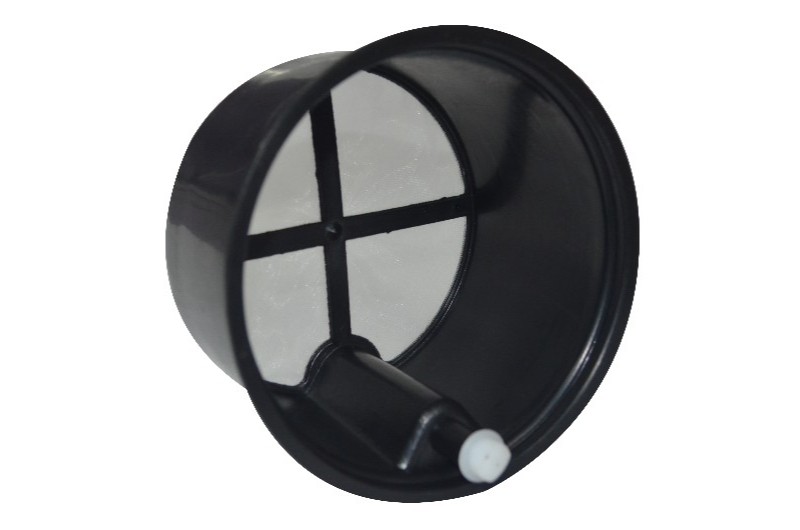

2-23 Cleaner

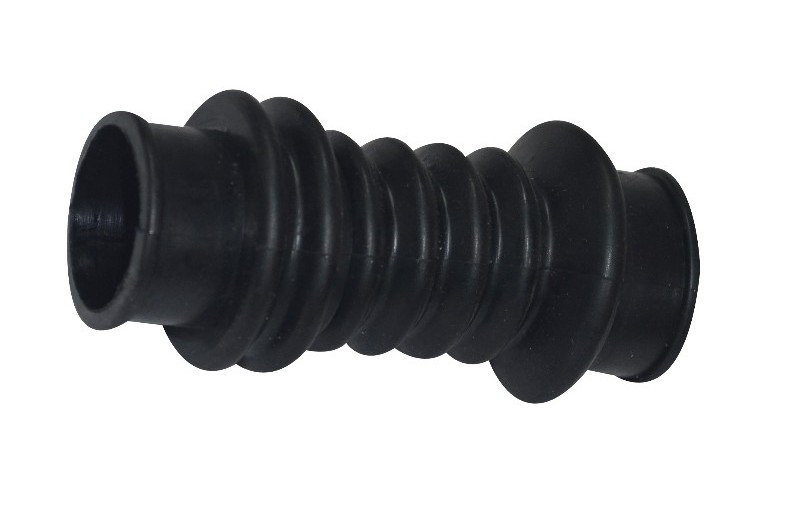

2-29 Rubber Pipe

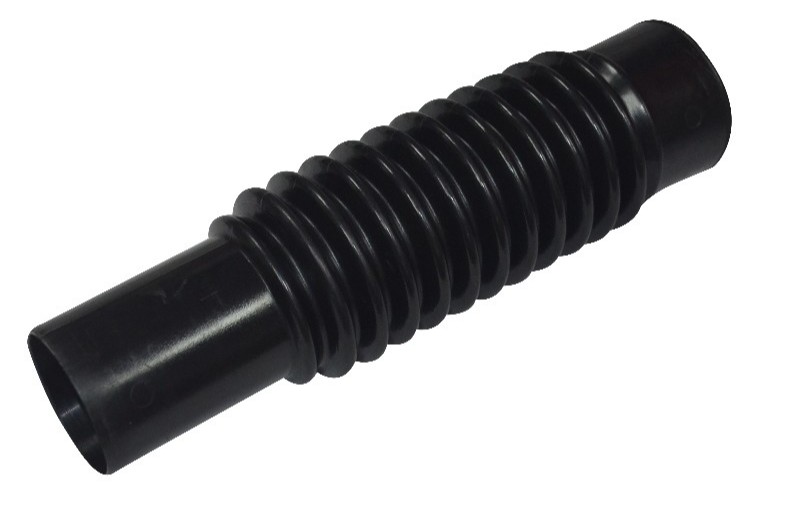

2-36 Hose

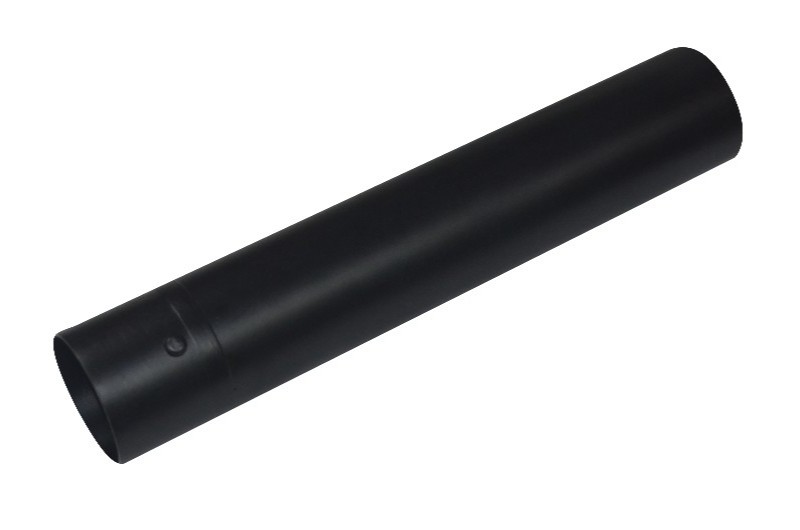

2-37 Pipe

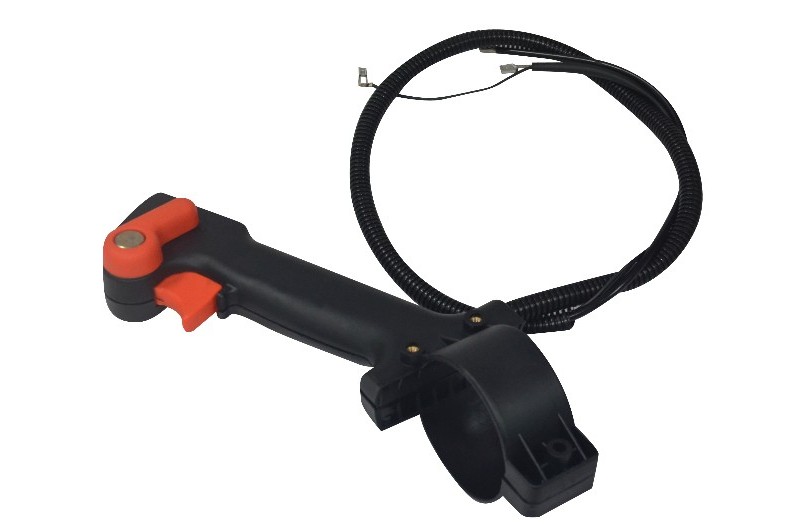

2-64 Lever Ass’Y

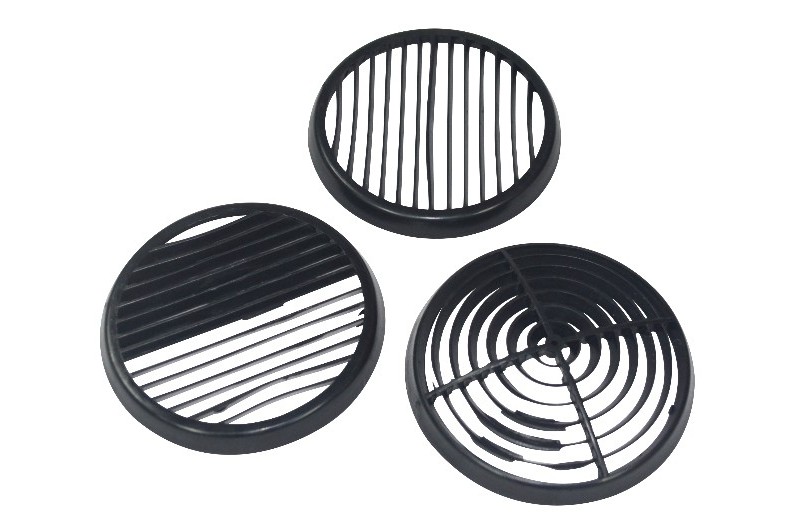

2-76~78 Screen 3Set

Other Spare Parts

1-2	Nut	1-20	Screw	1-42	Gasket
1-3	Washer	1-21	Magneto Stator	1-44	Linker
1-4	Ratchet	1-22	Oil Seal	1-45	Outlet Fuel Pipe
1-5	Oil Seal	1-24	Fuel Tank Lid	1-46	Screw
1-6	Rear Halfcrank Case	1-25	Screw	1-47	Block
1-7	Pin	1-26	Stop Wire	1-48	Screw
1-8	Ball Bearing	1-29	Cable Comp	1-49	Screw
1-10	Key	1-30	Casket	1-50	Rubber Seal
1-11	Needle Bearing	1-32	Screw	1-51	Core
1-12	Piston Pin	1-34	Cover	1-52	Board
1-13	Piston Pin Clip	1-36	Cylinder Washer	1-53	Cover
1-16	Crank Case Gasket	1-37	Board	1-54	Screw
1-17	Front Halfcrank	1-38	Line Clip	1-56	Rubber Lid
1-18	Washer	1-40	Inlet Manifold	1-57	Plastic Lid
1-19	Washer	1-41	Screw
2-2	Support	2-28	Clip	2-55	Contact
2-3	Frame/Volute Case/	2-30	Clip	2-56	Switch
2-4	Frame Washer	2-31	Pan Joint	2-57	Axis Clip
2-5	Frame Washer	2-32	Stopper Axis	2-58	Saddlewasher 6
2-6	Plastic Clip	2-33	Stopper	2-59	Washer
2-7	Support Screws	2-34	Clip	2-60	Left Control
2-8	Back Mat	2-35	Clip 4	2-61	Handle 1
2-9	Frame	2-38	Long Joint Tube	2-62	Handle 2
2-10	Plate	2-39	Nozzle Assy	2-63	Handle Axis
2-11	Screw	2-40	Swaling Washer	2-65	Dust Parts
2-12	Anti-Vibrate Spring	2-41	Puling	2-66	Rubber Pipe
2-13	Spring Support	2-42	Connector Lid	2-67	Pipe
2-14	Washer	2-43	Clip	2-68	Across Pipe
2-15	Screw	2-44	Plastic Pir	2-69	Funnel
2-16	Volute Case	2-45	Screw	2-70	Connector
2-18	Volute Case	2-46	Cock Assem	2-71	Clip
2-19	Nut	2-47	Support	2-72	Return Spring
2-20	Lid	2-48	Screw	2-73	Regulator Valve
2-21	Sealing Washer	2-49	Plastic Pipe	2-74	0-Ring
2-22	Plug	2-50	Clip	2-75	Nozzle
2-24	Tank	2-51	Right Control	2-79	Connector
2-25	Plastic Pipe	2-52	Screw	2-80	Rubber Plug
2-26	Sealing Washer	2-53	Washer	2-81	Pin
2-27	Reducer	2-54	Axis Sleepe

Wholesale only. No retail and individual buyers. No job recruitment, please.

Plesae provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.
