HS16L-HS20L Sprayer Parts

Authentic CRAFTOP HS16L and HS20L manual backpack sprayers using durable mental & plastic parts for maintaining optimal functionality and longevity.
Sturdy and durable tank with a metal handle and control lever
Various nozzle types for versatile spraying options
Pressure regulator ensures even and stable spraying
Compact and lightweight design for easy carrying
Ergonomically designed for comfortable use
Suitable for use with mainstream 16L and 20L model gas sprayers in the market.

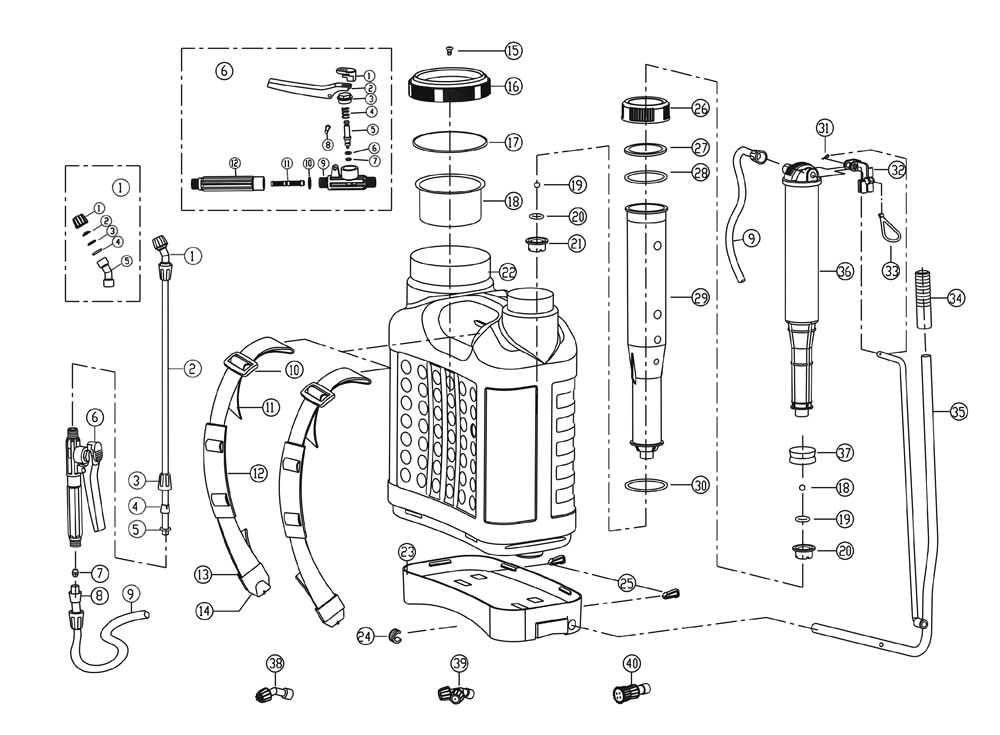

Exploded View of the Whole Machine

Important Spare Parts

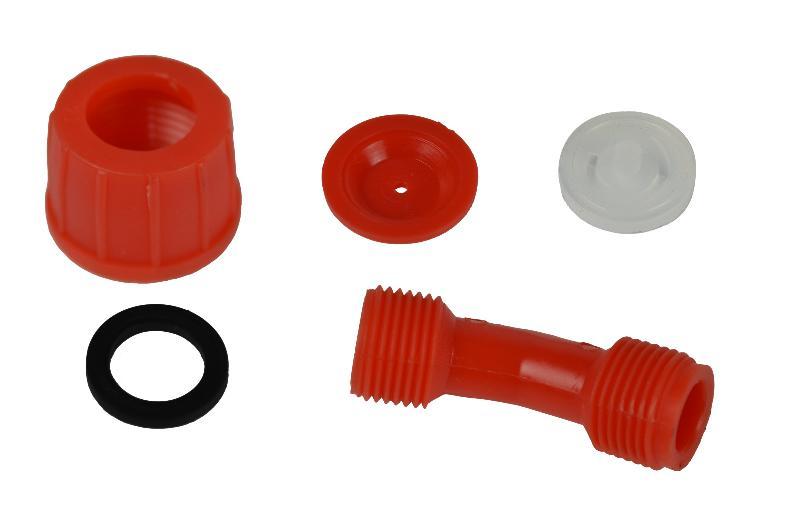

1 Conical Spraying Head
2 Sprayer Rod
6 Switch Assembly

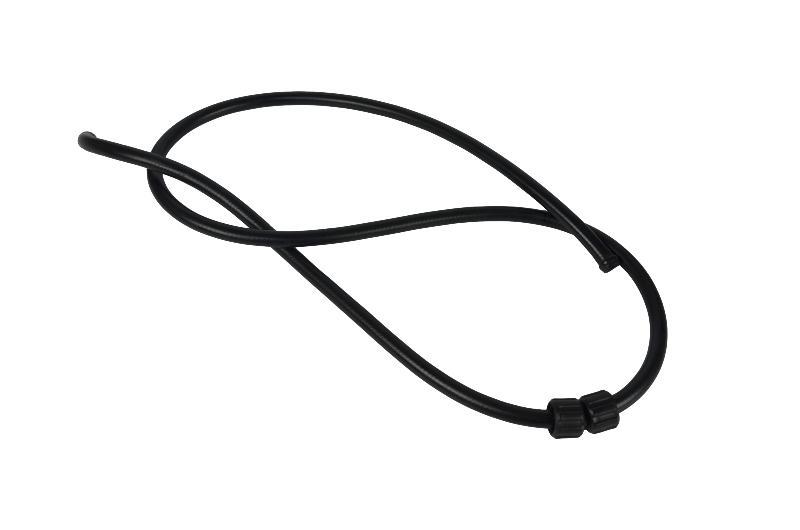

7 Flared sheath 8 Plastic tube sleeve 9 Plastic tube

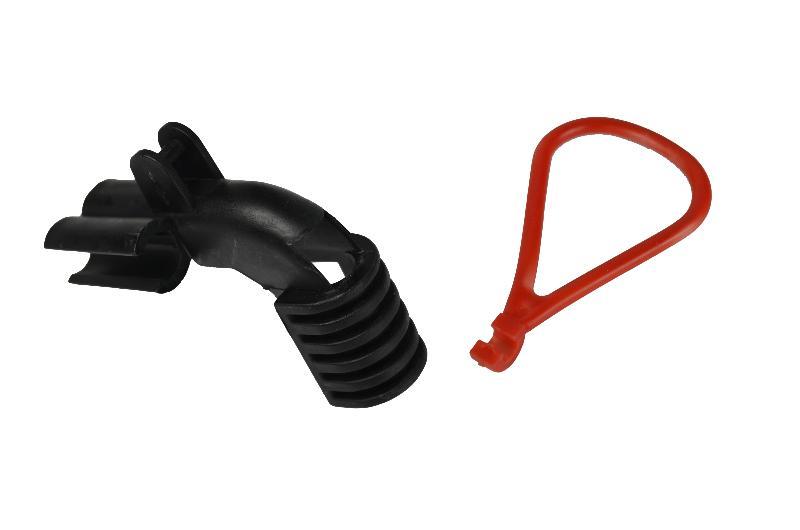

10 Belt Buckle

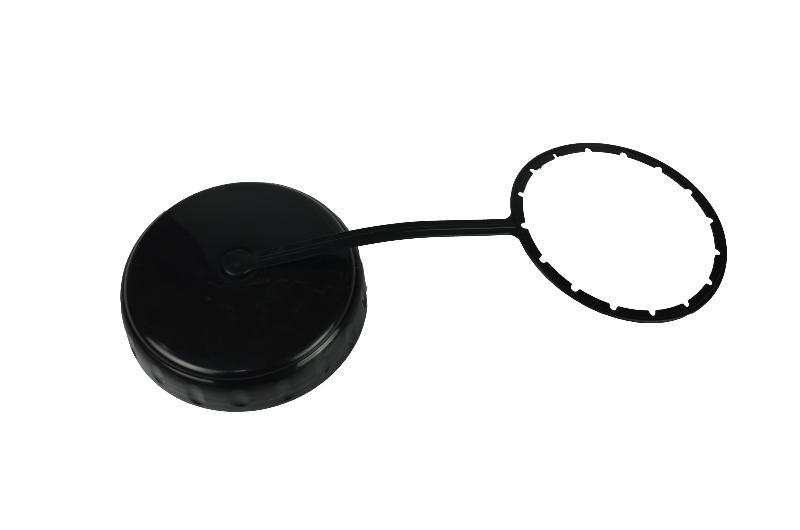

15 Air Inlet Cork 16Lid Of Chemical Tank
17 Big Seal Ring
18 Big filter Screen

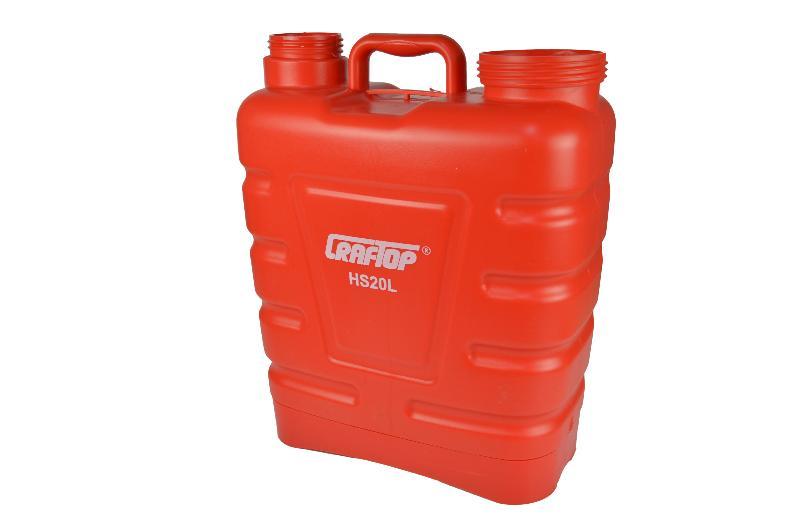

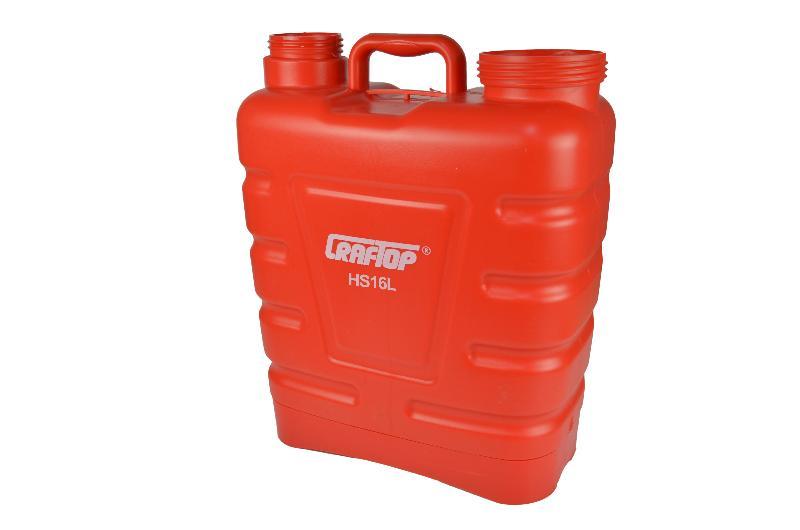

22 Chemical Tank 16L
22 Chemical Tank 20L
26 Lid Of Air Chamber
27 Felt Ring
28 Pump Cylinder Gasket
29 Pump Cylinder
30 Pump Cylinder O-Ring Seal
32 Fix Clamp For Rocker Bar
34 Rocker Bar Sheath

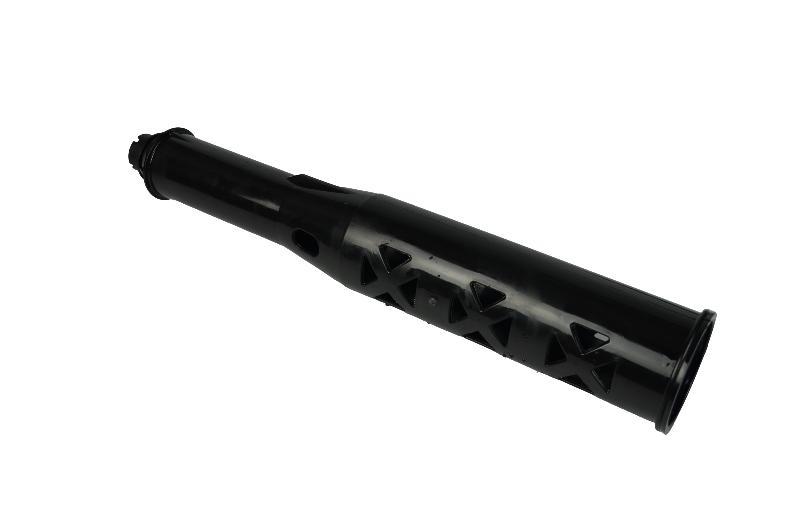

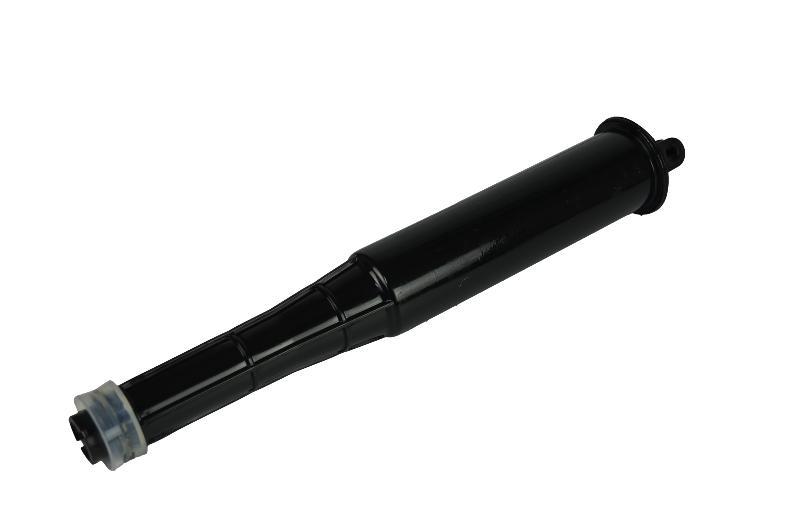

36 Air Chamber Assemble
37 Leather Cup

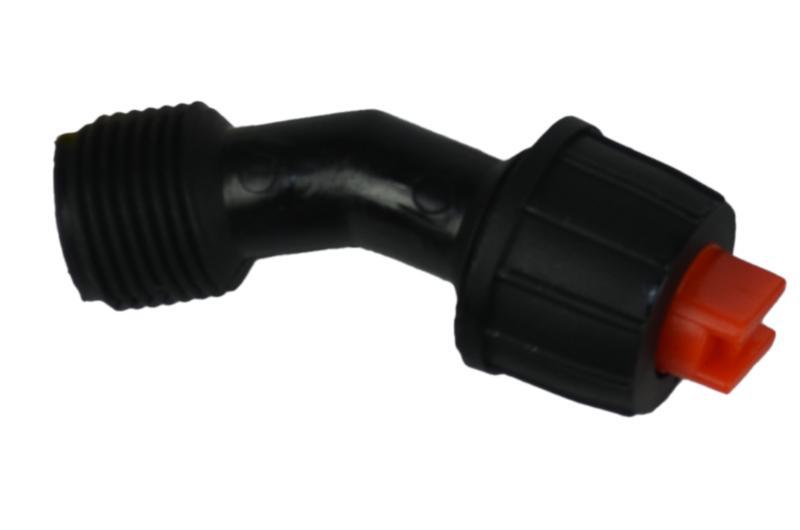

38 Fan-Style Head

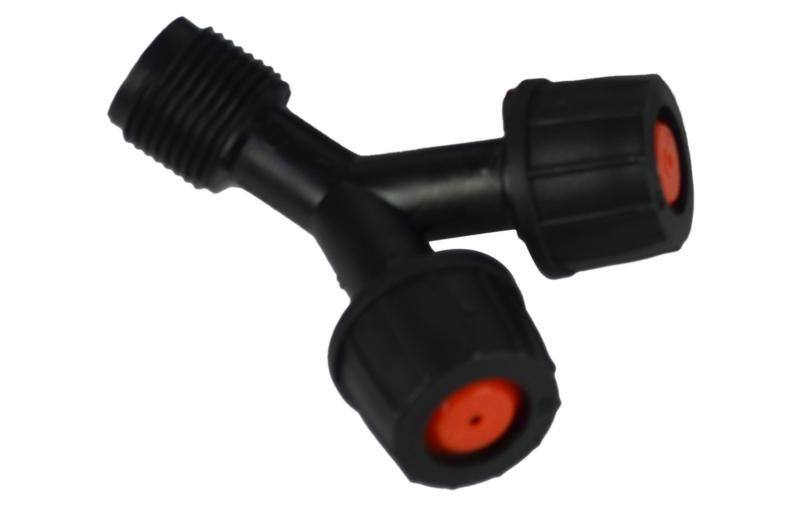

39 30° Dual Head
40 Adjustable Head With Four Apertures

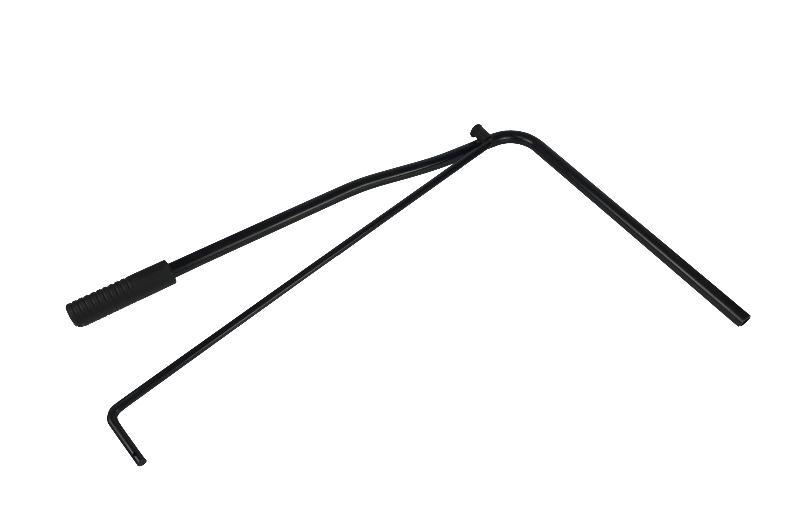

Other Spare Parts

Code No.	Parts Name	Code No.	Parts Name
1	Conical Spraying Head	13	Belt Clamp
①	Spray Cap	14	Belt Hook
②	Conical Spraying Sheet	15	Air Inlet Cork
③	Split Sheet	16	Lid Of Chemical Tank
④	Seal Washer Sheet∅16х∅11х2	17	Big Seal Ring
⑤	Bend	18	Big Filter Screen
2	Sprayer Rod	19	Seal Ball
3	Rod Nut	20	O-Rin ∅20.5х2.5
4	Lock Sleeve	21	Lock Cap
5	O-Seal Ring ∅15х3	22	Chemical Tank
6	Switch Assembly	23	Base
①	Limit Cap	24	Aligning Buckle
②	Switch Press Plate	25	Lock Pin
③	Switch Nut	26	Lid Of Air Chamber
④	Switch Spring	27	Felt Ring
⑤	Valve Plug	28	Pump Cylinder Gasket
⑥	Valve Plug O-Ring ∅9.5х1.9	29	Pump Cylinder
⑦	Seal Ring	30	Pump Cylinder O-Ring Seal
⑧	Switch Pin	31	Split Pin ∅2х25
⑨	Switch Body	32	Fix Clamp For Rocker Bar
⑩	O- Ring ∅18.5х2.65	33	Fix Ring For Rocker Bar
11	Switch Filter Screen	34	Rocker Bar Sheath
12	Handle	35	Rocker Bar Assembly
7	Flared Sheath	36	Air Chamber Assemble
8	Plastic Tube Sleeve	37	Leather Cup
9	Plastic Tube	38	Fan-Style Head
10	Belt Buckle	39	300 Dual Head
11	Belt	40	Adjustable Head With Four Apertures
12	Belt Pad
