DWP15CI

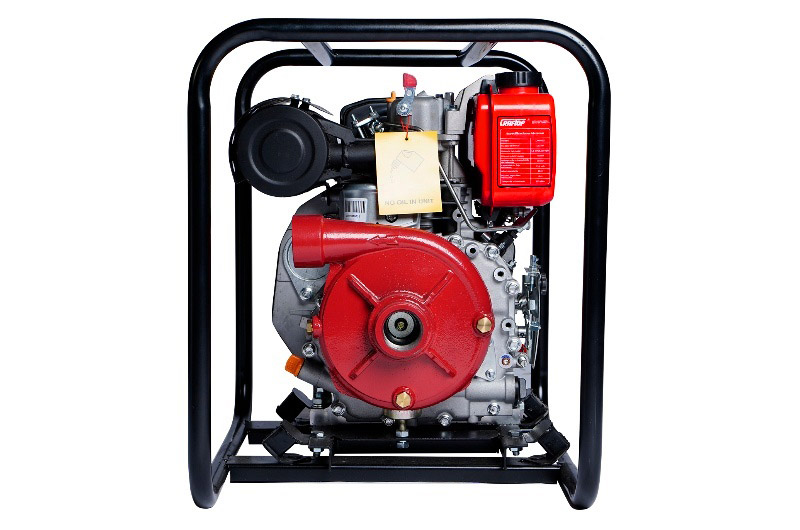

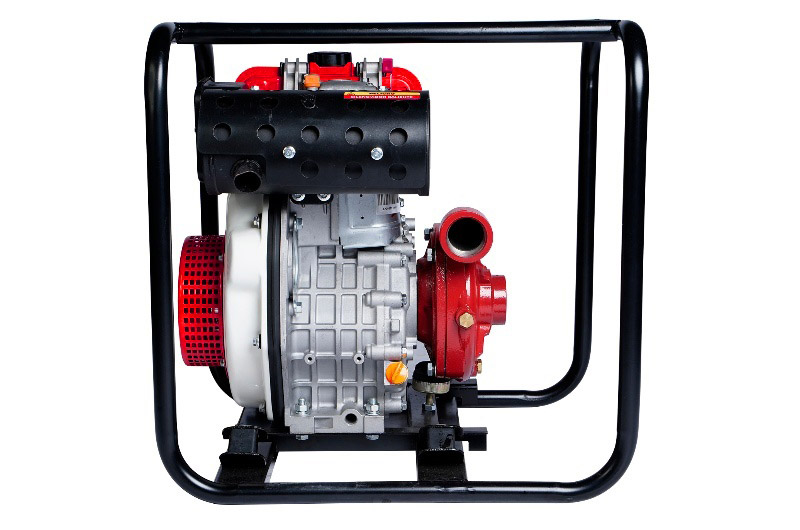

High Pressure Diesel Pump DWP15CI, Made to Last and Resist

The powerful and efficient 296cc diesel engine provides extraordinary 8HP power performance and increases excellent load capacity.
The complete machine has compact structure, light weight, cast iron pump to maximize the rate of flow.
It features 1.5-inch suction and discharge port to provide a large water discharge.
All machines are accurately tested and adjusted to ensure that the engine works stably under suitable fuel consumption and temperature, and ensures that it will not stop at high temperature or be difficult to start under long-term high-speed operation.
The diesel pump is simple to use and easy to maintain.

Send An Inquiry

PRODUCT DESCRIPTION
SPECIFICATIONS
INQUIRY

PRODUCT DESCRIPTION

Powered by a 5.5 horsepower diesel engine with a 296cc displacement, this diesel water pump mobilizes water quickly, with a high reach of pumping head and a large volume of flow.

It has been designed for professional and extended use; for this reason, it comes with an iron casing and steel support.

This high pressure diesel pump is designed for irrigation and mobile operations. It is widely used for agriculture, factories, mining, construction sites, social common areas, underground wiring, pipeline maintenance, gardening, and fishery.

SPECIFICATIONS

Package dimension	570 x 460 x 680 mm (22.4 x 18.1 x 26.8 inch)
Gross weight	73 kg (161 lbs)
Net weight	70 kg (154 lbs)
Application type	Home use
Engine	1-cylinder,4-stroke,air cooled diesel engine
Displacement	296 cc
Engine power	4 kW
Rated engine speed	3600 rpm
Starter type	Recoil start / Electric start
Fuel	Summer: summer diesel (Grade No.2) Winter: winter diesel (Grade No.1+Grade No.2)
Fuel capacity	3.5 L
Engine oil	SAE 10W-30 (above CD grade)
Oil capacity	1.1 L
Suction port diameter	38.1 mm (1.5”)
Discharge port diameter	38.1 mm (1.5”)
Maximum flow	23.5 m³/h
Total suction lift up to	73 m (240 ft)
