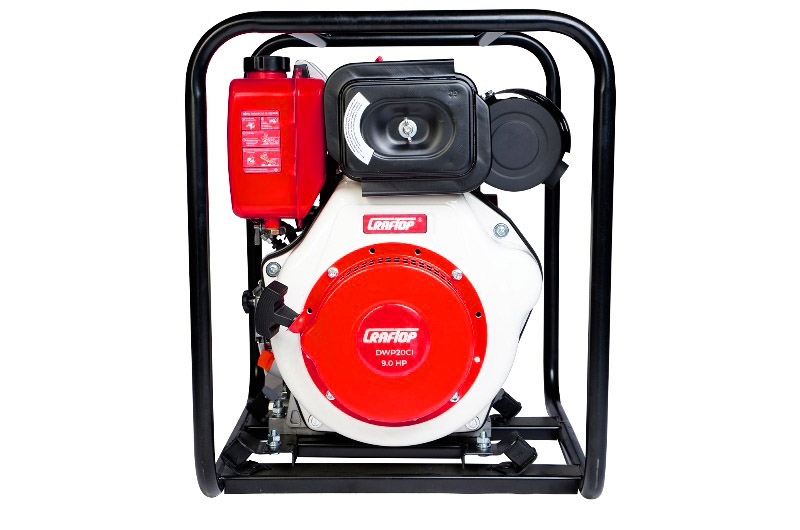

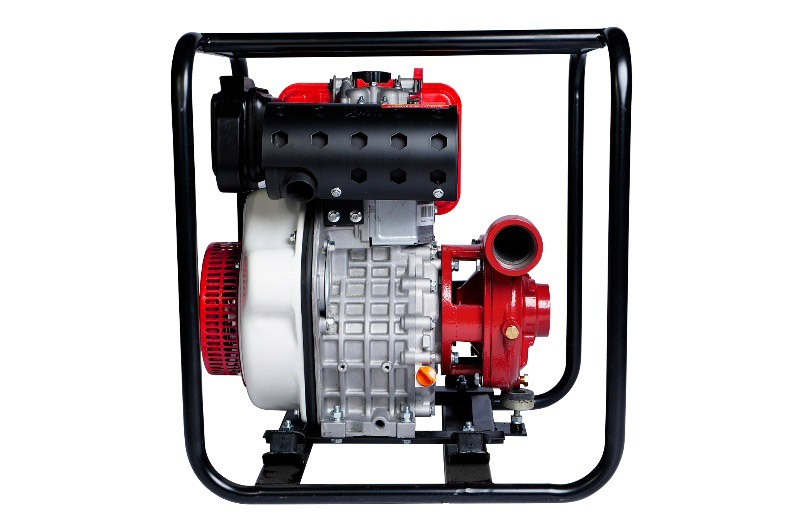

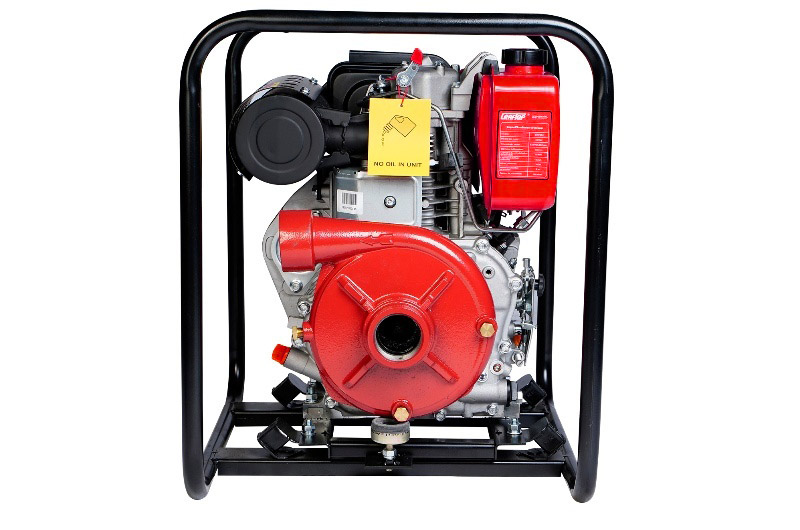

DWP20CI

High Pressure Diesel Pump DWP20CI, for Greater Power and Resistance

The powerful and efficient 418cc diesel engine provides extraordinary 10HP power performance and increases excellent load capacity.
The complete machine has compact structure, light weight, cast iron pump to maximize the rate of flow.
It features 2-inch suction and discharge port to provide a large water discharge.
All machines are accurately tested and adjusted to ensure that the engine works stably under suitable fuel consumption and temperature, and ensures that it will not stop at high temperature or be difficult to start under long-term high-speed operation.
The diesel pump is simple to use and easy to maintain.

Send An Inquiry

PRODUCT DESCRIPTION
SPECIFICATIONS
INCLUDES
INQUIRY

PRODUCT DESCRIPTION

Powered by a 9.0 horsepower, 418cc diesel engine. This diesel water pump mobilizes water quicker, with a greater reach of pumping head and superior flow volume. It has been designed for professional and extended use; for this reason it comes with an iron casing and steel support.

This high pressure diesel pump is designed for irrigation and mobile operations. It is widely used for agriculture, factories, mining, construction sites, social common areas, underground wiring, pipeline maintenance, gardening, and fishery.

SPECIFICATIONS

Package dimension	570 x 495 x 720 mm (22.4 x 19.5 x 28.4 inch)
Gross weight	80 kg (176 lbs)
Net weight	78 kg (172 lbs)
Application type	Home use
Engine	1-cylinder,4-stroke,air cooled diesel engine
Displacement	418 cc
Engine power	6.6 kW
Rated engine speed	3600 rpm
Starter type	Recoil start / Electric start
Fuel	Summer: summer diesel (Grade No.2) Winter: winter diesel (Grade No.1+Grade No.2)
Fuel capacity	5.5 L
Engine oil	SAE 10W-30 (above CD grade)
Oil capacity	1.65 L
Suction port diameter	50.8 mm (2”)
Discharge port diameter	50.8 mm (2”)
Maximum flow	35 m³/h
Total suction lift up to	100 m (328 ft)

INCLUDES

(1x) Diesel pump
(1x) Open-end wrench 10-12
(1x) Open-end wrench 14-17
(1x) Screwdriver
(1x) Tool bag
(1x) Warranty card
(1x) Owner’s manual
